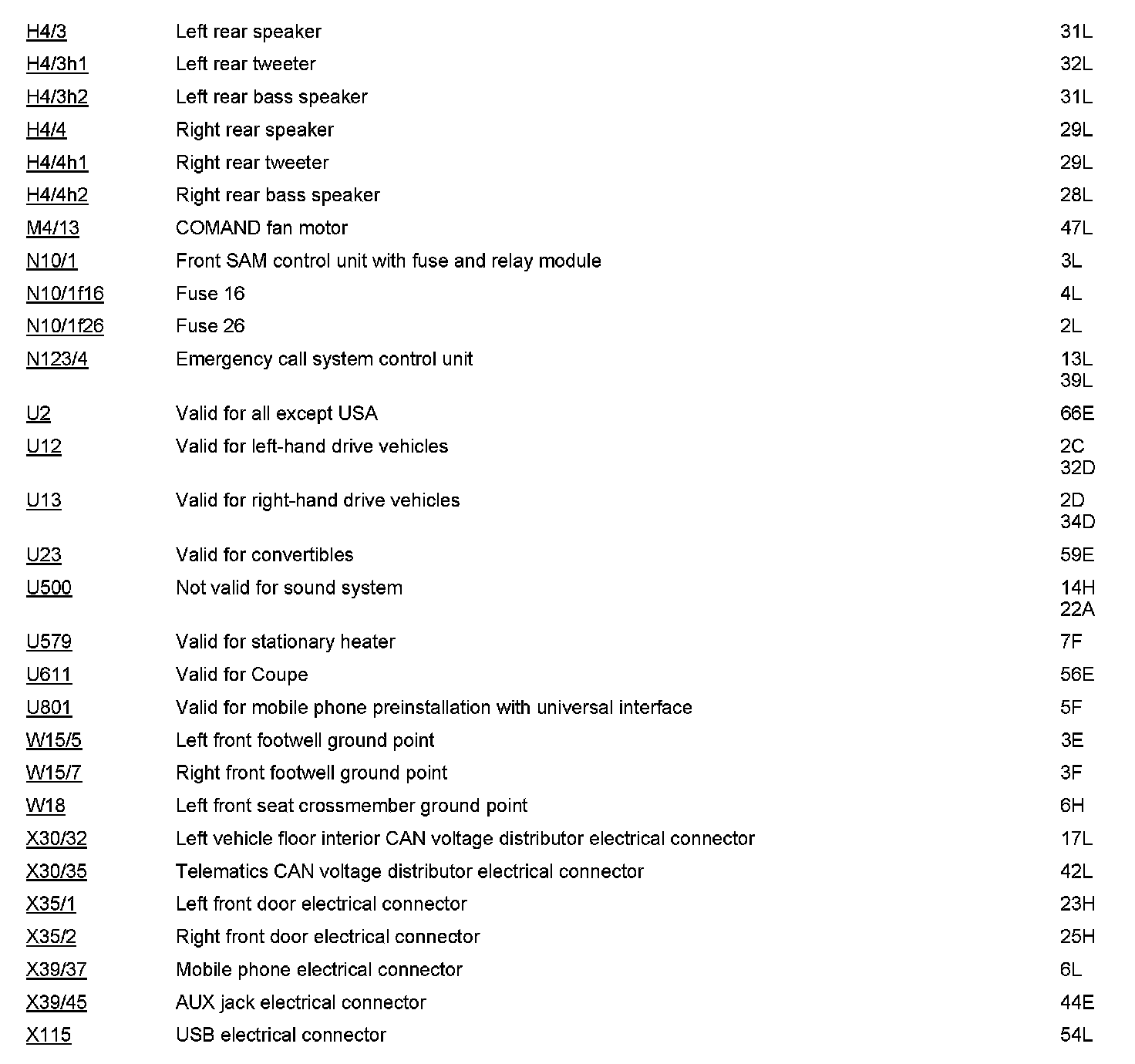

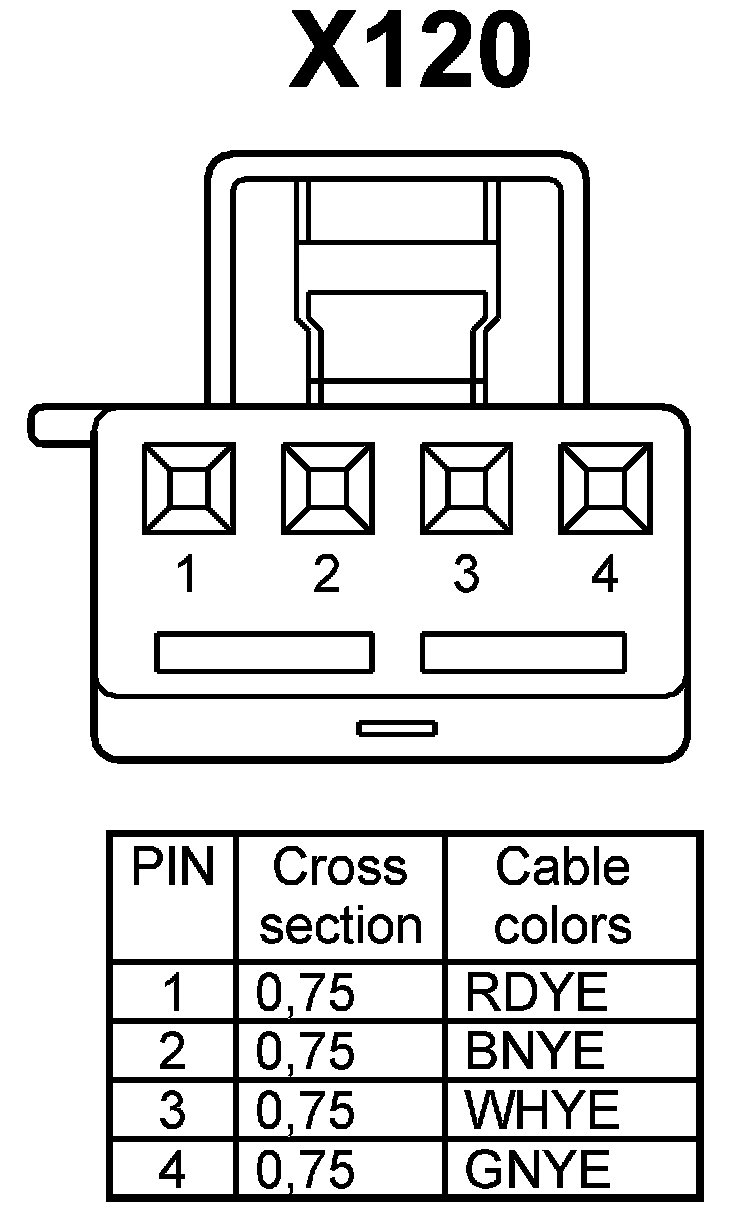

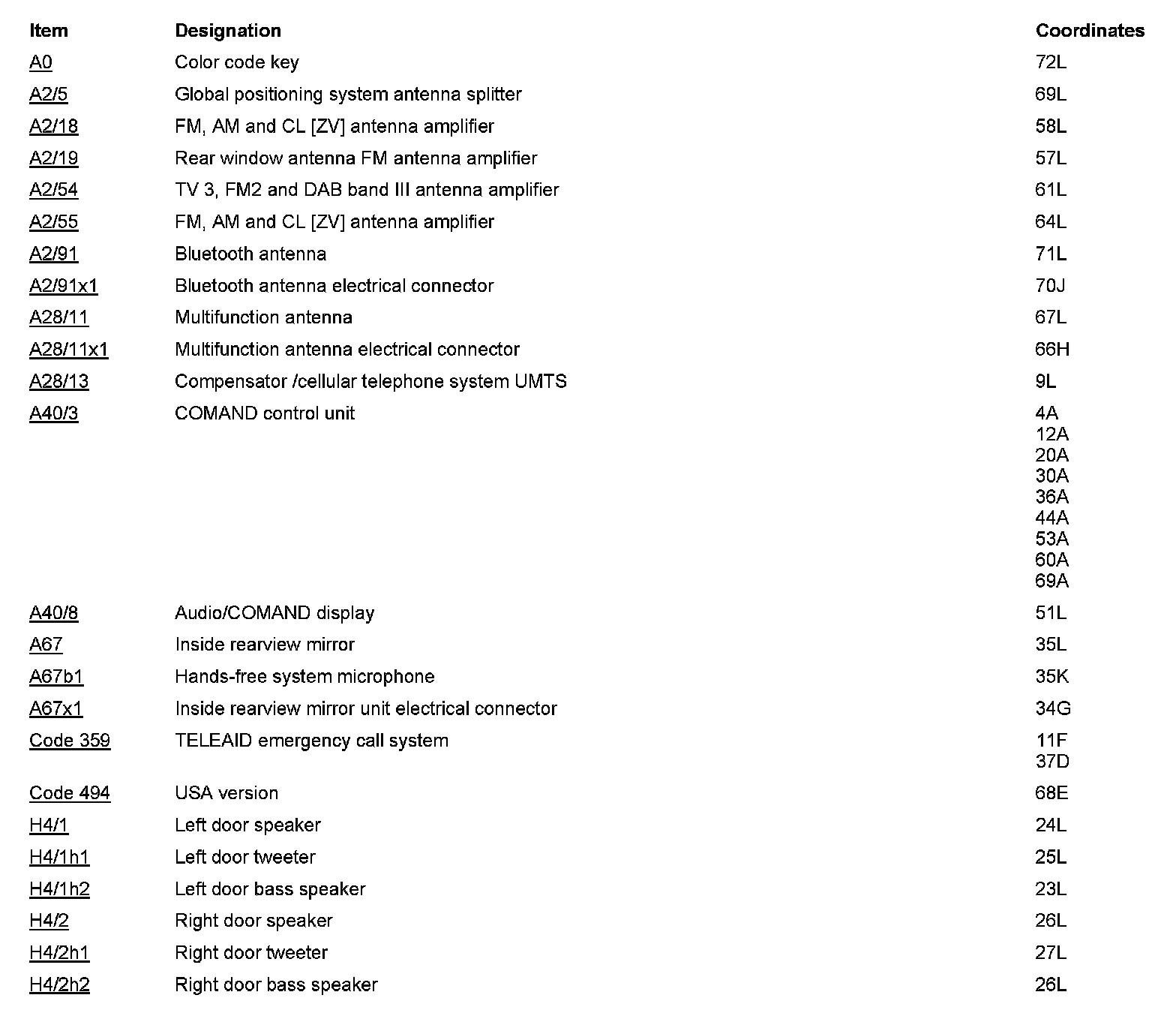

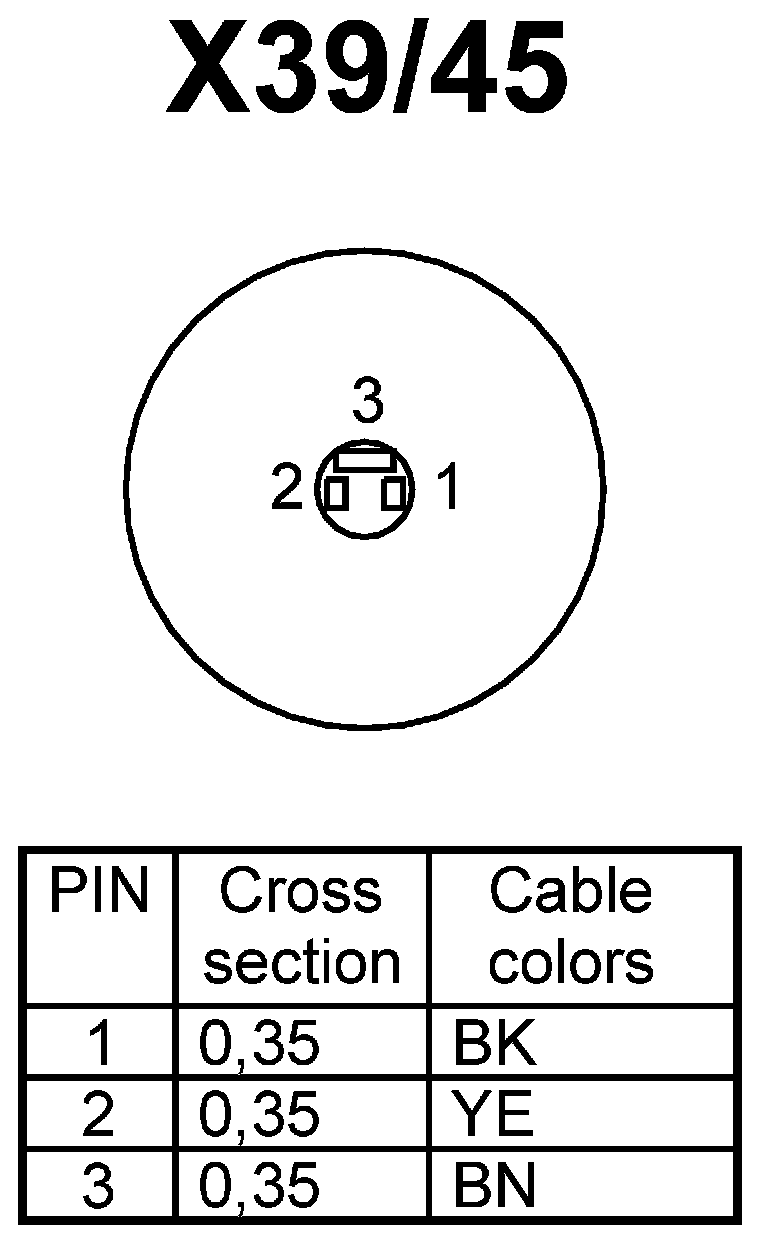

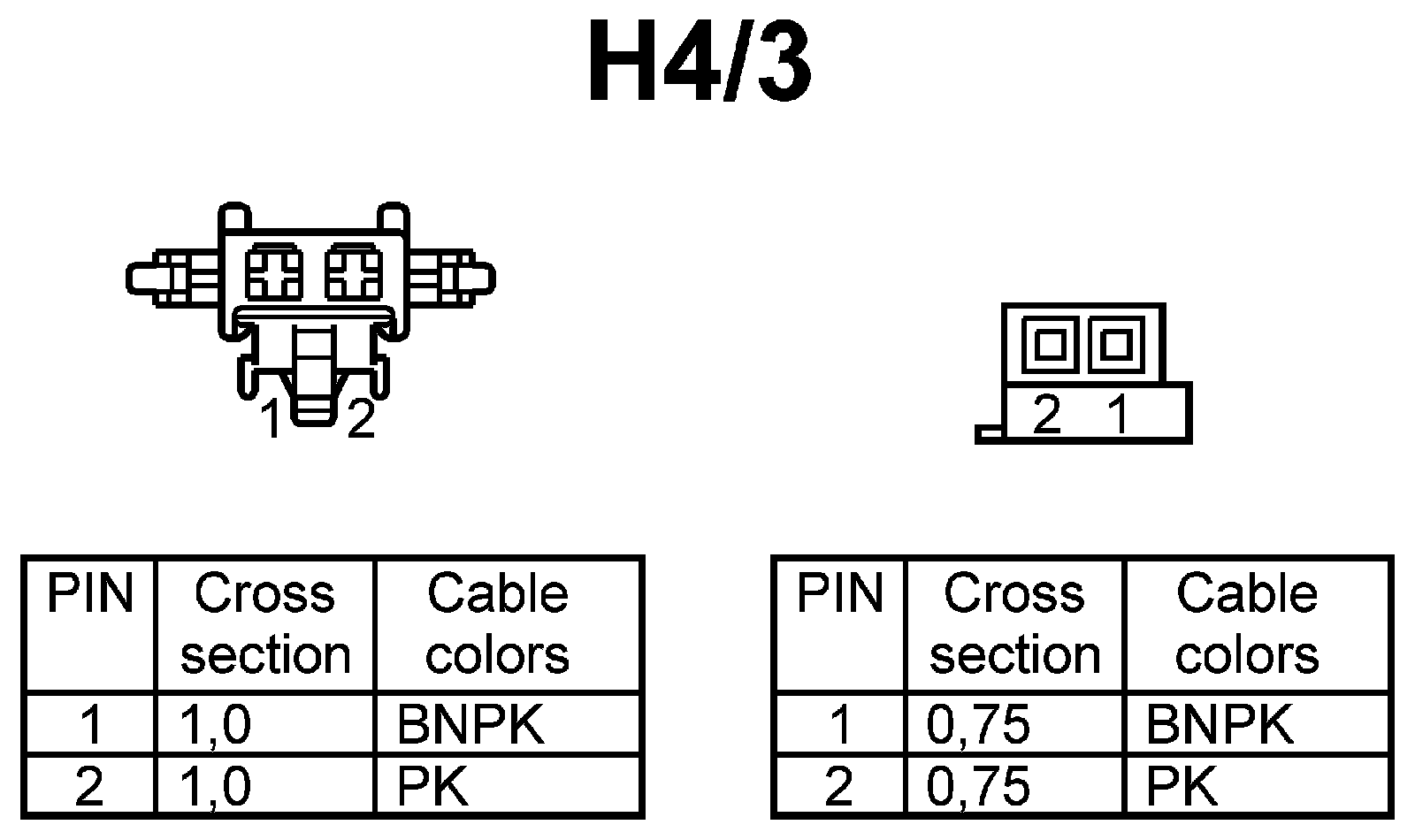

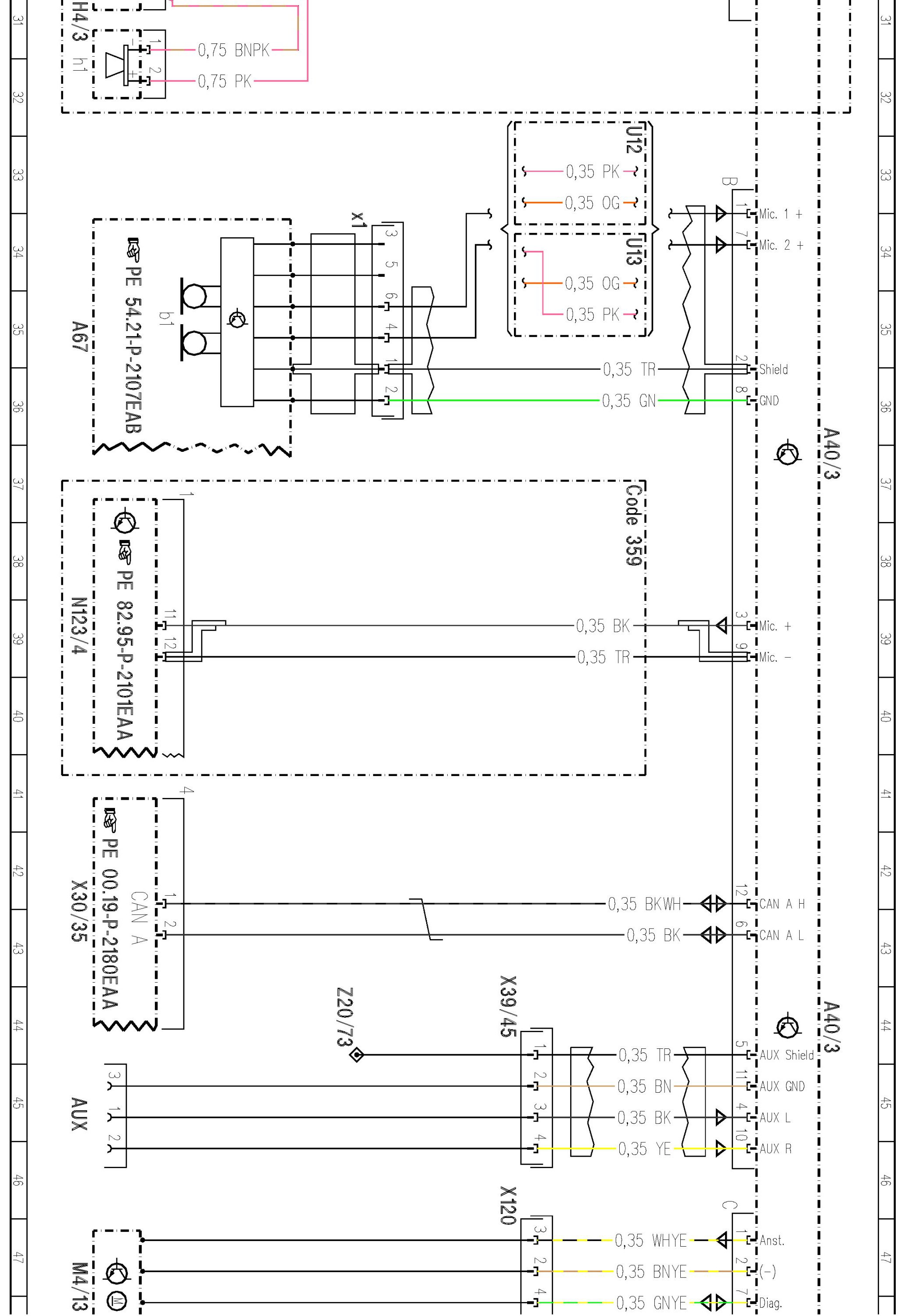

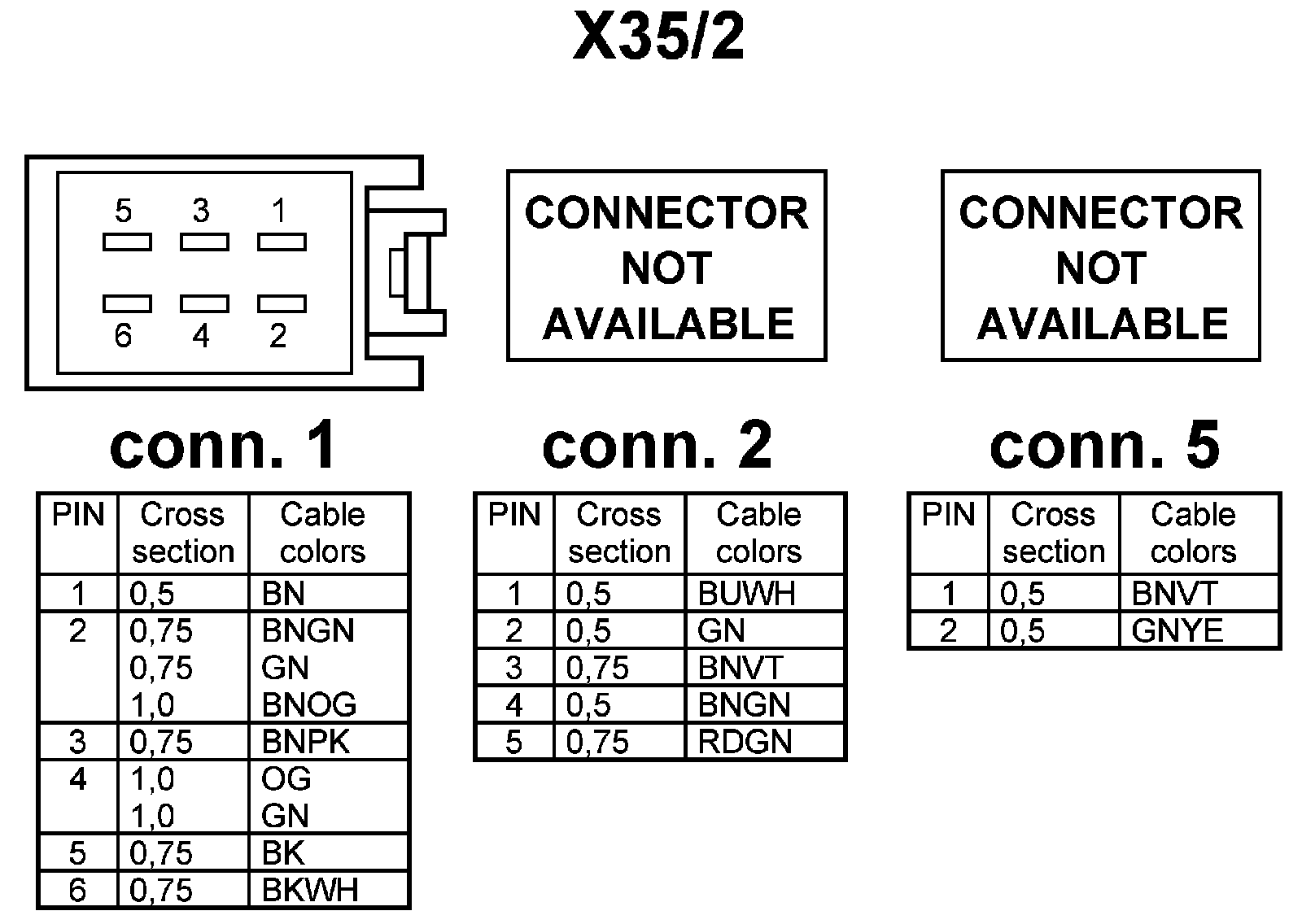

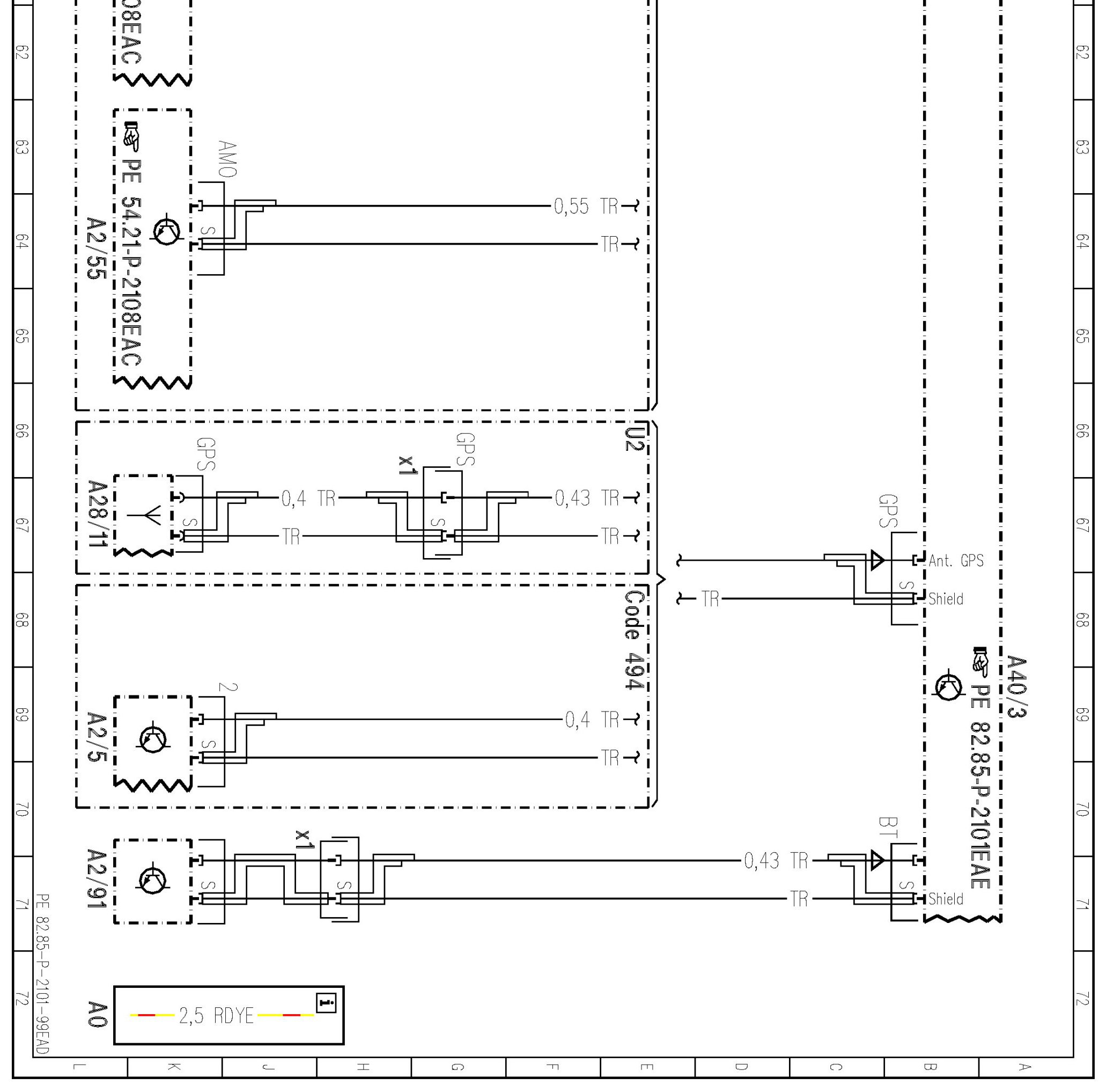

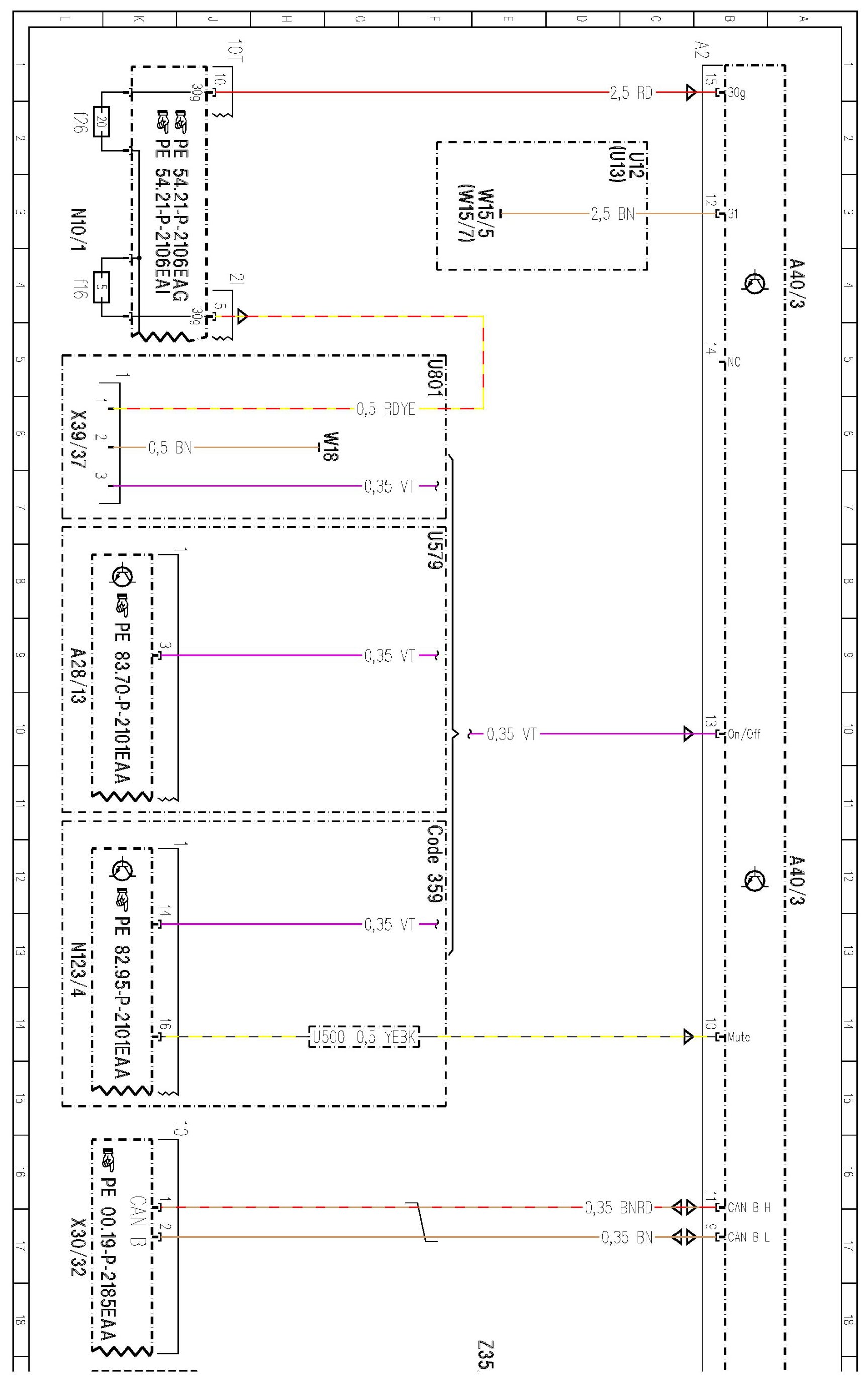

PE82.85-P-2101EAD Cockpit Management And Data System (COMAND) Control Unit Wiring Diagram

PE82.85-P-2101EAD Cockpit Management And Data System (COMAND) Control Unit Wiring Diagram

MODEL 207
- as of 07/01/11
- with CODE (512) COMAND APS with DVD changer
- except CODE (498) Japan version
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (528) HIGH Class USA
- with CODE (494) USA version
- with CODE (526) COMAND (without navigation)
- except CODE (498) Japan version

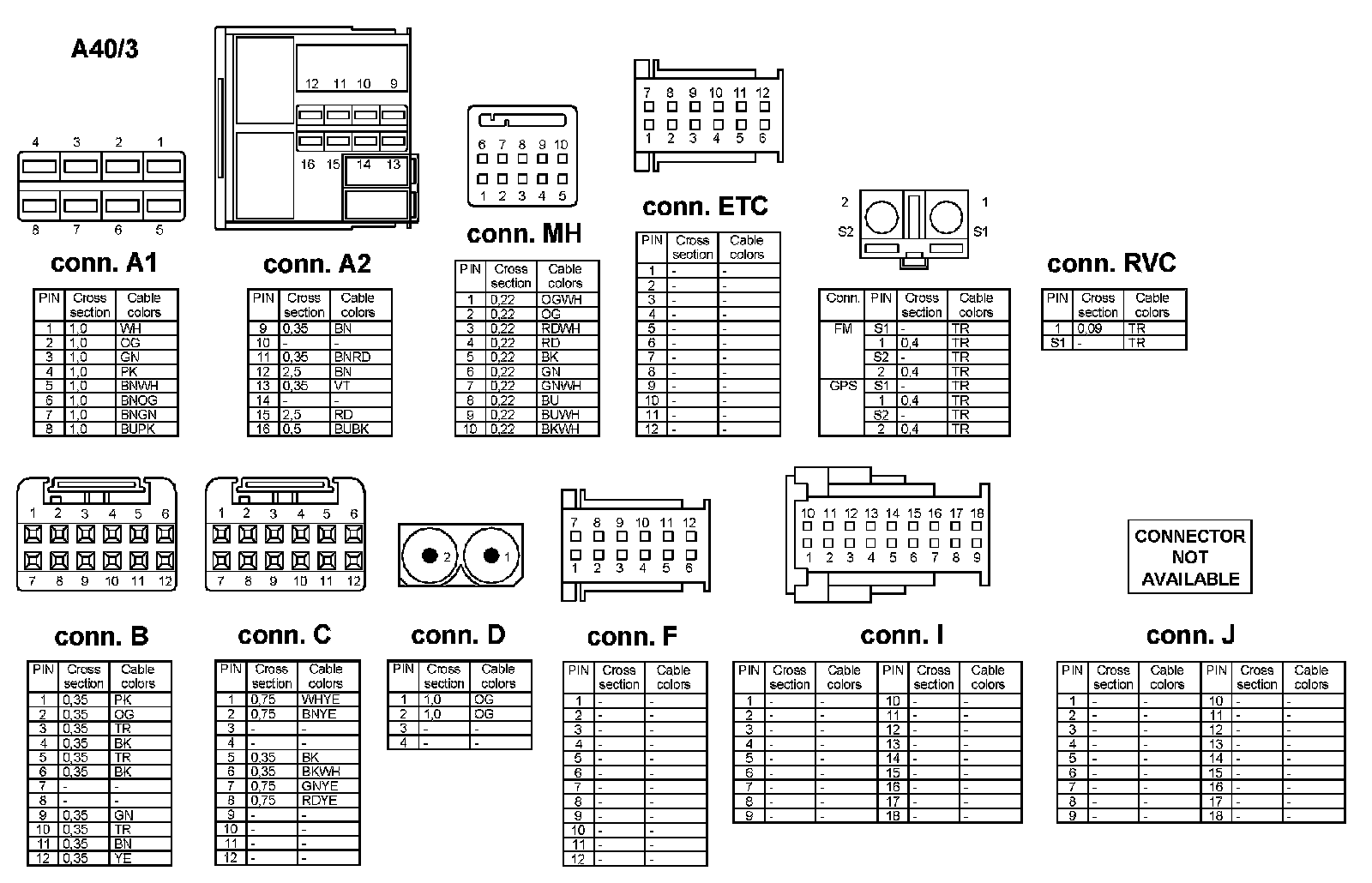

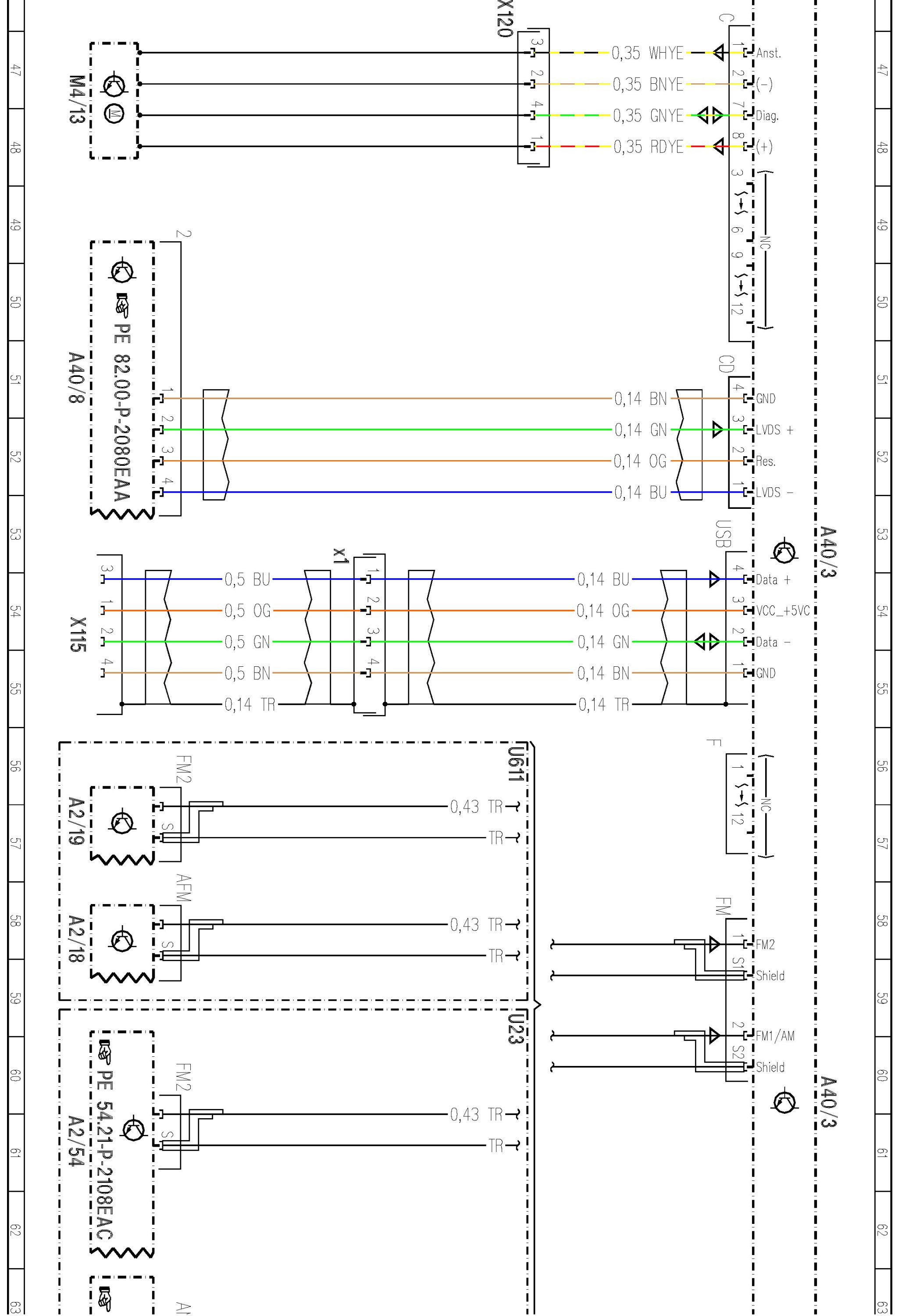

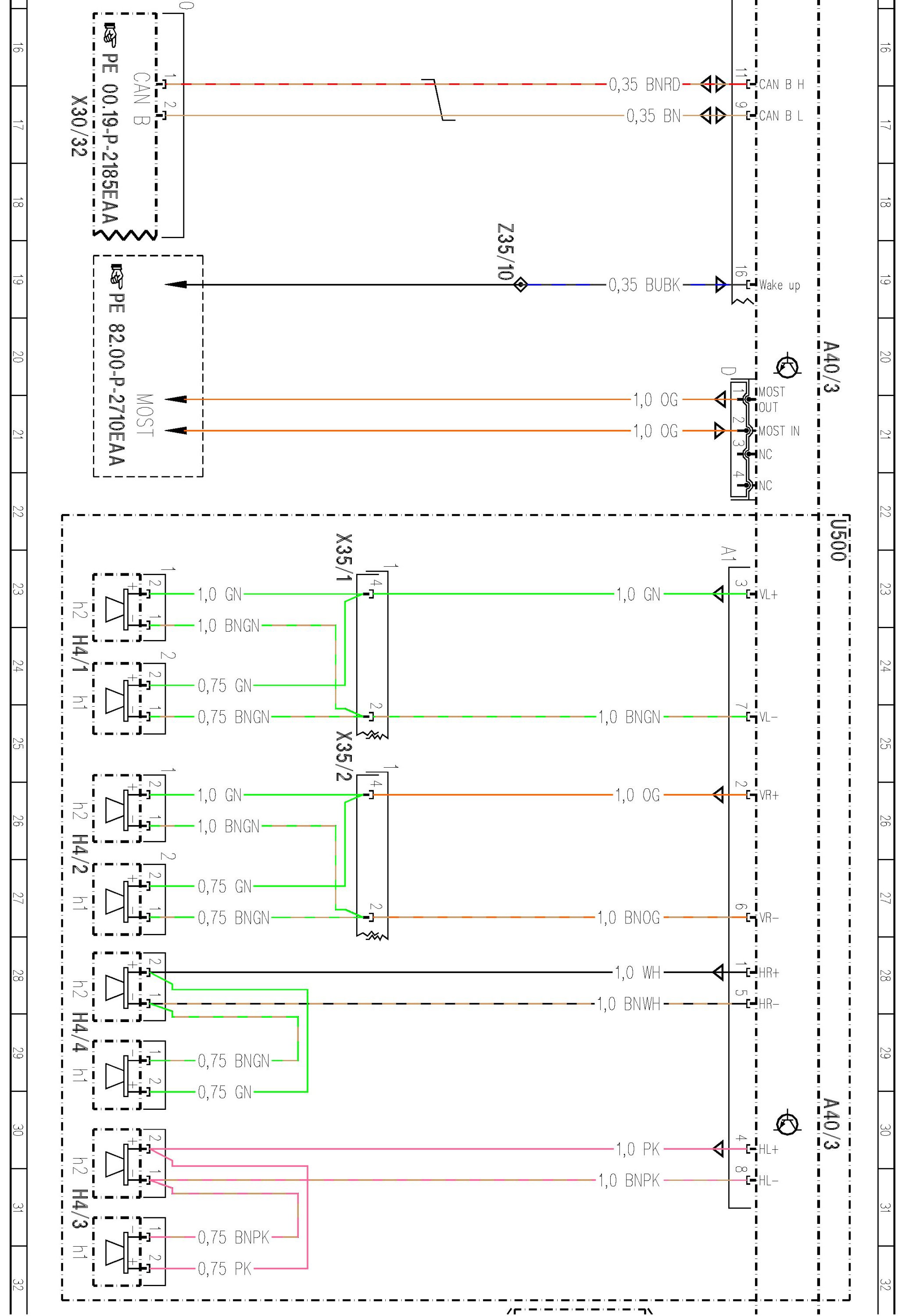

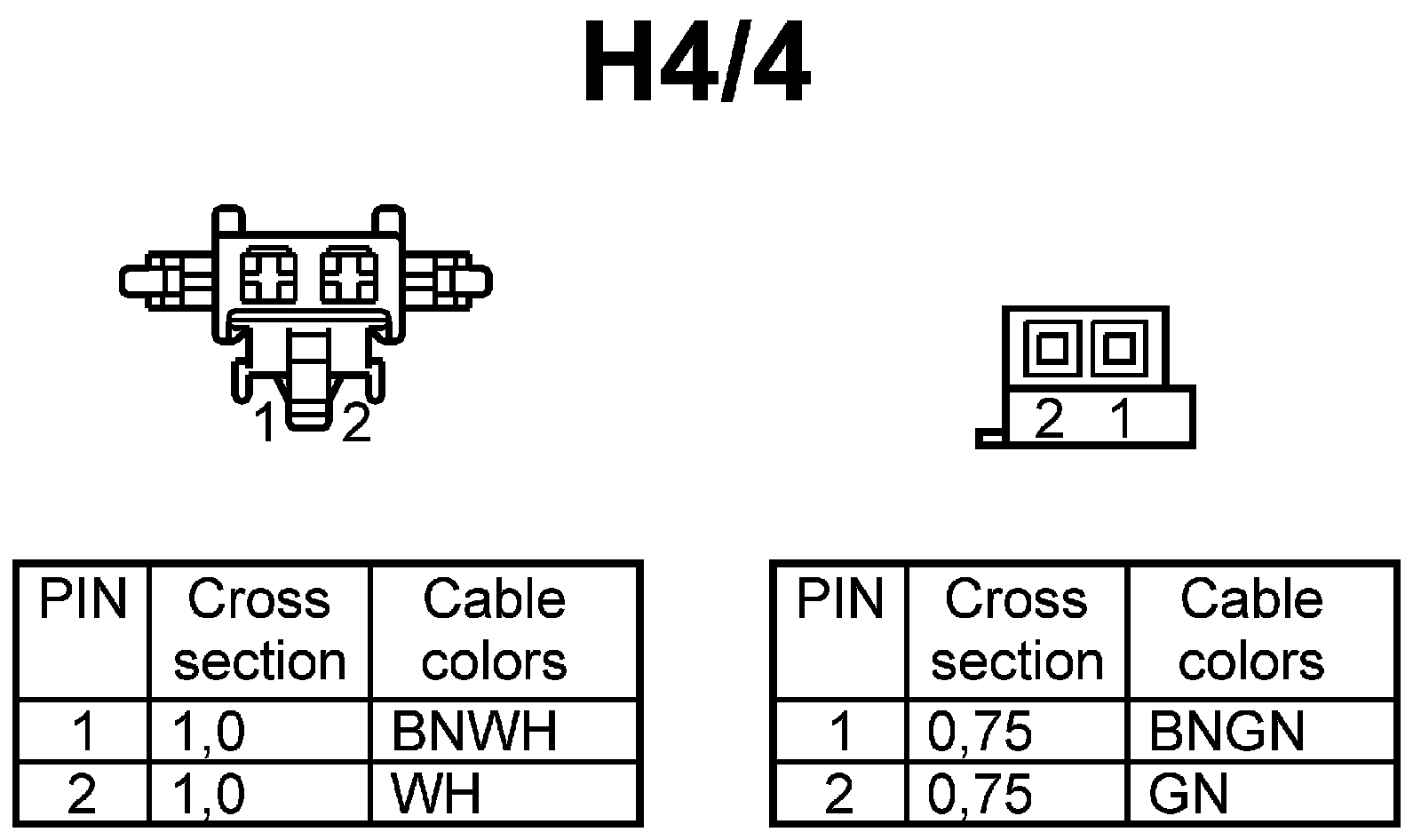

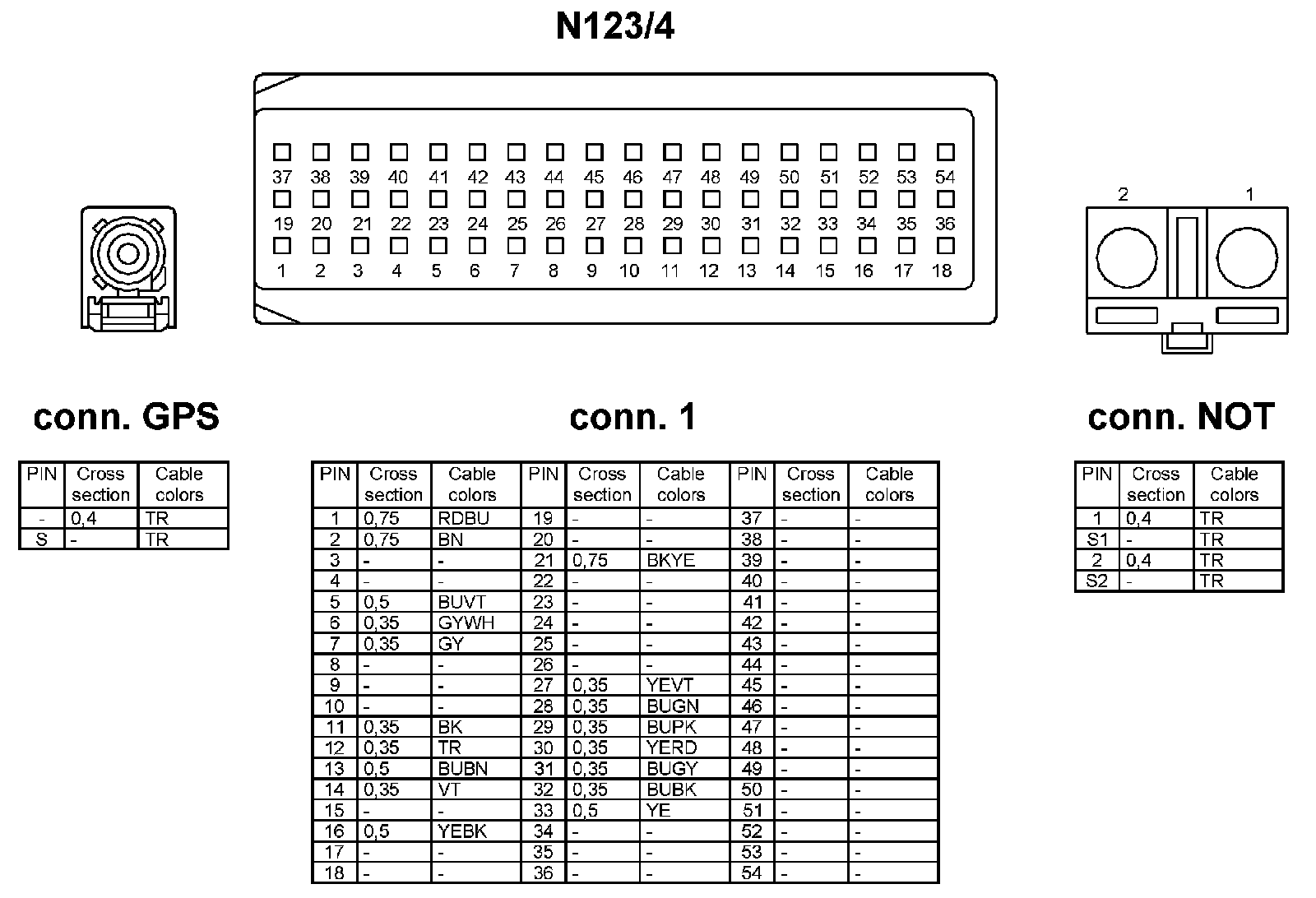

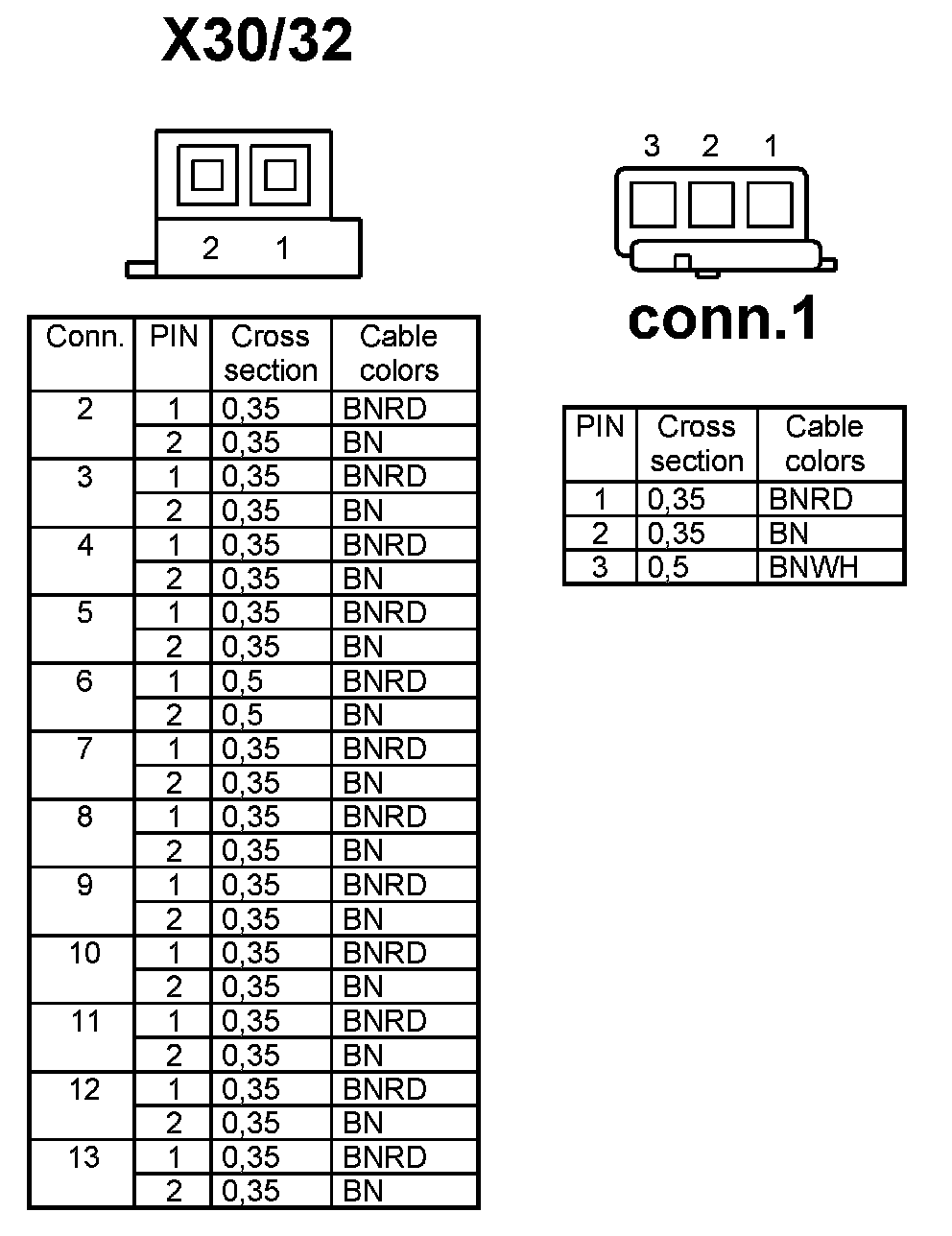

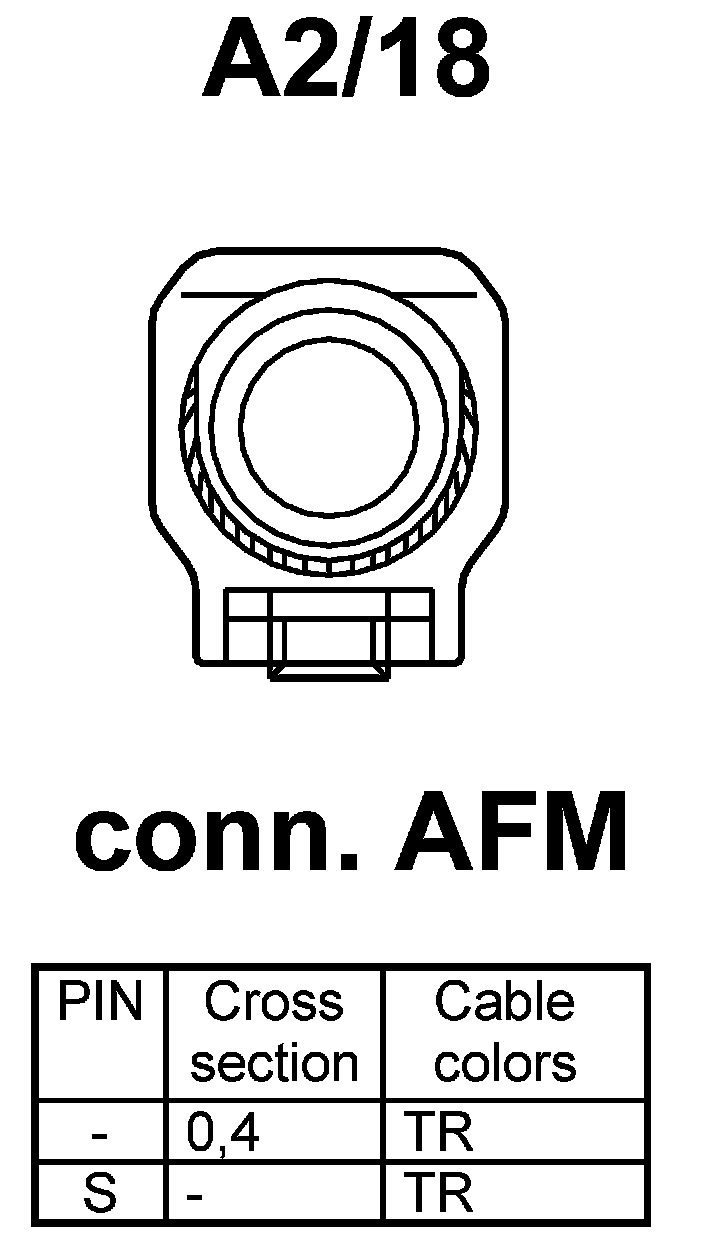

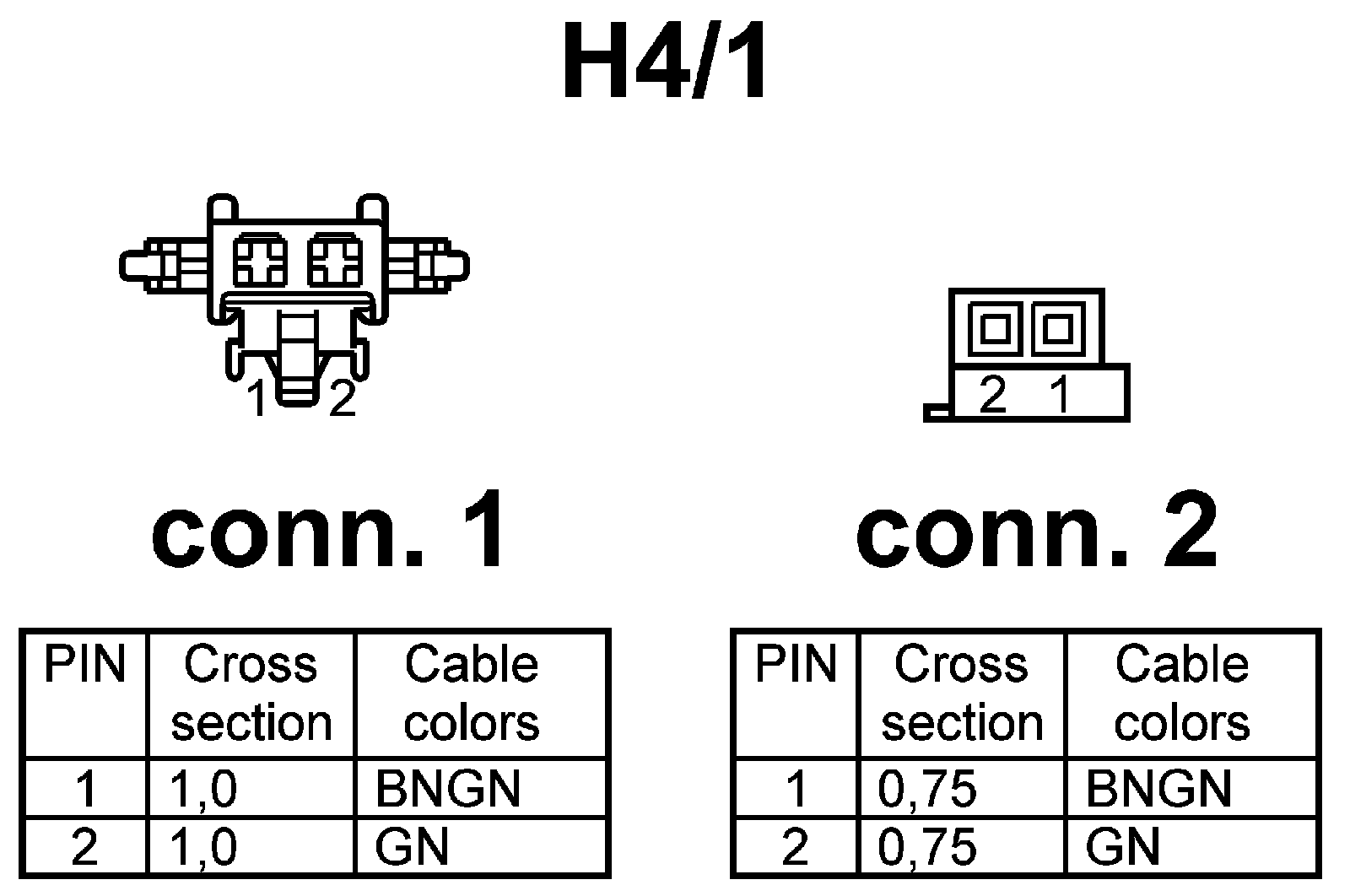

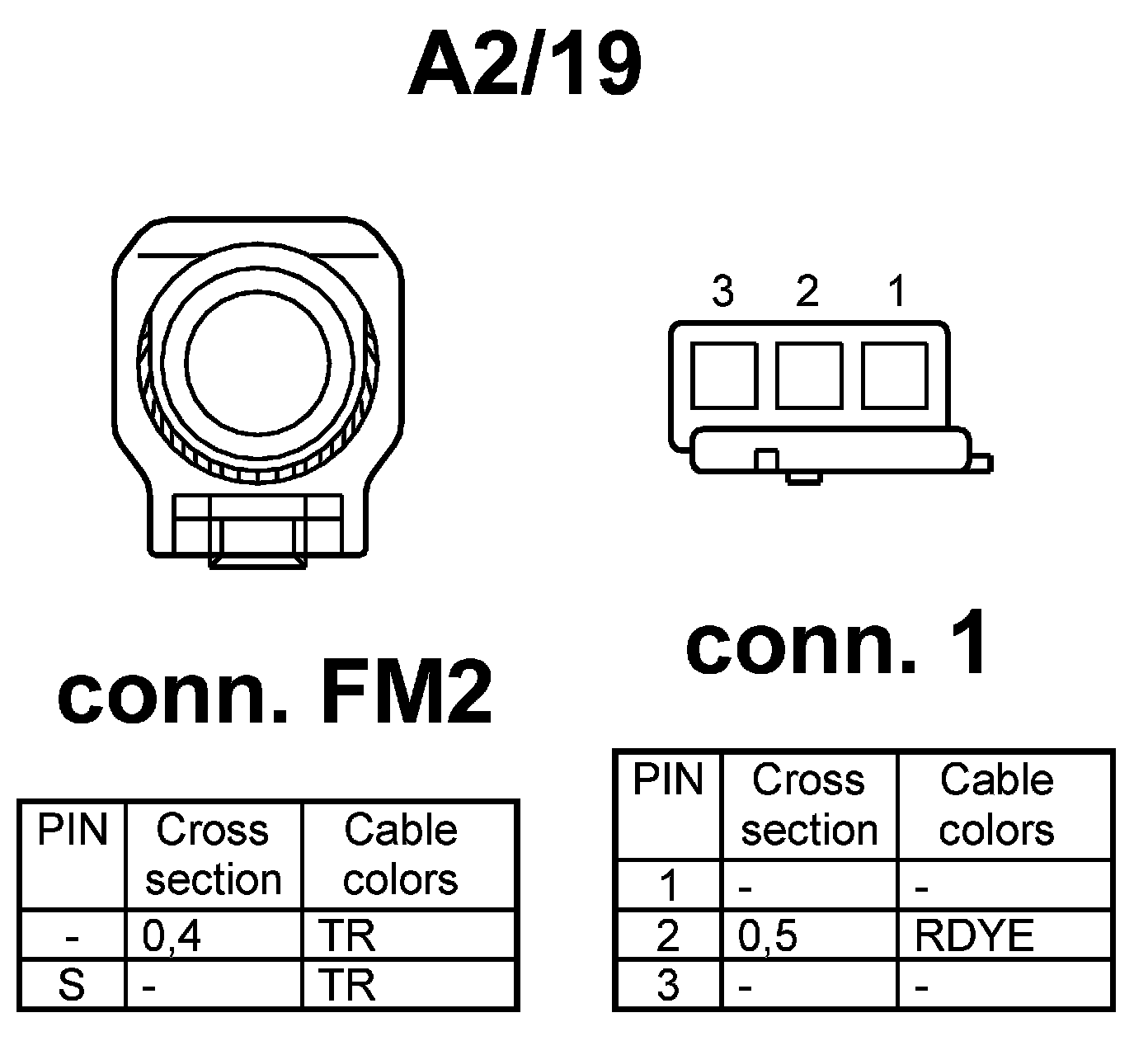

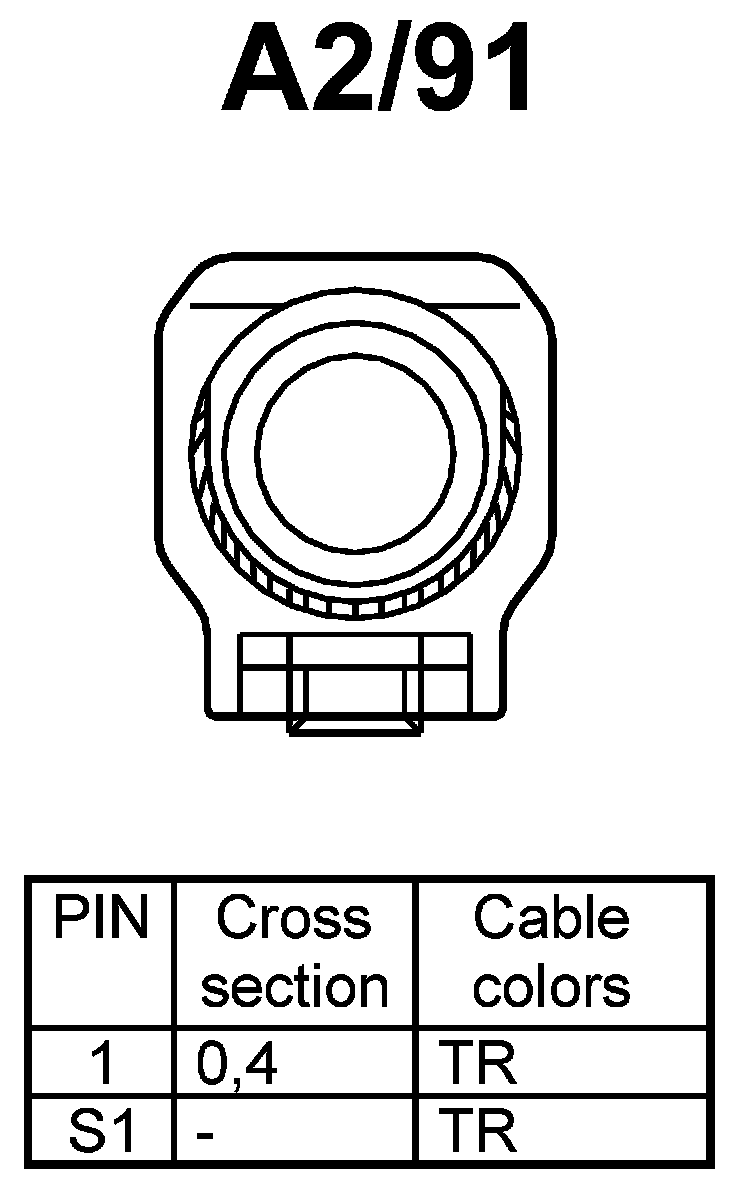

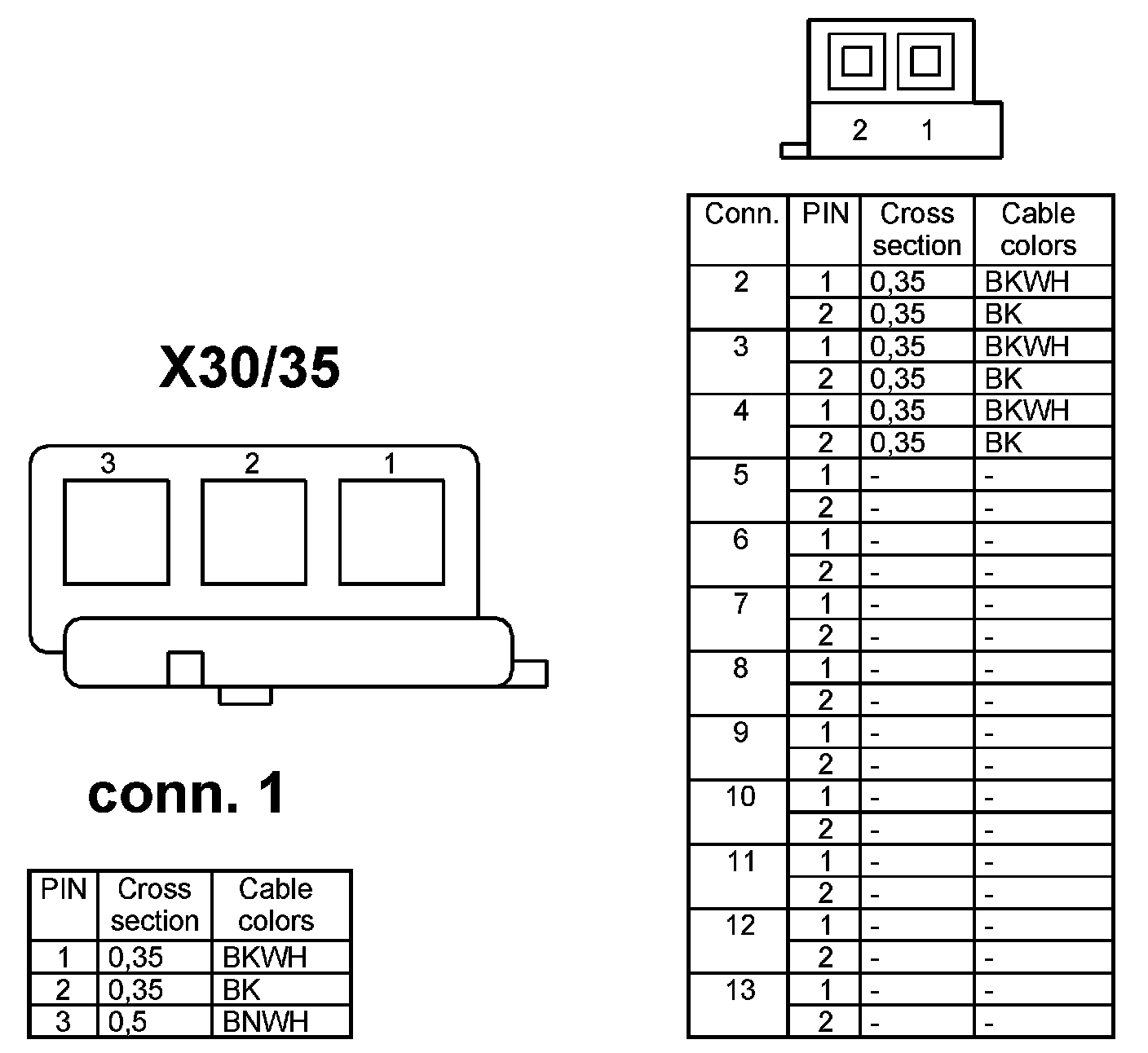

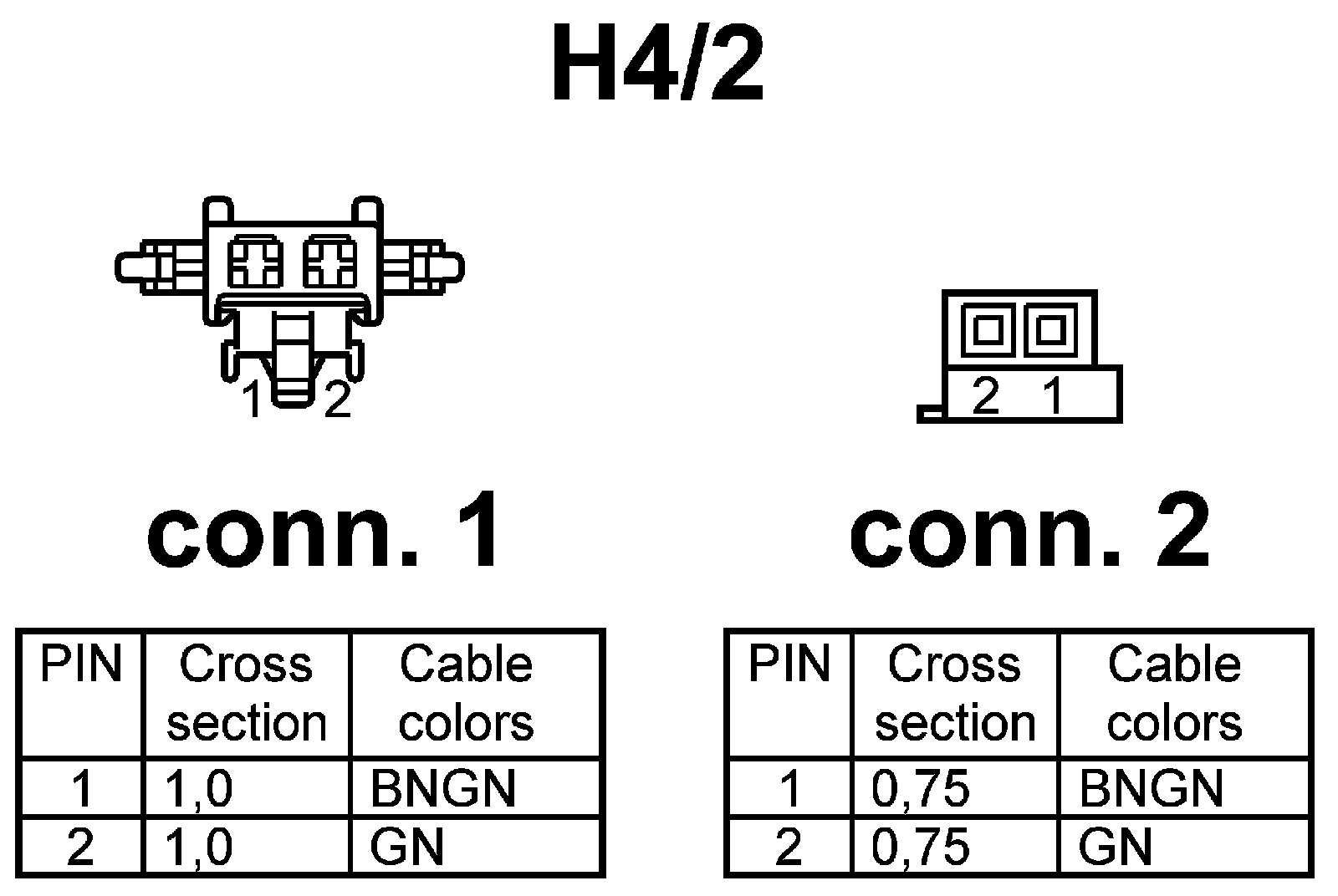

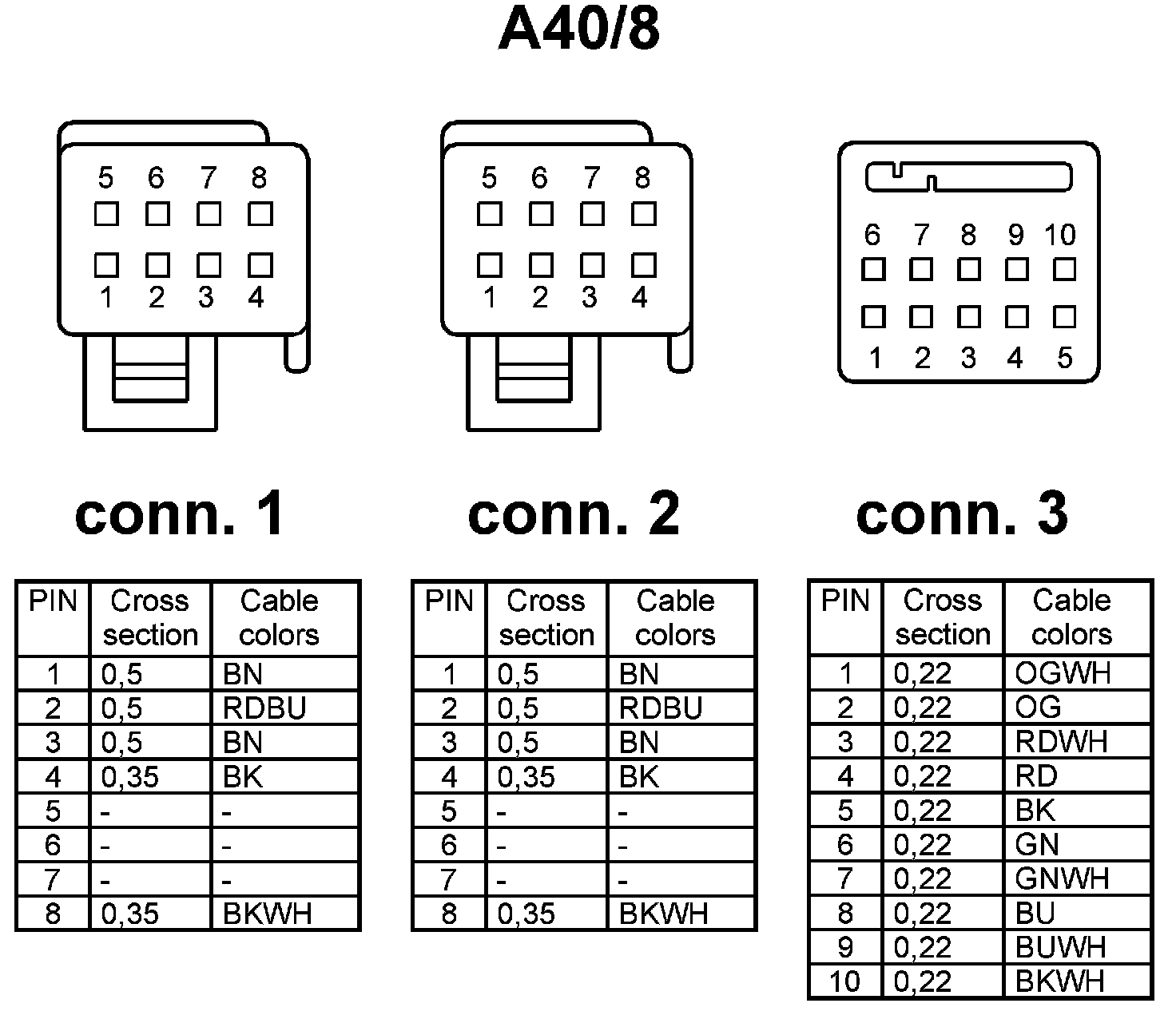

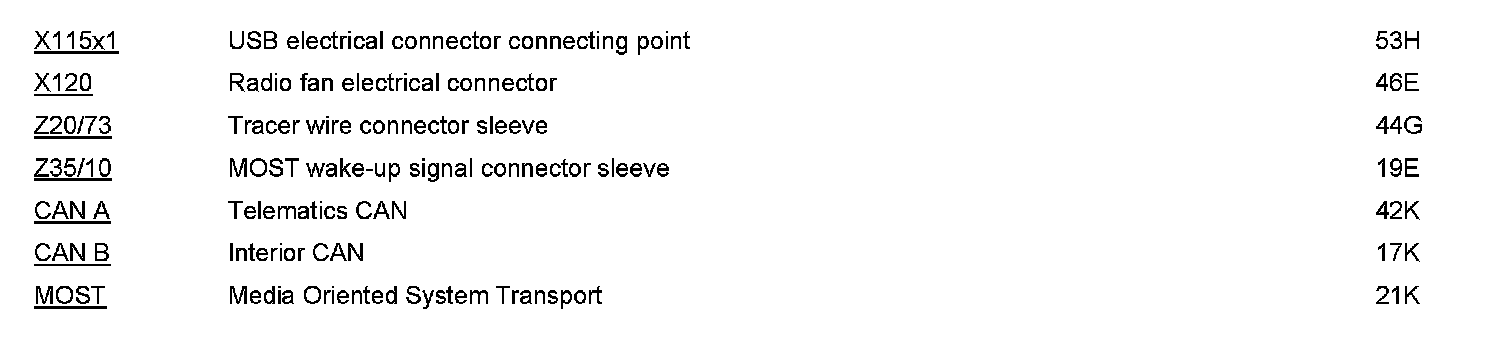

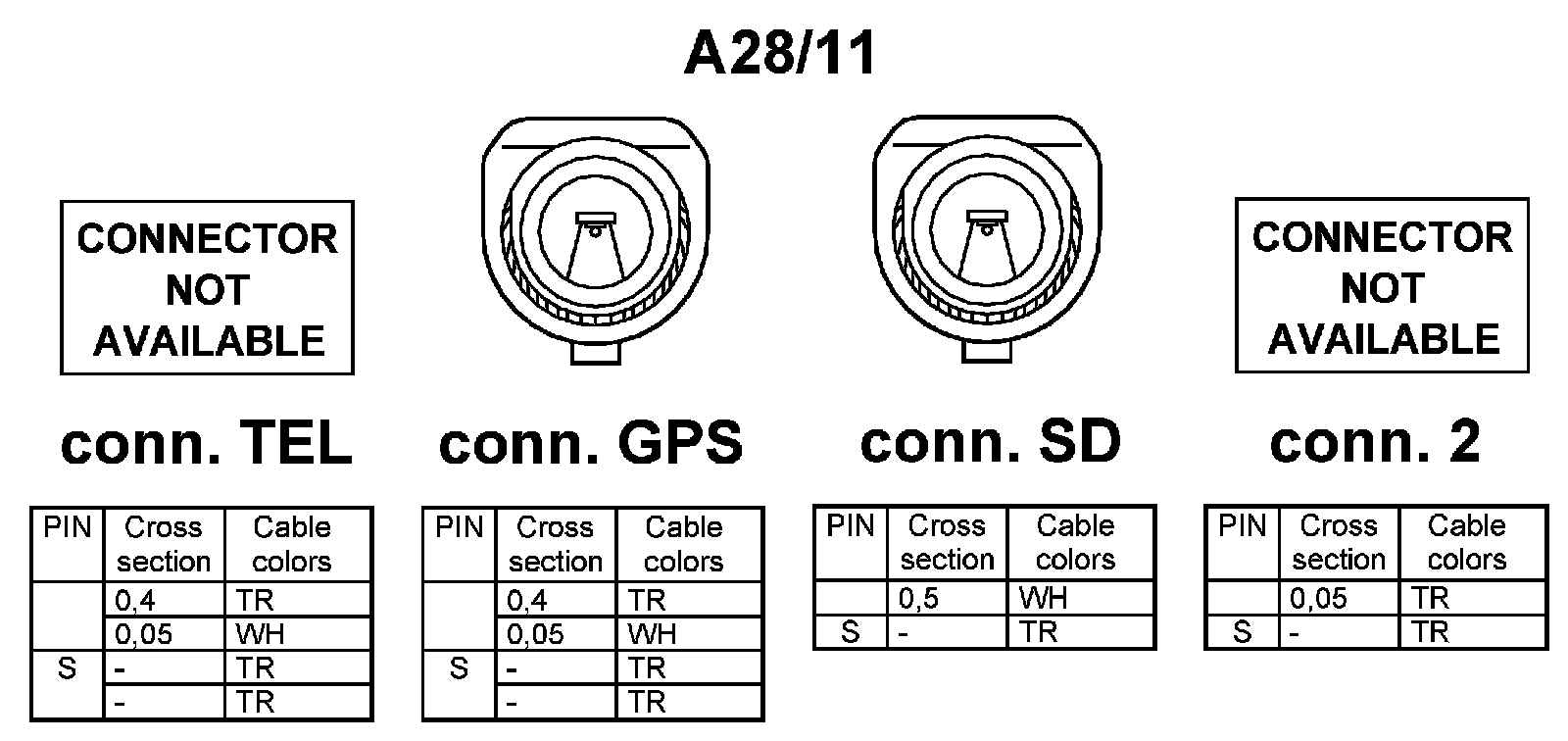

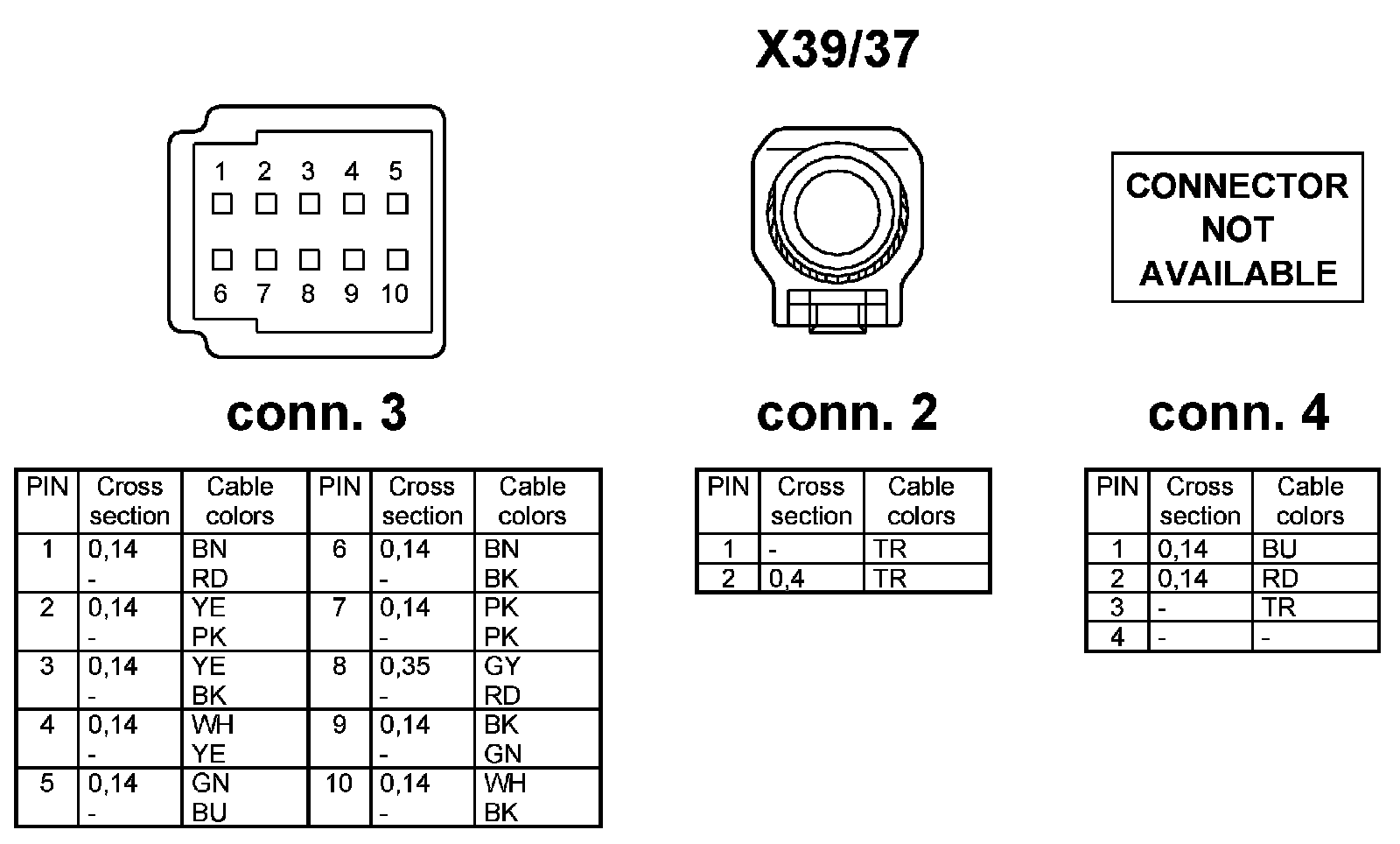

- Control unit A40/3, sheet 1














































































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
