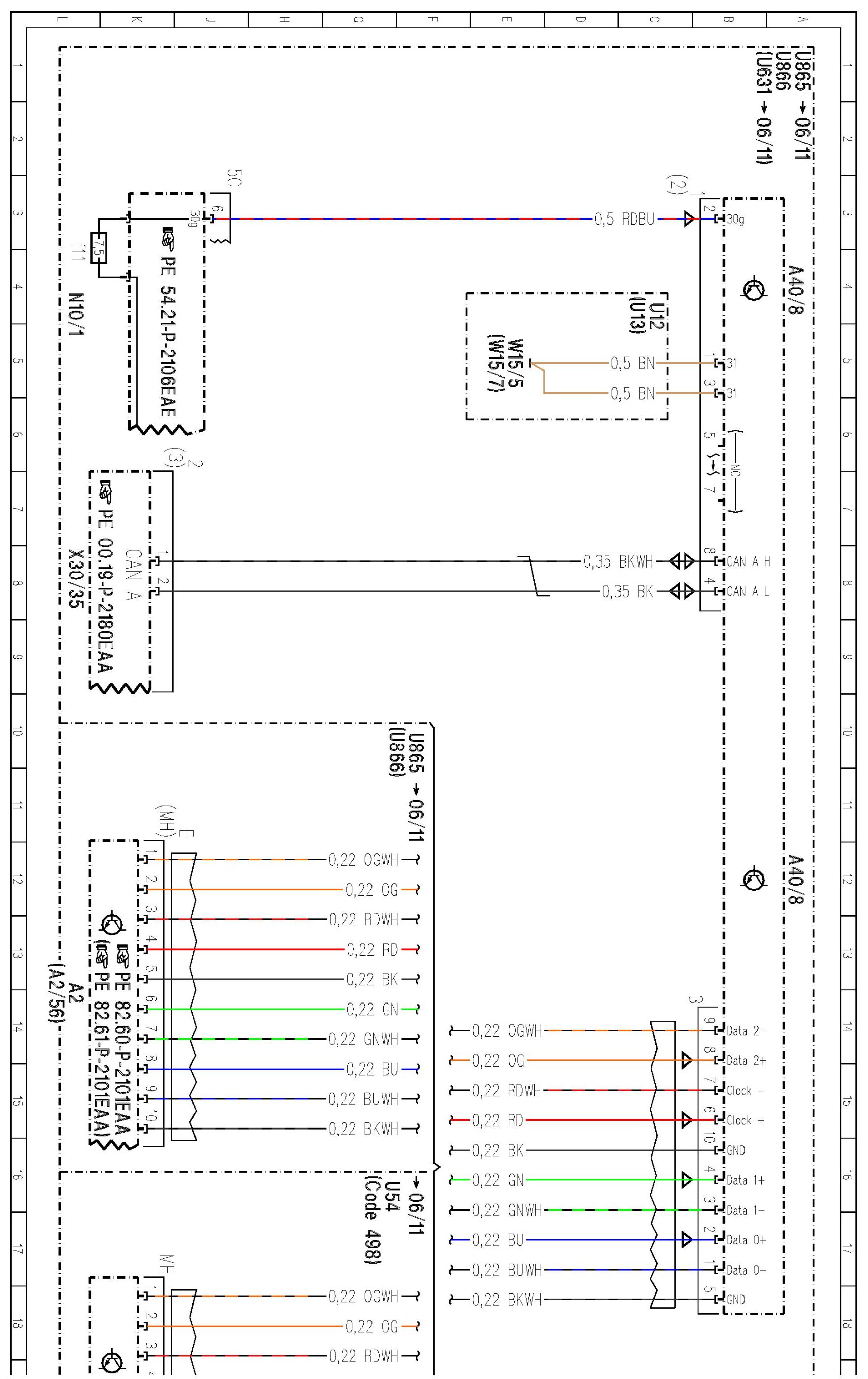

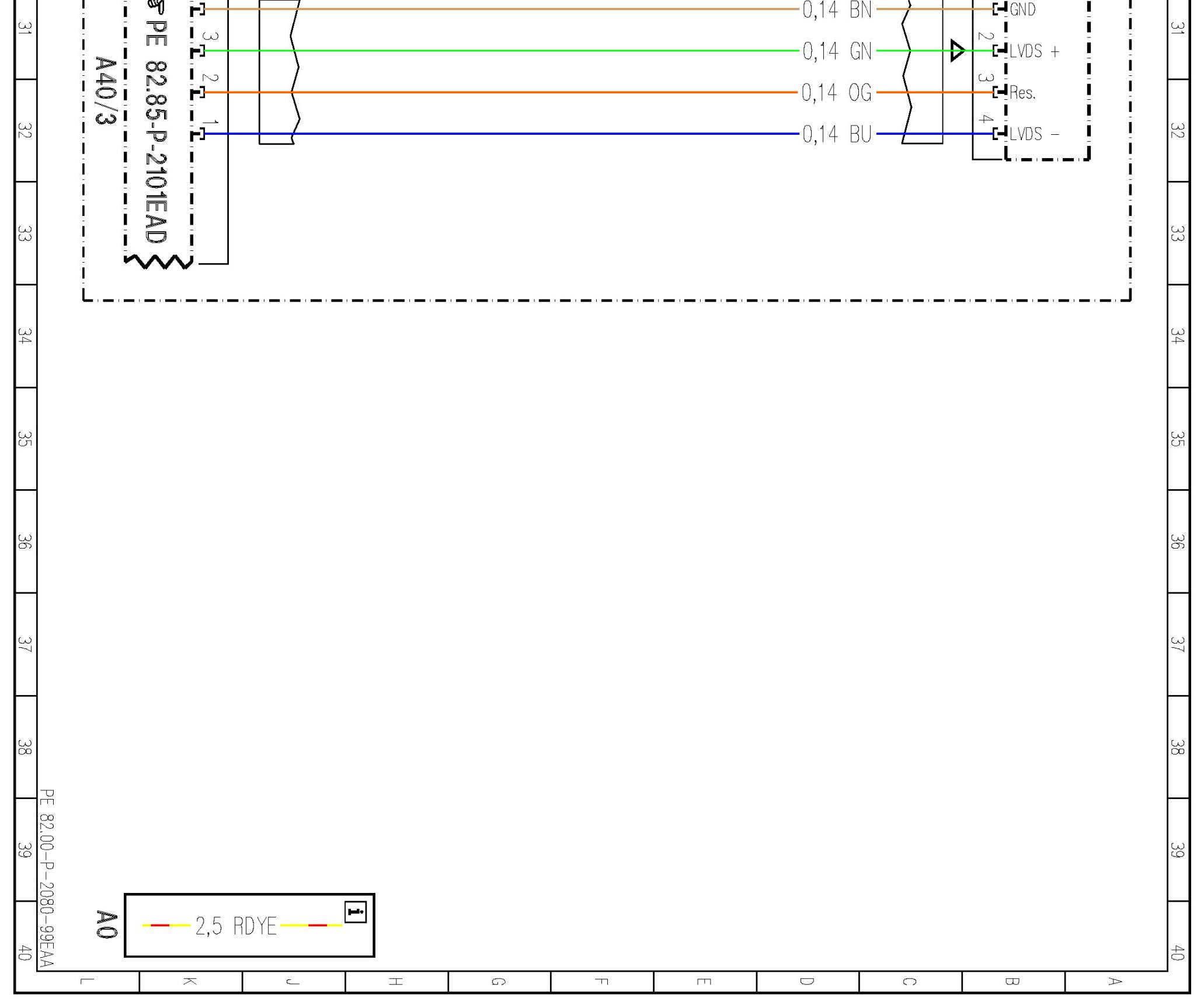

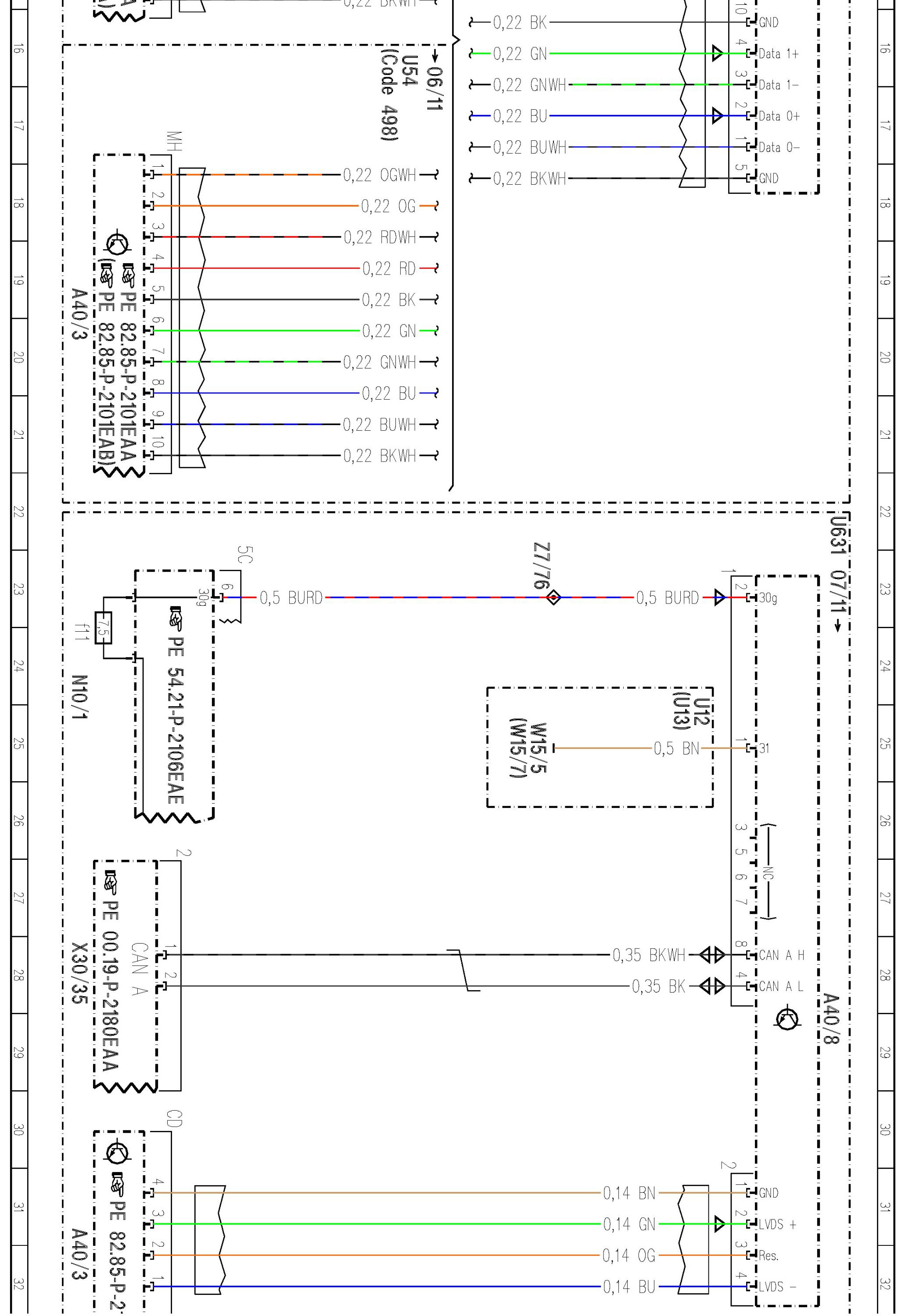

PE82.00-P-2080EAA Audio/COMAND Display



PE82.00-P-2080EAA Audio/COMAND Display

MODEL 207

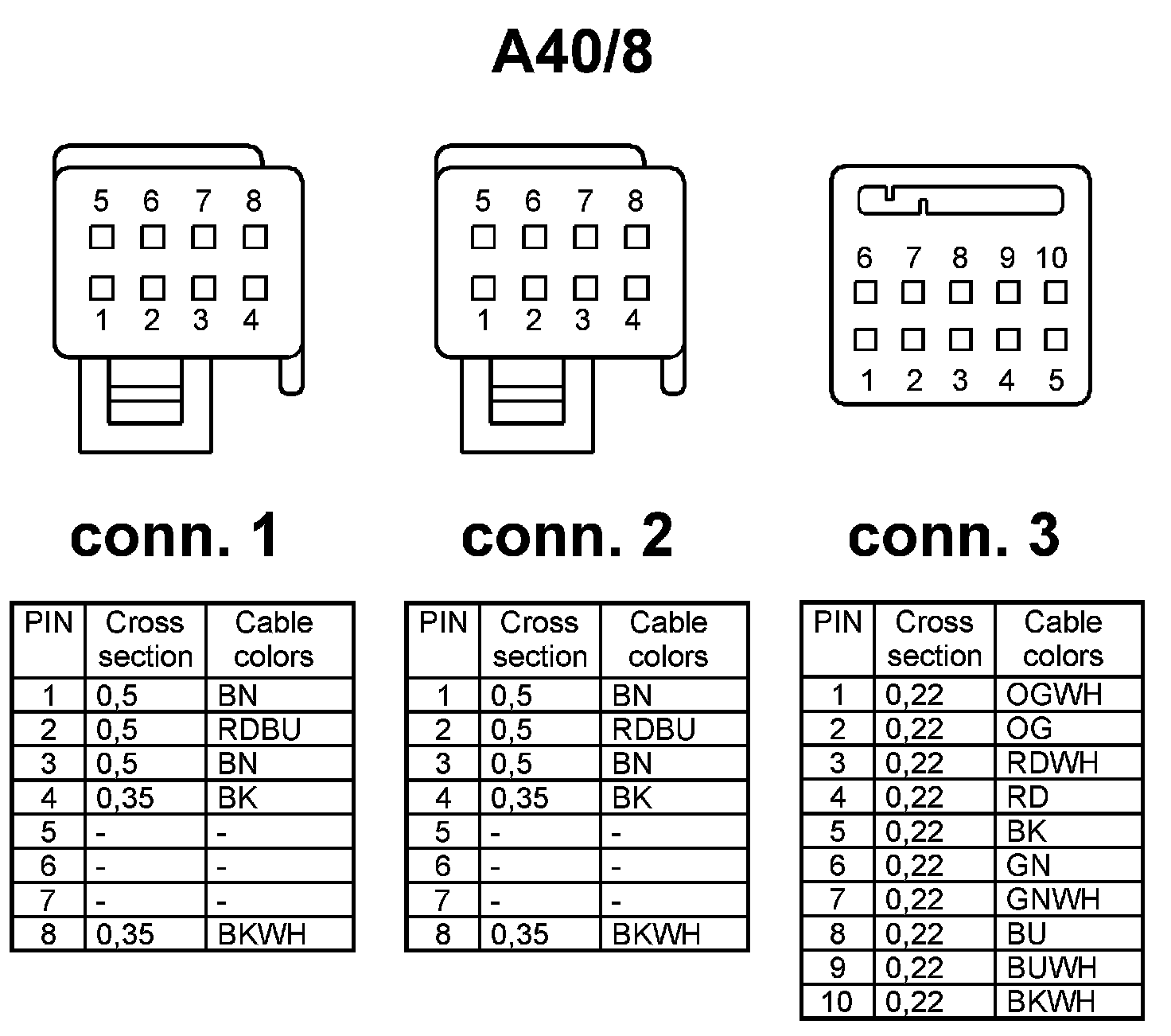

- Control unit A40/8






































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
