GF82.85-P-0003CAJ Cockpit Management and Data System (COMAND), Function

GF82.85-P-0003CAJ Cockpit Management and Data System (COMAND), Function
MODEL 207.3 /4
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (498) Japan version

Function requirements for Cockpit Management and Data System (COMAND), general
^ Circuit 30g ON

Cockpit management and data system (COMAND), general
The COMAND controller unit (A40/3) is the central control for the entertainment and communication systems integrated into the vehicle.
The COMAND controller unit acts as a gateway. It routes the signals from the interior CAN (CAN B) to the components of the telematics CAN (CAN A) and the Media Oriented System Transport (MOST) and thereby forms the communications interface.
The displays and menu presentations for the Audio/COMAND display (A40/8) are generated in the COMAND controller unit.
The following applications can also be displayed in the instrument cluster (A1) at the same time as being displayed in the Audio/ COMAND display:
- Audio
- Cellular telephone
- Navigation
- Video information

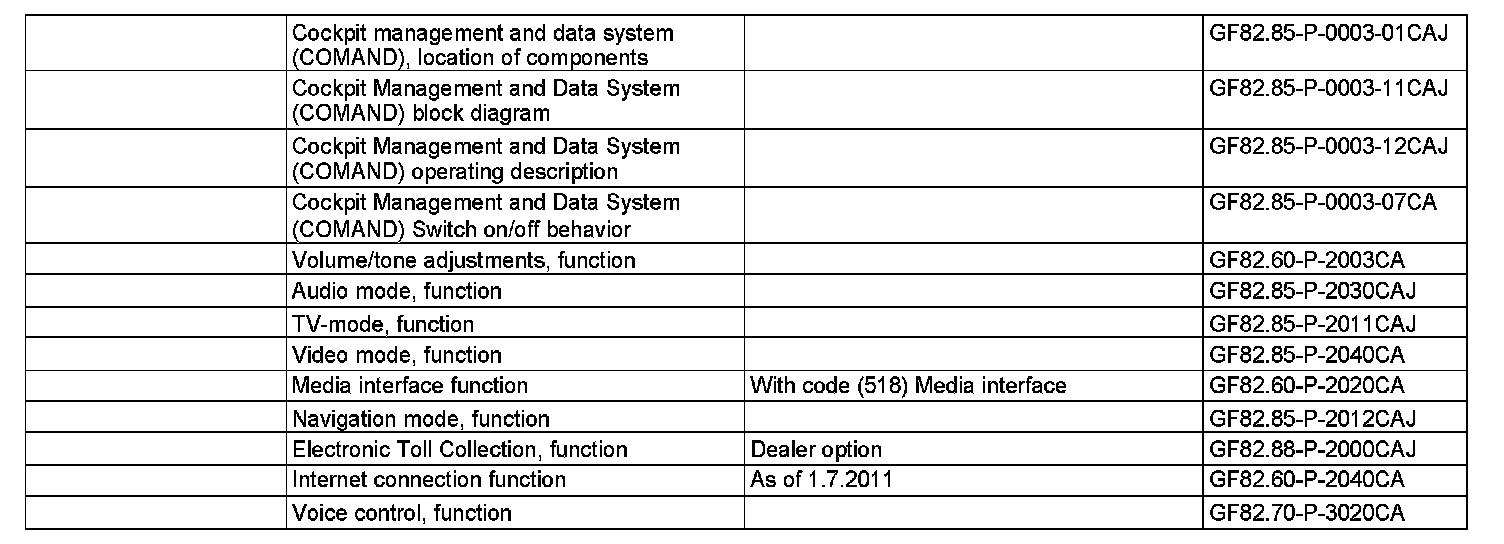

The COMAND function contains the following subfunctions, which are described in separate documents:
^ Volume/tone settings, function
^ Audio mode, function
^ TV-mode, function
^ Video mode, function
^ Media interface function (with code (518) Media Interface)
^ Navigation mode, function
^ Electronic Toll Collection function (dealer option)
^ Voice control, function
^ Internet connection function (as of 1.7.2011)
The mobile phone system functionality is not described in this function description.
Information on this is available in the separate function description for the "Mobile phone system".
The COMAND controller unit communicates with the following control units via MOST:
- Sound system amplifier control unit (N40/3) (with code (810) Sound system)
- Digital TV tuner (A90/3)
- Media interface control unit (N125/1) (with code (518) Media interface)
