GF82.85-P-0003-11CAJ Cockpit Management and Data System (COMAND) Block Diagram

GF82.85-P-0003-11CAJ Cockpit Management and Data System (COMAND) Block Diagram
MODEL 207.3 /4
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (498) Japan version

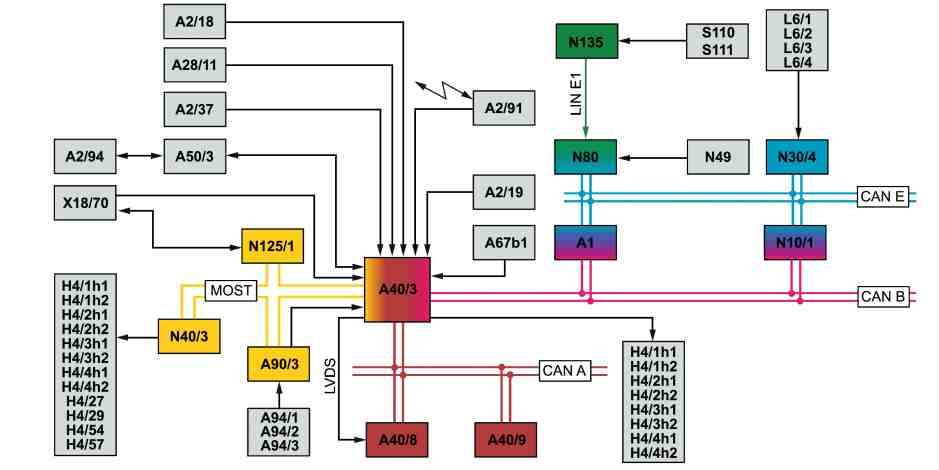

Model 207.3
A1 Instrument cluster
A2/18 FM, AM and CL [ZV] antenna amplifier
A2/19 Rear window antenna FM antenna amplifier
A2/37 VICS control unit (dealer option)
A2/91 Bluetooth antenna
A2/94 Electronic Toll Collection antenna (dealer option)
A28/11 Multifunction antenna
A40/3 COMAND control unit
A40/8 Audio/COMAND display
A40/9 Audio/COMAND control panel
A67b1 Hands-free system microphone
A90/3 TV digital tuner
A94/1 TV 1 antenna amplifier
A94/2 TV 2 and KEYLESS GO antenna amplifier
A94/3 TV 3, FM2 and DAB band III antenna amplifier
H4/1h1 Left door tweeter
H4/1h2 Left door bass speaker
H4/2h1 Right door tweeter
H4/2h2 Right door bass speaker
H4/3h1 Left rear tweeter
H4/3h2 Left rear bass speaker
H4/4h1 Right rear tweeter
H4/4h2 Right rear bass speaker
H4/27 Center instrument panel speaker (with code (810) Sound system)
H4/29 Rear shelf bass speaker (with code (810) Sound system)
H4/54 Left rear surround speaker (with code (810) Sound system)
H4/57 Right rear surround speaker (with code (810) Sound system)
L6/1 Left front axle speed sensor
L6/2 Right front axle speed sensor
L6/3 Left rear axle speed sensor
L6/4 Right rear axle speed sensor
N10/1 Front SAM control unit with fuse and relay module
N30/4 Electronic Stability Program control unit
N40/3 Sound system amplifier control unit (with code (810) Sound system)
N49 Steering angle sensor
N80 Steering column module control unit
N125/1 Media interface control unit (with code (518) Media interface)
N135 Steering wheel electronics
S110 Left multifunction steering wheel button group
S111 Right multifunction steering wheel button group
X18/70 Media interface electrical connector (with code (518) Media Interface)
CAN A Telematics CAN
CAN B Interior CAN
CAN E Chassis CAN
LIN E1 Steering LIN
LVDS Low voltage differential signal
MOST Media Oriented System Transport

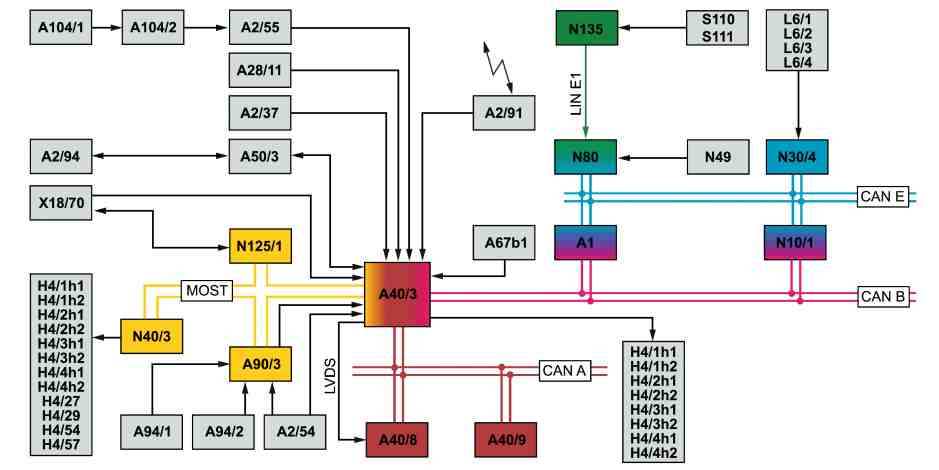

Model 207.4
A1 Instrument cluster
A2/54 TV 3, FM2 and DAB band III antenna amplifier
A2/55 FM, AM and CL [ZV] antenna amplifier
A2/37 VICS control unit (dealer option)
A2/91 Bluetooth antenna
A2/94 Electronic Toll Collection antenna (dealer option)
A28/11 Multifunction antenna
A40/3 COMAND control unit
A40/8 Audio/COMAND display
A40/9 Audio/COMAND control panel
A50/3 Electronic Toll Collection control unit (dealer option)
A67b1 Hands-free system microphone
A90/3 TV digital tuner
A94/1 TV 1 antenna amplifier
A94/2 TV 2 and KEYLESS GO antenna amplifier
A104/1 AM amplifier
A104/2 AM amplifier with selection switch
H4/1h1 Left door tweeter
H4/1h2 Left door bass speaker
H4/2h1 Right door tweeter
H4/2h2 Right door bass speaker
H4/3h1 Left rear tweeter
H4/3h2 Left rear bass speaker
H4/4h1 Right rear tweeter
H4/4h2 Right rear bass speaker
H4/27 Center instrument panel speaker (with code (810) Sound system)
H4/29 Rear shelf bass speaker (with code (810) Sound system)
H4/54 Left rear surround speaker (with code (810) Sound system)
H4/57 Right rear surround speaker (with code (810) Sound system)
L6/1 Left front axle speed sensor
L6/2 Right front axle speed sensor
L6/3 Left rear axle speed sensor
L6/4 Right rear axle speed sensor
N10/1 Front SAM control unit with fuse and relay module
N30/4 Electronic Stability Program control unit
N40/3 Sound system amplifier control unit (with code (810) Sound system)
N49 Steering angle sensor
N80 Steering column module control unit
N125/1 Media interface control unit (with code (518) Media interface)
N135 Steering wheel electronics
S110 Left multifunction steering wheel button group
S111 Right multifunction steering wheel button group
X18/70 Media interface electrical connector (with code (518) Media Interface)
CAN A Telematics CAN
CAN B Interior CAN
CAN E Chassis CAN
LIN E1 Steering LIN
LVDS Low voltage differential signal
MOST Media Oriented System Transport
