GF82.85-P-0003-01CA Cockpit Management and Data System (COMAND), Location of Components

GF82.85-P-0003-01CA Cockpit Management and Data System (COMAND), Location of Components
MODEL 207.3 /4
- with CODE (512) COMAND APS with DVD changer
- with CODE (526) COMAND with single DVD drive (without navigation)
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- except CODE (498) Japan version
- with CODE (528) COMAND with DVD changer

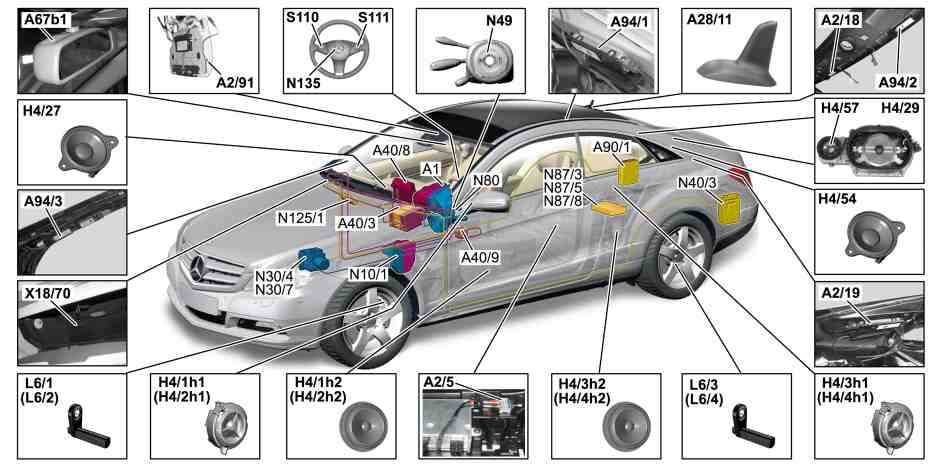

Model 207.3 up to 31.5.2011
A1 Instrument cluster
A2/5 Global Positioning System antenna splitter (with code (359) TELEAID emergency call system and code (512) COMAND APS with DVD changer or code (527) COMAND APS with single DVD drive (with navigation))
A2/18 FM, AM and CL [ZV] antenna amplifier
A2/19 Rear window antenna FM antenna amplifier
A2/91 Bluetooth antenna
A28/11 Multifunction antenna (with code (527) COMAND APS with single DVD drive (with navigation), with code (512) COMAND APS with DVD changer, with code (386) Comfort telephony, with code (536) SIRIUS satellite radio, with code (537) Digital radio up to 30.11.2010)
A40/3 COMAND control unit
A40/8 Audio/COMAND display
A40/9 Audio/COMAND control panel
A67b1 Hands-free system microphone
A90/1 TV tuner (analog/digital) (with code (863) Digital/analog TV tuner )
A94/1 TV 1 antenna amplifier (with code (863) Digital/analog TV tuner )
A94/2 TV 2 antenna amplifier and KEYLESS-GO (with code (863) Digital/analog TV tuner )
A94/3 TV 3, FM2 and DAB band III antenna amplifier (with code (863) Digital/analog TV tuner)
H4/1h1 Left door tweeter
H4/1h2 Left door bass speaker
H4/2h1 Right door tweeter
H4/2h2 Right door bass speaker
H4/3h1 Left rear tweeter
H4/3h2 Left rear bass speaker
H4/4h1 Right rear tweeter
H4/4h2 Right rear bass speaker
H4/27 Center instrument panel speaker (with code (810) Sound system)
H4/29 Rear shelf bass speaker (with code (810) Sound system)
H4/54 Left rear surround speaker (with code (810) Sound system)
H4/57 Right rear surround speaker (with code (810) Sound system)
L6/1 Left front axle rpm sensor (for navigation)
L6/2 Right front axle rpm sensor (for navigation)
L6/3 Left rear axle rpm sensor (for navigation)
L6/4 Right rear axle rpm sensor (for navigation)
N10/1 Front SAM control unit with fuse and relay module (for navigation)
N30/4 Electronic Stability Program control unit (without code (233) DISTRONIC PLUS) (for navigation)
N30/7 Electronic Stability Program Premium control unit (with code (233) DISTRONIC PLUS) (for navigation)
N40/3 Sound system amplifier control unit (with code (810) Sound system)
N49 Steering angle sensor (for navigation)
N80 Steering column module control unit
N87/3 Digital Audio Broadcasting control unit (with code (537) Digital radio)
N87/5 Satellite digital audio radio (SDAR) control unit (with code (536) SIRIUS satellite radio as of 1.6.2010)
N87/8 SDAR/high definition tuner control unit (with code (536) SIRIUS satellite radio up to 31.5.2010)
N125/1 Media interface control unit (with code (518) Media interface)
N135 Steering wheel electronics
S110 Left multifunction steering wheel button group
S111 Right multifunction steering wheel button group
X18/70 Media interface electrical connector (with code (518) Media Interface)

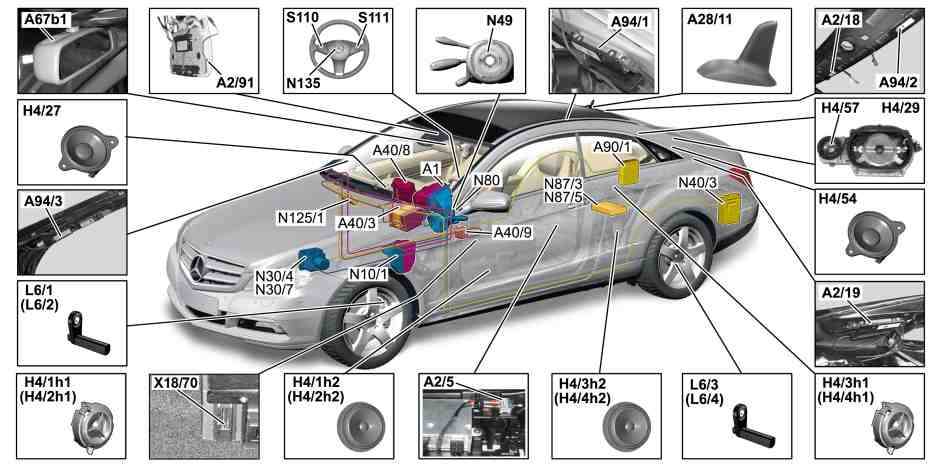

Model 207.3 as of 1.6.2011
A1 Instrument cluster
A2/5 Global Positioning System antenna splitter (with code (359) TELEAID emergency call system and code (512) COMAND APS with DVD changer or code (527) COMAND APS with single DVD drive (with navigation))
A2/18 FM, AM and CL [ZV] antenna amplifier
A2/19 Rear window antenna FM antenna amplifier
A2/91 Bluetooth antenna
A28/11 Multifunction antenna (with code (527) COMAND APS with single DVD drive (with navigation), with code (512) COMAND APS with DVD changer, with code (386) Comfort telephony, with code (536) SIRIUS satellite radio, with code (537) Digital radio)
A40/3 COMAND control unit
A40/8 Audio/COMAND display
A40/9 Audio/COMAND control panel
A67b1 Hands-free system microphone
A90/1 TV tuner (analog/digital) (with code (863) Digital/analog
A94/1 TV 1 antenna amplifier (with code (863) Digital/analog TV tuner )
A94/2 TV 2 antenna amplifier and KEYLESS-GO (with code (863) Digital/analog TV tuner )
A94/3 TV 3, FM2 and DAB band III antenna amplifier (with code (863) Digital/analog TV tuner)
H4/1h1 Left door tweeter
H4/1h2 Left door bass speaker
H4/2h1 Right door tweeter
H4/2h2 Right door bass speaker
H4/3h1 Left rear tweeter
H4/3h2 Left rear bass speaker
H4/4h1 Right rear tweeter
H4/4h2 Right rear bass speaker
H4/27 Center instrument panel speaker (with code (810) Sound system)
H4/29 Rear shelf bass speaker (with code (810) Sound system)
H4/54 Left rear surround speaker (with code (810) Sound system)
H4/57 Right rear surround speaker (with code (810) Sound system)
L6/1 Left front axle rpm sensor (for navigation)
L6/2 Right front axle rpm sensor (for navigation)
L6/3 Left rear axle rpm sensor (for navigation)
L6/4 Right rear axle rpm sensor (for navigation)
N10/1 Front SAM control unit with fuse and relay module (for navigation)
N30/4 Electronic Stability Program control unit (without code (233) DISTRONIC PLUS) (for navigation)
N30/7 Electronic Stability Program Premium control unit (with code (233) DISTRONIC PLUS) (for navigation)
N40/3 Sound system amplifier control unit (with code (810) Sound system)
N49 Steering angle sensor (for navigation)
N80 Steering column module control unit
N87/3 Digital Audio Broadcasting control unit (with code (537) Digital radio)
N87/5 Satellite digital audio radio (SDAR) control unit (with code (536) SIRIUS satellite radio)
N125/1 Media interface control unit (with code (518) Media interface)
N135 Steering wheel electronics
S110 Left multifunction steering wheel button group
S111 Right multifunction steering wheel button group
X18/70 Media interface electrical connector (with code (518) Media Interface)

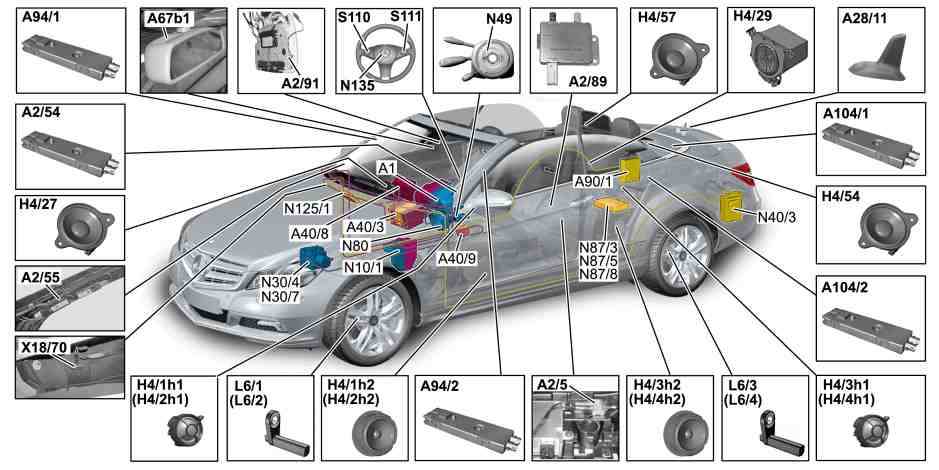

Model 207.4 up to 31.5.2011
A1 Instrument cluster
A2/5 Global Positioning System antenna splitter (with code (359) TELEAID emergency call system and code (512) COMAND APS with DVD changer or code (527) COMAND APS with single DVD drive (with navigation))
A2/54 TV 3, FM2 and DAB Band III antenna amplifier
A2/55 FM, AM and CL [ZV] antenna amplifier
A2/89 TV antenna splitter (with code (863) Digital/analog TV tuner and code (537) Digital radio)
A2/91 Bluetooth antenna
A28/11 Multifunction antenna (with code (527) COMAND APS with single DVD drive (with navigation), with code (512) COMAND APS incl. DVD changer, with code (386) Comfort telephony, with code (536) SIRIUS satellite radio, with code (537) Digital radio)
A40/3 COMAND control unit
A40/8 Audio/COMAND display
A40/9 Audio/COMAND control panel
A67b1 Hands-free system microphone
A90/1 TV tuner (analog/digital) (with code (863) Digital/analog TV tuner)
A94/1 TV 1 antenna amplifier (with code (863) Digital/analog TV tuner )
A94/2 TV 2 antenna amplifier and KEYLESS-GO (with code (863) Digital/analog TV tuner)
A104/1 AM amplifier
A104/2 AM amplifier with selection switch
H4/1h1 Left door tweeter
H4/1h2 Left door bass speaker
H4/2h1 Right door tweeter
H4/2h2 Right door bass speaker
H4/3h1 Left rear tweeter
H4/3h2 Left rear bass speaker
H4/4h1 Right rear tweeter
H4/4h2 Right rear bass speaker
H4/27 Center instrument panel speaker (with code (810) Sound system)
H4/29 Rear shelf bass speaker (with code (810) Sound system)
H4/54 Left rear surround speaker (with code (810) Sound system)
H4/57 Right rear surround speaker (with code (810) Sound system)
L6/1 Left front axle rpm sensor (for navigation)
L6/2 Right front axle rpm sensor (for navigation)
L6/3 Left rear axle rpm sensor (for navigation)
L6/4 Right rear axle rpm sensor (for navigation)
N10/1 Front SAM control unit with fuse and relay module (for navigation)
N30/4 Electronic Stability Program control unit (without code (233) DISTRONIC PLUS) (for navigation)
N30/7 Electronic Stability Program Premium control unit (with code (233) DISTRONIC PLUS) (for navigation)
N40/3 Sound system amplifier control unit (with code (810) Sound system)
N49 Steering angle sensor (for navigation)
N80 Steering column module control unit
N87/3 Digital Audio Broadcasting control unit (with code (537) Digital radio)
N87/5 Satellite digital audio radio (SDAR) control unit (with code (536) SIRIUS satellite radio as of 1.6.2010)
N87/8 SDAR/high definition tuner control unit (with code (536) SIRIUS satellite radio up to 31.5.2010)
N125/1 Media interface control unit (with code (518) Media interface)
N135 Steering wheel electronics
S110 Left multifunction steering wheel button group
S111 Right multifunction steering wheel button group
X18/70 Media interface electrical connector (with code (518) Media Interface)

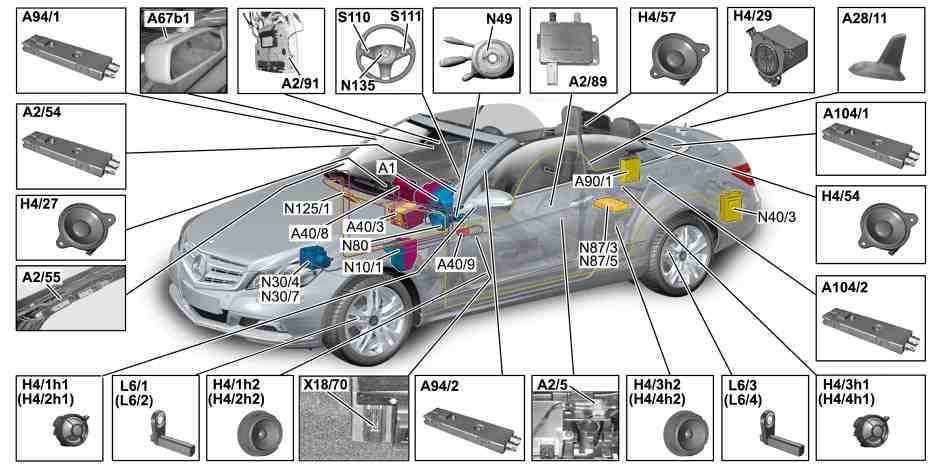

Model 207.4 as of 1.6.2011
A1 Instrument cluster
A2/5 Global Positioning System antenna splitter (with code (359) TELEAID emergency call system and code (512) COMAND APS with DVD changer or code (527) COMAND APS with single DVD drive (with navigation))
A2/54 TV 3, FM2 and DAB Band III antenna amplifier
A2/55 FM, AM and CL [ZV] antenna amplifier
A2/89 TV antenna splitter (with code (863) Digital/analog TV tuner and code (537) Digital radio)
A2/91 Bluetooth antenna
A28/11 Multifunction antenna (with code (527) COMAND APS with single DVD drive (with navigation), with code (512) COMAND APS with DVD changer, with code (386) Comfort telephony, with code (536) SIRIUS satellite radio, with code (537) Digital radio)
A40/3 COMAND control unit
A40/8 Audio/COMAND display
A40/9 Audio/COMAND control panel
A67b1 Hands-free system microphone
A90/1 TV tuner (analog/digital) (with code (863) Digital/analog TV tuner)
A94/1 TV 1 antenna amplifier (with code (863) Digital/analog TV tuner )
A94/2 TV 2 antenna amplifier and KEYLESS-GO (with code (863) Digital/analog TV tuner)
A104/1 AM amplifier
A104/2 AM amplifier with selection switch
H4/1h1 Left door tweeter
H4/1h2 Left door bass speaker
H4/2h1 Right door tweeter
H4/2h2 Right door bass speaker
H4/3h1 Left rear tweeter
H4/3h2 Left rear bass speaker
H4/4h1 Right rear tweeter
H4/4h2 Right rear bass speaker
H4/27 Center instrument panel speaker (with code (810) Sound system)
H4/29 Rear shelf bass speaker (with code (810) Sound system)
H4/54 Left rear surround speaker (with code (810) Sound system)
H4/57 Right rear surround speaker (with code (810) Sound system)
L6/1 Left front axle rpm sensor (for navigation)
L6/2 Right front axle rpm sensor (for navigation)
L6/3 Left rear axle rpm sensor (for navigation)
L6/4 Right rear axle rpm sensor (for navigation)
N10/1 Front SAM control unit with fuse and relay module (for navigation)
N30/4 Electronic Stability Program control unit (without code (233) DISTRONIC PLUS) (for navigation)
N30/7 Electronic Stability Program Premium control unit (with code (233) DISTRONIC PLUS) (for navigation)
N40/3 Sound system amplifier control unit (with code (810) Sound system)
N49 Steering angle sensor (for navigation)
N80 Steering column module control unit
N87/3 Digital Audio Broadcasting control unit (with code (537) Digital radio)
N87/5 Satellite digital audio radio (SDAR) control unit (with code (536) SIRIUS satellite radio)
N125/1 Media interface control unit (with code (518) Media interface)
N135 Steering wheel electronics
S110 Left multifunction steering wheel button group
S111 Right multifunction steering wheel button group
X18/70 Media interface electrical connector (with code (518) Media Interface)
