P2279

A leak was detected in the intake air system.
The intake air system is not leaktight.


The intake air system is not leaktight.

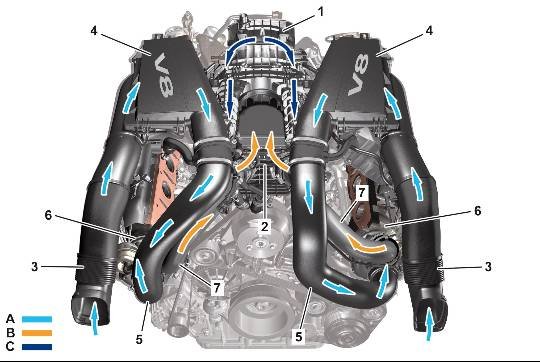

Legend

- 4 Air filter
- 5 Clean air line
- 6 Turbocharger

Cause

- Leakage on air intake pipe between air filter and turbocharger.

Remedy

- Check clean air line between air filter and turbocharger for leaks.
- Check intake air system of combustion engine for leaktightness.
- Check charge air system for leaks and tighten all clamps (see diagram).
- Check crankcase ventilation system for leaktightness.

End of test







End of test
Result: Fail
