AR82.35-P-6006CW Remove/Install Washer Fluid Reservoir Heat Exchanger



AR82.35-P-6006CW Remove/Install Washer Fluid Reservoir Heat Exchanger
- with CODE (875) Heated windshield washer system

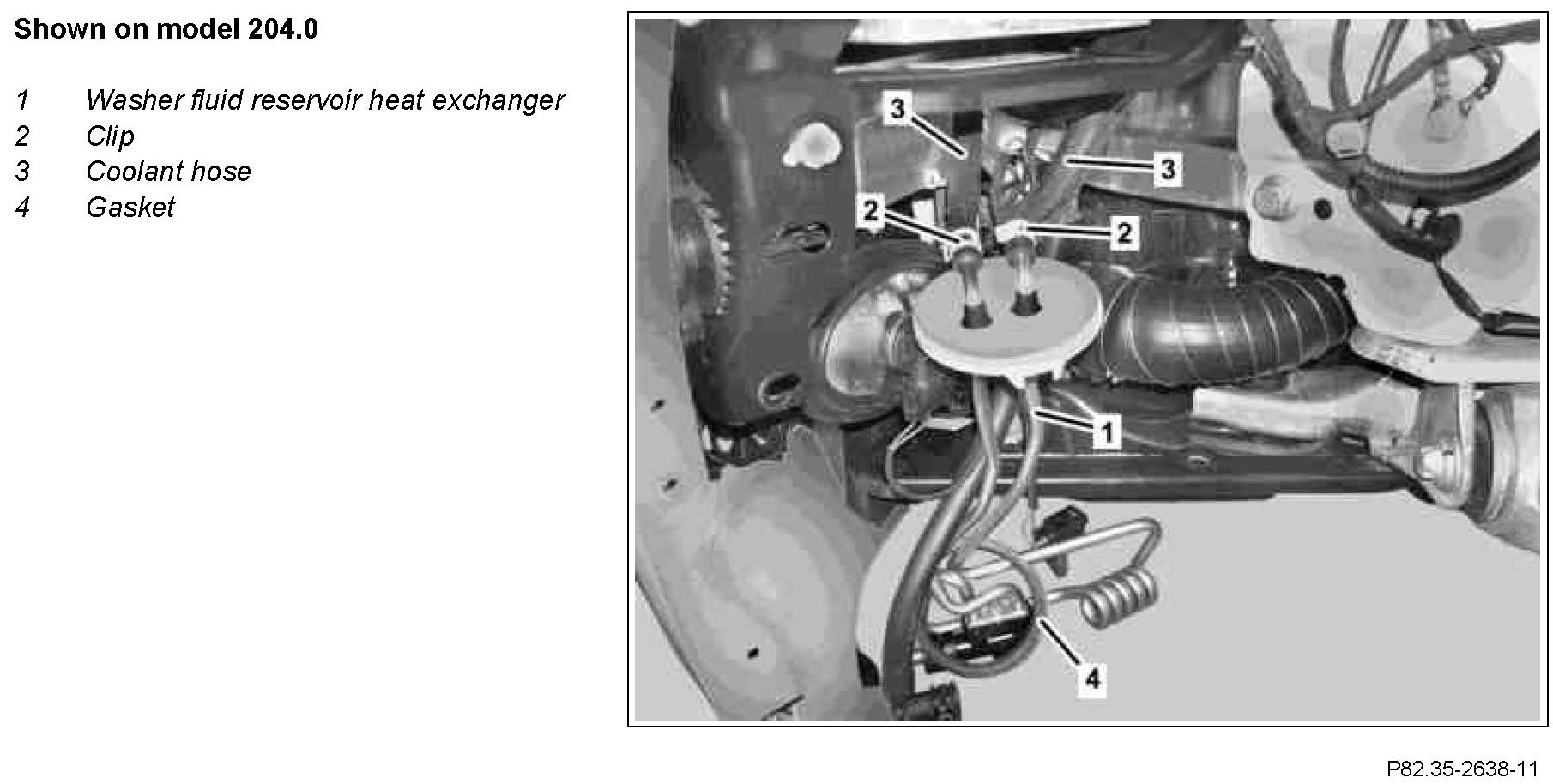

Component Identification:

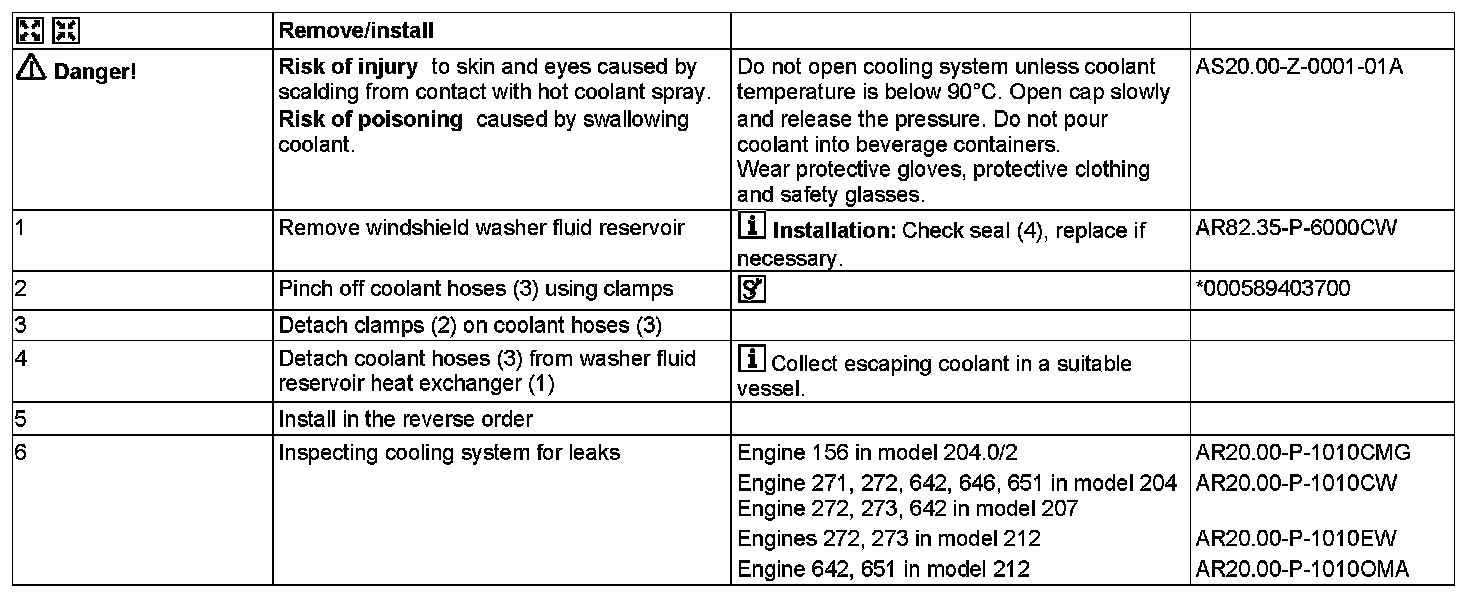

Steps 1 - 6:

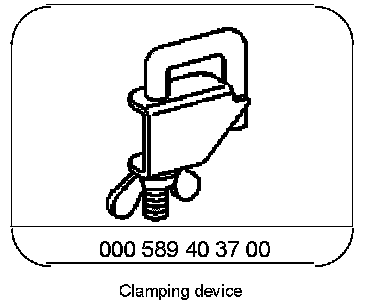

Special Tools:
