Home >> Mercedes Benz >> 2012 >> E 350 Cabriolet (207.459) V6-3.5L (276.957) >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Shifter M/T >> Service and Repair >> Removal and Replacement

Removal and Replacement



AR26.60-P-0600CW Remove/install floor selector
- with TRANSMISSION 716.6/711.6

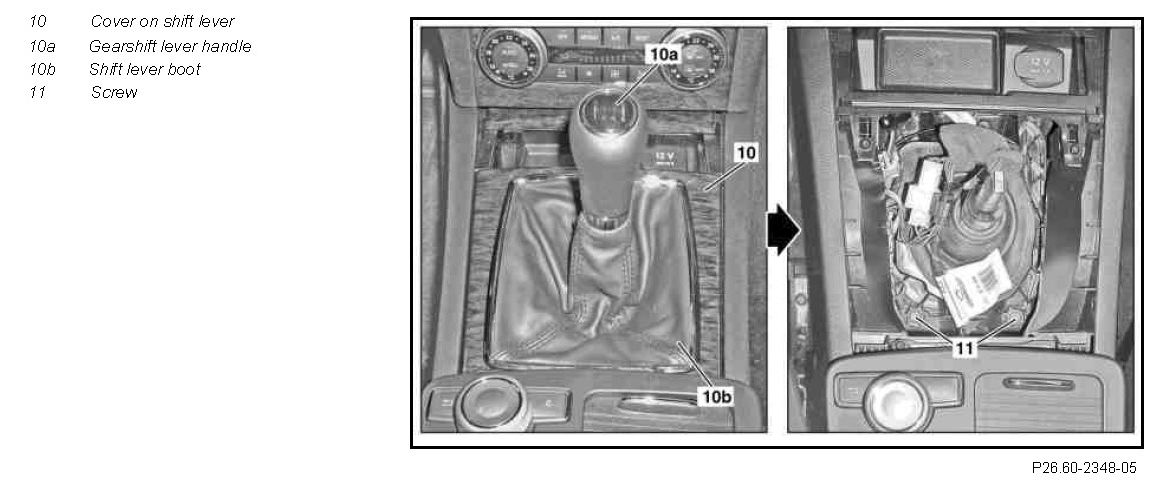

Component Identification:

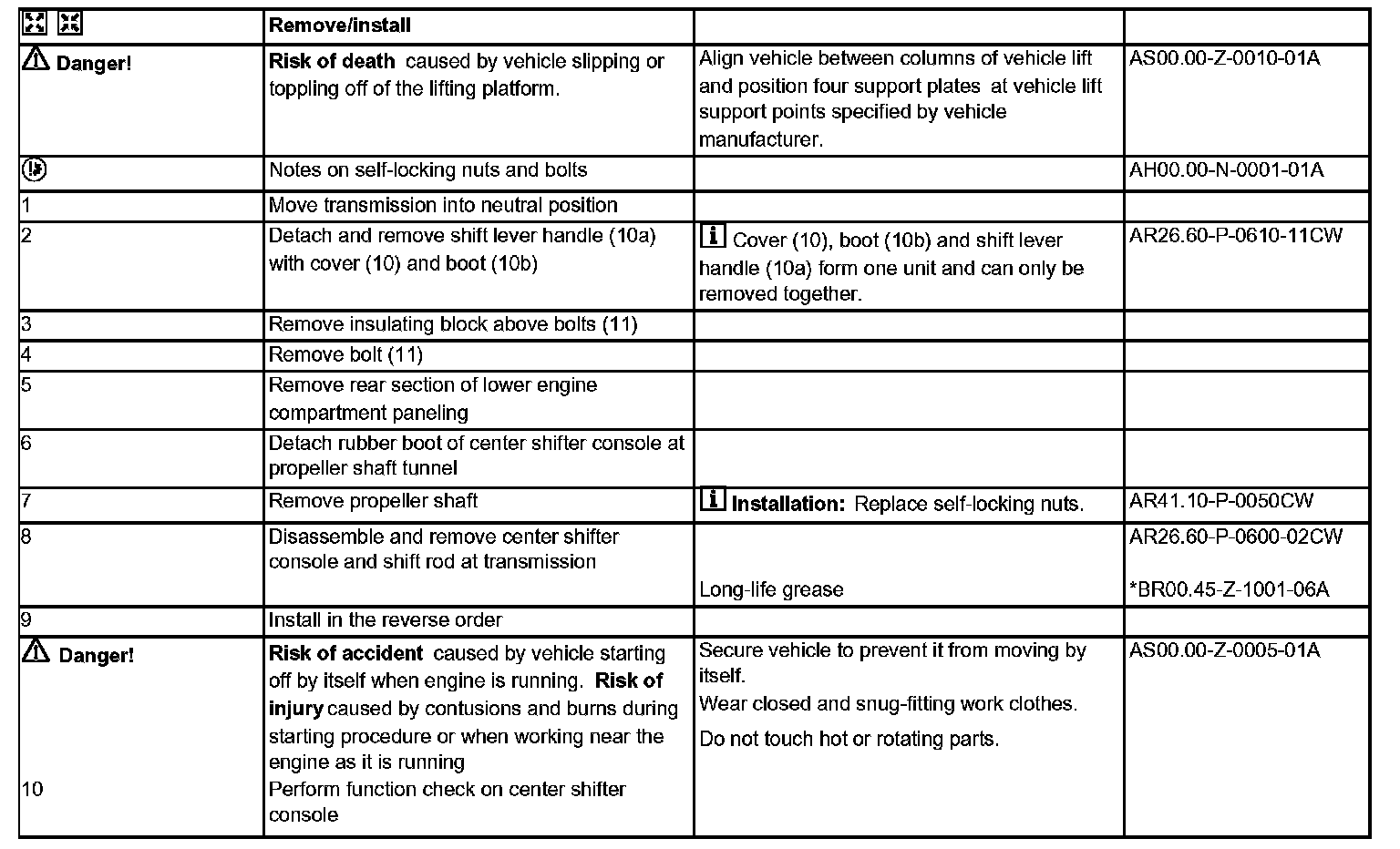

Remove/install Steps 1-10:

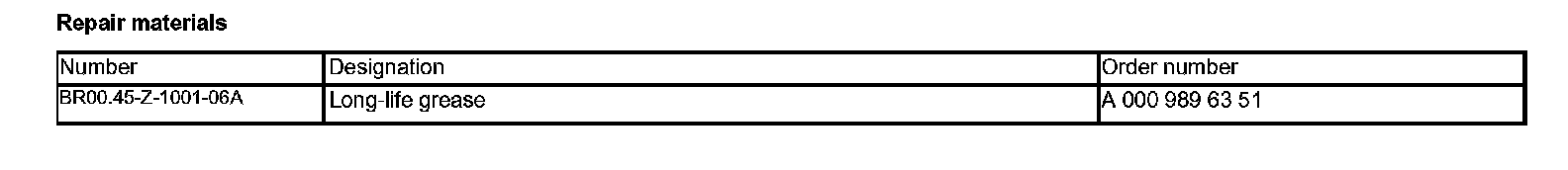

Repair materials:
