AR35.31-P-0530CW Replace Radial Sealing Ring at Drive Pinion Gear (With Rear Axle Differential Installed)
AR35.31-P-0530CW Replace radial sealing ring at drive pinion gear (with rear axle differential installed)

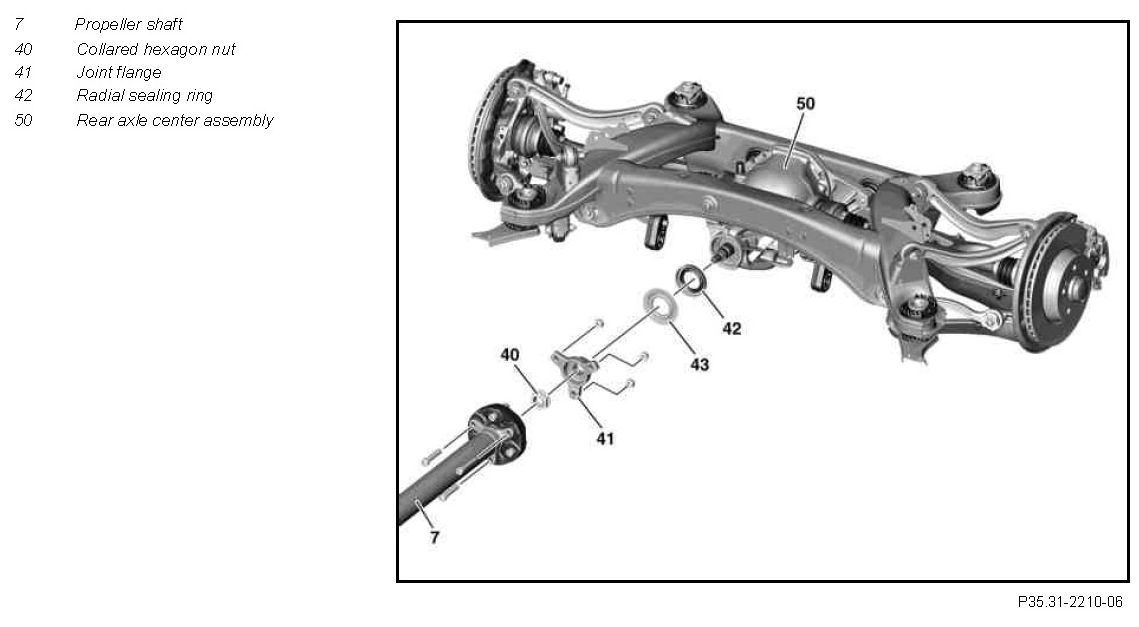

Component Identification:

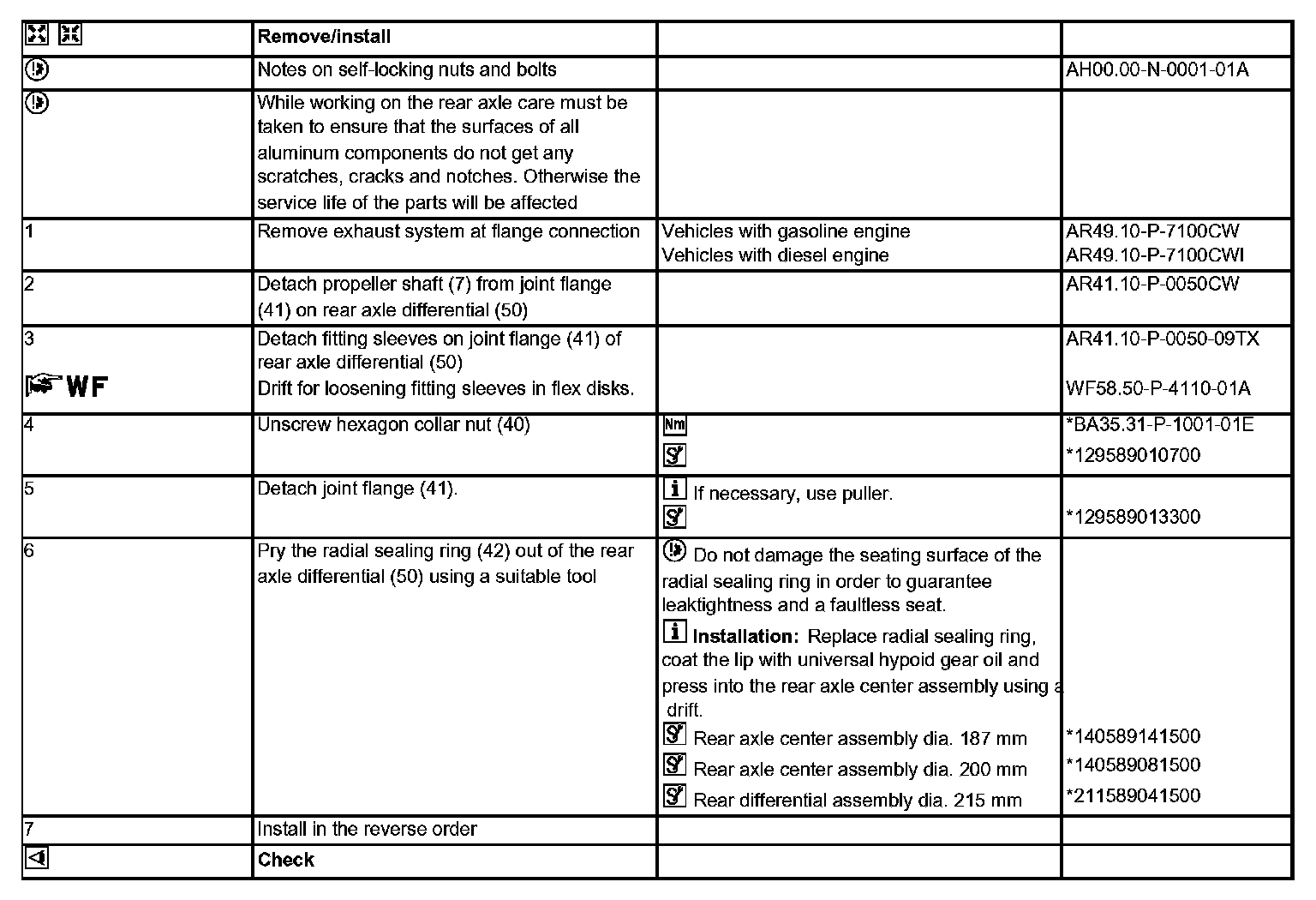

Remove/install Steps 1-7:

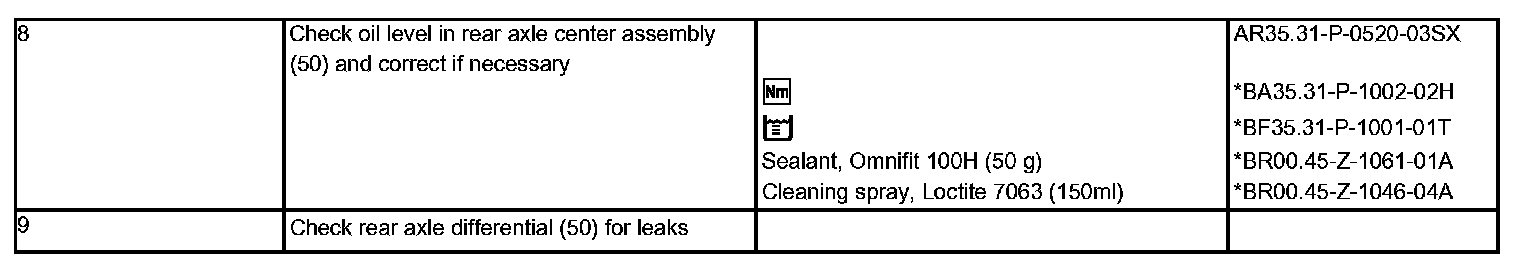

Remove/install Steps 8-9:
Rear axle center assembly housing:
Rear axle differential gear set:

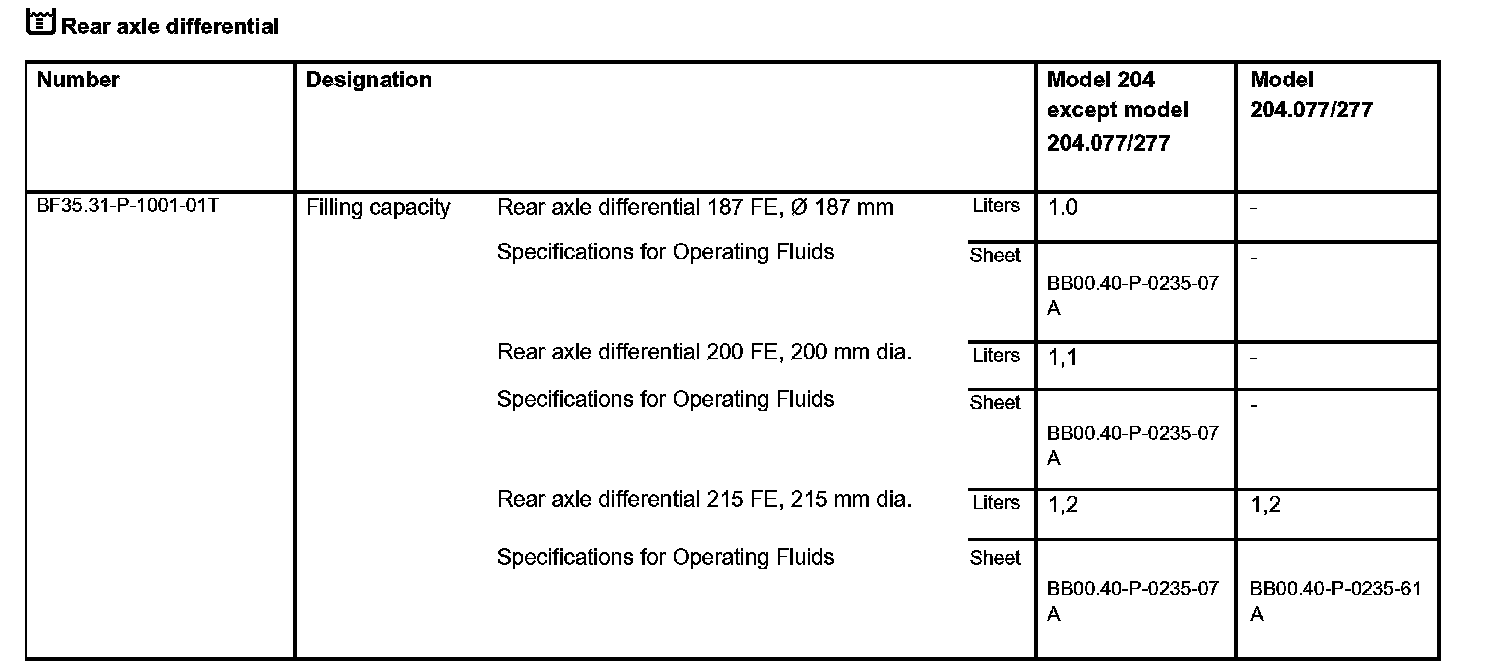

Rear axle differential:

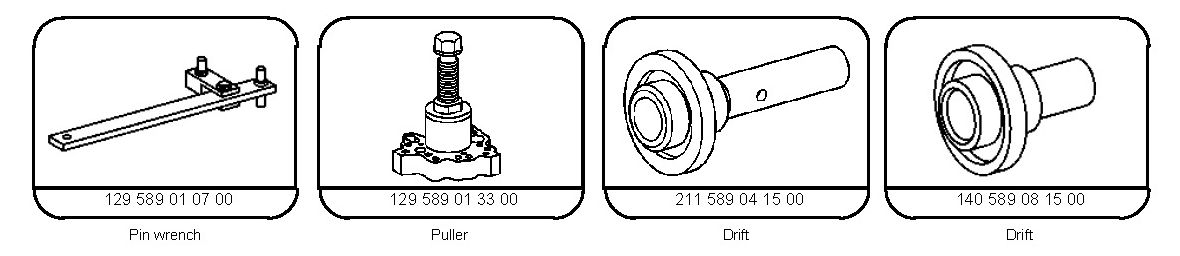

Special Tools:

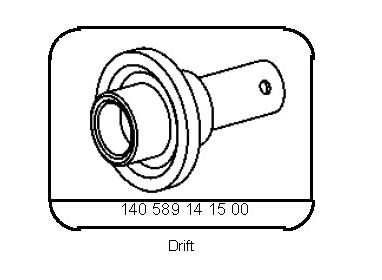

Special Tools:
Repair materials:
