AR35.31-P-0530CW Replace Radial Sealing Ring at Drive Pinion Gear (With Rear Axle Differential Installed)

AR35.31-P-0530CW Replace Radial Sealing Ring At Drive Pinion Gear (With Rear Axle Differential Installed)

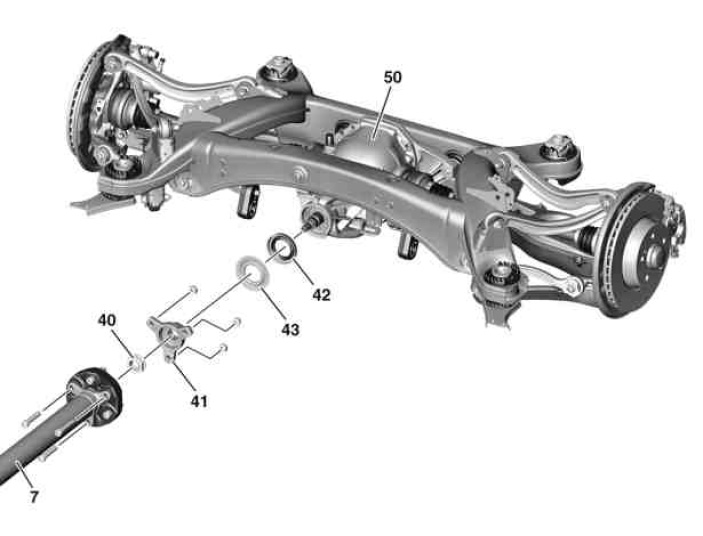

MODEL 204, 207





7 Propeller shaft
40 Collared hexagon nut
41 Joint flange

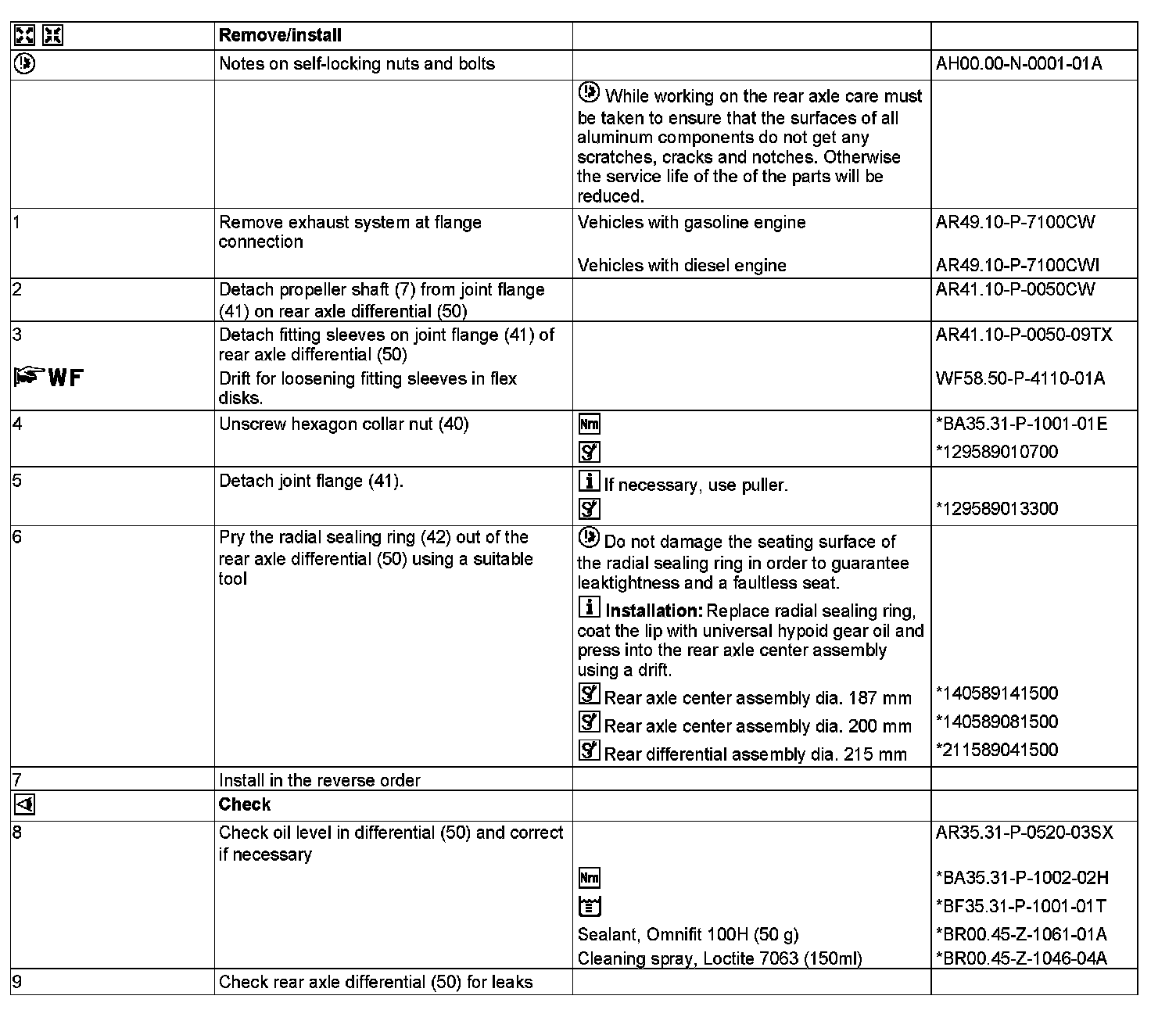

42 Radial sealing ring
50 Rear axle center assembly




















129 589 01 07 00
Pin wrench





129 589 01 33 00
Puller





211 589 04 15 00
Drift





140 589 08 15 00
Drift





140 589 14 15 00
Drift
