Clutch Pedal Assembly: Service and Repair
AR29.10-P-0300CW Remove/install pedal assembly
- with TRANSMISSION 711.6, 716.6, 722.6/9

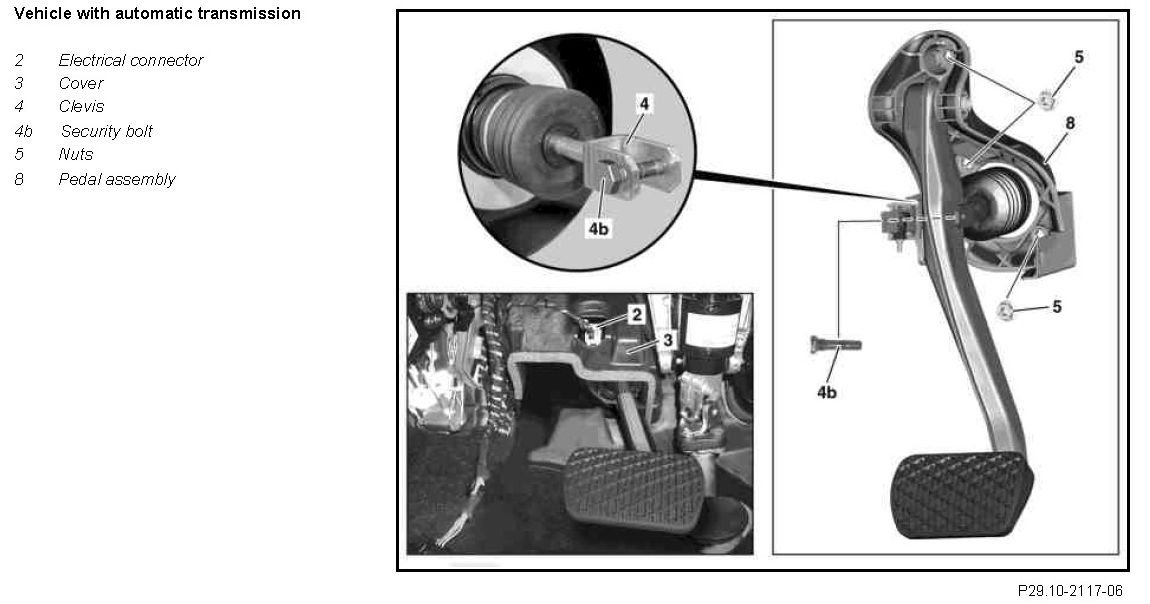

Component Identification:

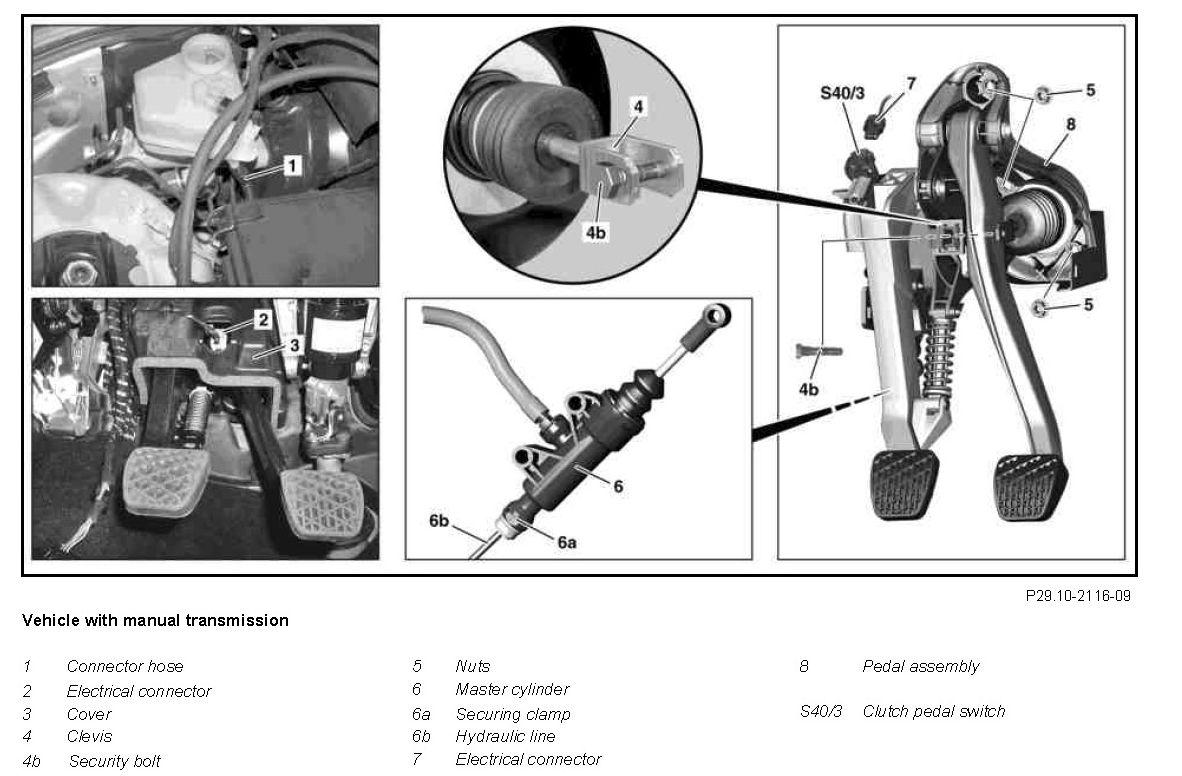

Component Identification:

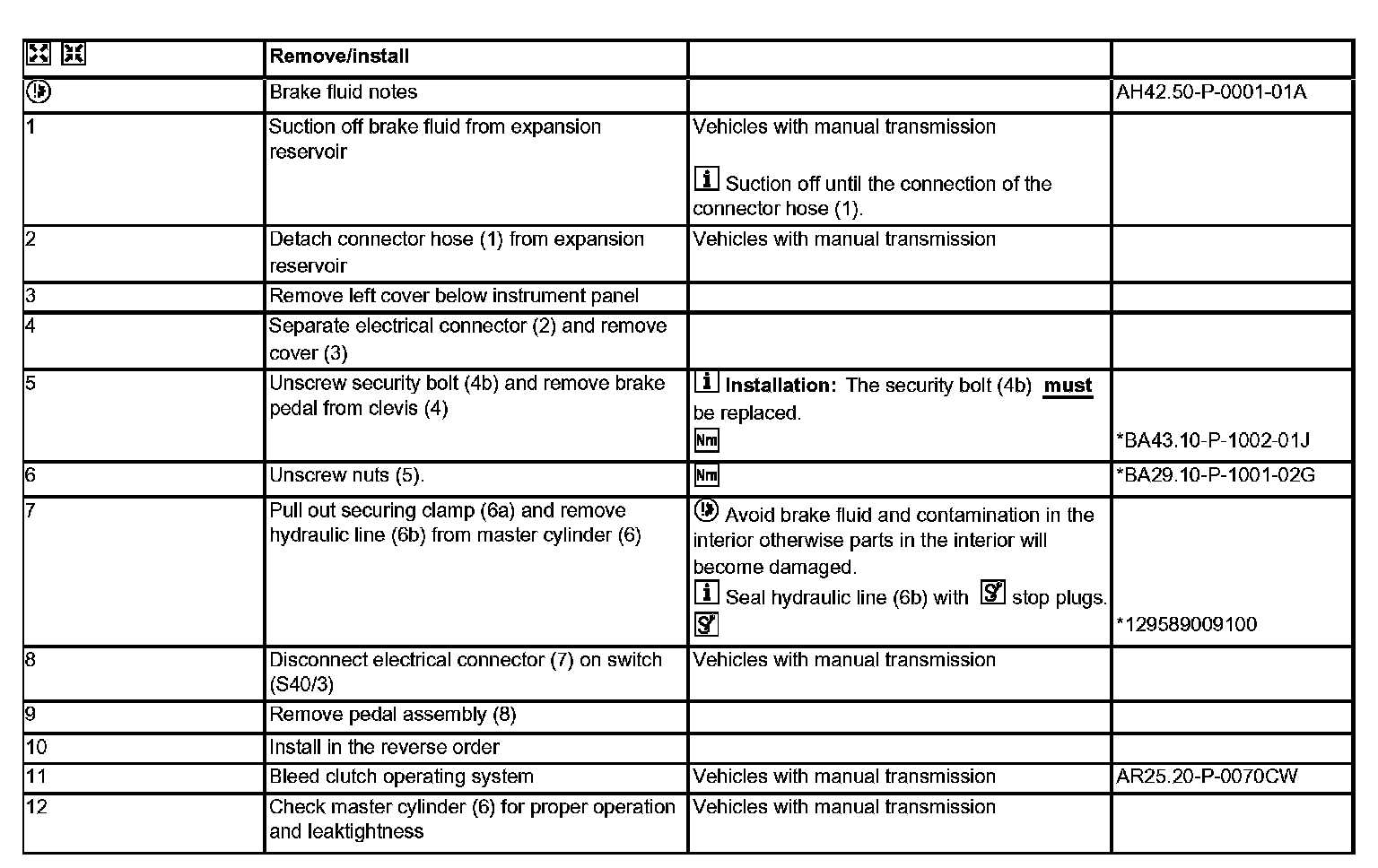

Remove/install Steps 1-12:

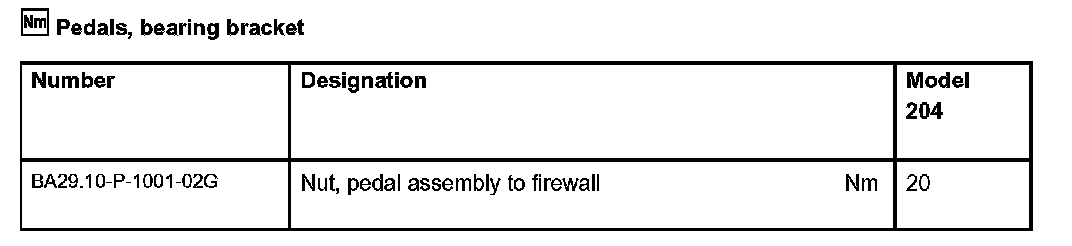

Pedals, bearing bracket:

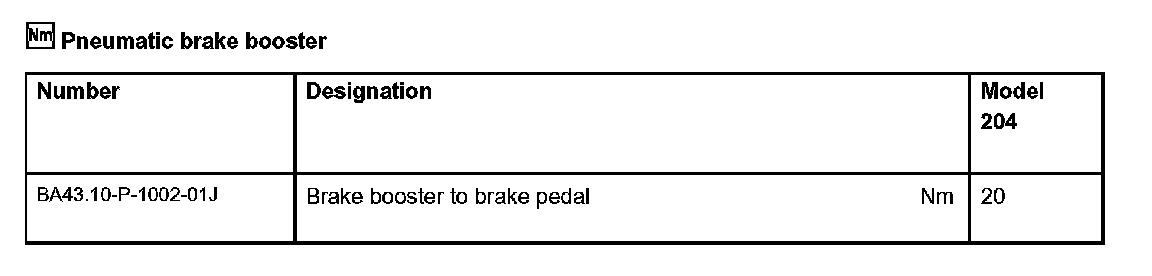

Pneumatic brake booster:

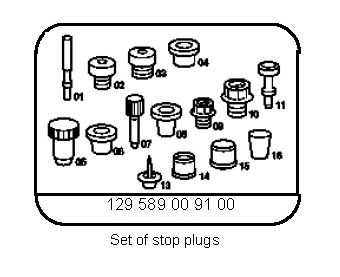

Special Tools:
