GF27.10-P-0001-20AHC Automatic Transmission (AT), Block Diagram

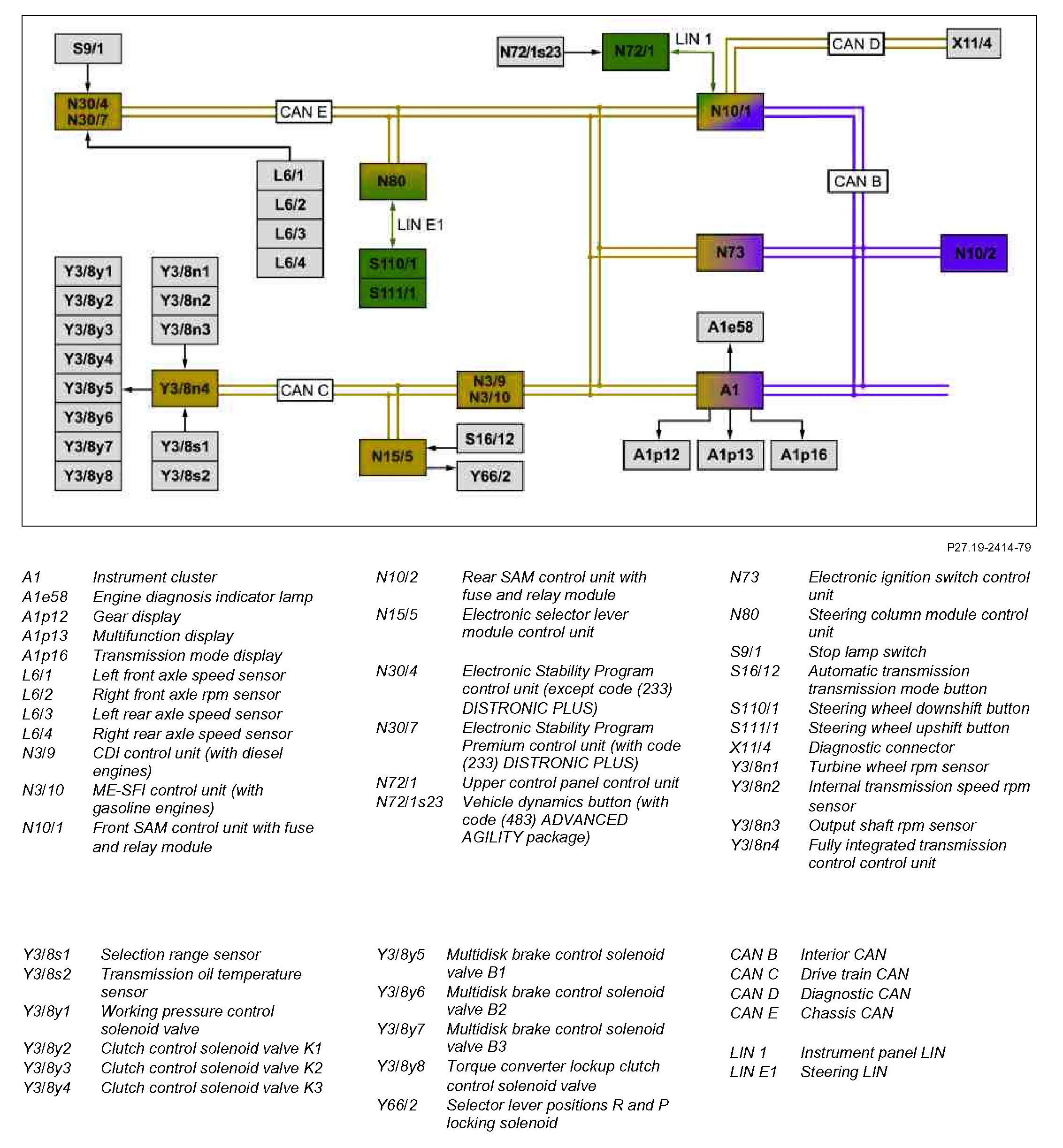

GF27.10-P-0001-20AHC Automatic transmission (AT), block diagram
- Transmission 722.902/904/906/908
