AR32.20-P-0300CW Remove/Install Stabilizer Bar on Front Axle



AR32.20-P-0300CW Remove/install stabilizer bar on front axle

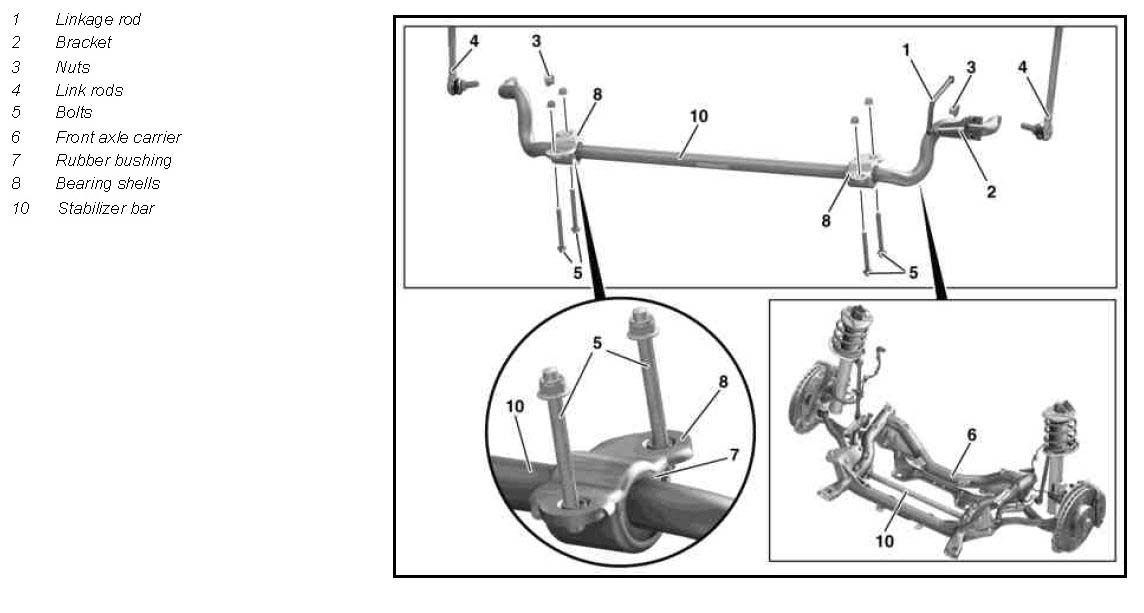

Component Identification:




Remove/install Steps 1-6:




Remove/install Step 7:

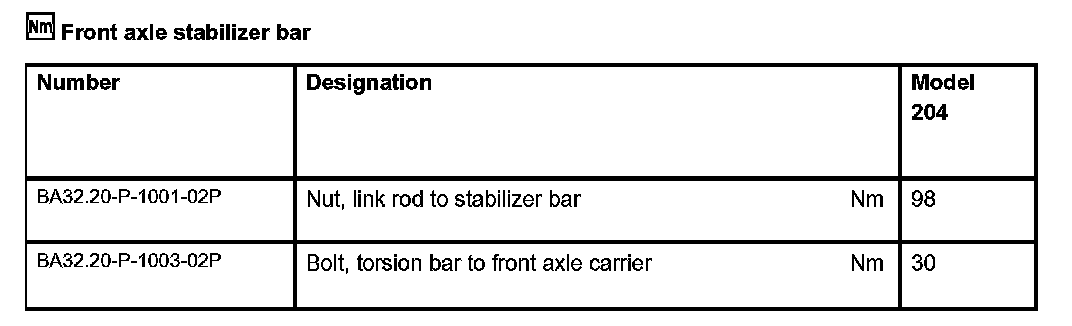

Front axle stabilizer bar:

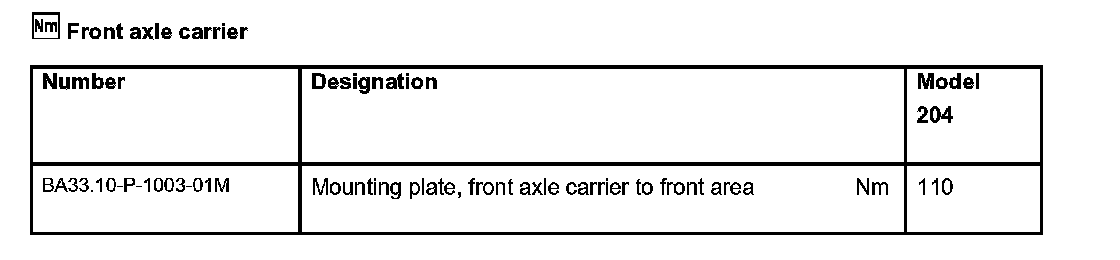

Front axle carrier:
