AR35.10-P-0051CW Remove/Install Front Center Assembly Suspension on Rear Axle Carrier



AR35.10-P-0051CW Remove/install front center assembly suspension on rear axle carrier

Component Identification:

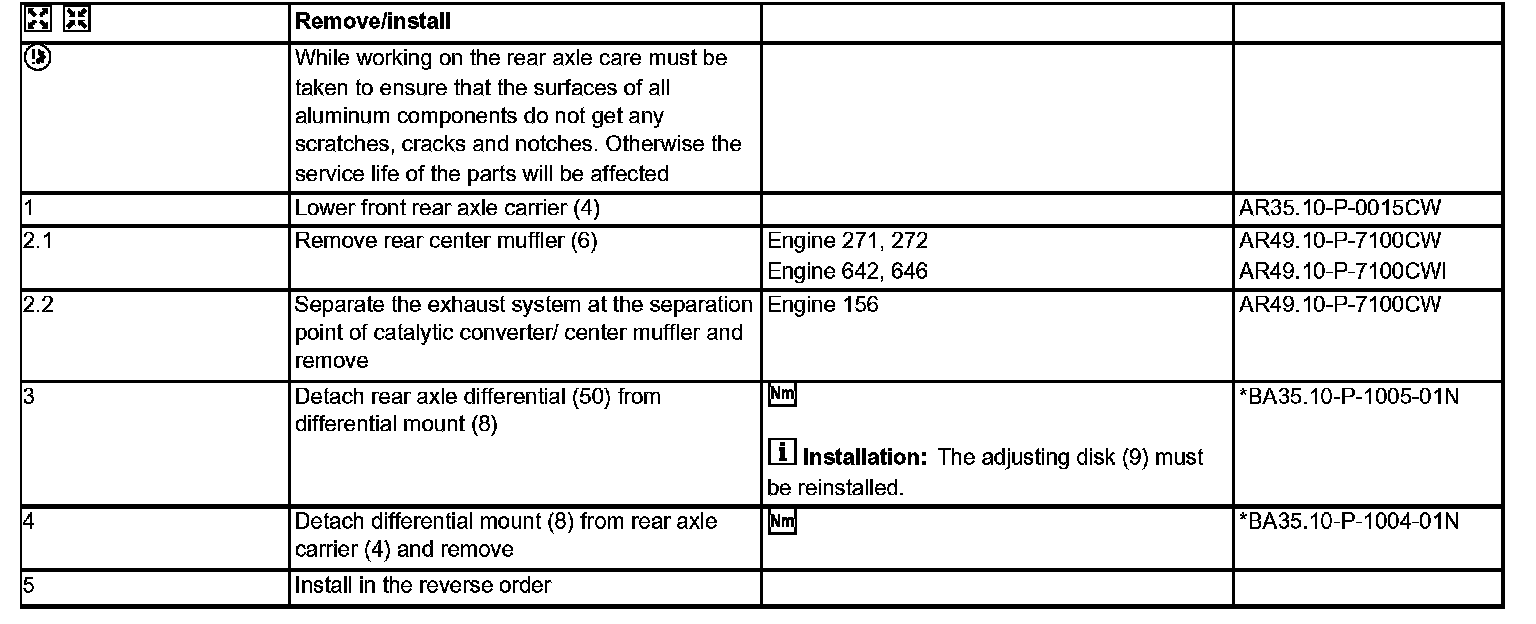

Remove/install Steps 1-5:

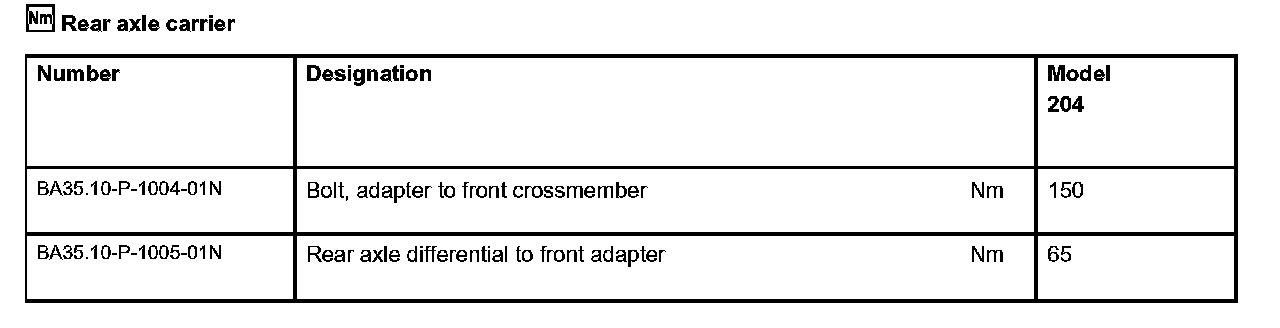

Rear axle carrier:
