AR46.10-P-0910CW Electronic Steering Detent Mechanism (ELV) Removal and Installation



AR46.10-P-0910CW Electronic steering detent mechanism (ELV) removal and installation

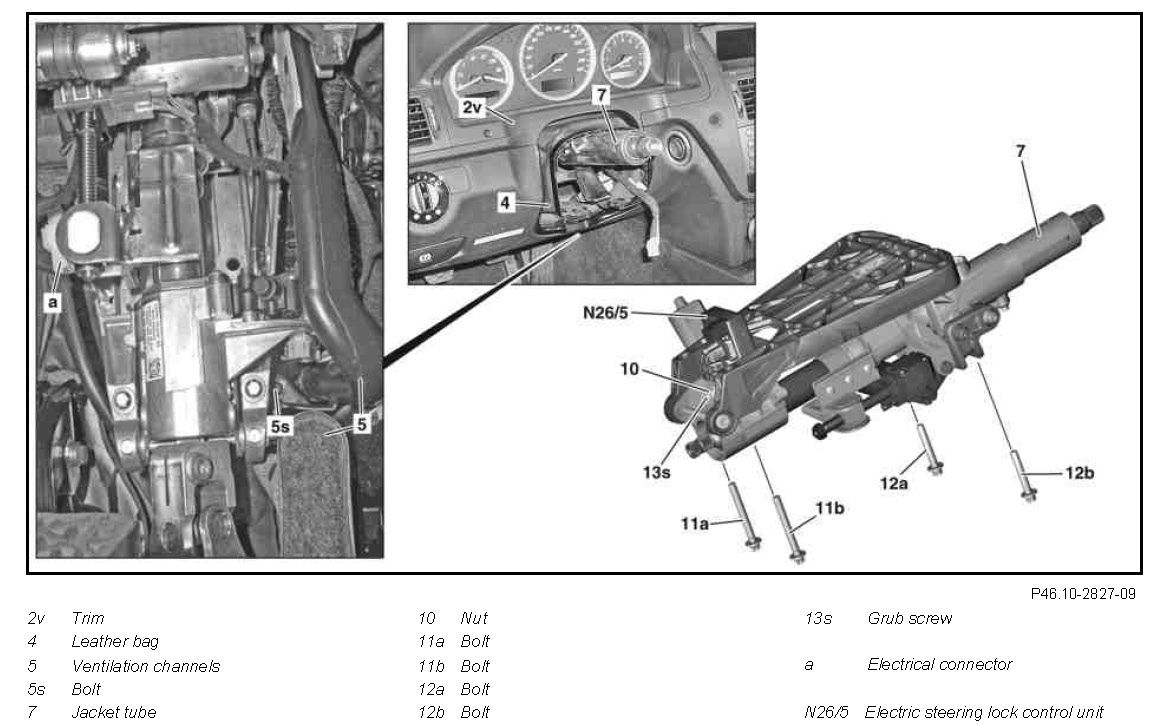

Component Identification:

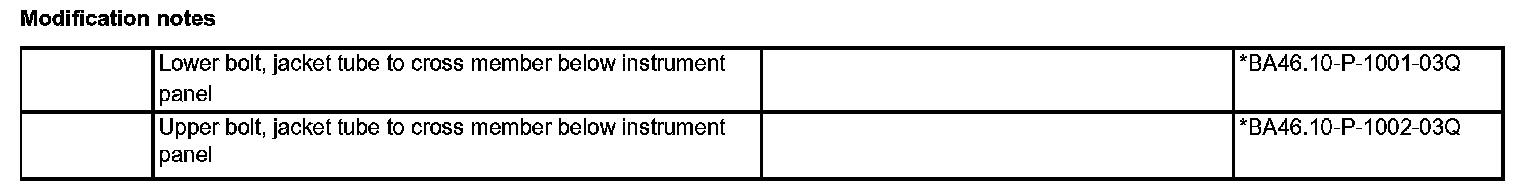

Modification notes:

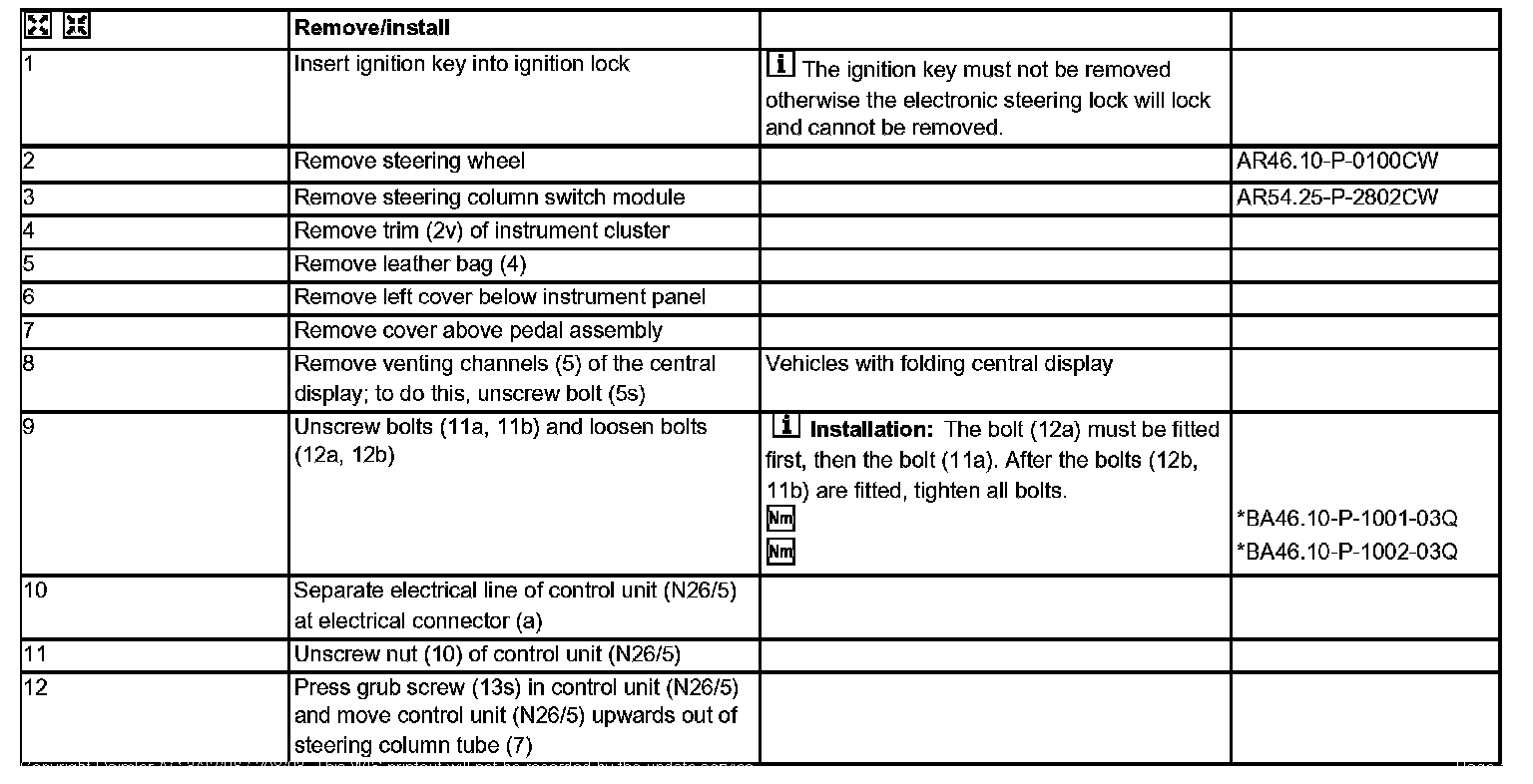

Remove/install Steps 1-12:




Remove/install Step 13:

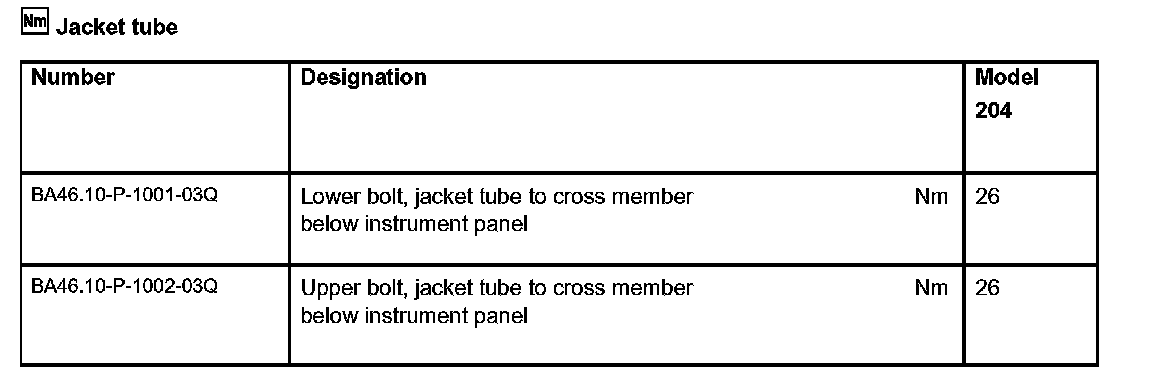

Jacket tube:
