AR46.30-P-0100W Checking Oil Pressure of Power Steering Pump

AR46.30-P-0100W Checking Oil Pressure Of Power Steering Pump
MODEL 172 with ENGINE 152, 271, 276
MODEL 204, 207, 251 with ENGINE 276

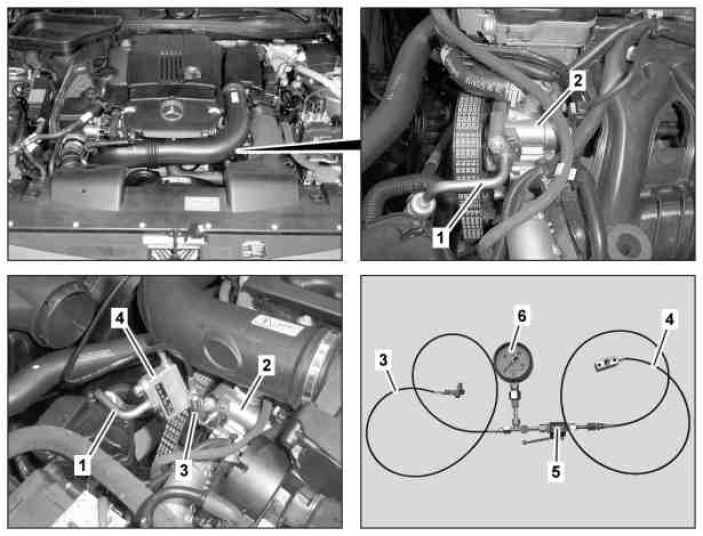

Shown on engine 271

1 Pressure line
2 Power steering pump
3 Test adapter
4 Test adapter
5 Throttle cock
6 Tester














124 589 06 21 00
Tester





210 589 00 71 00
Hand pump





212 589 00 90 00
Test adapter
