Removal and Replacement

AR46.30-P-0500W Remove/Install Power Steering Pump
MODEL 172 with ENGINE 276
MODEL 204, 207 with ENGINE 276
MODEL 251 with ENGINE 276

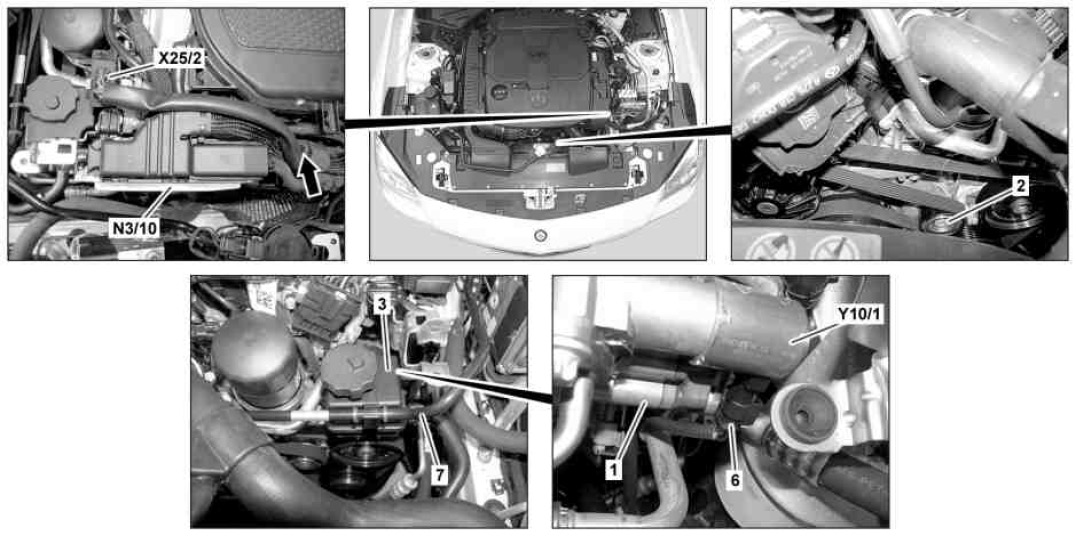

Shown on model 172

1 Power steering pump
2 Tensioner pulley
3 Expansion reservoir
6 Electrical connector
7 Vacuum line
N3/10 ME-SFI [ME] control unit
X25/2 Engine compartment/vehicle interior electrical connector
Y10/1 Power steering pump quantity control valve

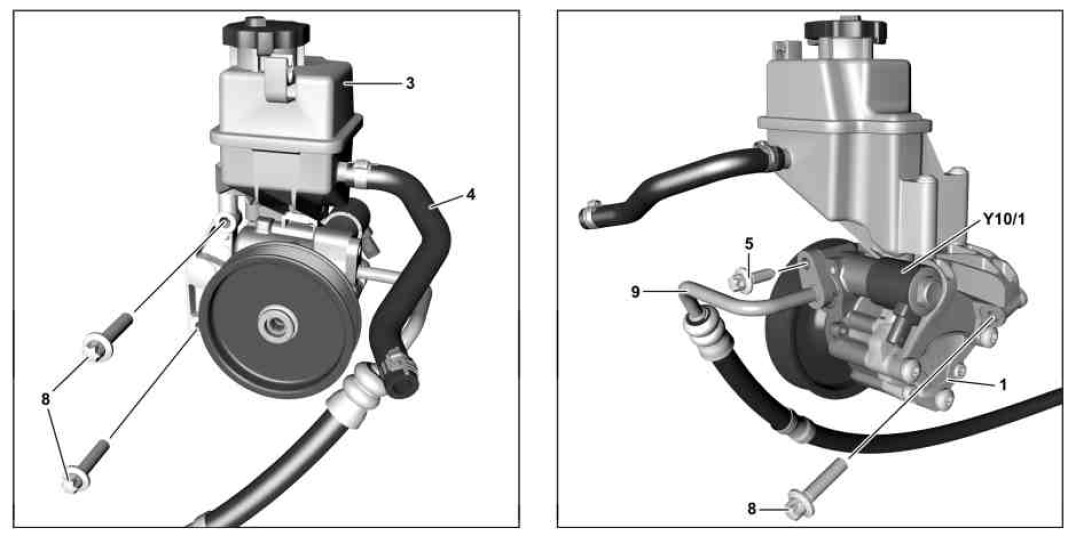

Shown on model 172

1 Power steering pump
3 Expansion reservoir
4 Return hose
5 Screw
8 Bolts
9 Pressure line
Y10/1 Power steering pump quantity control valve














129 589 00 91 00
Set of stop plugs





210 589 00 71 00
Hand pump
