Procedures

AR46.30-P-0010CW Fill Power Steering Pump And Bleed
MODEL 204, 207





Vehicles without electrohydraulic P/S (EHPS)

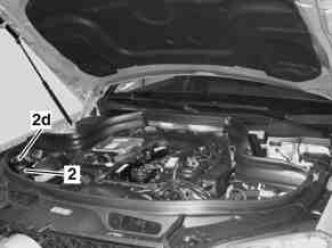

1 Engine air intake duct
2 Power steering expansion reservoir
2d Cap





Vehicles with electrohydraulic power steering (EHPS)

2 Power steering expansion reservoir
2d Cap
