Power Steering Pressure Control Valve: Service and Repair

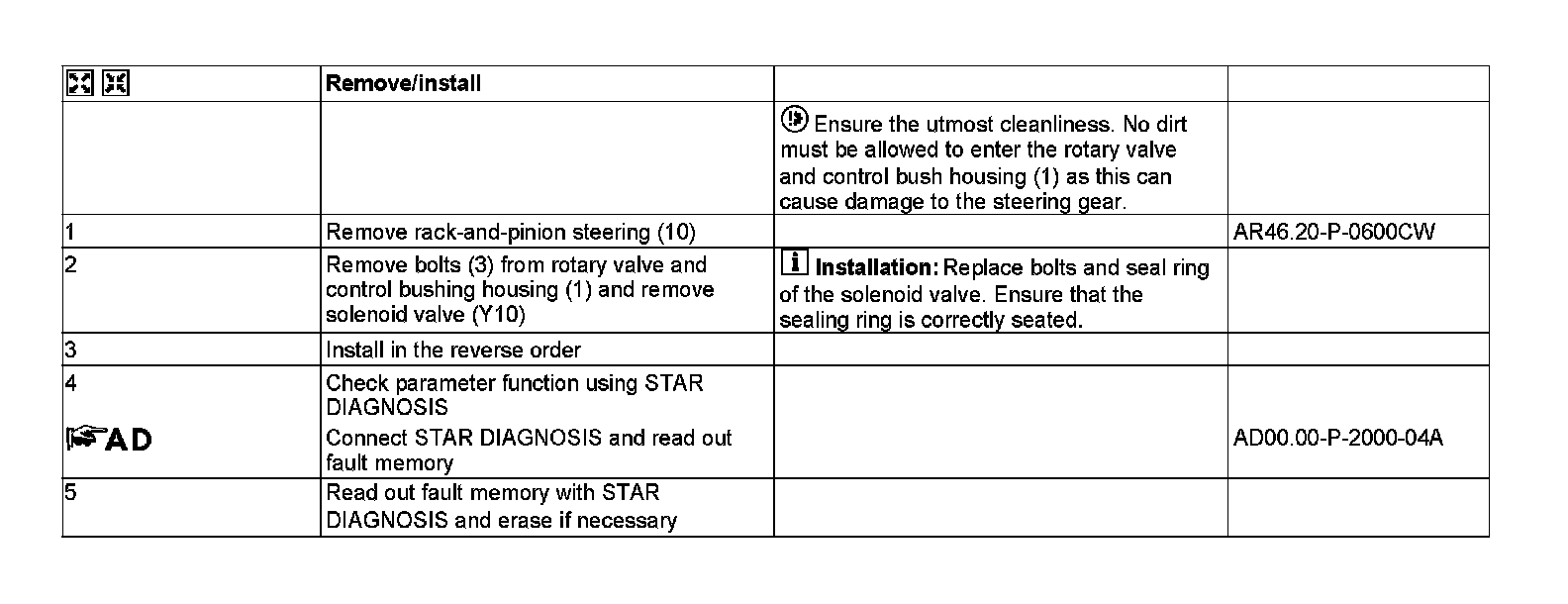

AR46.50-P-6000CW Remove/Install SPS Solenoid Valve
MODEL 204
Without electrohydraulic P/S (EHPS)
MODEL 207 with hydraulic power steering

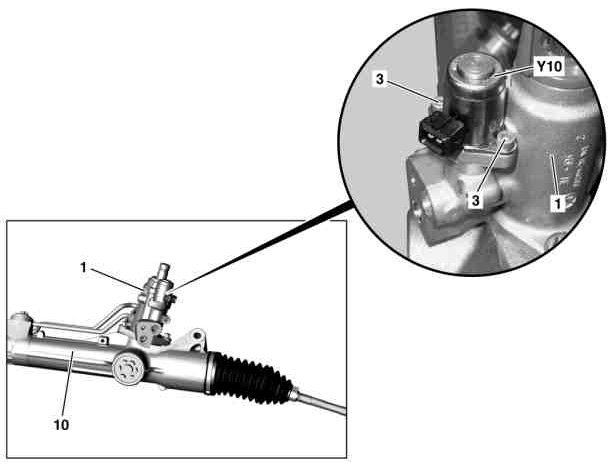

1 Rotary valve and control bush housing
3 Screw
10 Rack-and-pinion steering

Y10 Speed-sensitive power steering solenoid valve
