Keyless Start Antenna: Service and Repair



AR82.62-P-8000EC Remove/Install Keyless-Go Antenna
- with CODE (889) Keyless-Go
- Interior center console

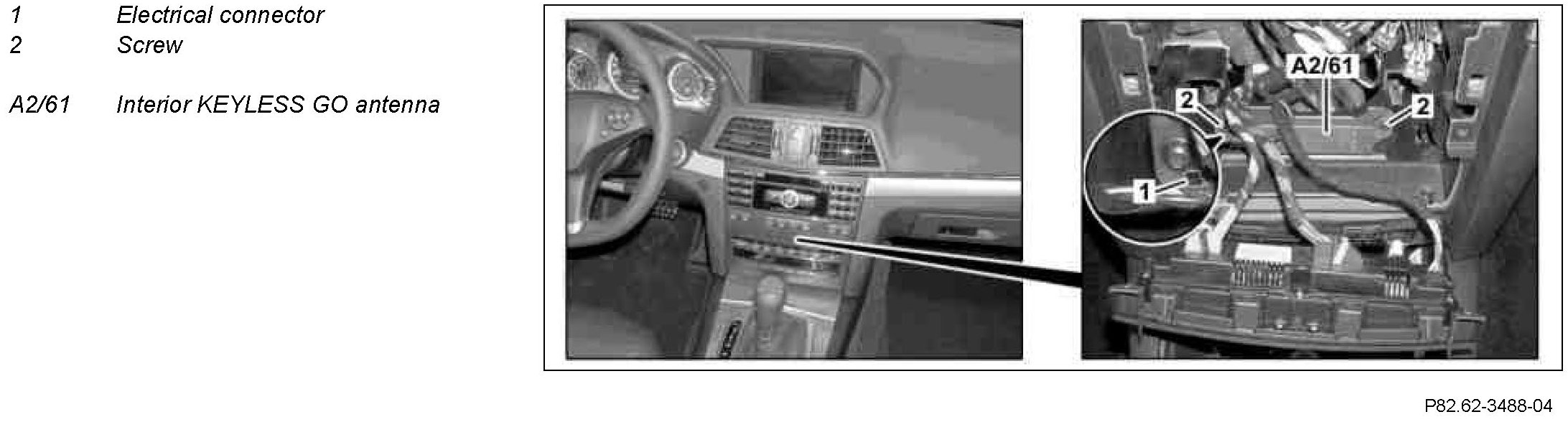

Component Identification:

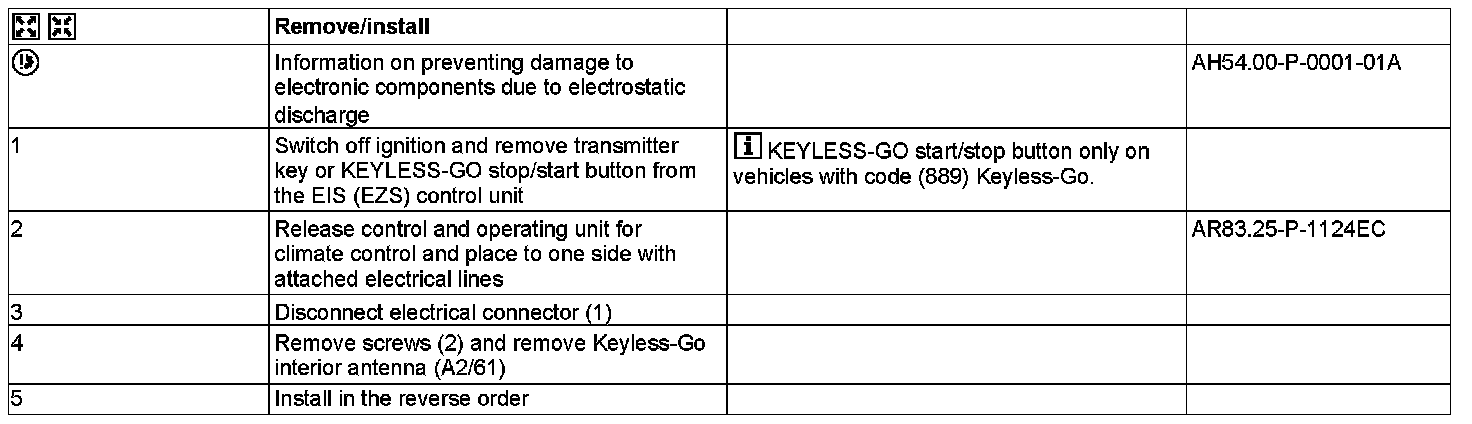

Steps 1 - 5:
