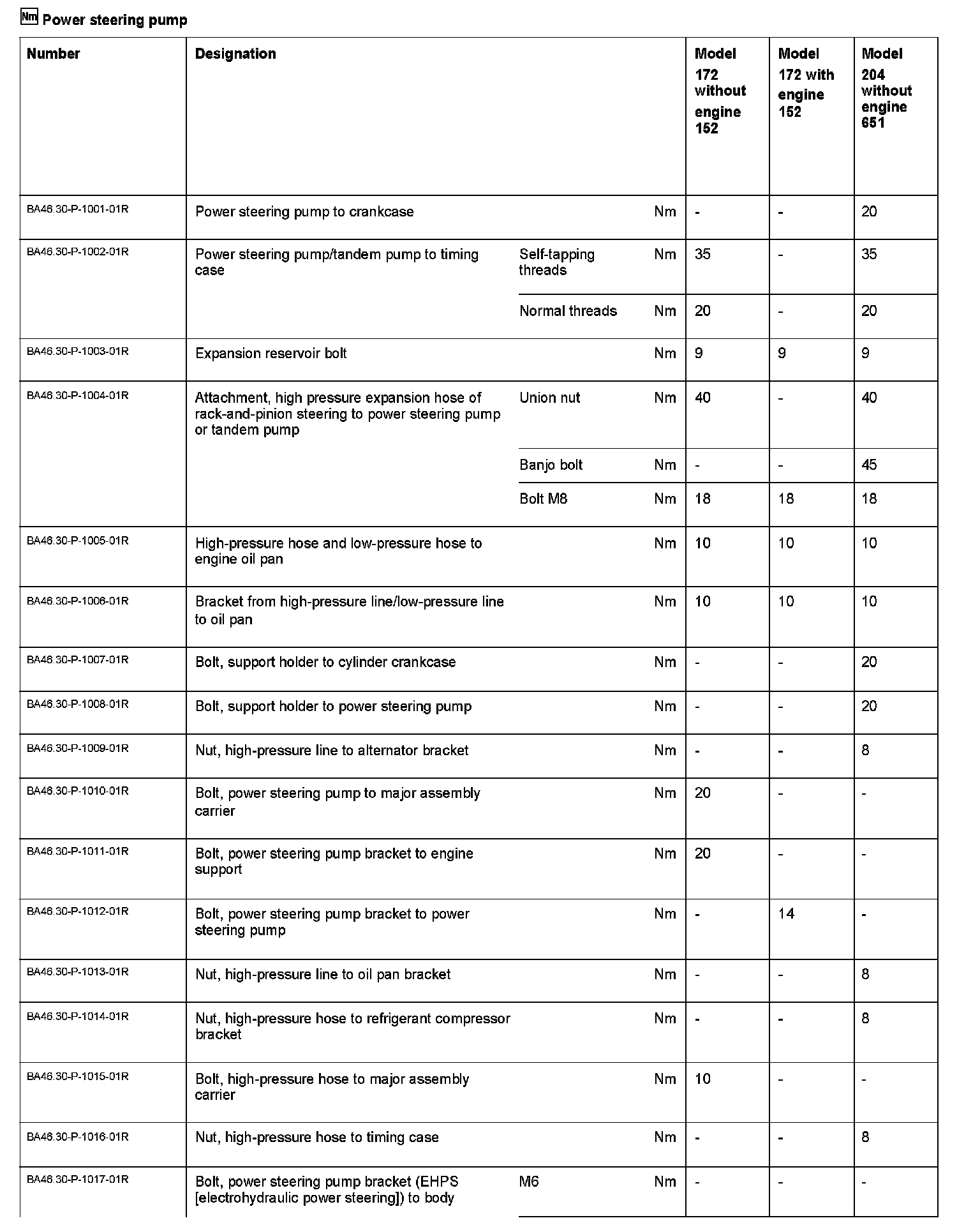

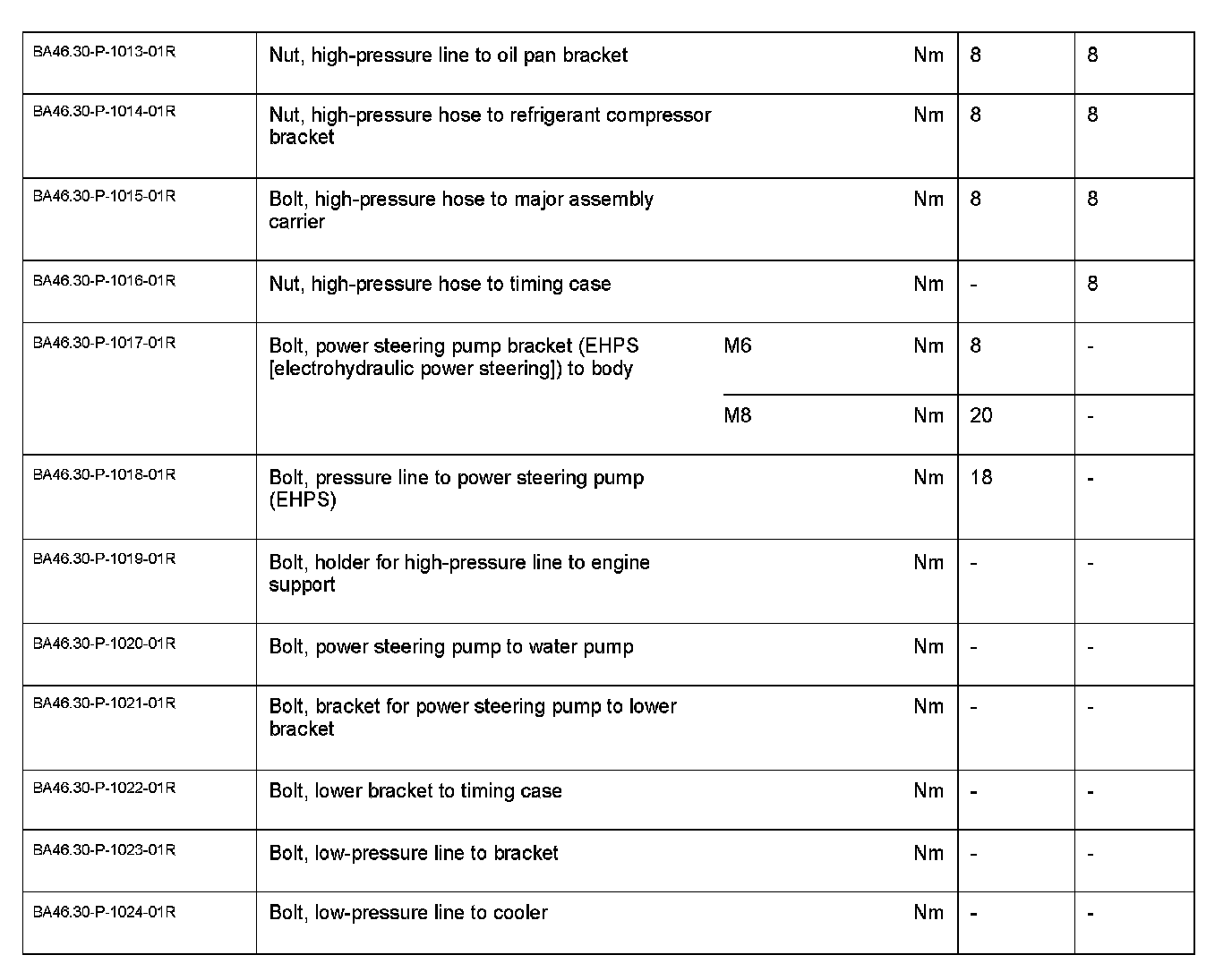

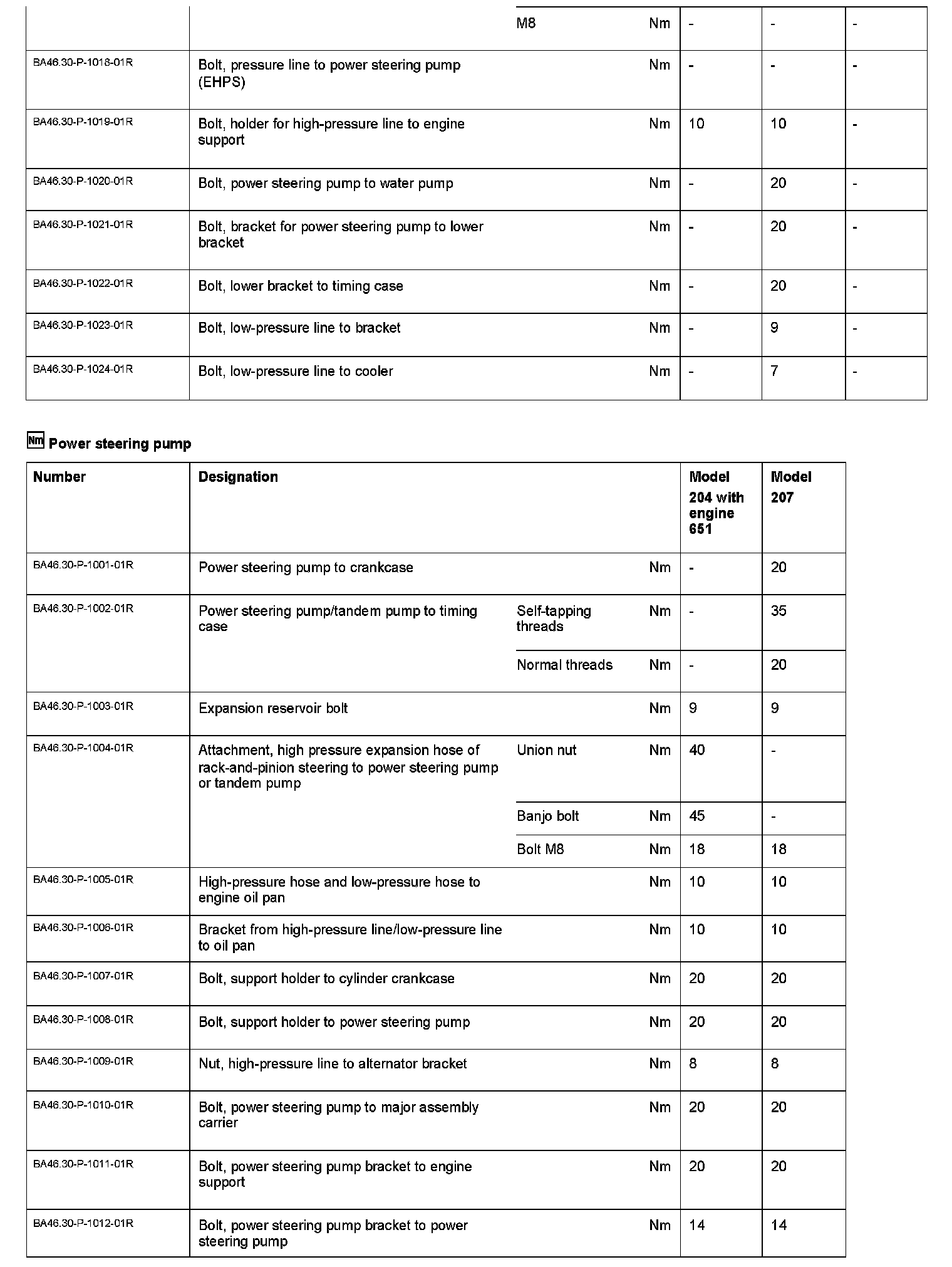

BA46.30-P-1000-01R Power Steering Pump
BA46.30-P-1000-01R Power Steering Pump
BA46.30-P-1000-01R
Power Steering Pump
Model 172, 204, 207
