AR77.39-P-3695QA Remove/Install Luggage Compartment Cover Limit Switch

AR77.39-P-3695QA Remove/Install Luggage Compartment Cover Limit Switch







DANGER:
- Injury hazard from roll bar extending
- Before working in the area of the roll bar pull rear head restraints out by hand.

1 Partially open soft top

NOTE: Leave soft top compartment cover open and soft top bow set up.

2 Cover vehicle in rear area

NOTE: To prevent scratching the paint during assembly work.

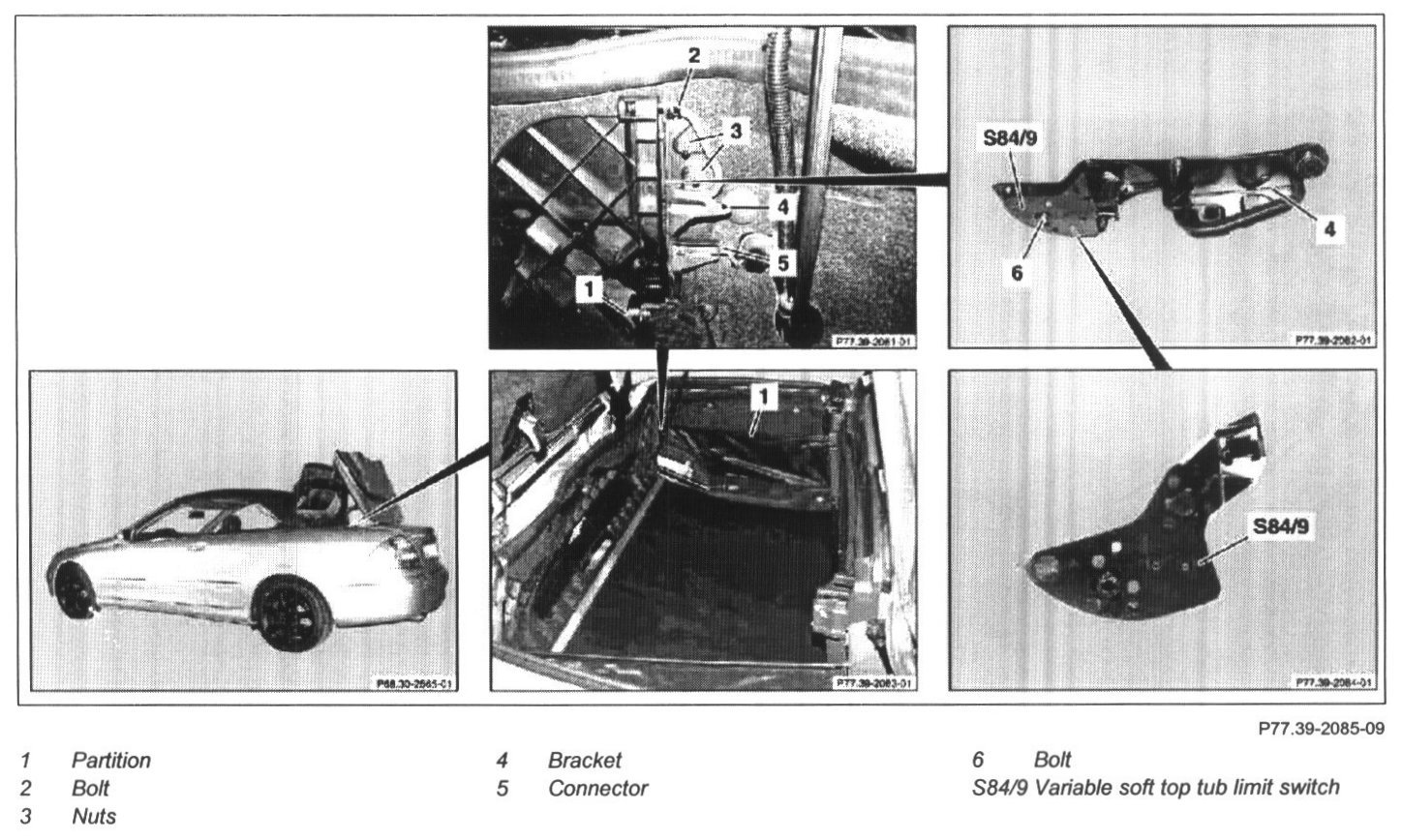

3 Unhook partition (1).
4 Pull out bolt (2)
5 Undo connector (5)
6 Unscrew nut (3) and remove bracket (4) with variable soft top tub limit switch (S84/9)
- Nut for sun shade mount = 8 ± 0.8 Nm
7 Unscrew bolt (6) and remove variable soft top tub limit switch (S84/9) from bracket (4).
8 Install in reverse order
