AR77.39-P-3680QA Remove/Install Soft Top Open/Closed Switch Group

AR77.39-P-3680QA Remove/Install Soft Top Open/Closed Switch Group







DANGER!
Injury hazard from roll bar extending
- Before working in the area of the roll bar pull rear head restraints out by hand.

1 Completely open soft top

NOTE: Leave soft top compartment cover upright

2 Remove rear seat and rear backrest
3 Remove left side paneling in rear

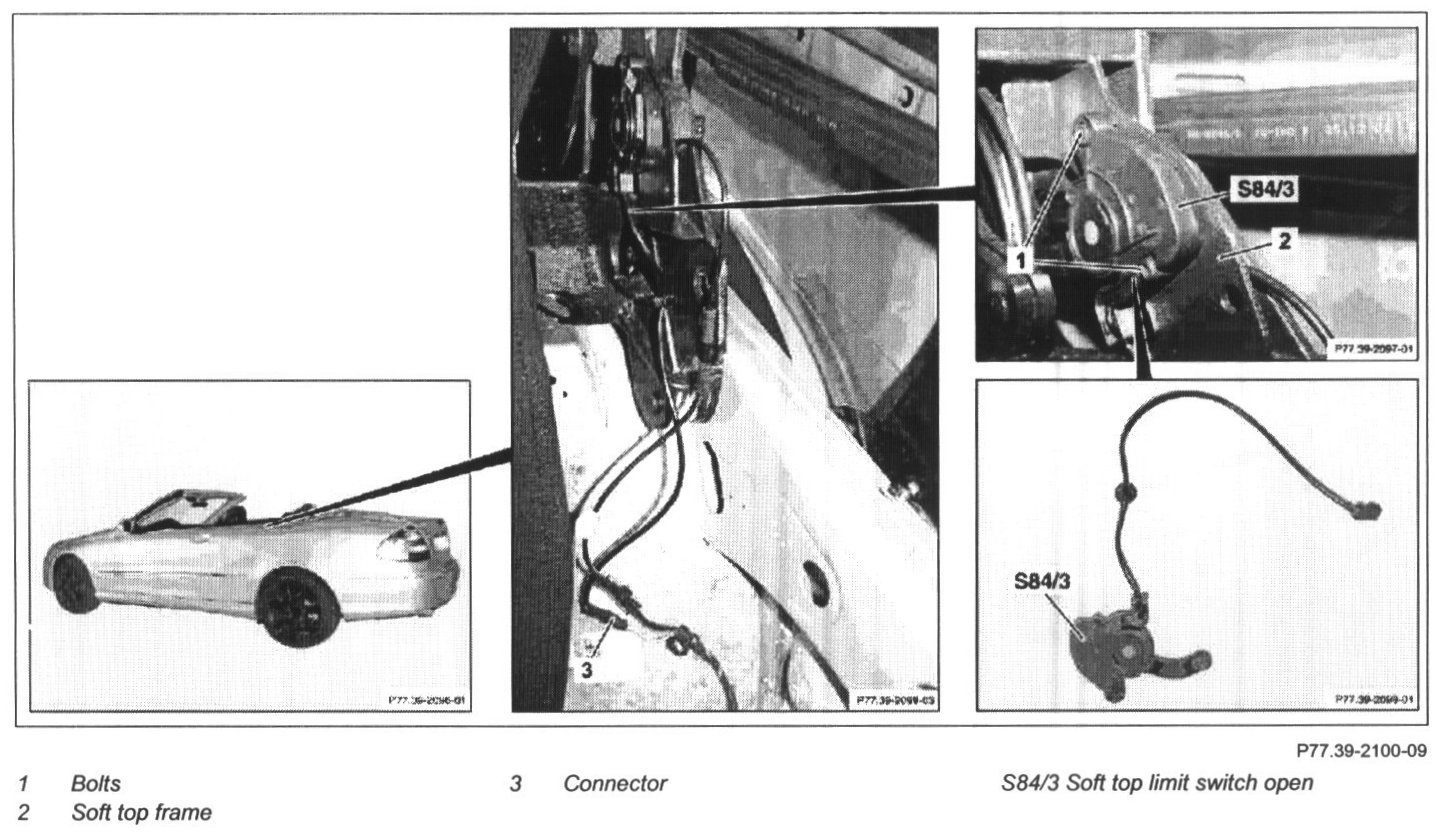

4 Disconnect connector (3) in area of rear side paneling.
5 Unscrew bolts (1)
6 Release soft top limit switch open (S84/3) from soft top frame (2) and remove upward.
7 Install in reverse order
