Collision Avoidance Sensor: Service and Repair

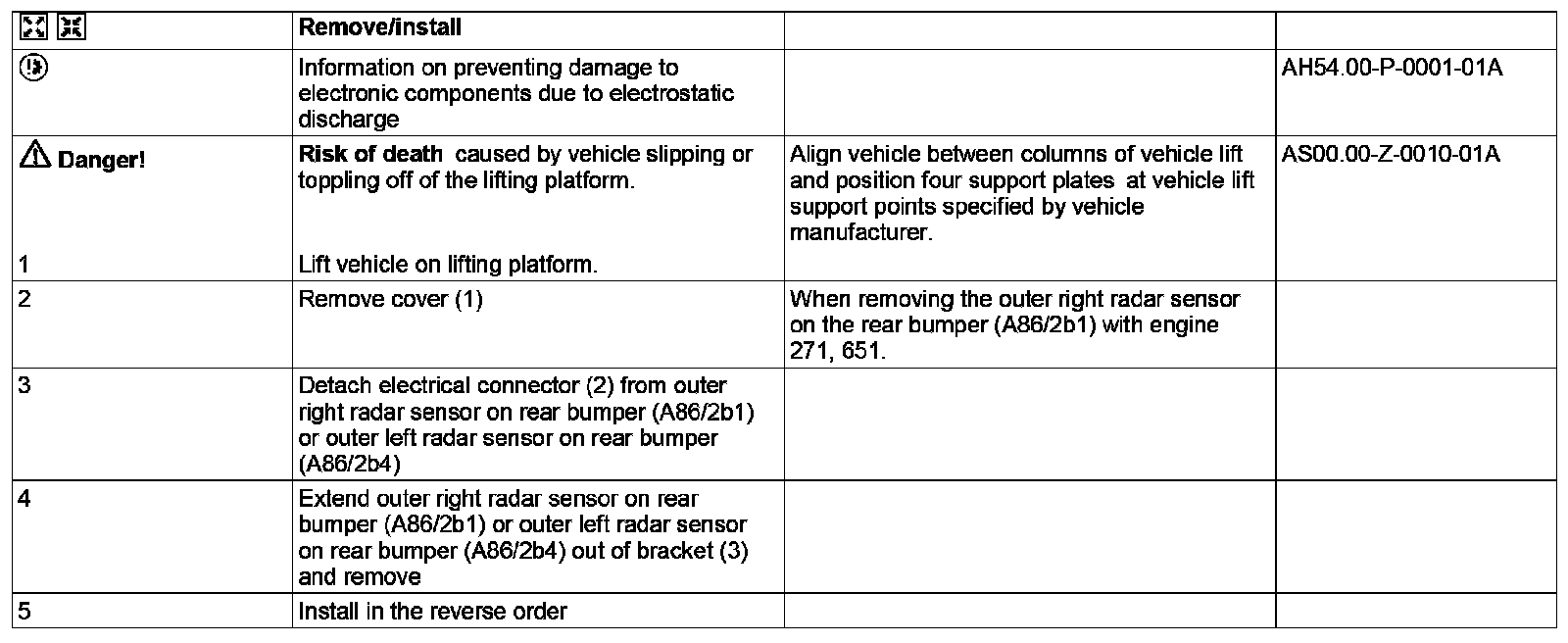

AR54.71-P-0100EC Remove/install Sensors For Blind Spot Assist
- MODEL 207
- with CODE (234) Blind Spot Assist

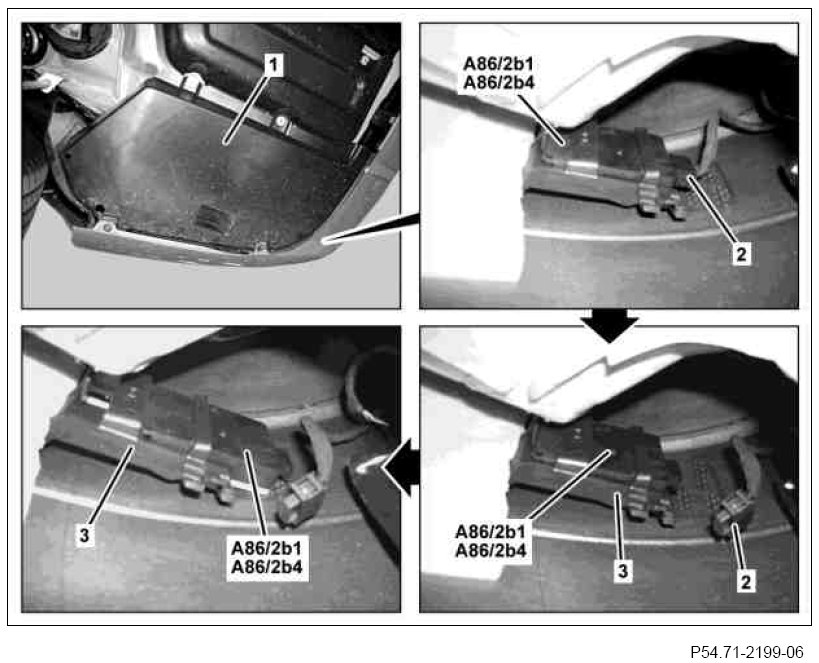

Shown on model 207.3 with engine 271






1 Cover
2 Electrical connector
3 Bracket
A86/2b1 Right outer radar sensor, rear bumper
A86/2b4 Left outer radar sensor, rear bumper
