AR91.40-P-0681ECA Remove/Install Rear Seat Belts

AR91.40-P-0681ECA Remove/install Rear Seat Belts

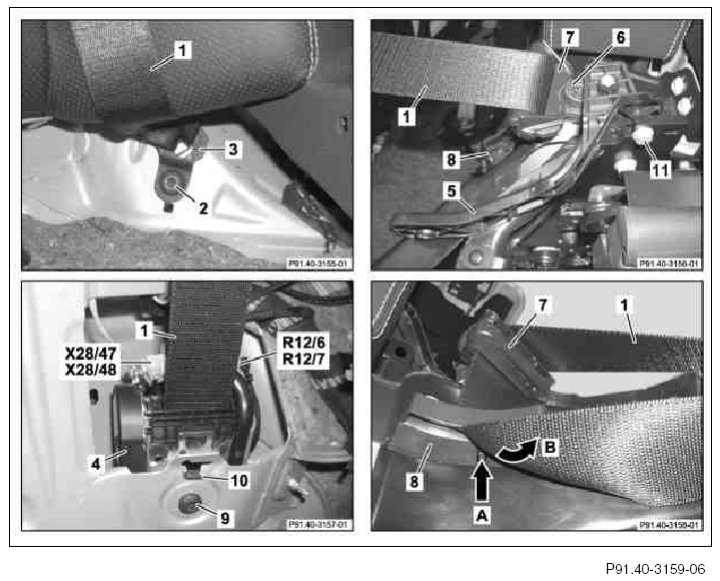

Shown on left side of vehicle







1 Seat belt
2 Screw
3 Belt end fitting
4 Automatic belt retractor
5 Bracket
6 Screw
7 Seat belt guide bracket
8 Seat belt guide
9 Screw
10 Guide
11 Screw
R12/6 Left rear emergency tensioning retractor squib
R12/7 Right rear emergency tensioning retractor squib
X28/47 Left rear emergency tensioning retractor squib electrical connector
X28/48 Right rear emergency tensioning retractor squib electrical connector
