Home >> Mercedes Benz >> 2012 >> E 350 Cabriolet (207.459) V6-3.5L (276.957) >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Seat Belt >> Service and Repair >> AR91.40-P-0630EC Remove/Install Seat Belt With Emergency Tensioning Retractor

AR91.40-P-0630EC Remove/Install Seat Belt With Emergency Tensioning Retractor



AR91.40-P-0630EC Remove/Install Seat Belt With Emergency Tensioning retractor

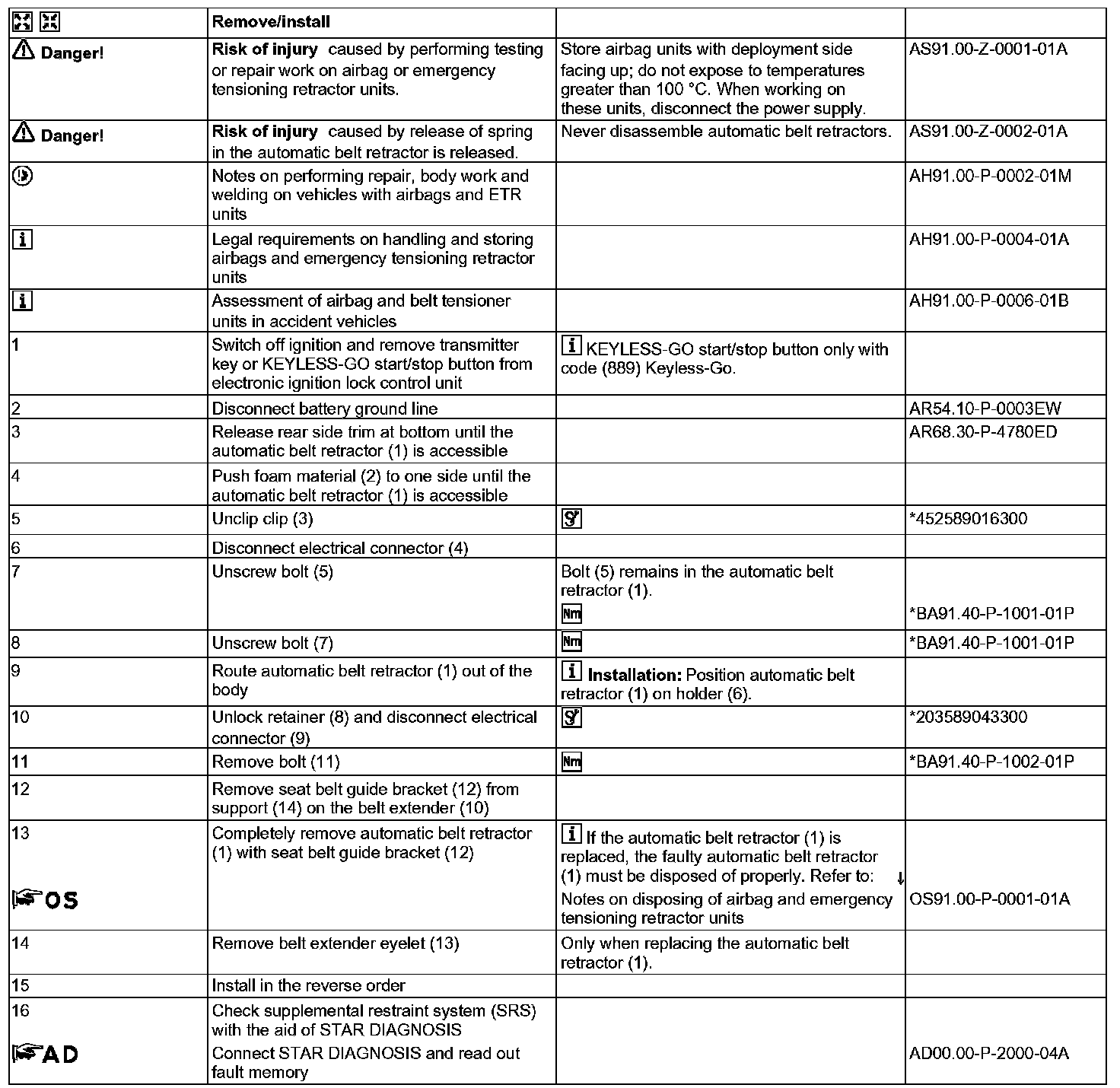

Steps 1 - 16:

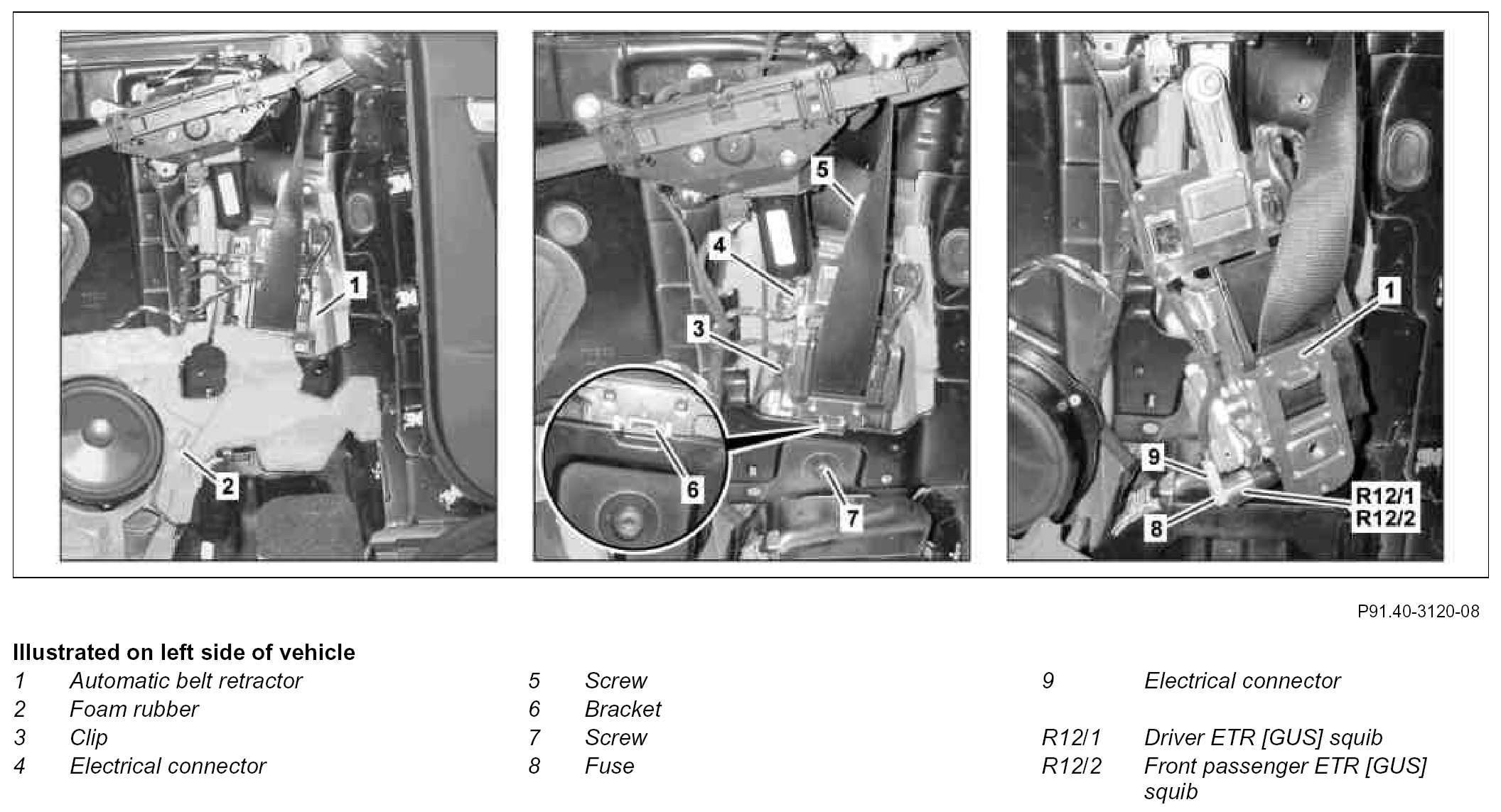

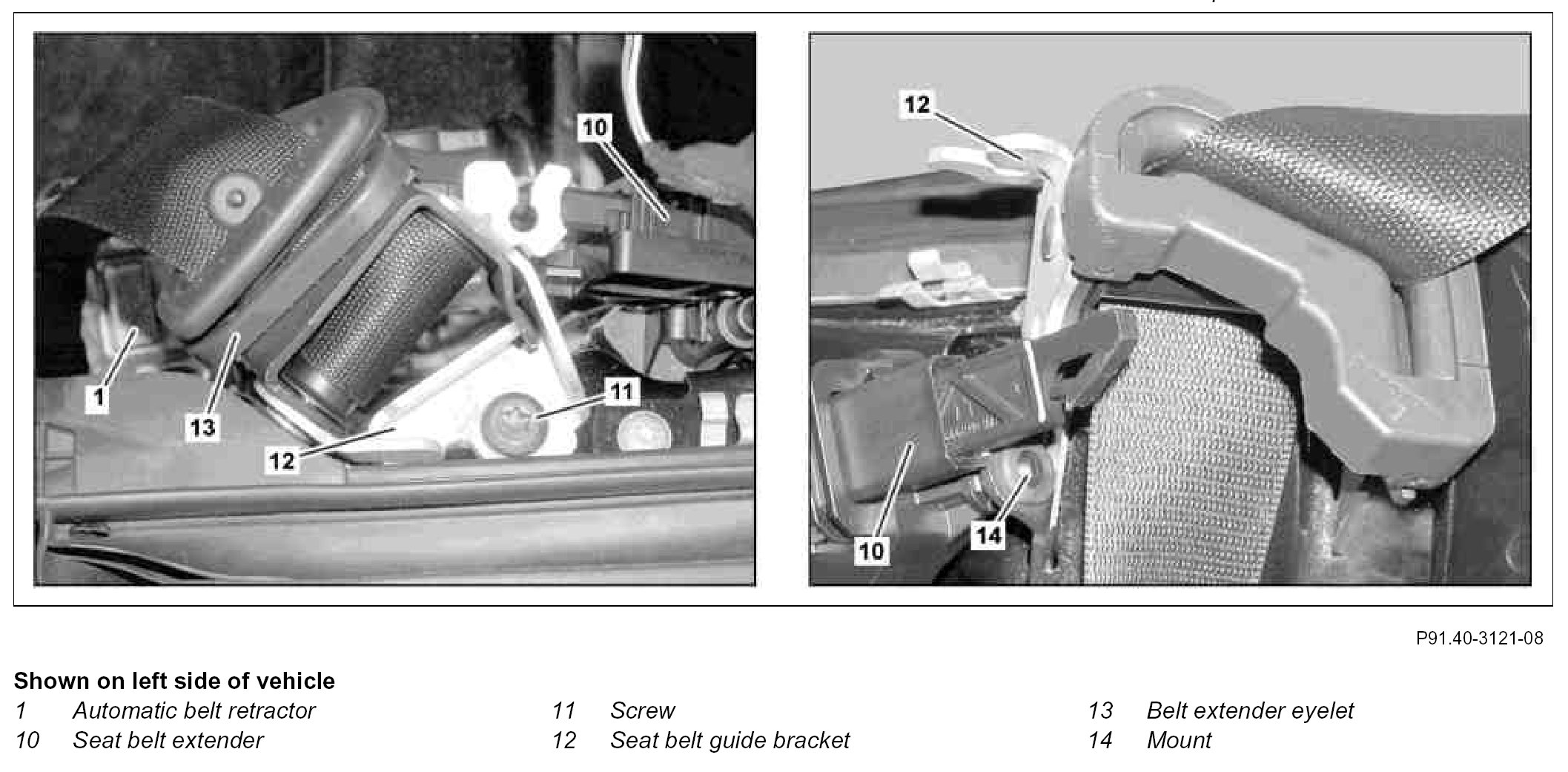

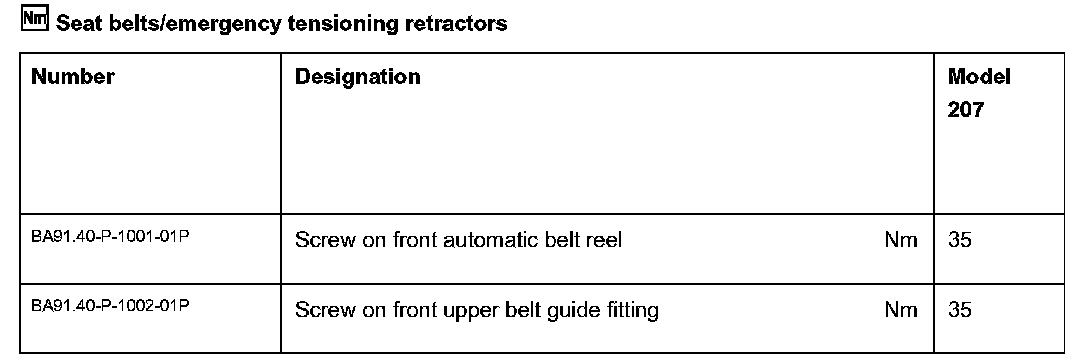

Seat Belts/Emergency Tensioning Retractors:

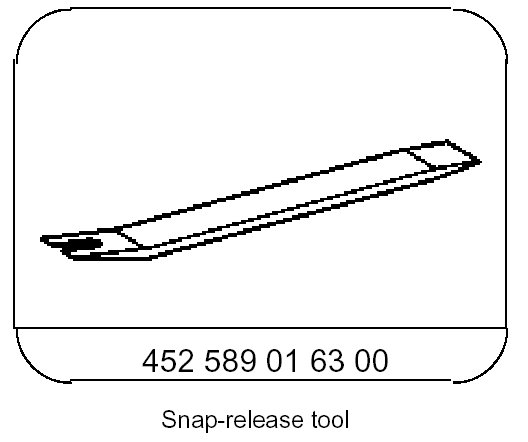

Special Tools:

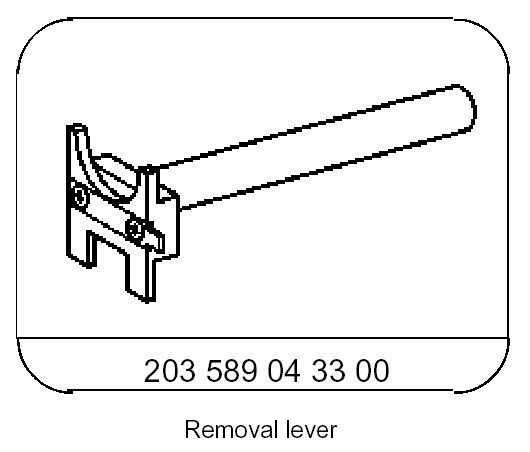

Special Tools:
