PE91.60-P-2105EAA Airbag Control Unit



PE91.60-P-2105EAA Airbag Control Unit

Model 207

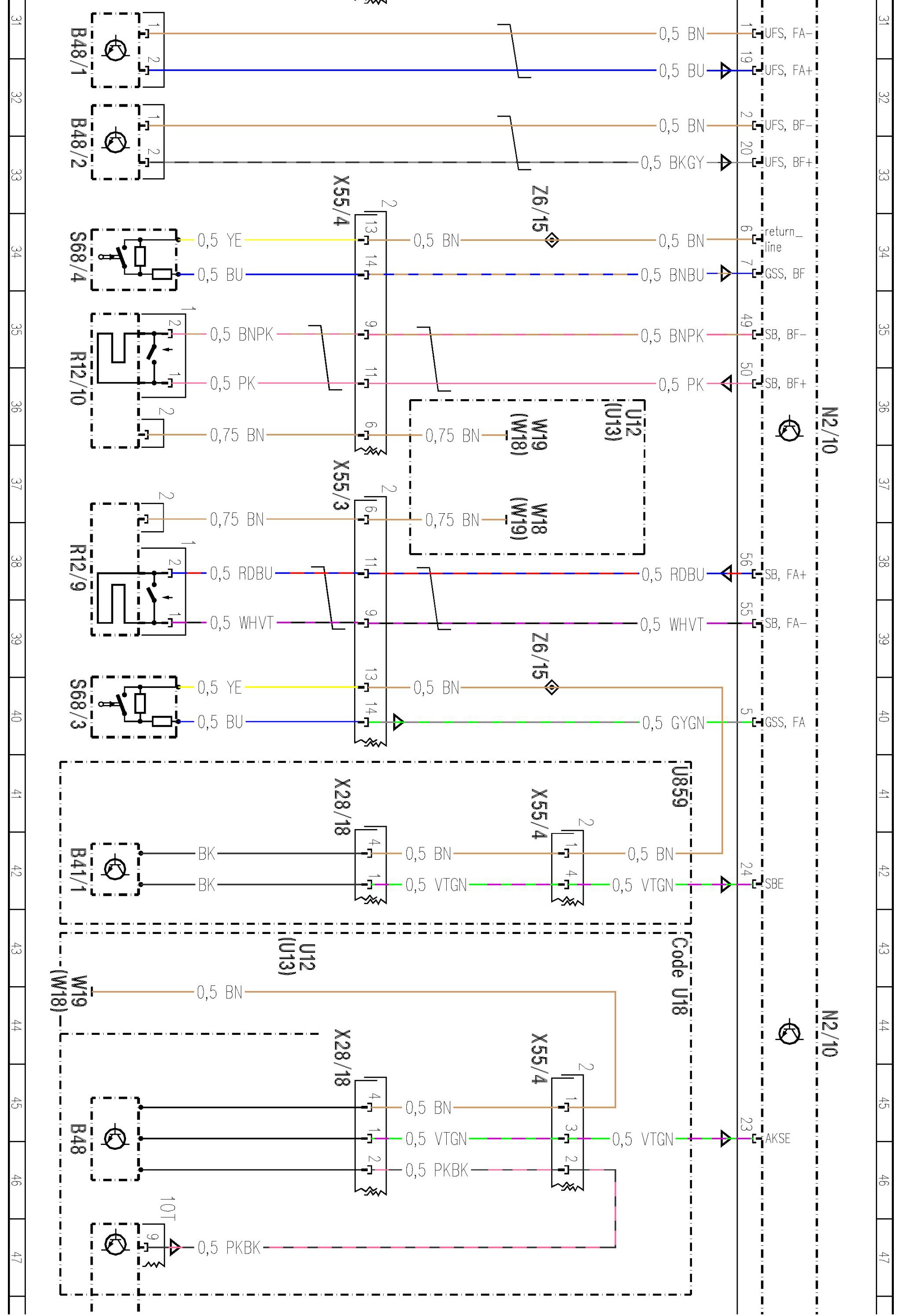

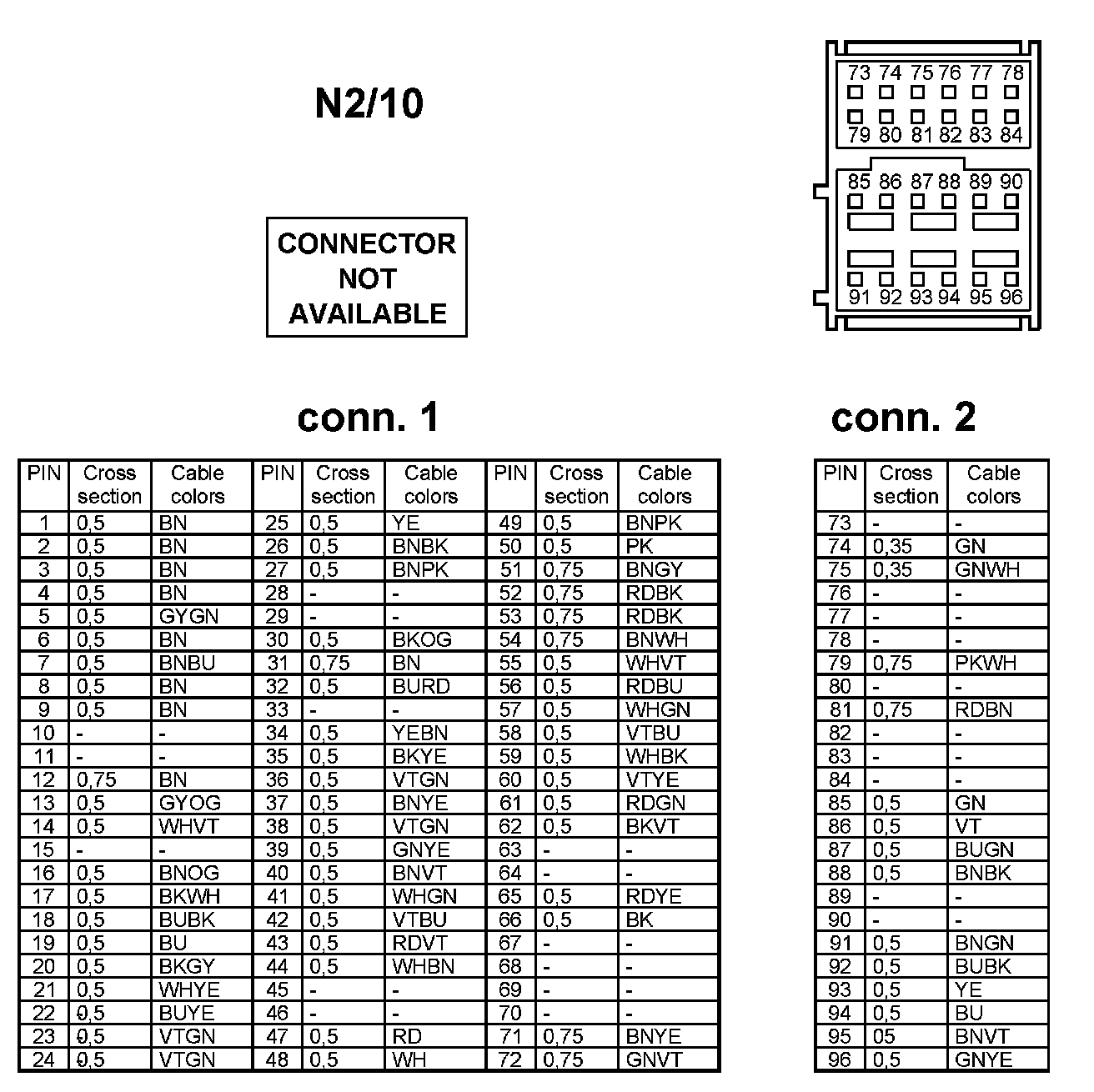

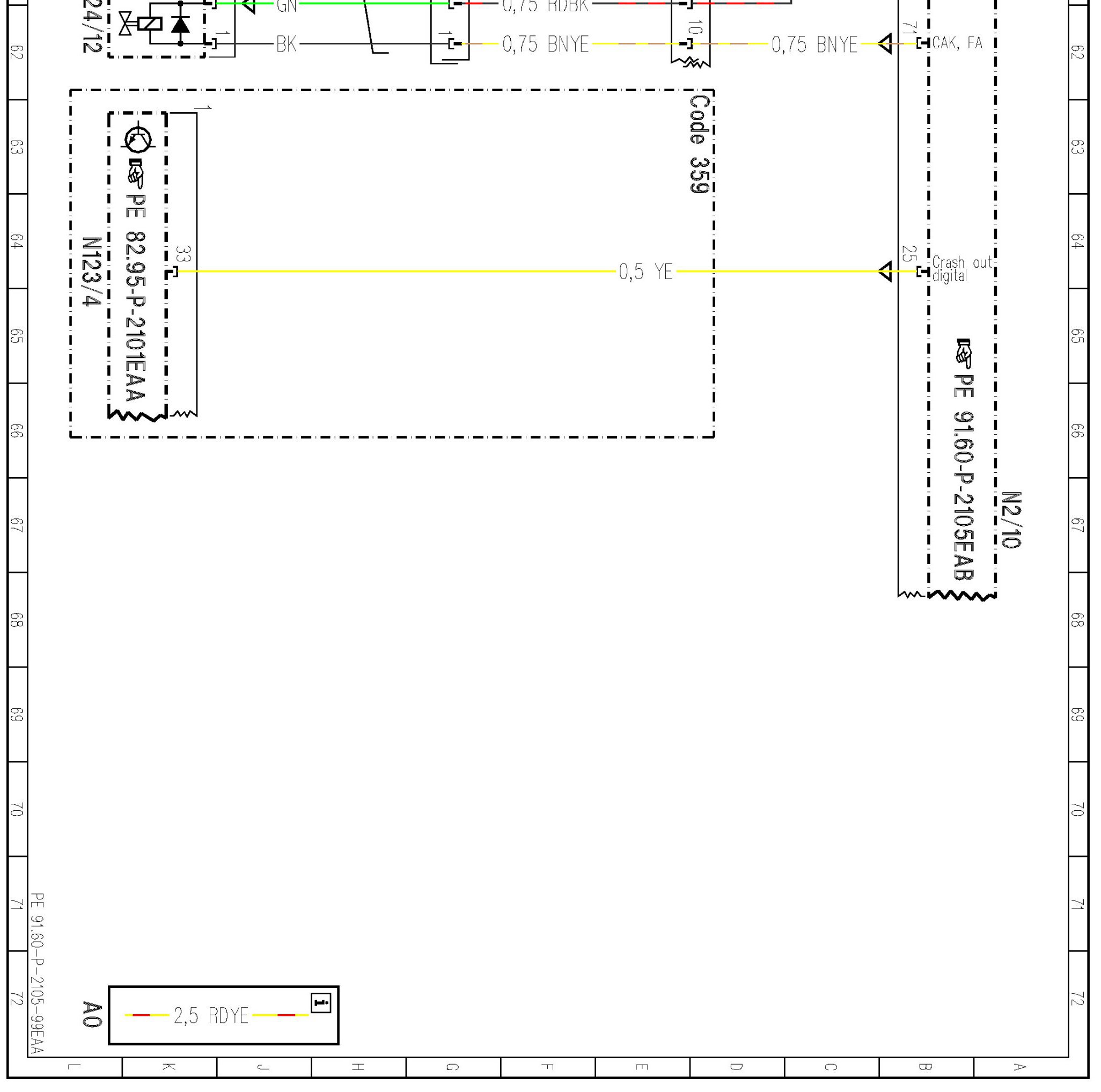

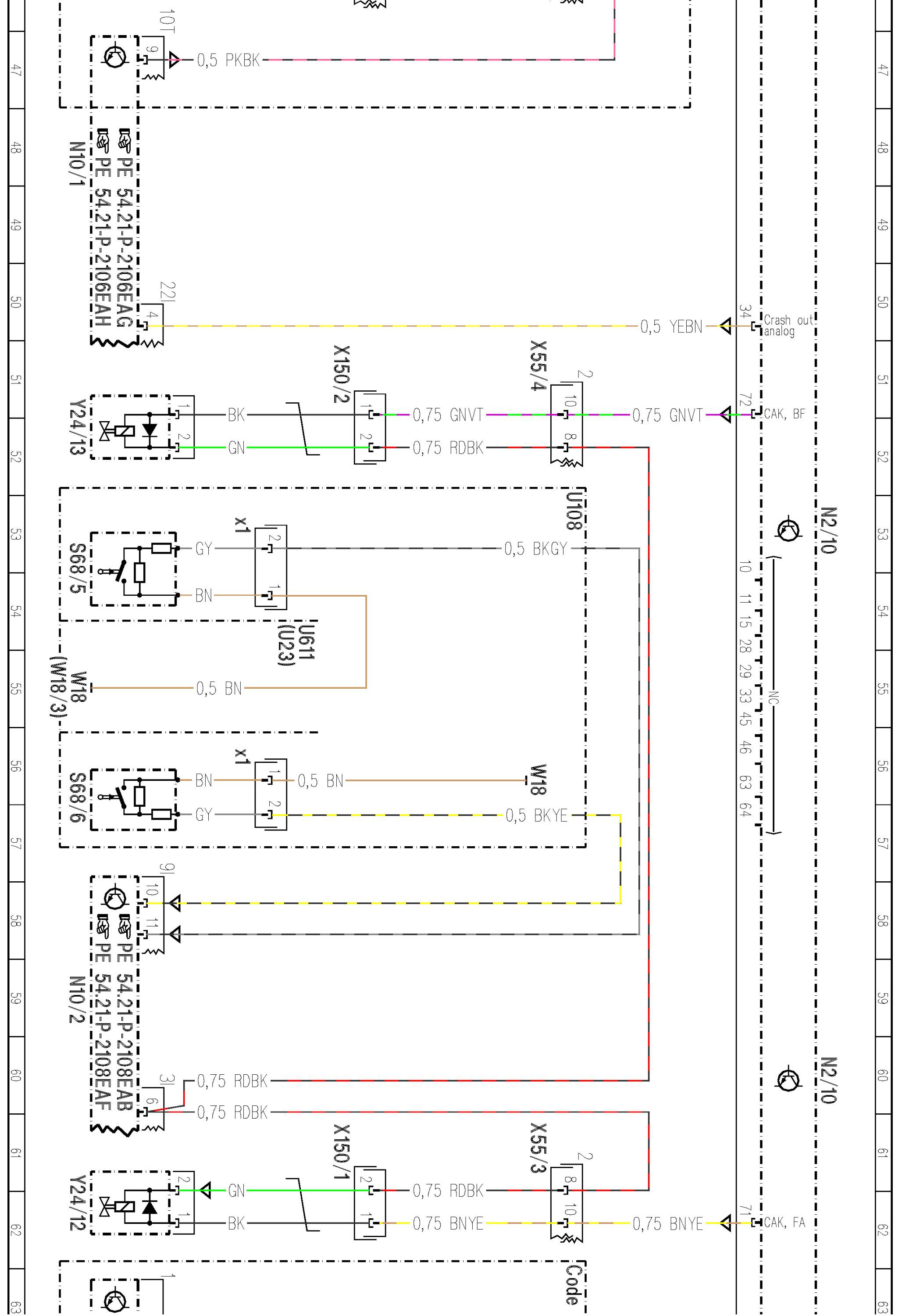

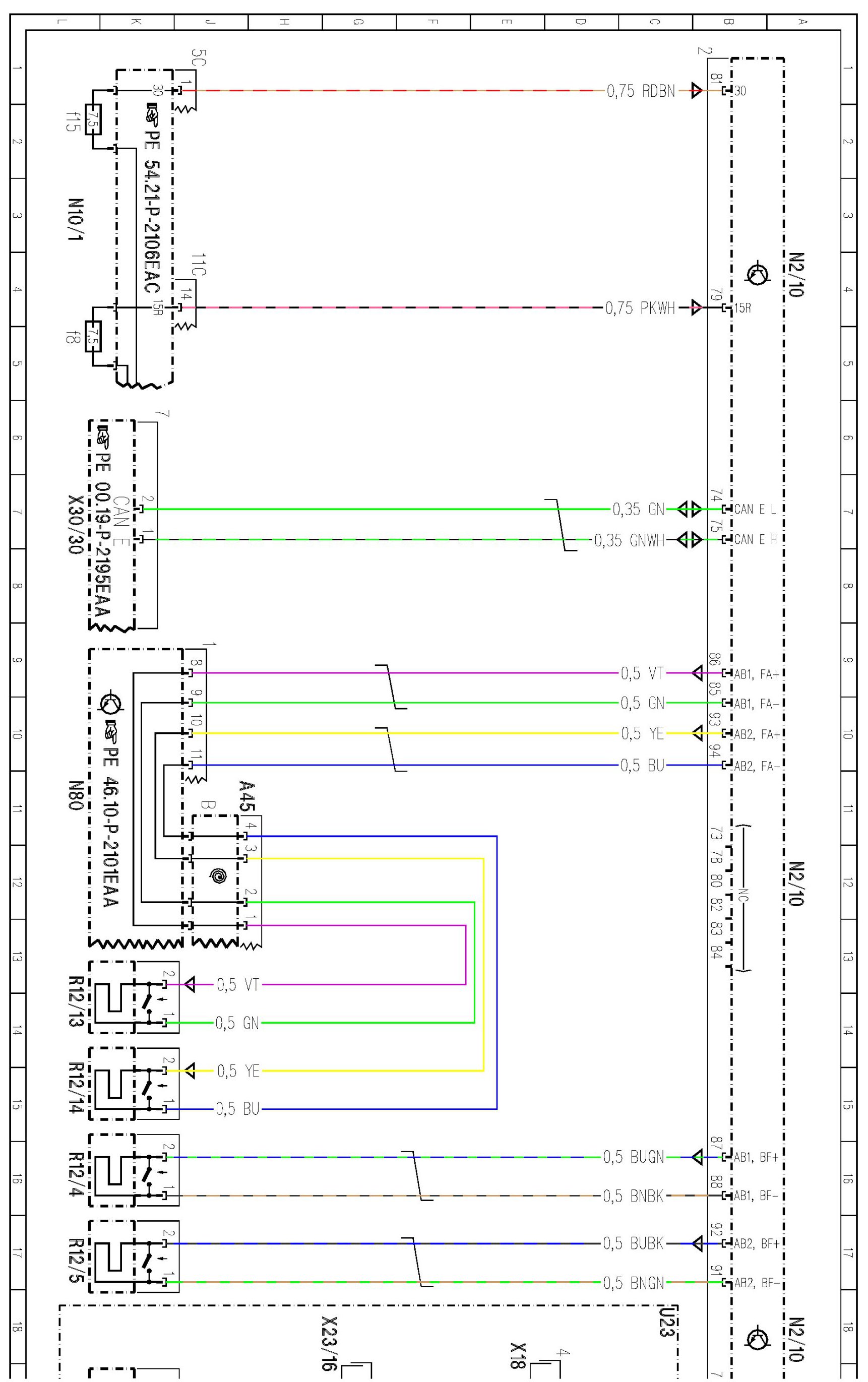

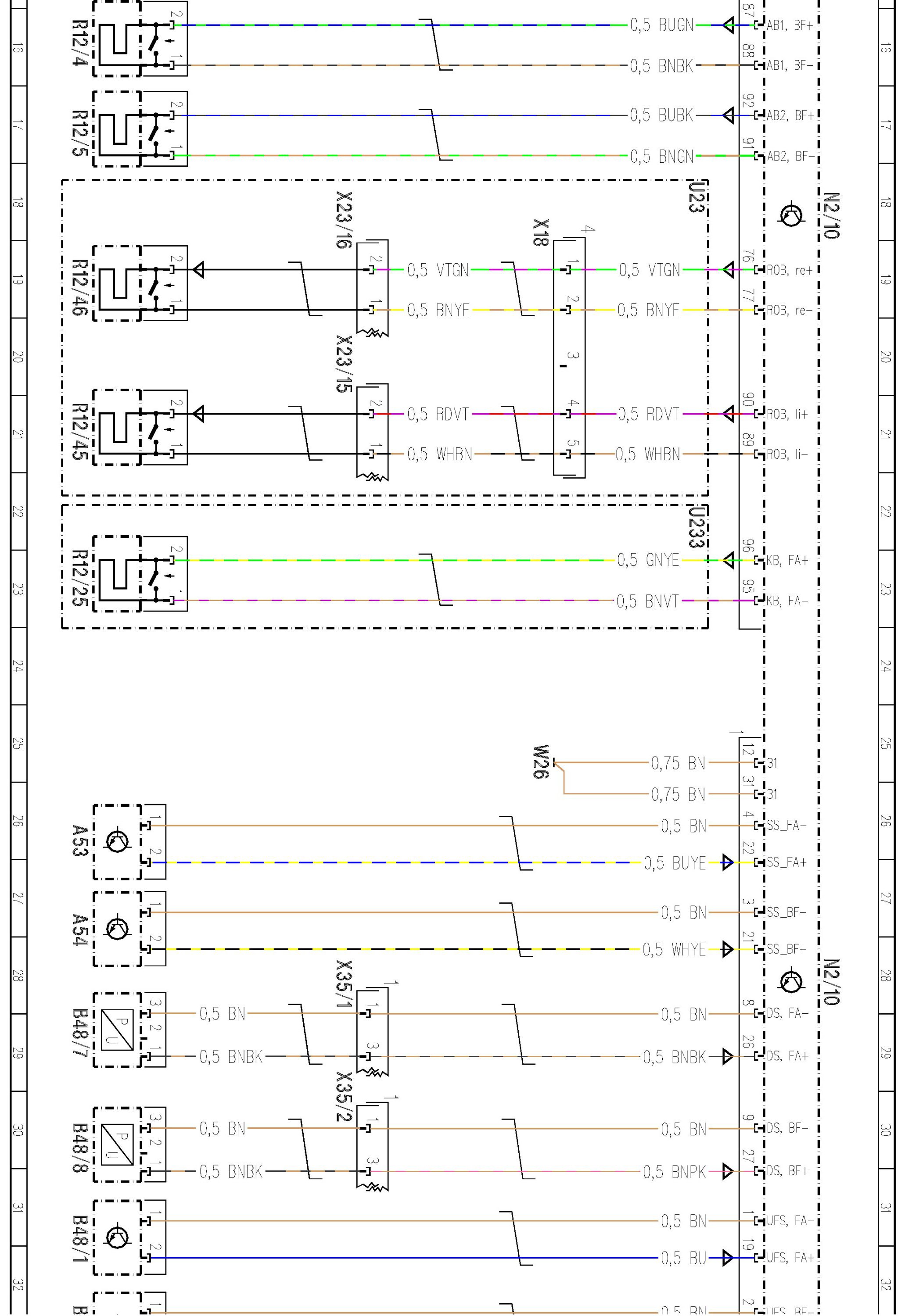

- control unit N2/10 sheet 1


































































































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
