Electrical Diagrams

PE82.95-P-2101EAA Emergency Call System Control Unit

MODEL 207
- with CODE (359) TELE AID emergency call system

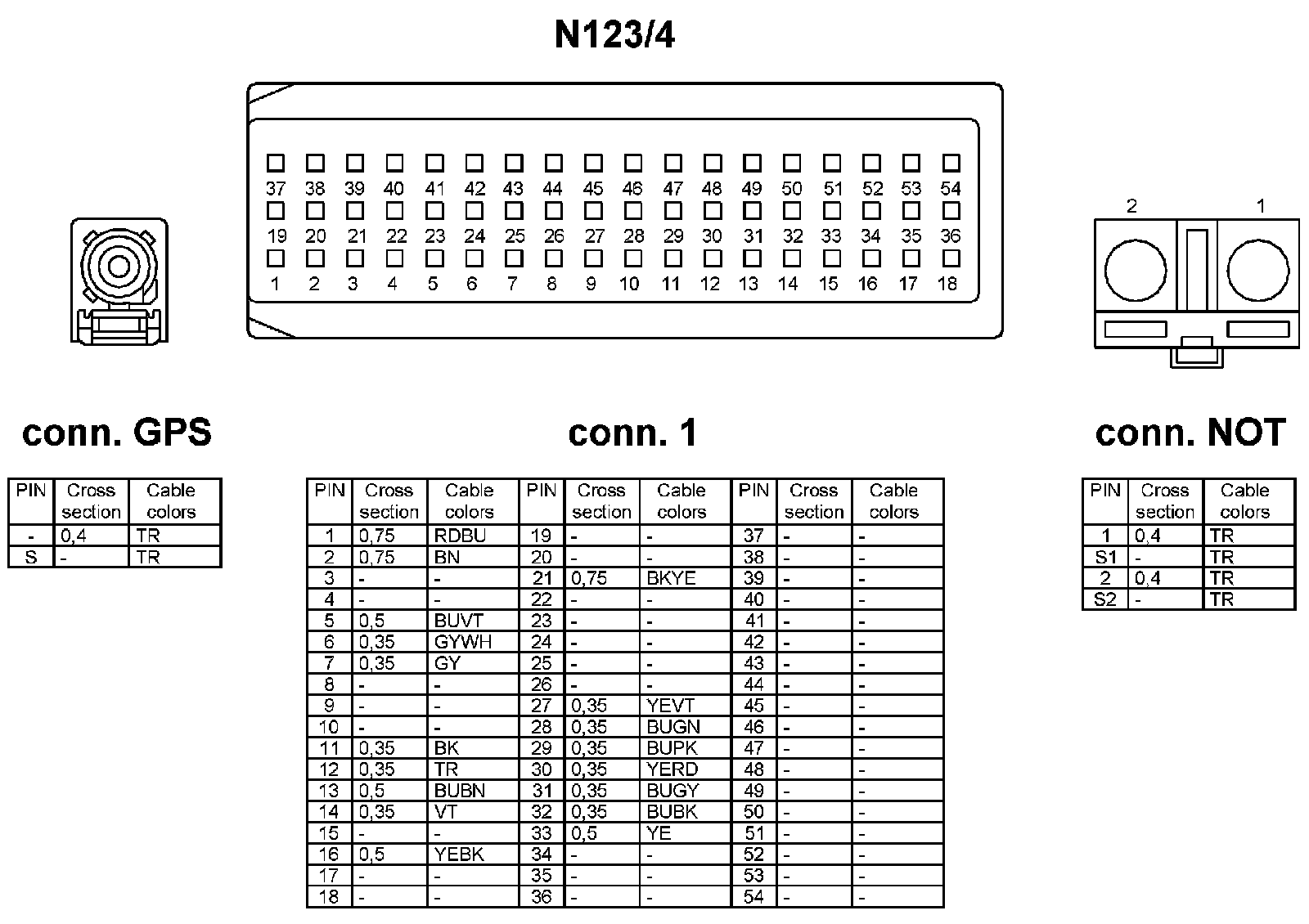

- control unit N123/4


















































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
