AR47.30-P-8212CW Remove/Install Activated Charcoal Canister
AR47.30-P-8212CW Remove/Install Activated Charcoal Canister
AR47.30-P-8212CW Remove/Install Activated Charcoal Canister

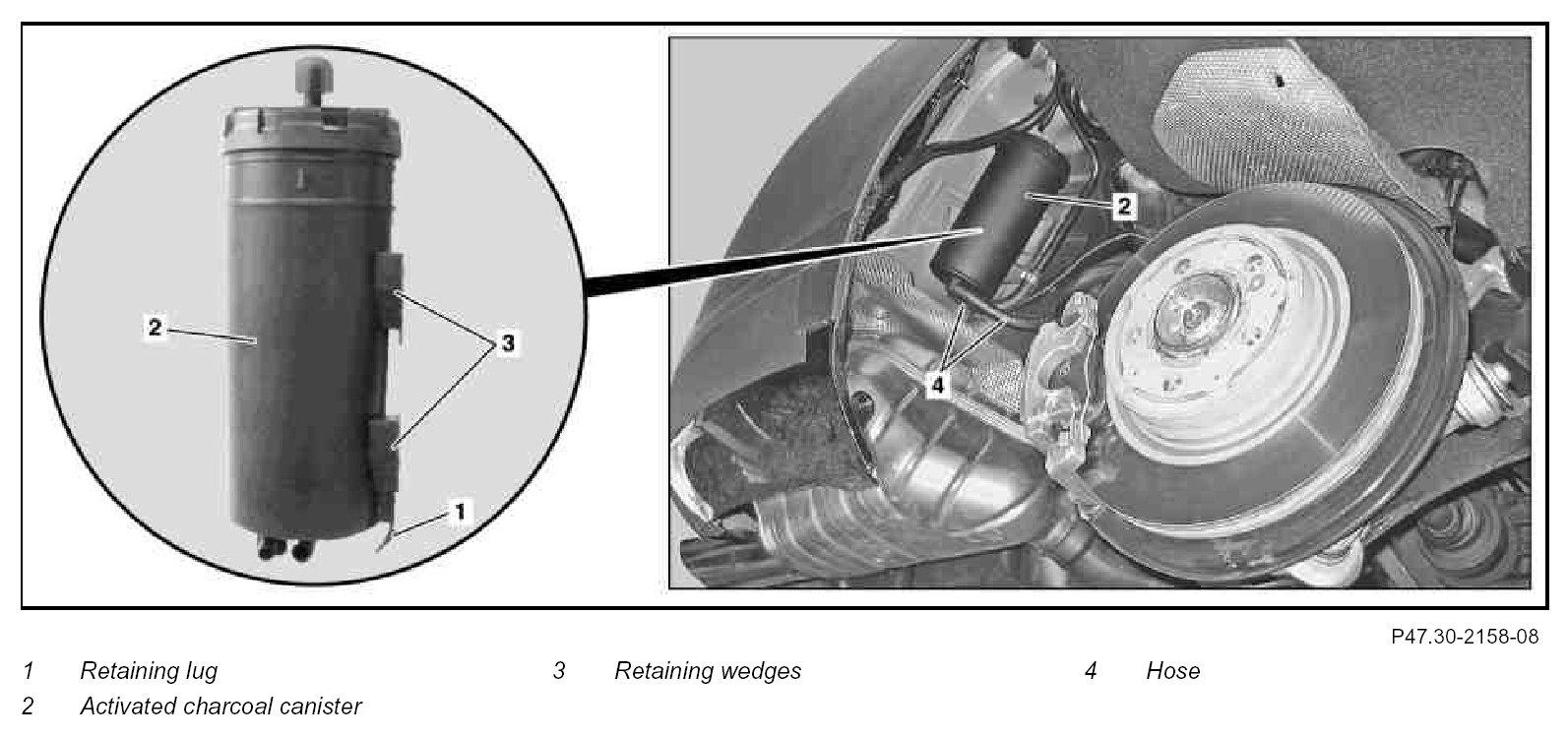

Component Identification:

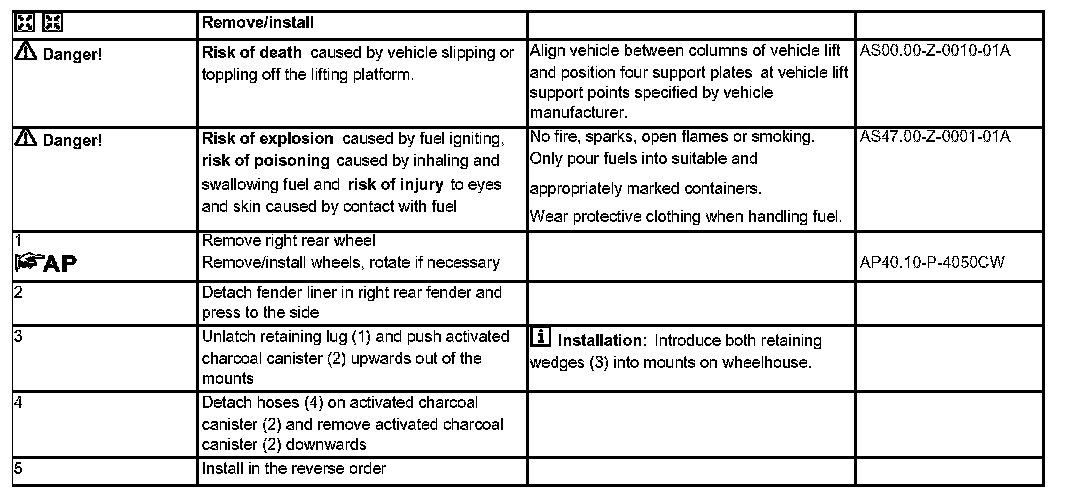

Steps 1 - 5:
