Maintenance Required Lamp/Indicator: Locations

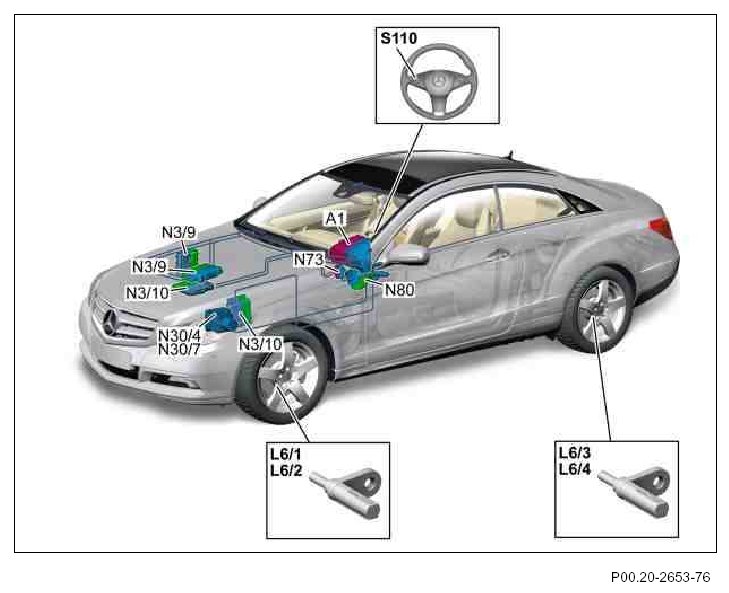

GF00.20-P-0004-03CA Active Service System (ASSYST PLUS), Location Of Components

Illustrated on model 207.3







A1 Instrument cluster
L6/1 Left front axle speed sensor
L6/2 Right front axle speed sensor
L6/3 Left rear axle speed sensor
L6/4 Right rear axle speed sensor
N3/9 CDI control unit (diesel engine, with engine 642 positioned on right, with engine 651 positioned at center)
N3/10 ME-SFI [ME] control unit (gasoline engine, on engine 271, 276 located on left, on engine 272, 273, 278 located centrally)
N30/4 Electronic Stability Program control unit (without code (233) DISTRONIC PLUS)
N30/7 Premium Electronic Stability Program control unit (vehicles with code (233) DISTRONIC PLUS)
N73 Electronic ignition switch control unit
N80 Steering column module control unit
S110 Left multifunction steering wheel button group
