AR40.20-P-0301CW Check Vehicle Level at Front and Rear Axle With Electronic Inclinometer, Adjust If Necessary

AR40.20-P-0301CW Check Vehicle Level At Front And Rear Axle With Electronic Inclinometer, Adjust If Necessary
MODEL 172, 204, 207

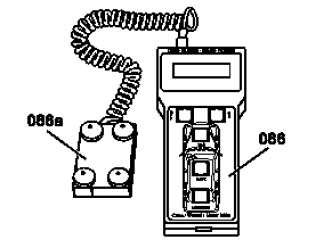

086 Inclinometer
086a Measuring sensor

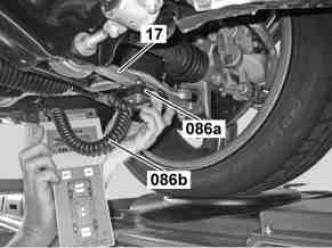

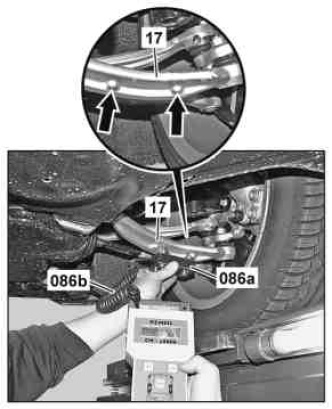

Shown on model 204.0 without 4MATIC, measuring point on 2nd cross strut (17) at right front (old version)

086a Measuring sensor
086b Measuring sensor connecting cable
17 Cross strut

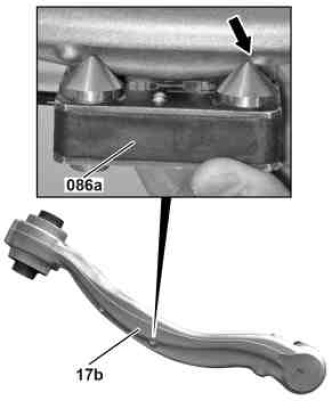

Shown on model 204.0 without 4MATIC, measuring point 2 cross strut (17b) at front right (new version)

086a Measuring sensor
17b Cross strut





Shown on model 204.9 with 4MATIC, measuring point on 2nd cross strut (17) at right front

086a Measuring sensor
086b Measuring sensor connecting cable
17 Cross strut

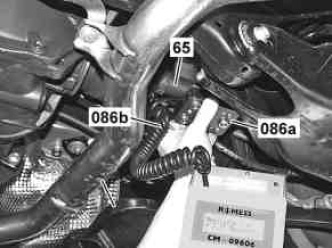

Shown on model 204.0 without 4MATIC, measuring point on 4th rear-axle shaft (65) at right

086a Measuring sensor
086b Measuring sensor connecting cable
65 Rear axle shaft
