AR40.20-P-0263CW Adjust Camber and Caster at the Front Axle

AR40.20-P-0263CW Adjust Camber And Caster At The Front Axle
MODEL 172, 204, 207

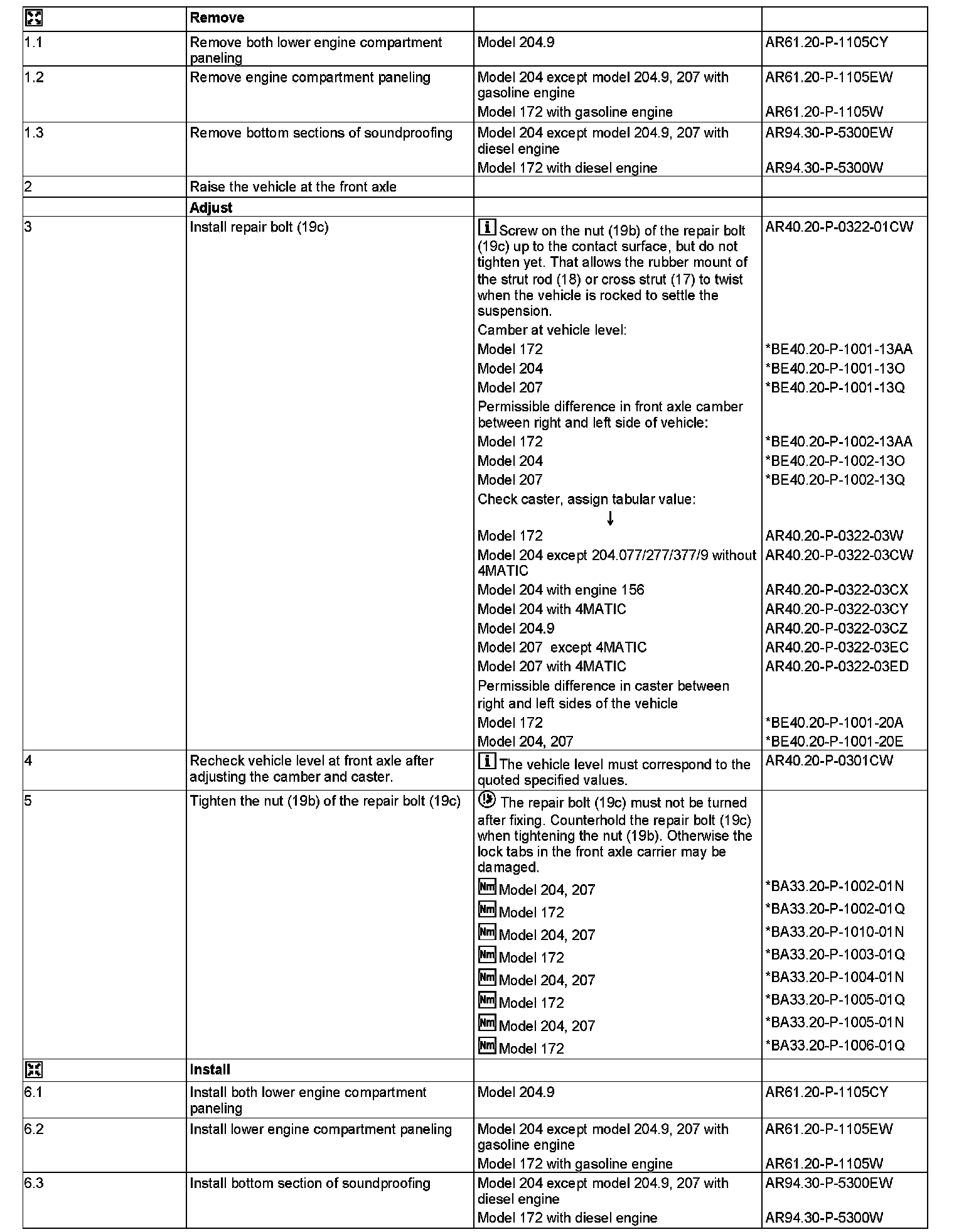

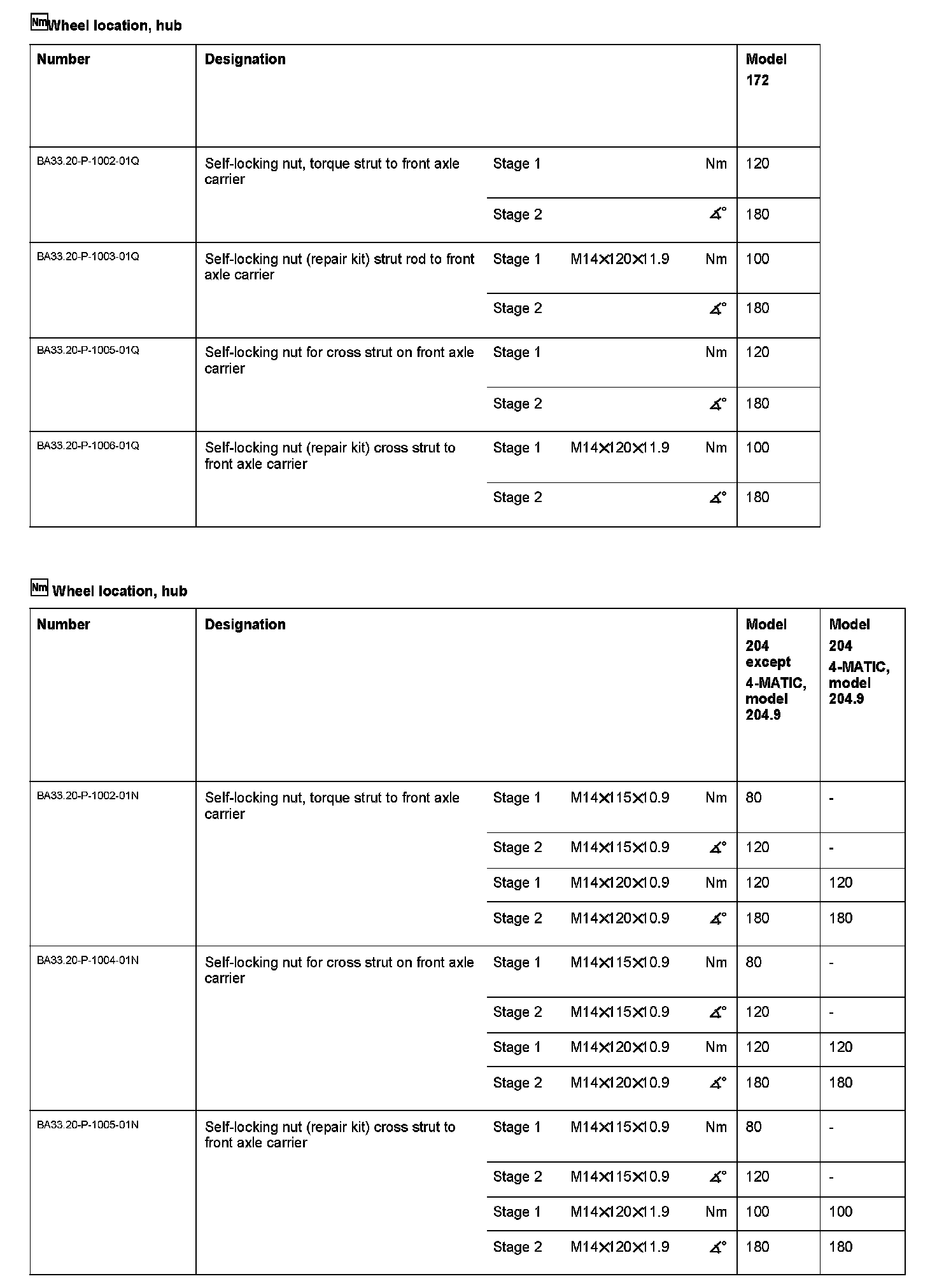

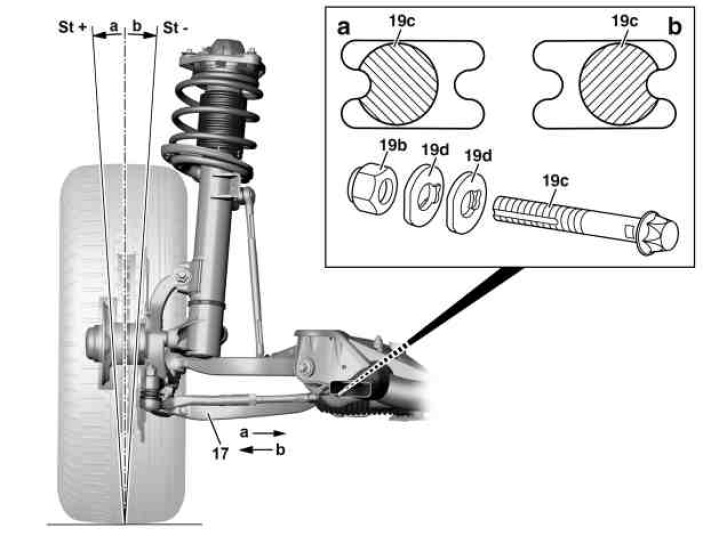

Camber, model 204.0 without 4MATIC shown

17 Cross strut
19b Nut
19c Repair bolt
19d Washer

St+ positive camber
St- negative camber

a Adjusting the cross strut towards the vehicle center causes a positive camber change
b Adjusting the cross strut towards the vehicle outside causes a negative camber change

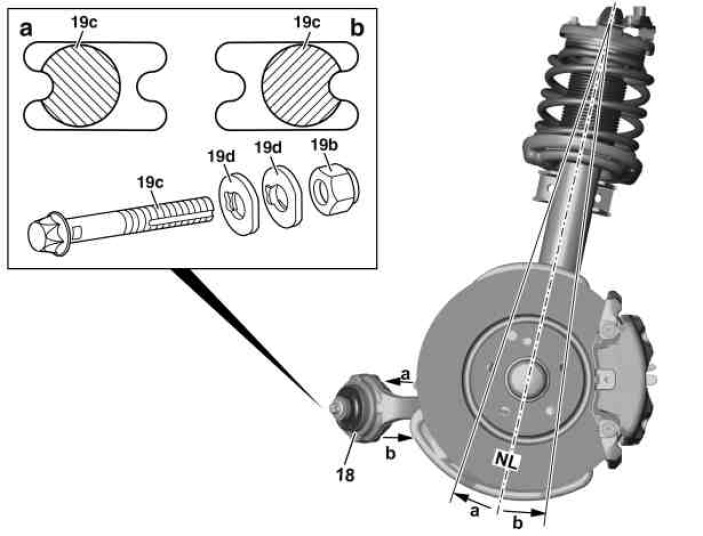

Caster, model 204.0 without 4MATIC shown

18 Torque strut
19b Nut
19c Repair bolt
19d Washer

NL Caster

a Adjusting the torque strut towards the center of the vehicle increases the caster
b Adjusting the torque strut towards the outside of the vehicle reduces the caster

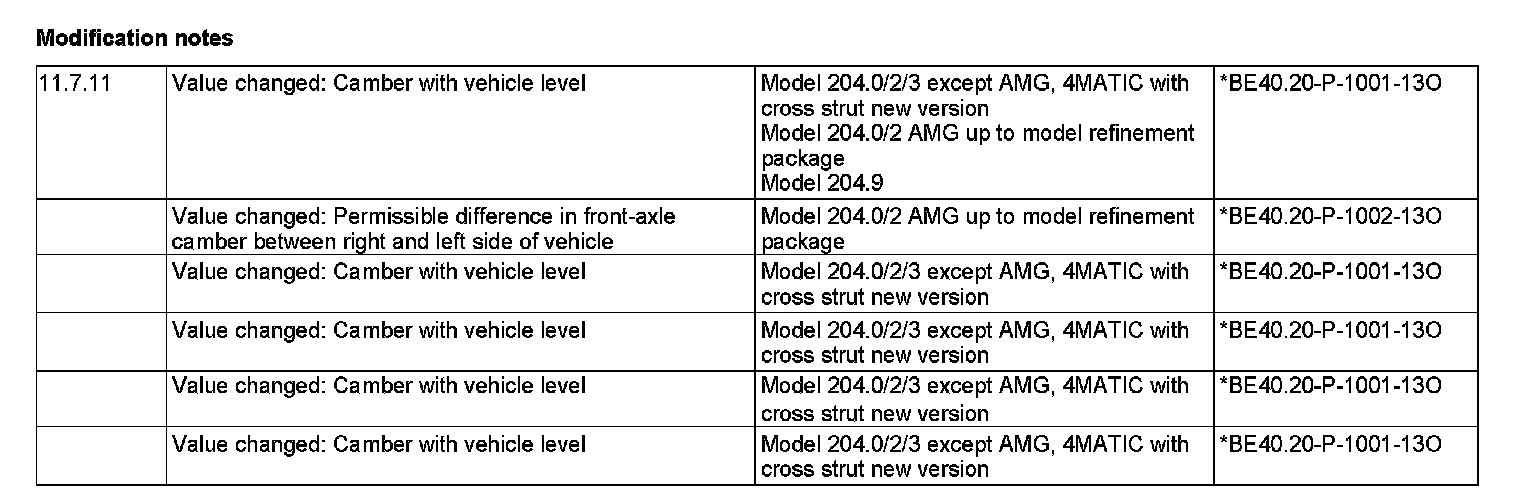

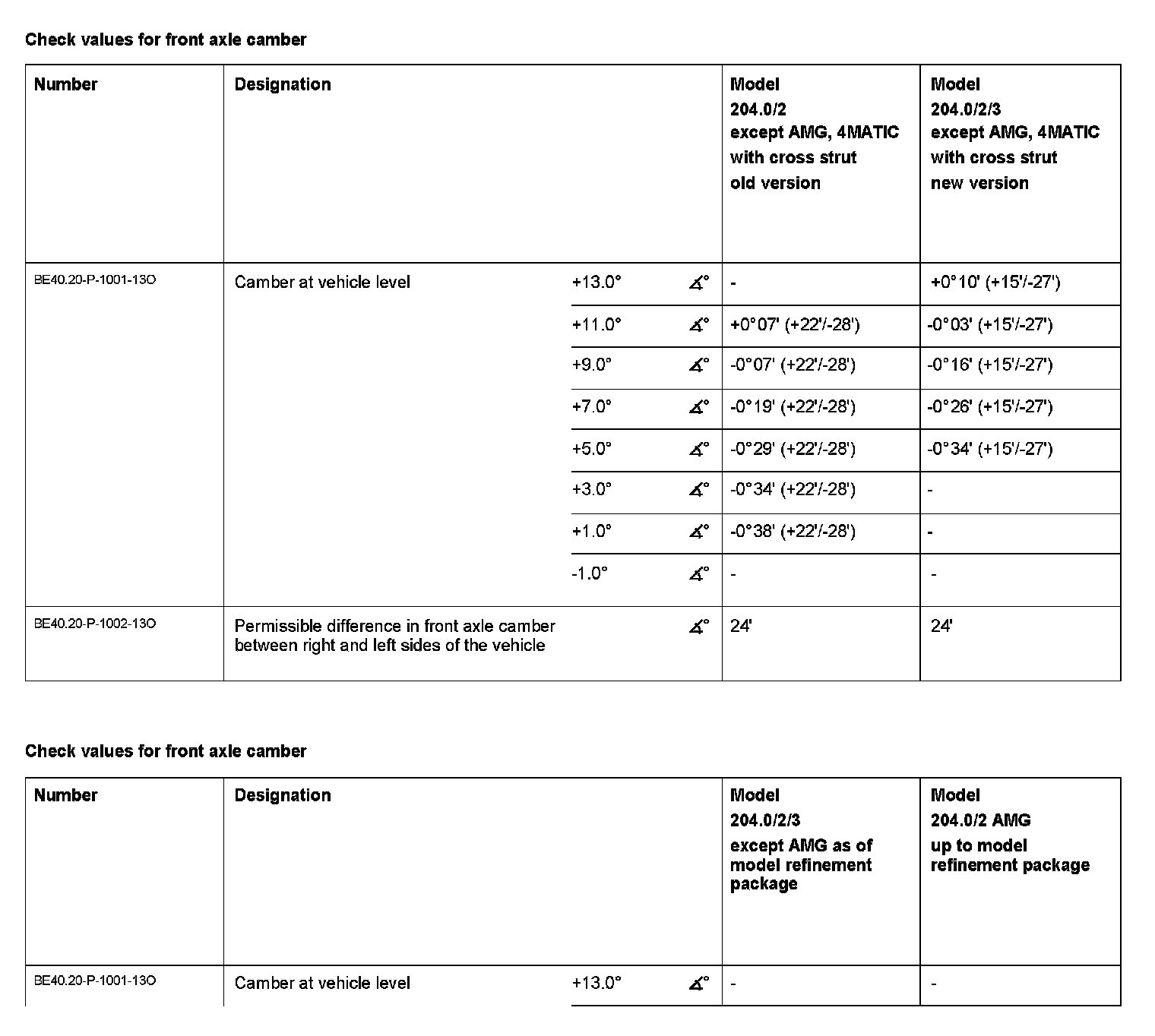

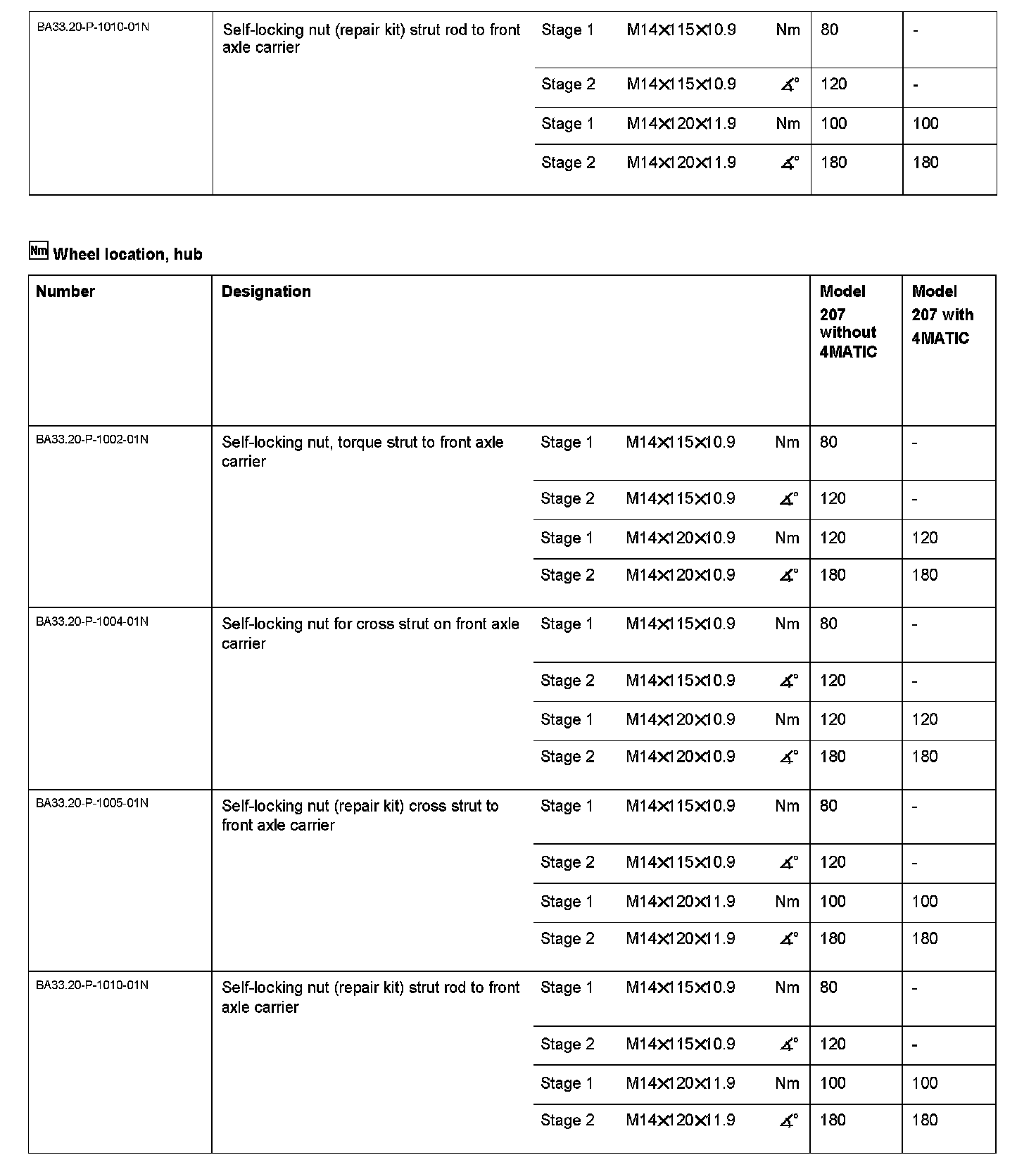

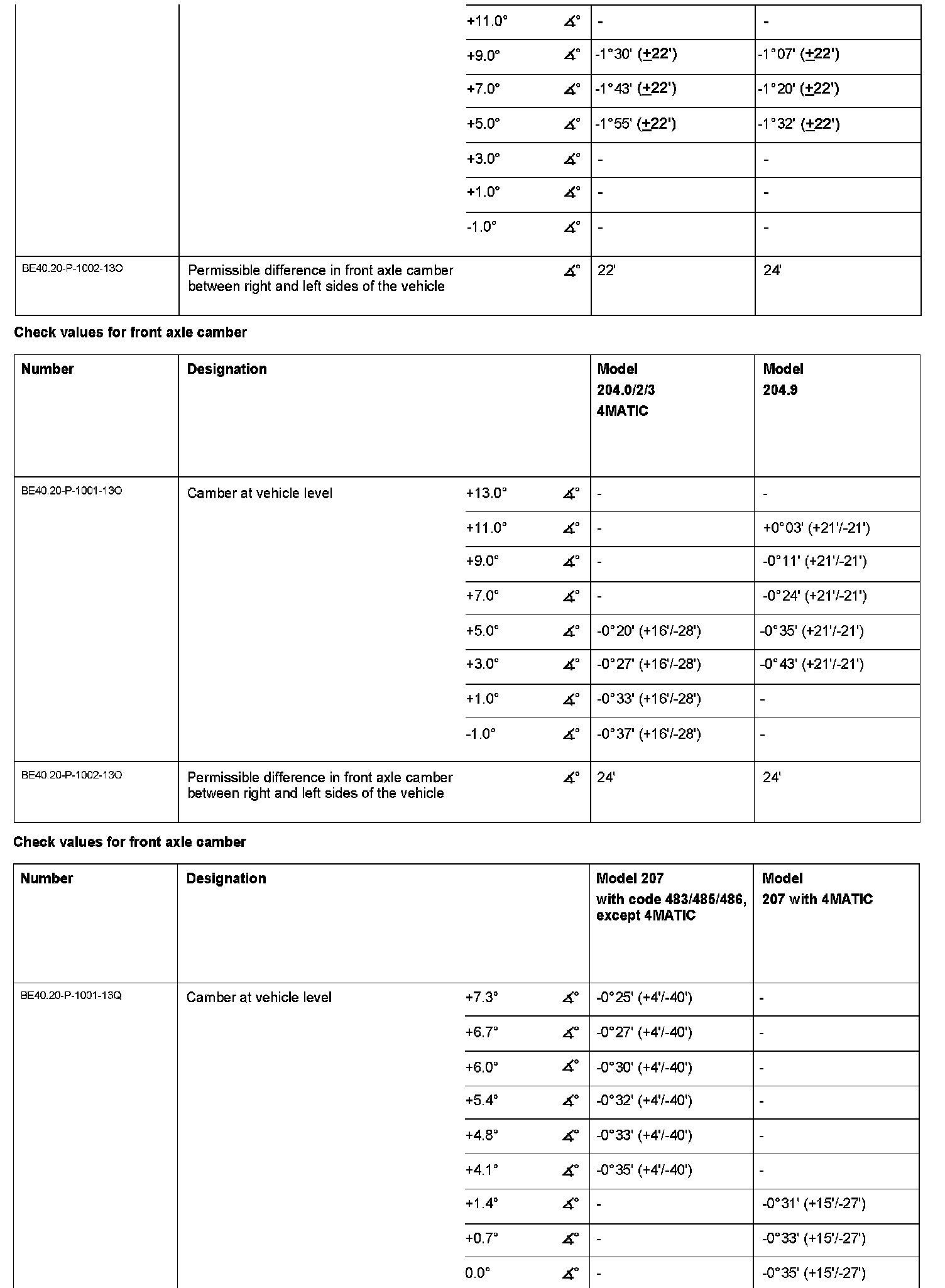

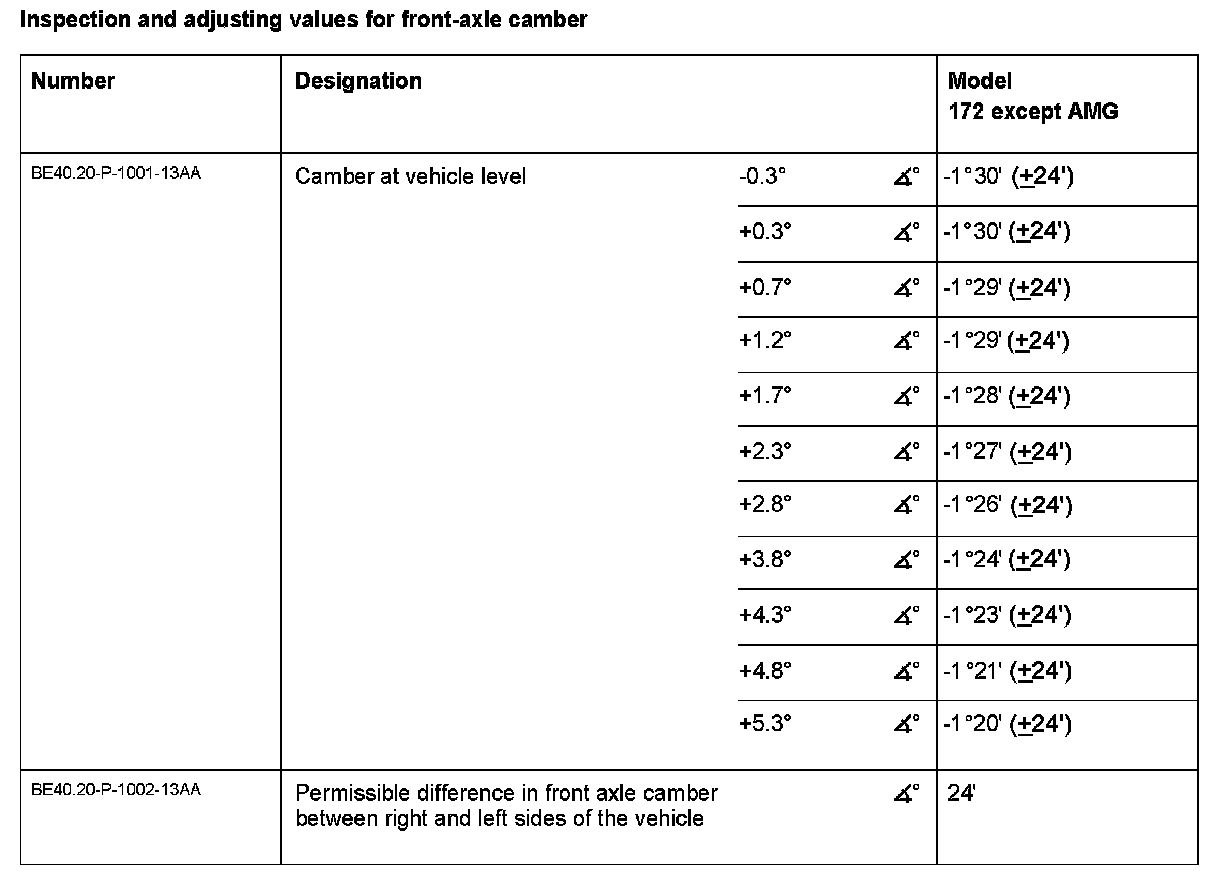

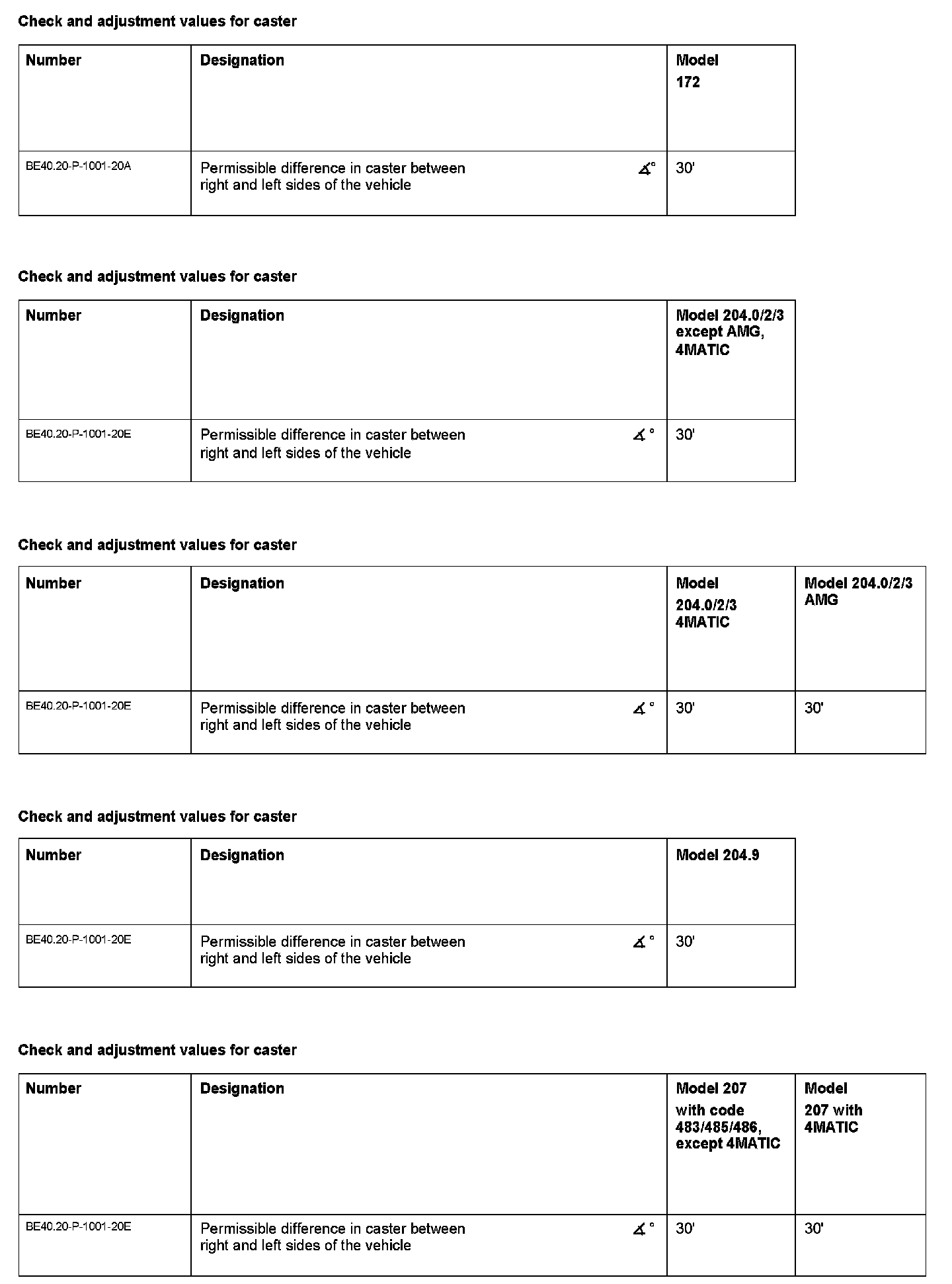

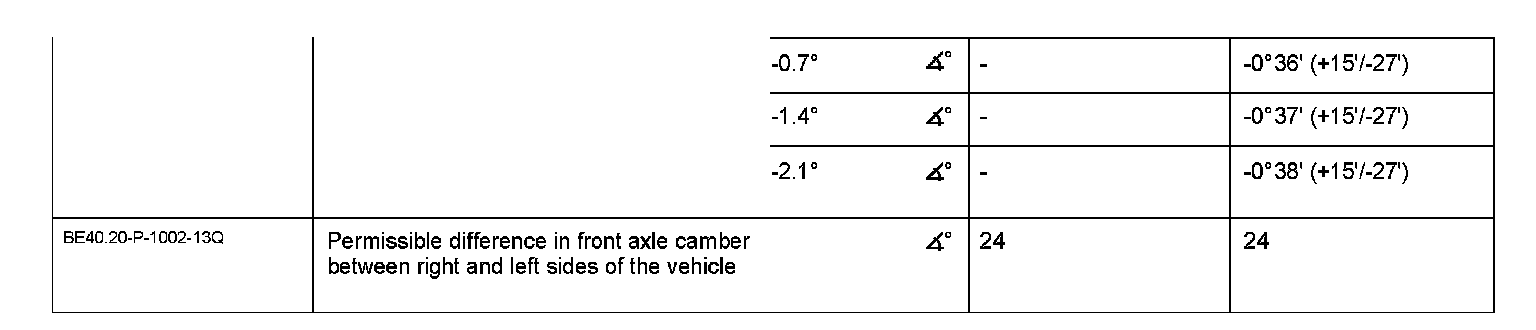

AR40.20-P-0263CW Adjust Camber and Caster at the Front Axle
