AR82.10-P-4730EH Remove/Install Lamp Unit
AR82.10-P-4730EH Remove/Install Lamp Unit
AR82.10-P-4730EH Remove/Install Lamp Unit

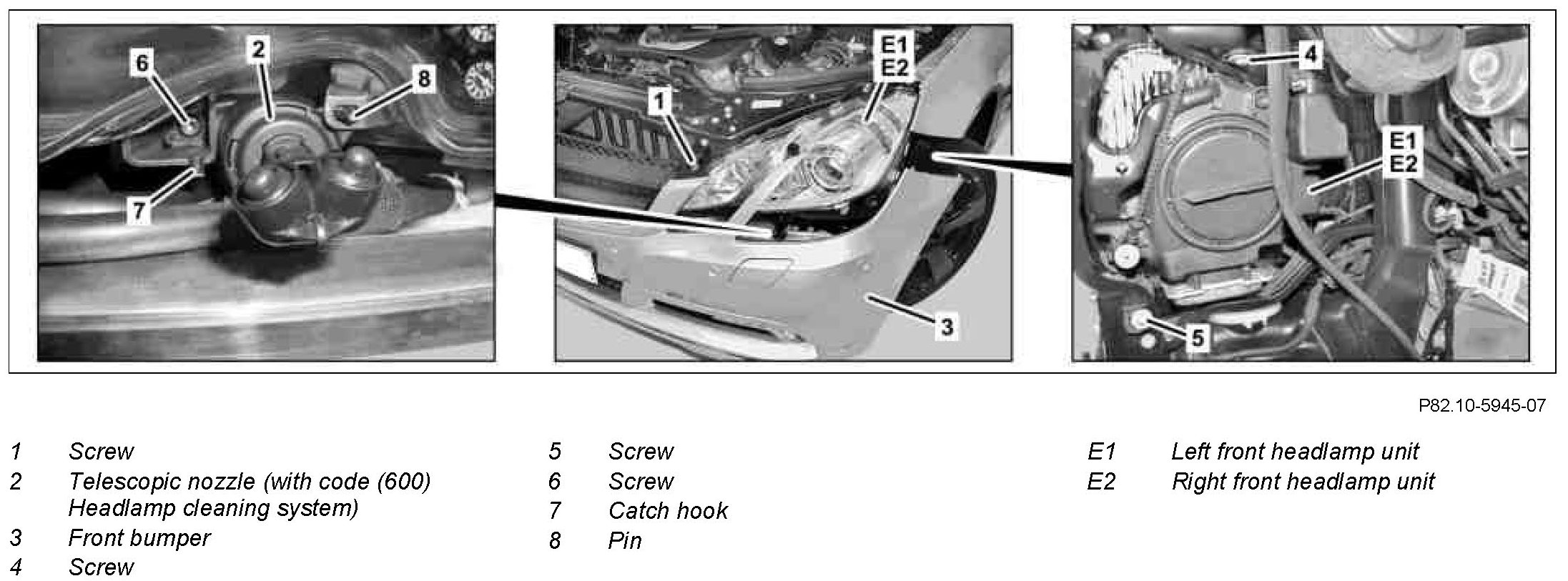

Component Identification:

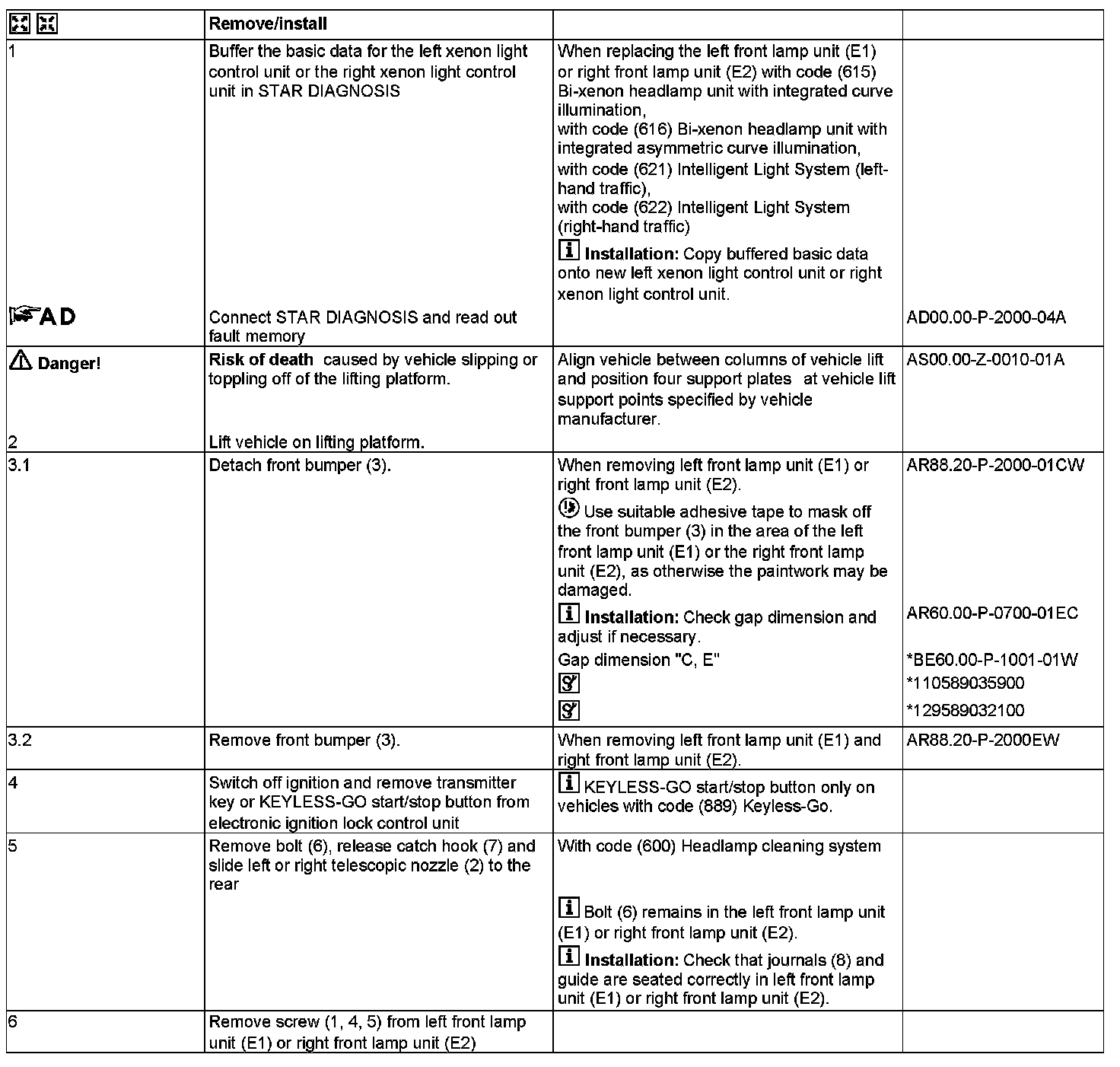

Steps 1 - 6:

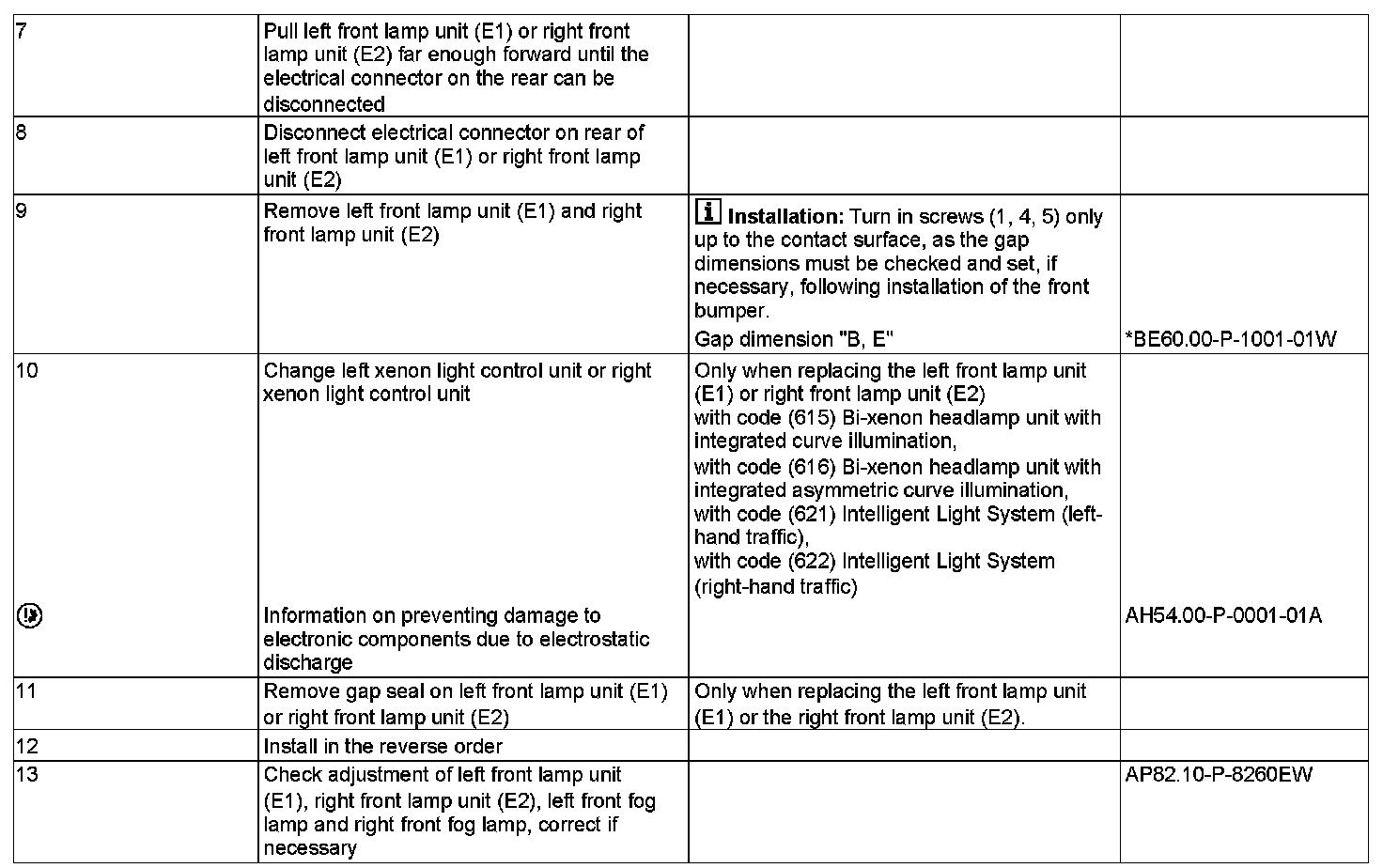

Steps 7 - 13:

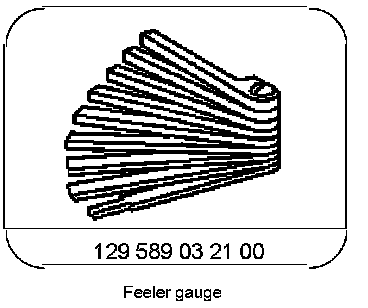

Special Tools:

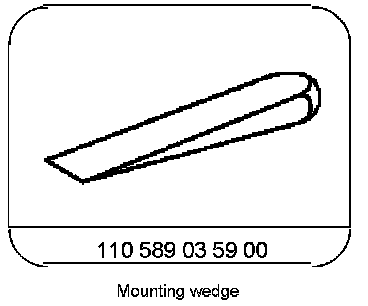

Special Tools:

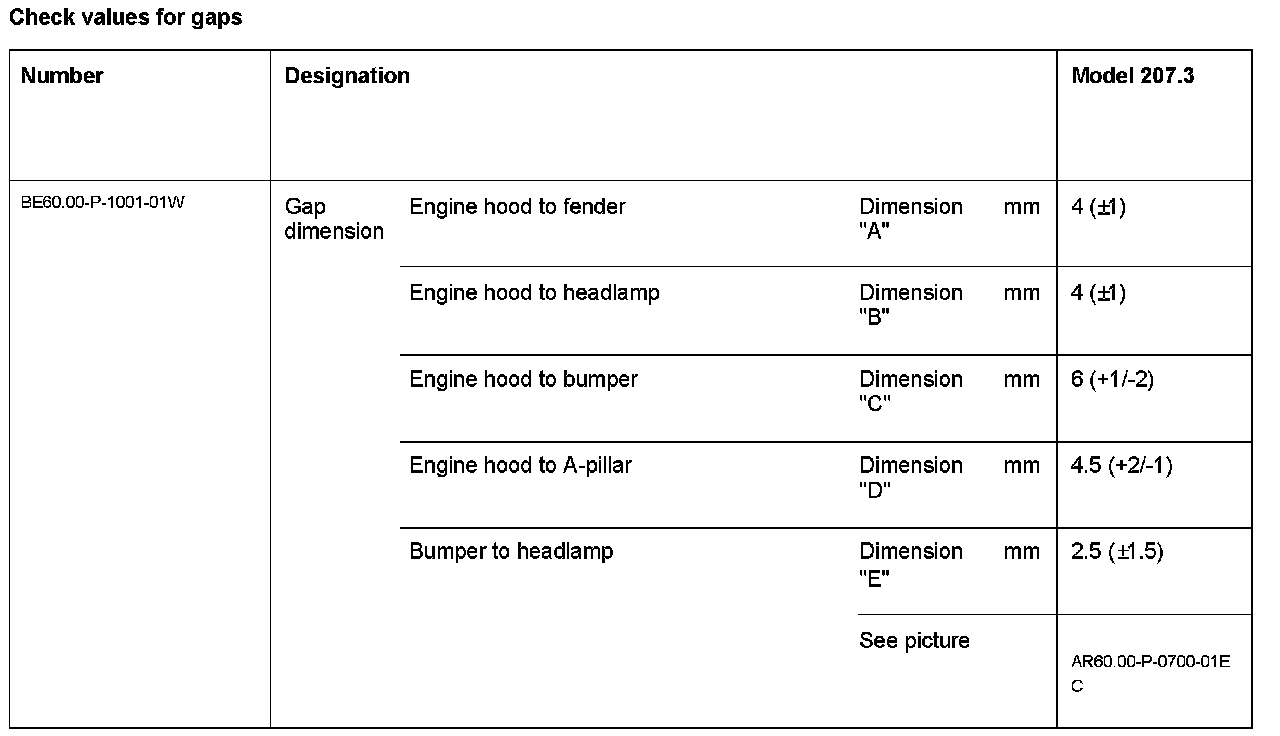

Check Values For Gaps:
