AP18.00-P-0101EW Engine oil and filter change

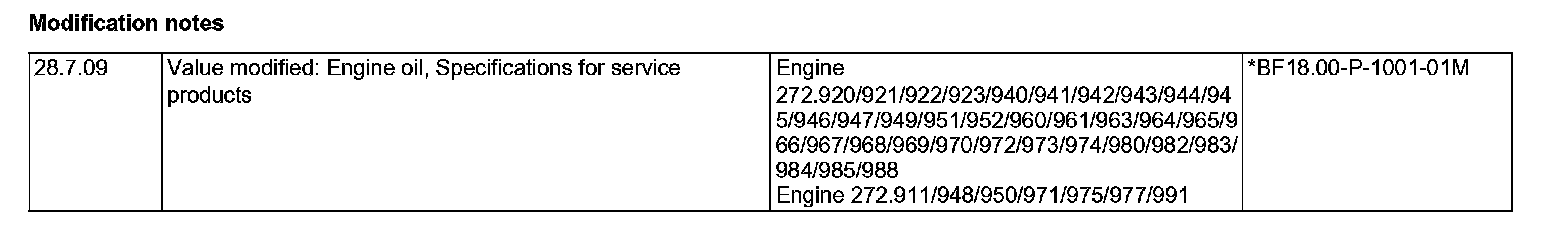

Modification notes:

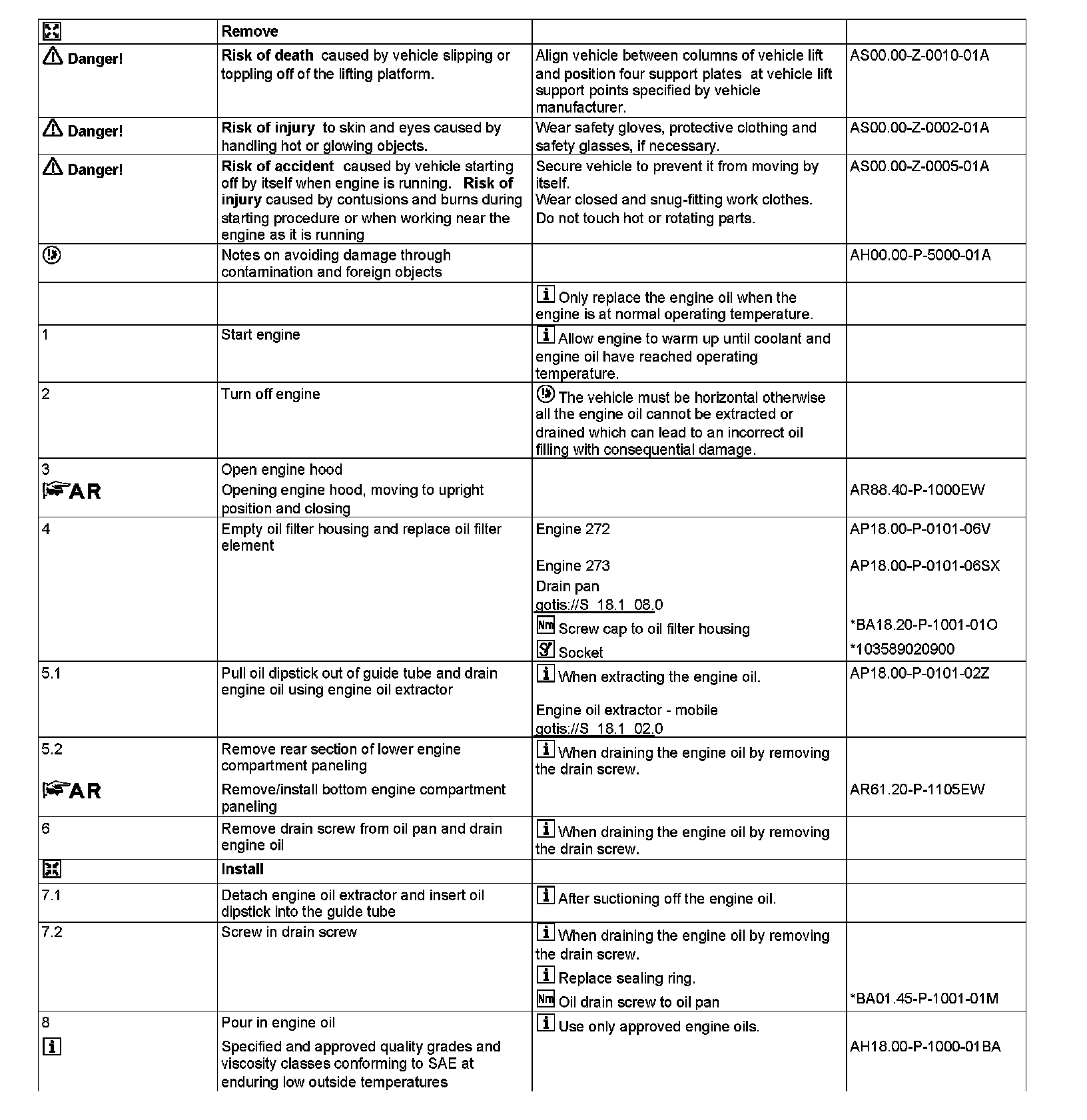

Steps 1-8:

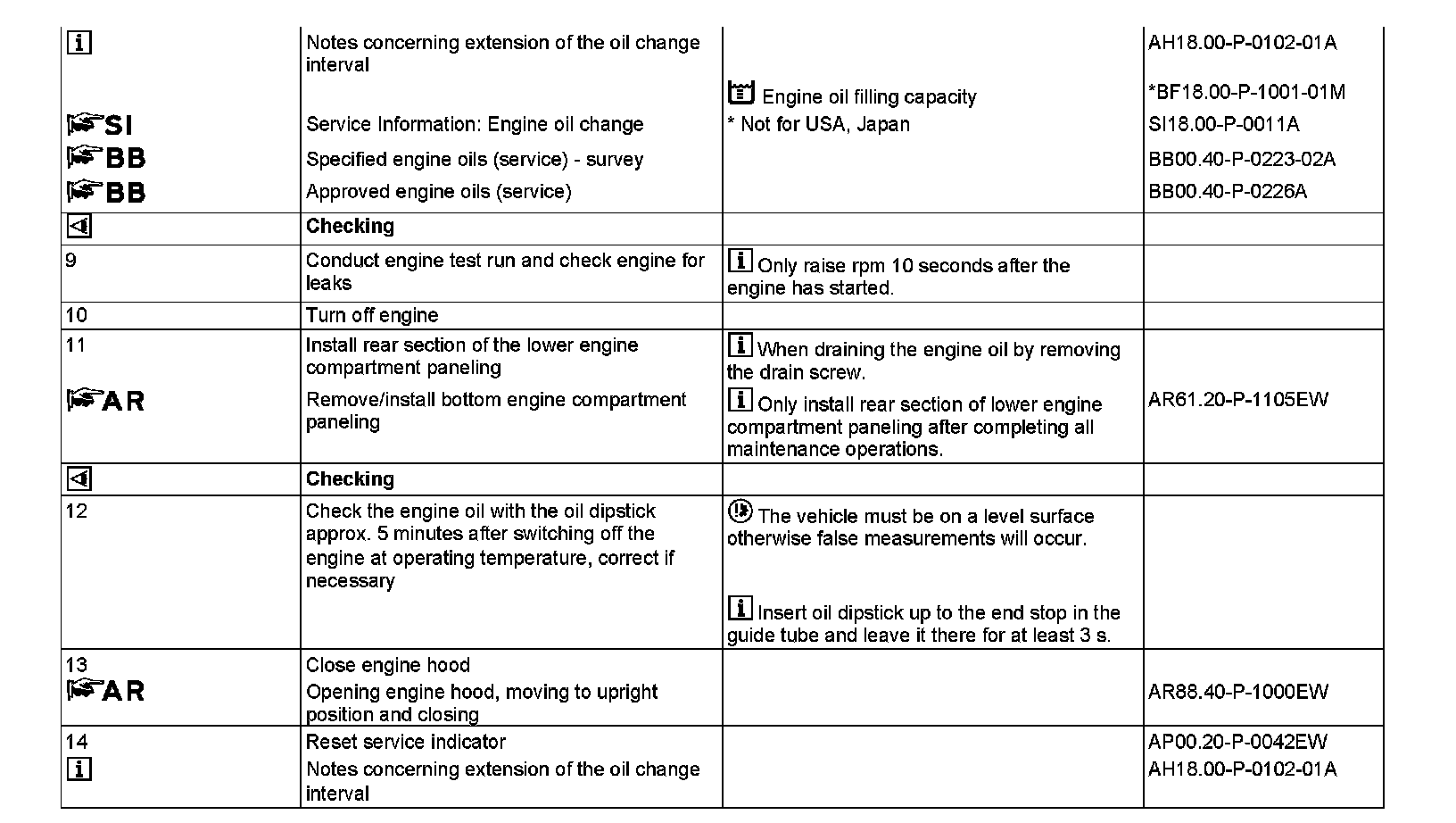

Steps 8 (Continued)-14:

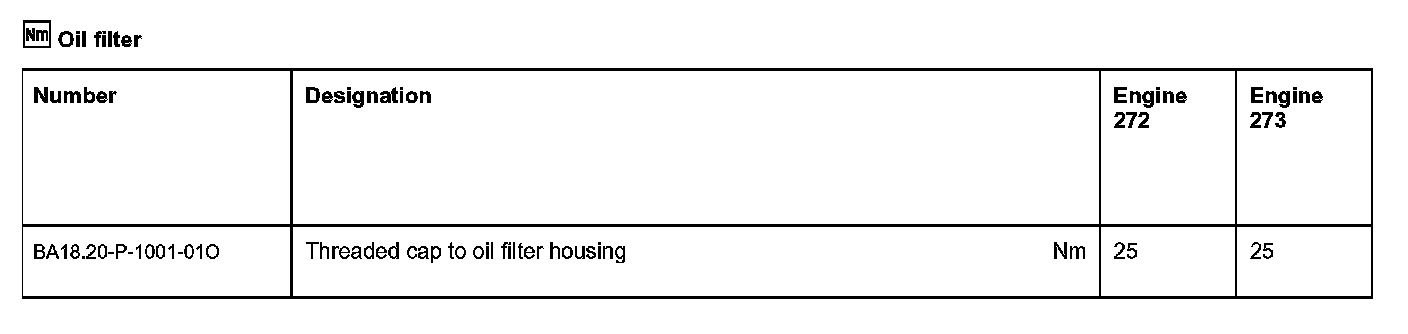

Oil filter:

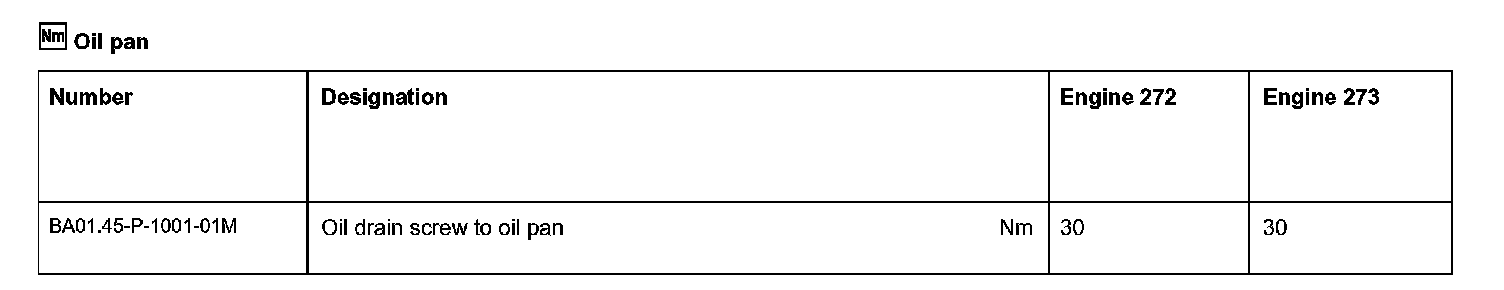

Oil pan:

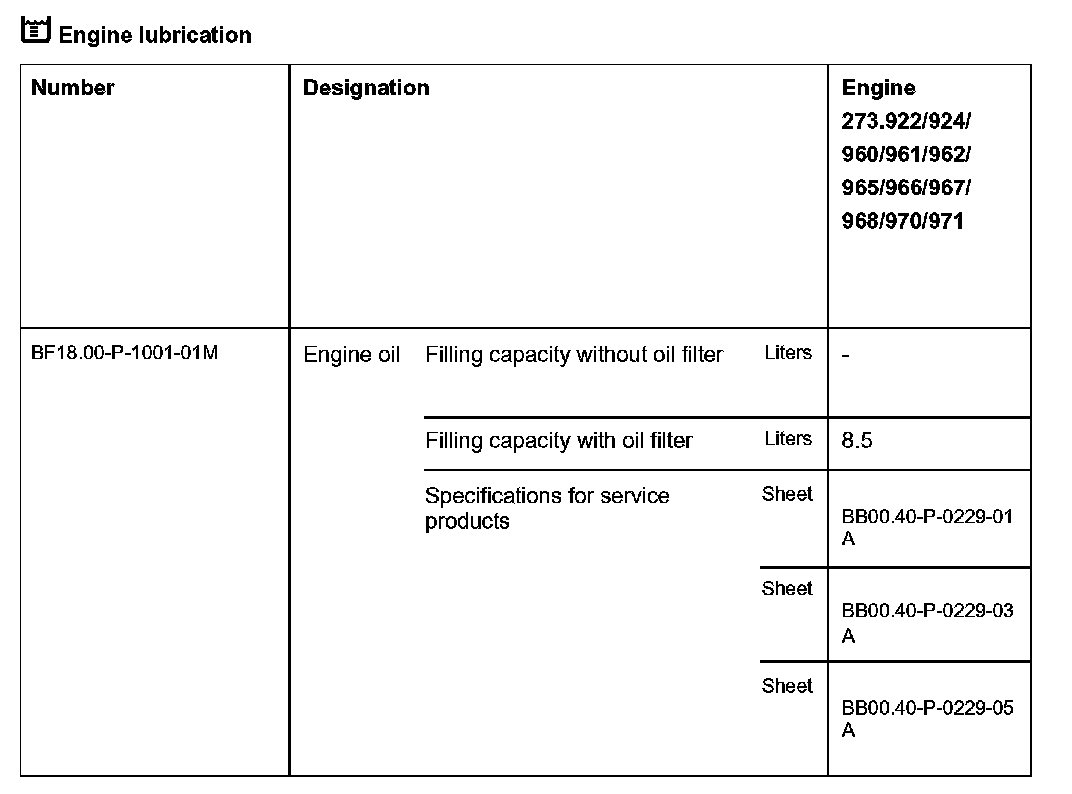

Engine lubrication:

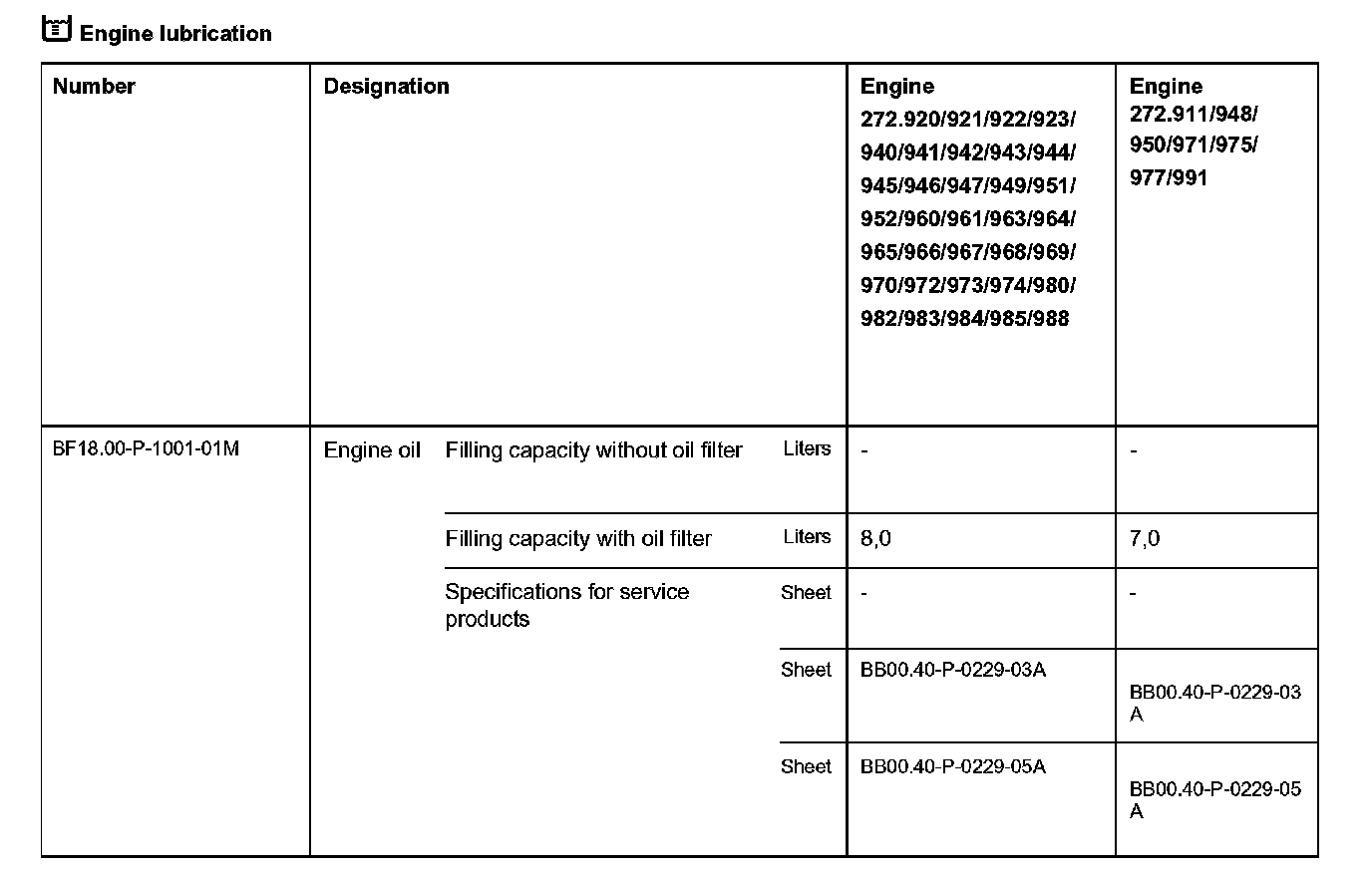

Engine lubrication:

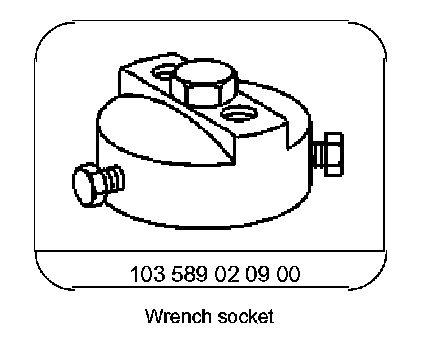

Special Tools:
