AR22.10-P-1260FHB Remove/Install Front Engine Mounts and/or Engine Support

AR22.10-P-1260FHB Remove/Install Front Engine Mounts And/Or Engine Support

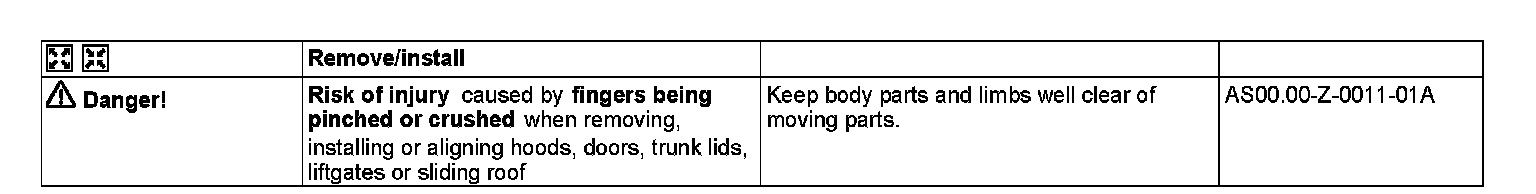

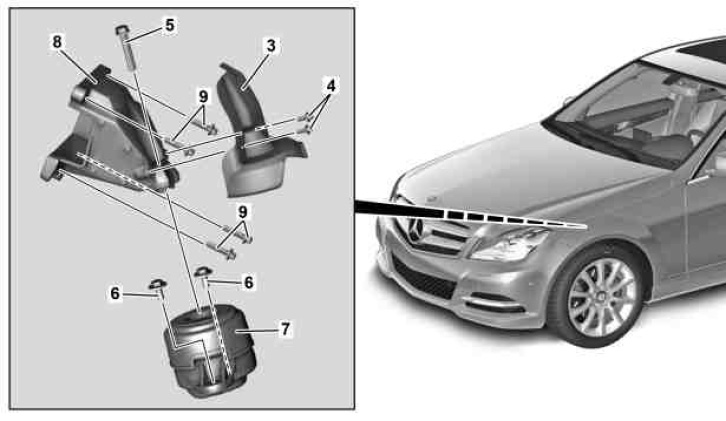

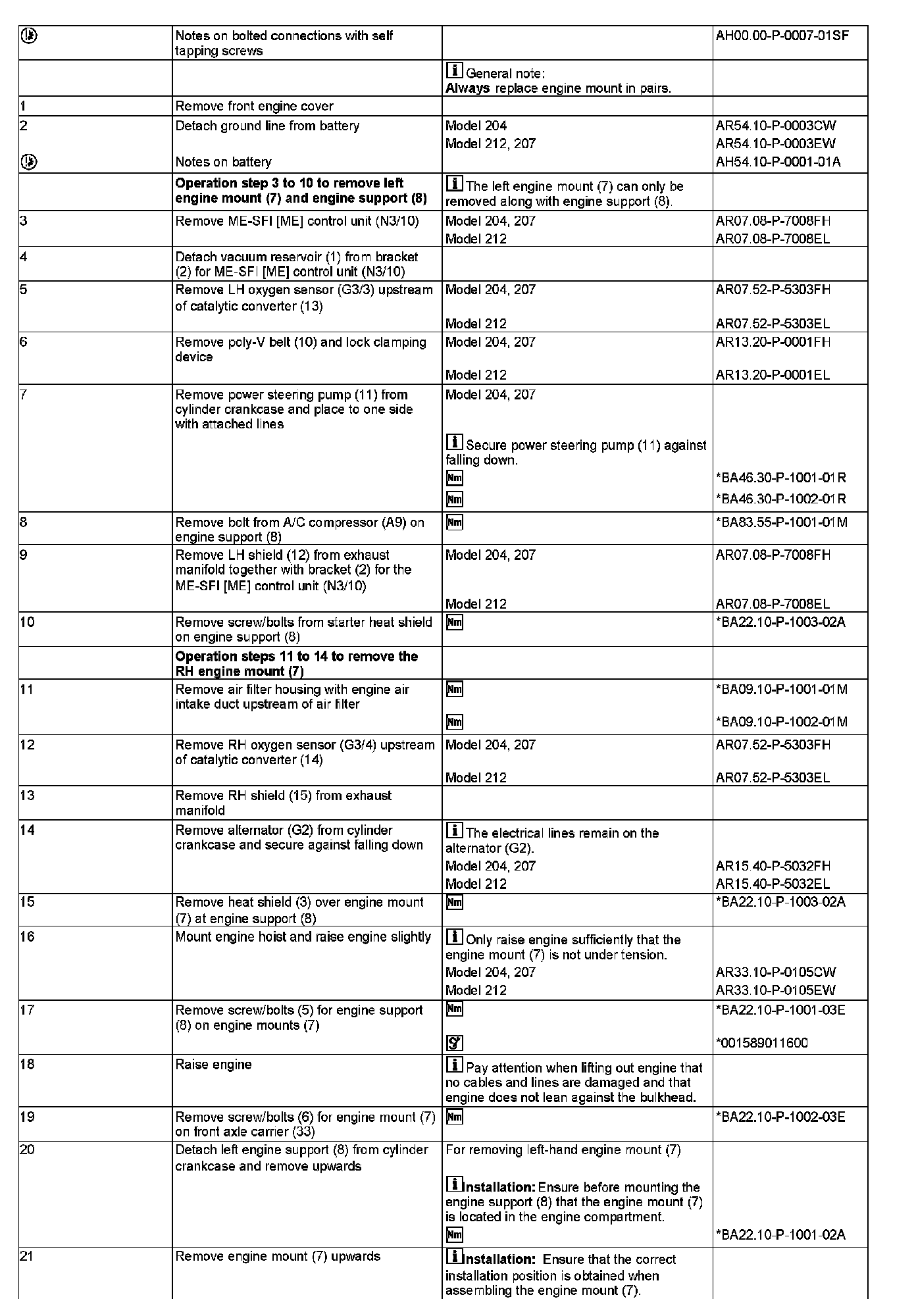

ENGINES 276 in MODEL 204, 207, 212
with 4MATIC





3 Heat shield
4 Screw/bolt
5 Screw/bolt
6 Screw/bolt
7 Engine mount

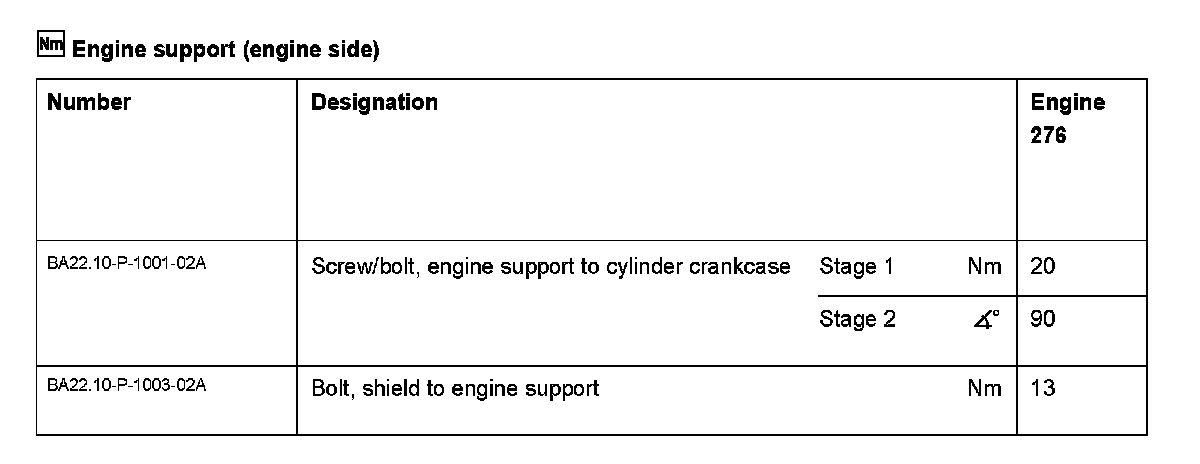

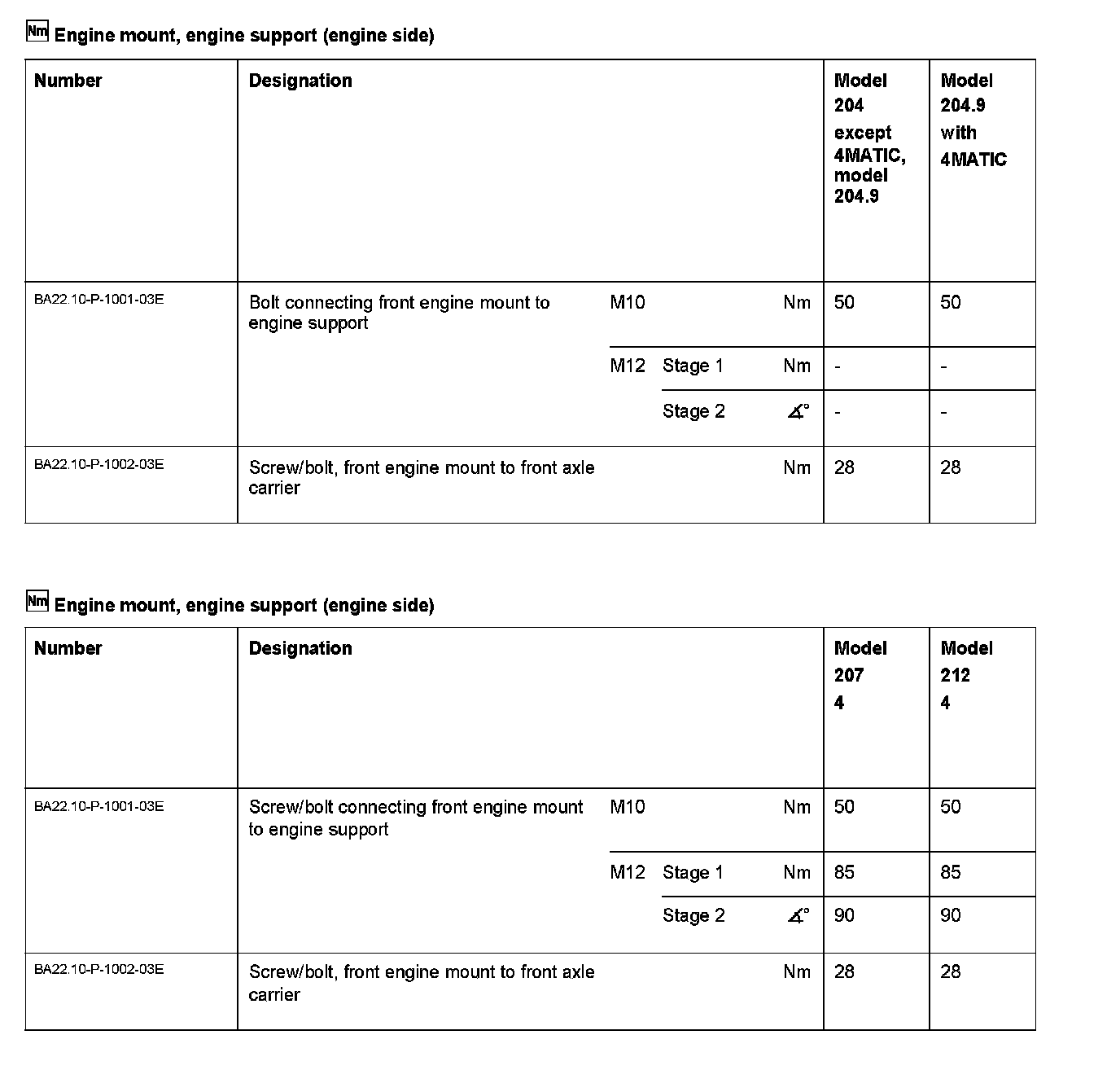

8 Engine support
9 Screw/bolt

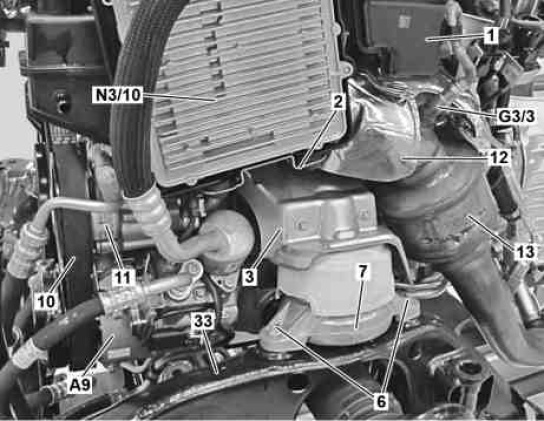

Left engine mount

1 Vacuum reservoir
2 ME-SFI [ME] control unit holder
3 Heat shield
6 Screw/bolt
7 Engine mount
10 Poly-V belt

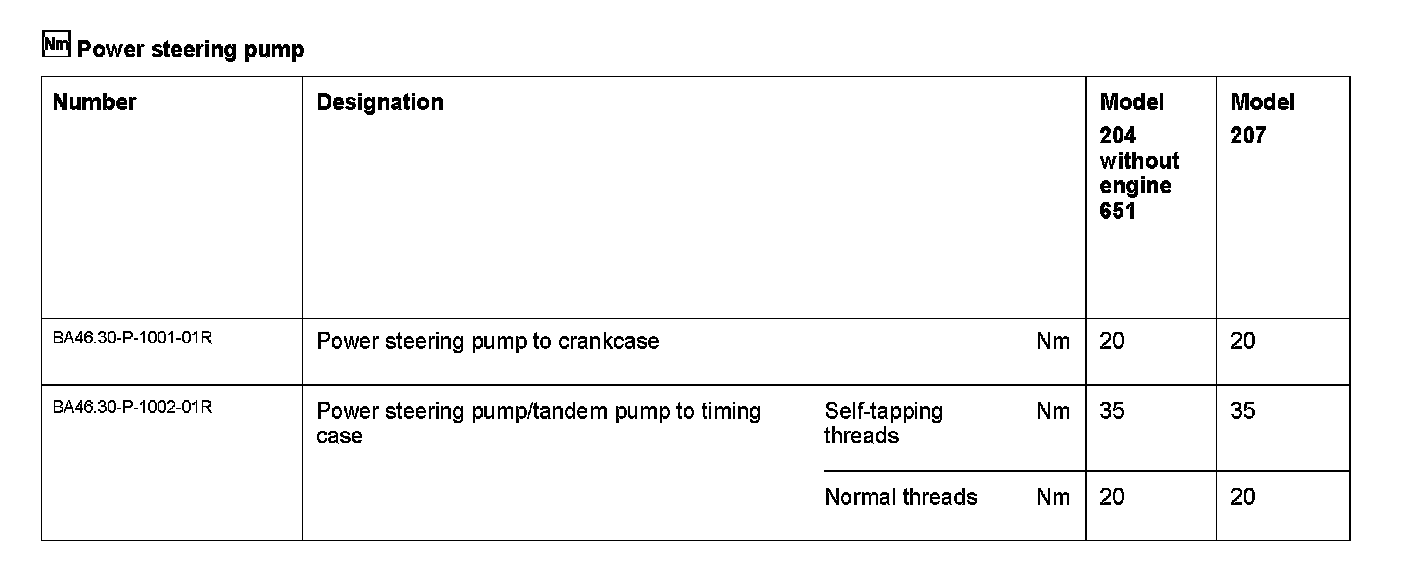

11 Power steering pump
12 Shield
13 Catalytic converter

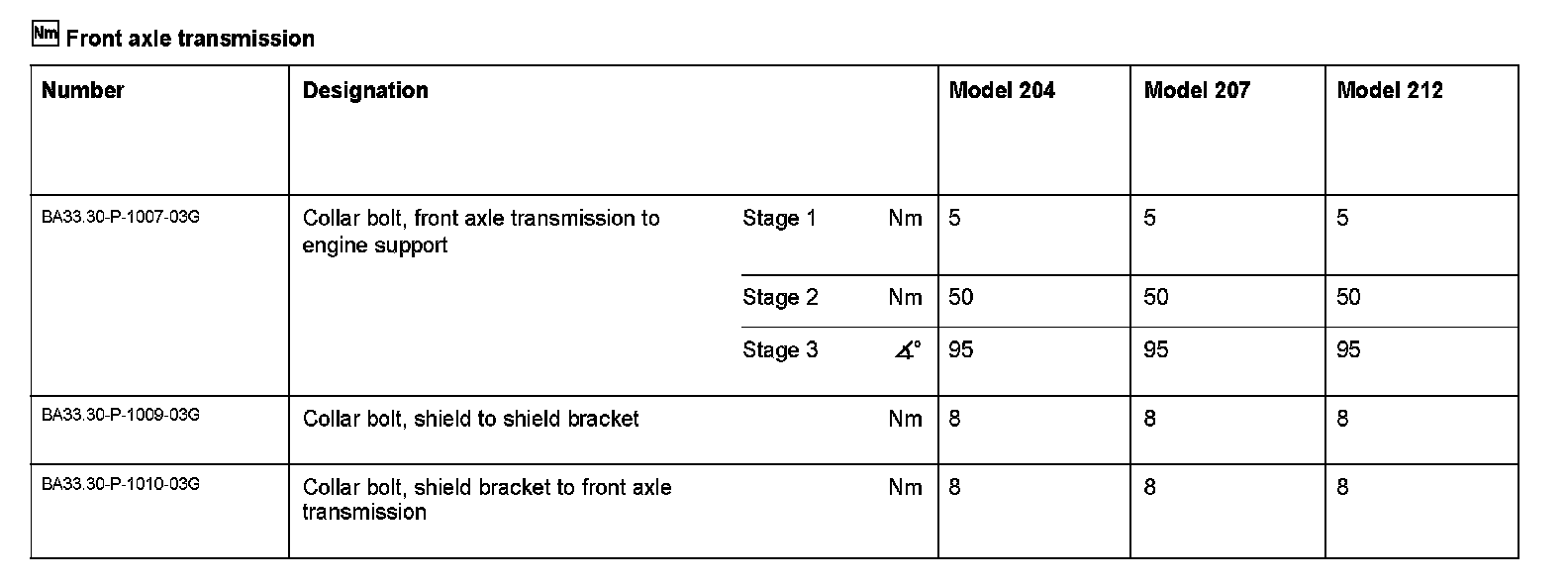

33 Front axle carrier

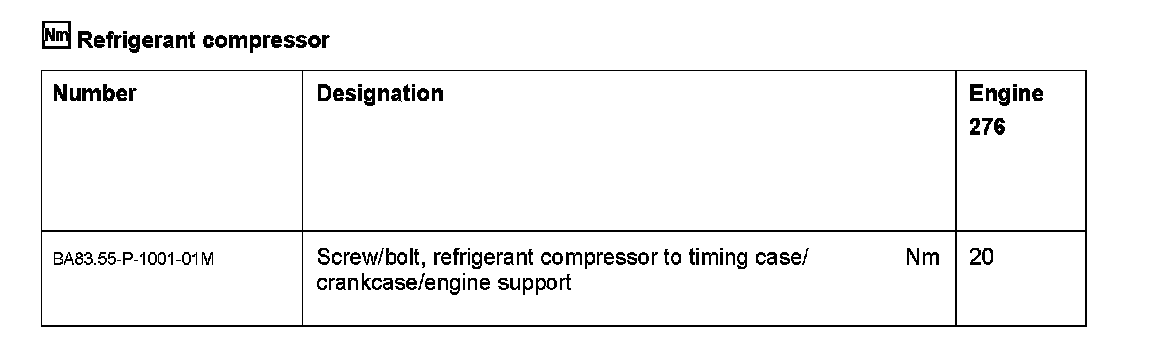

A9 A/C compressor
G3/3 Left oxygen sensor upstream of catalytic converter
N3/10 ME-SFI [ME] control unit

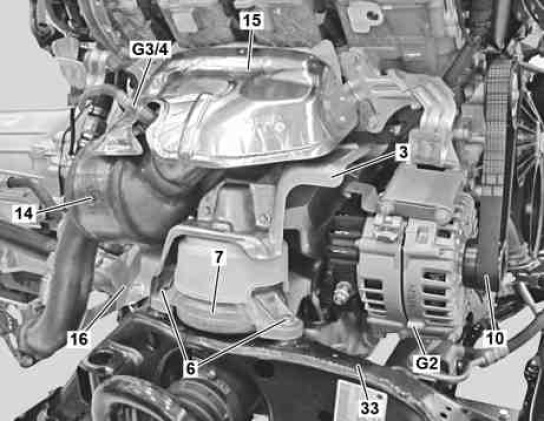

Right hand engine mount

3 Heat shield
6 Screw/bolt
7 Engine mount
10 Poly-V belt
14 Catalytic converter
15 Shield
16 Heat shield

G2 Alternator
G3/4 Right oxygen sensor upstream of catalytic converter
































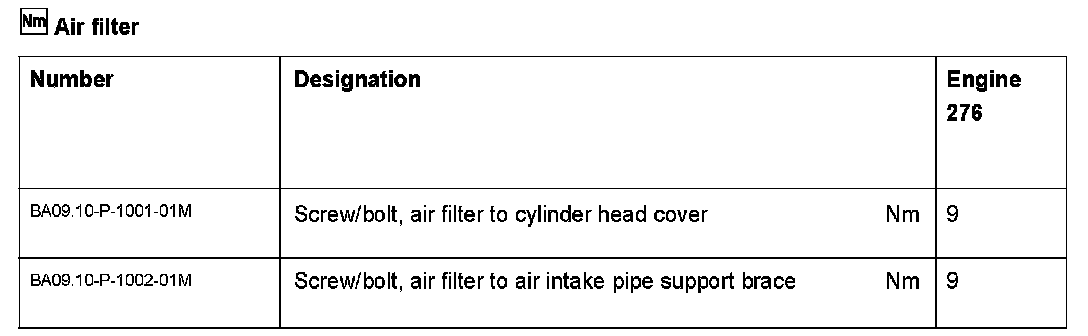

001 589 01 16 00
Set of engine bearing wrenches
