Lifter / Lash Adjuster: Testing and Inspection

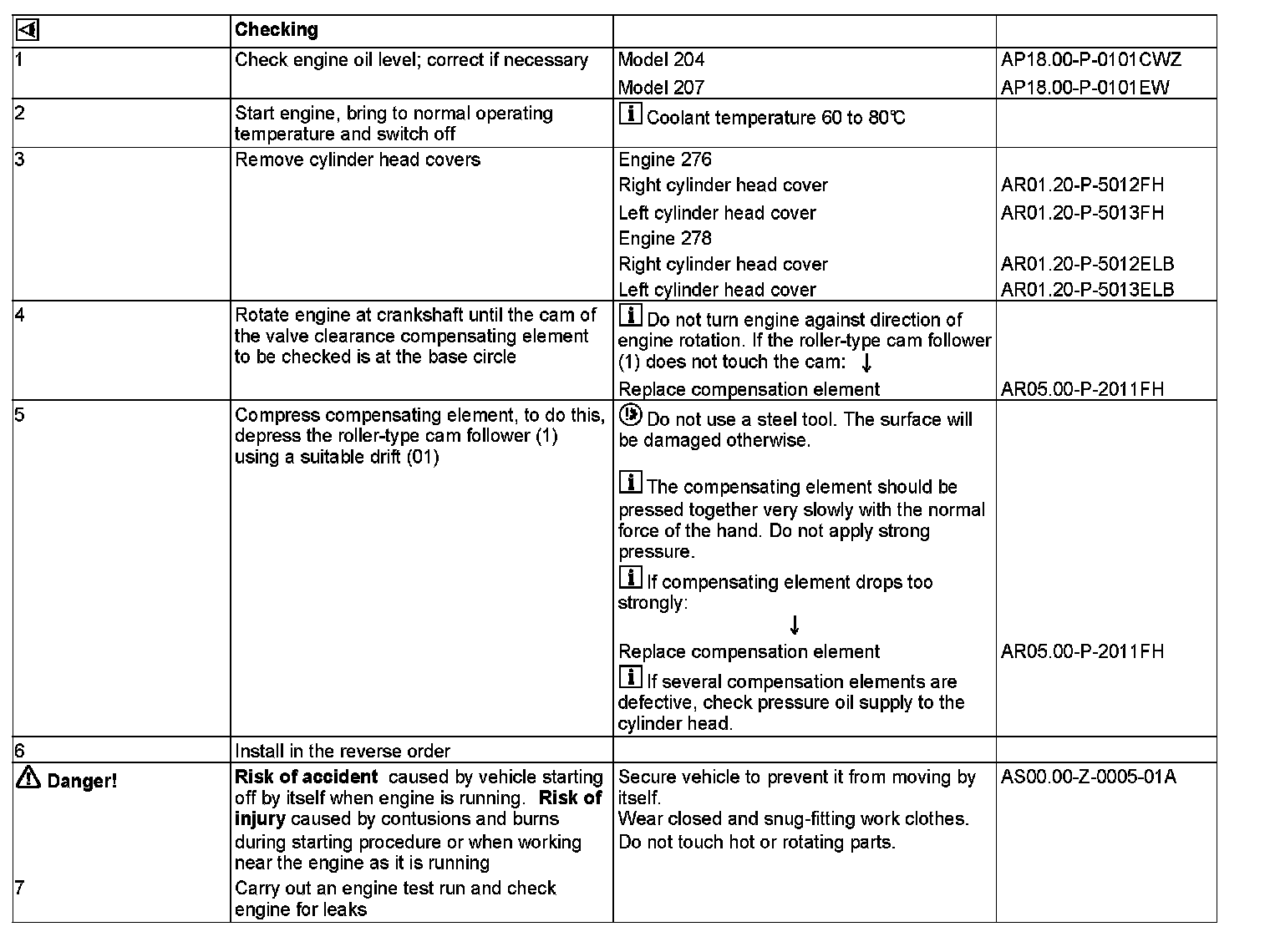

AR05.00-P-2010FH Check Hydraulic Valve Clearance Compensating Elements
ENGINES 276 in MODEL 204
ENGINES 276, 278 in MODEL 207

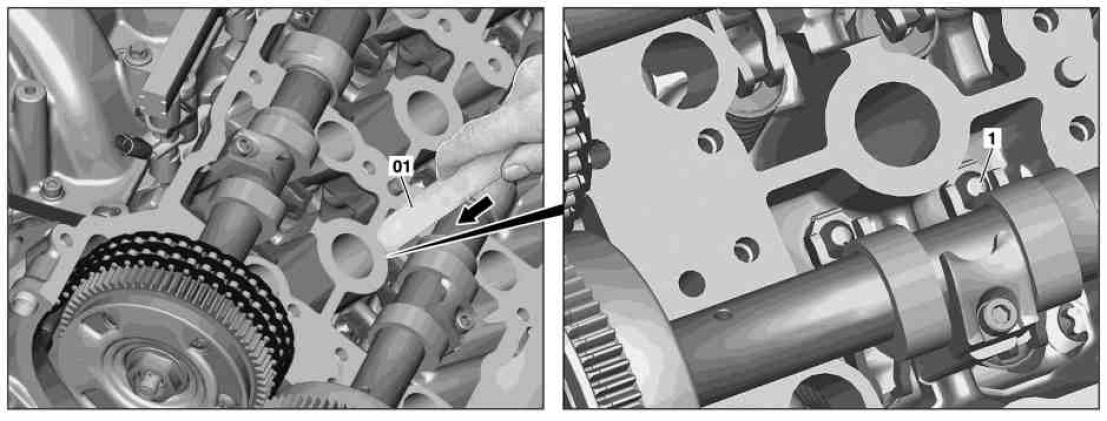

01 Drift
1 Roller-type cam follower
