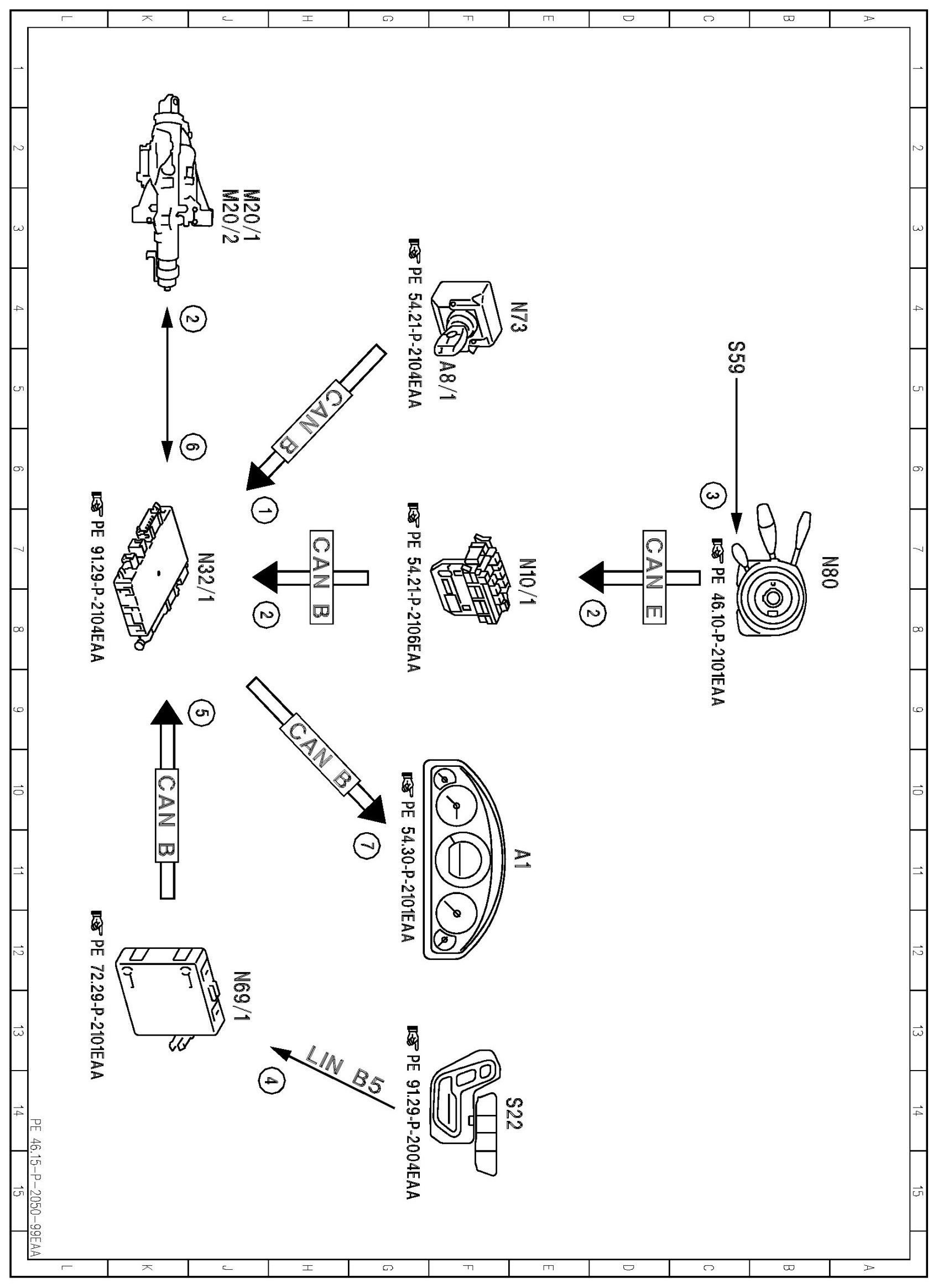

PE46.15-P-2050EAA Function Schematic Of Electrical System For Steering Column Adjustment

PE46.15-P-2050EAA Function Schematic Of Electrical System For Steering Column Adjustment

MODEL 207.3 /4
- with CODE (275) Memory package (driver seat, steering column, mirrors














































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
