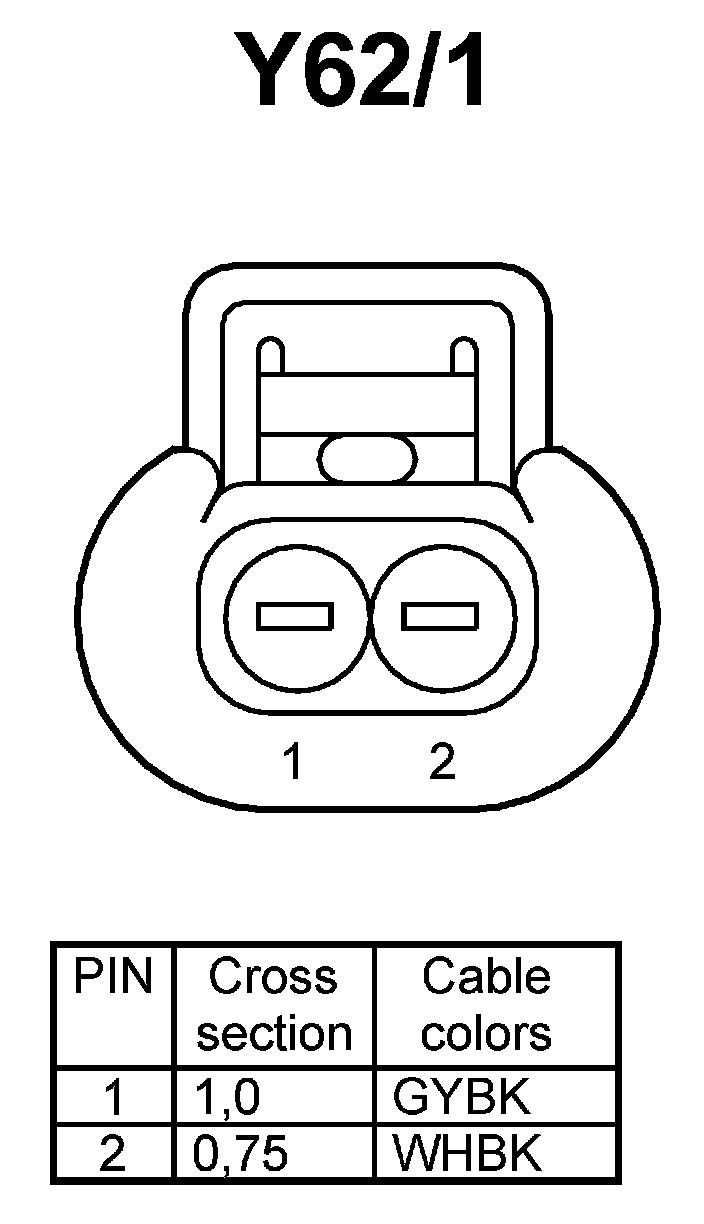

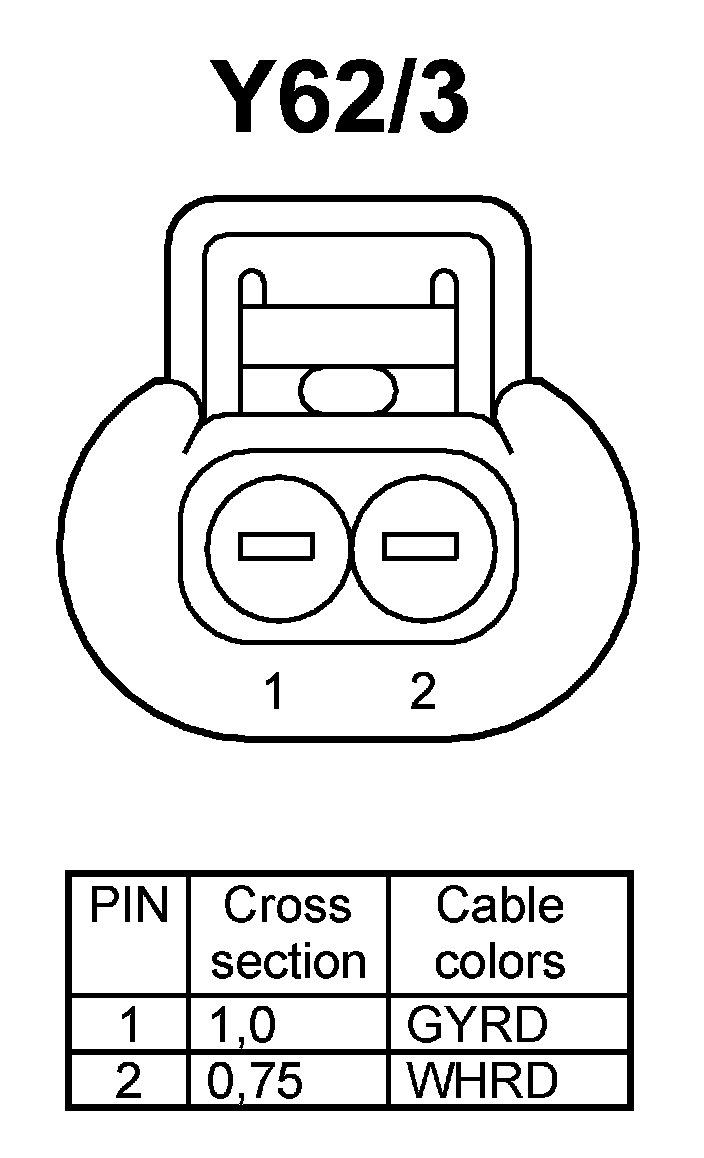

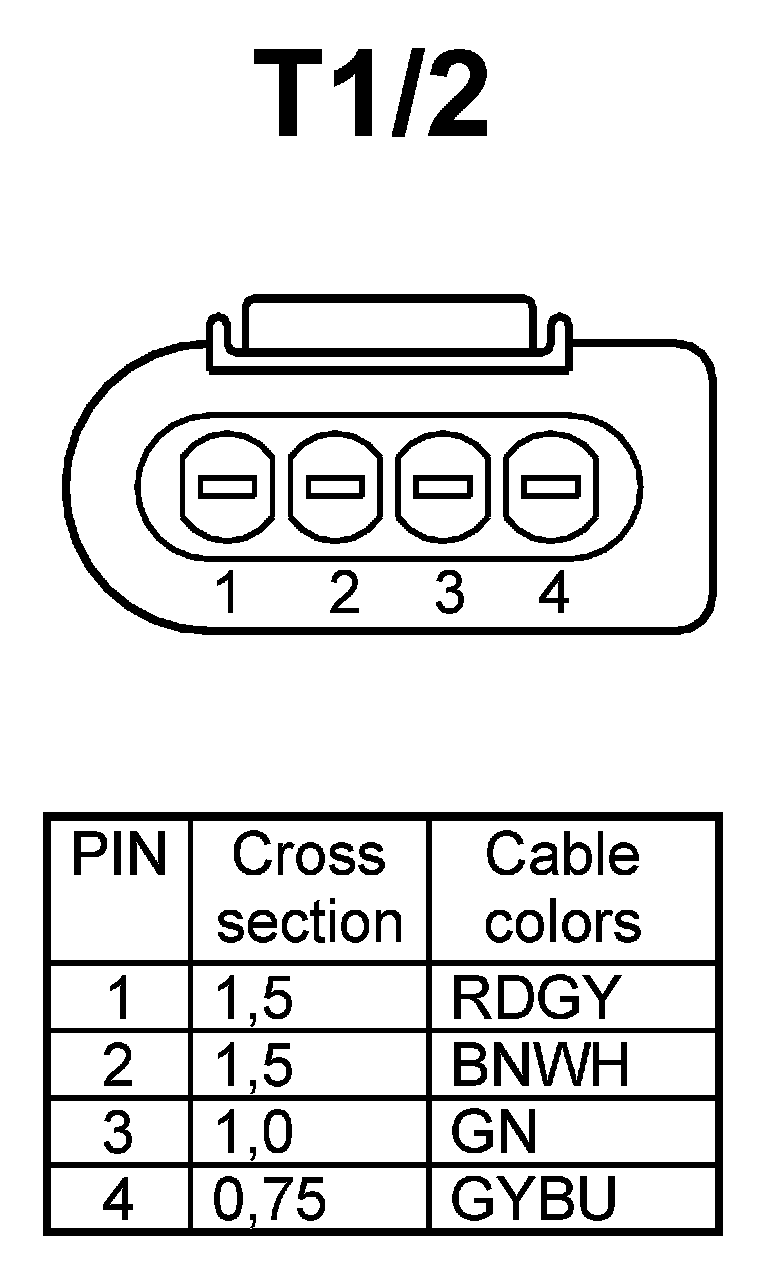

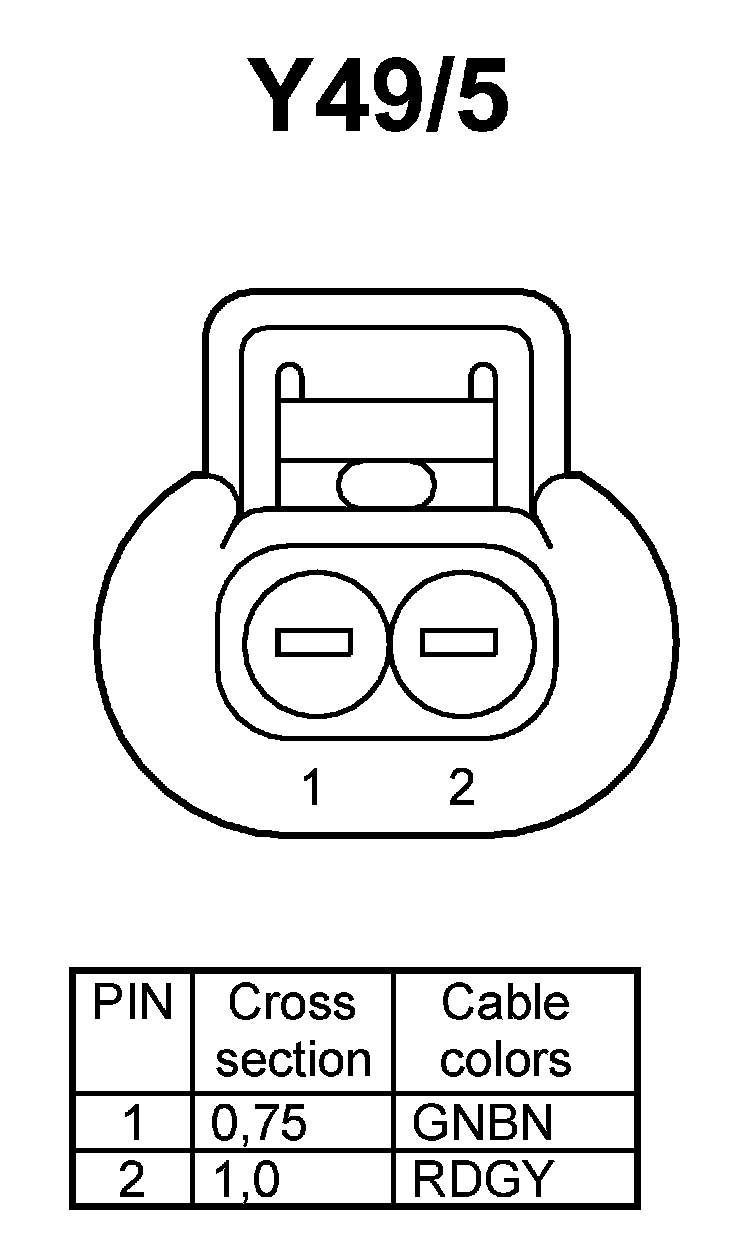

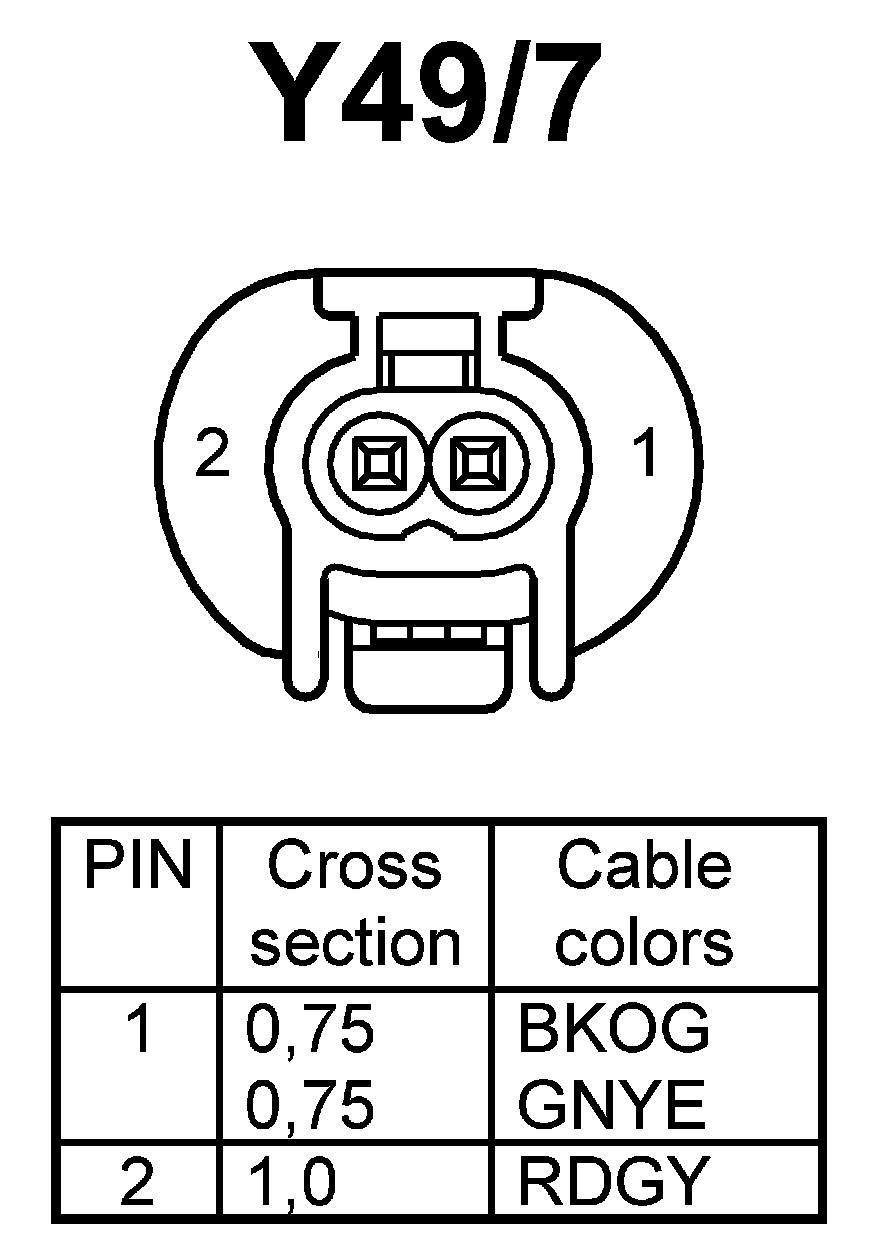

PE00.19-P-2600EAA Solder Points/Z-Connector Sleeves



PE00.19-P-2600EAA Solder Points/Z-Connector Sleeves

MODEL 207

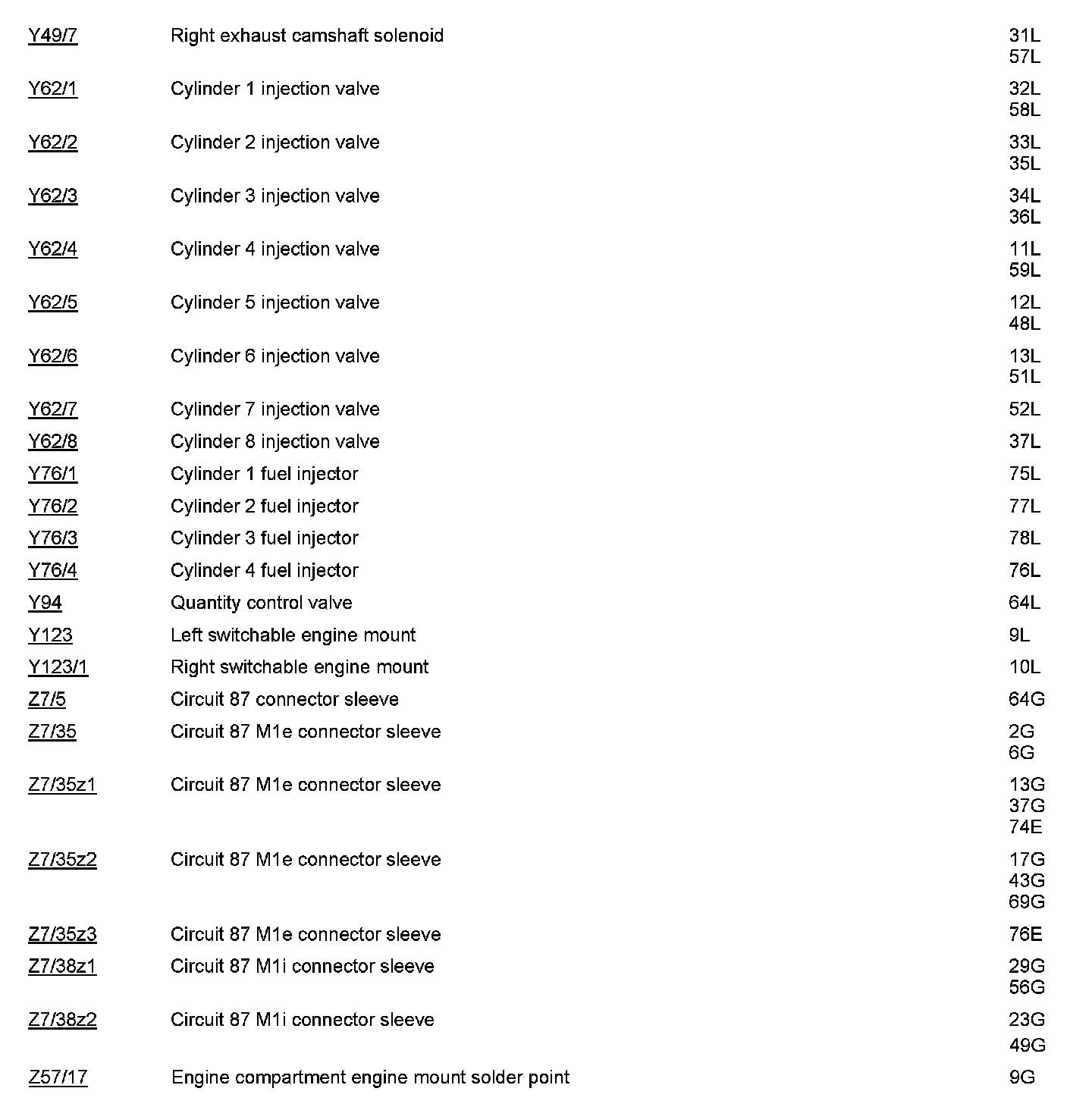

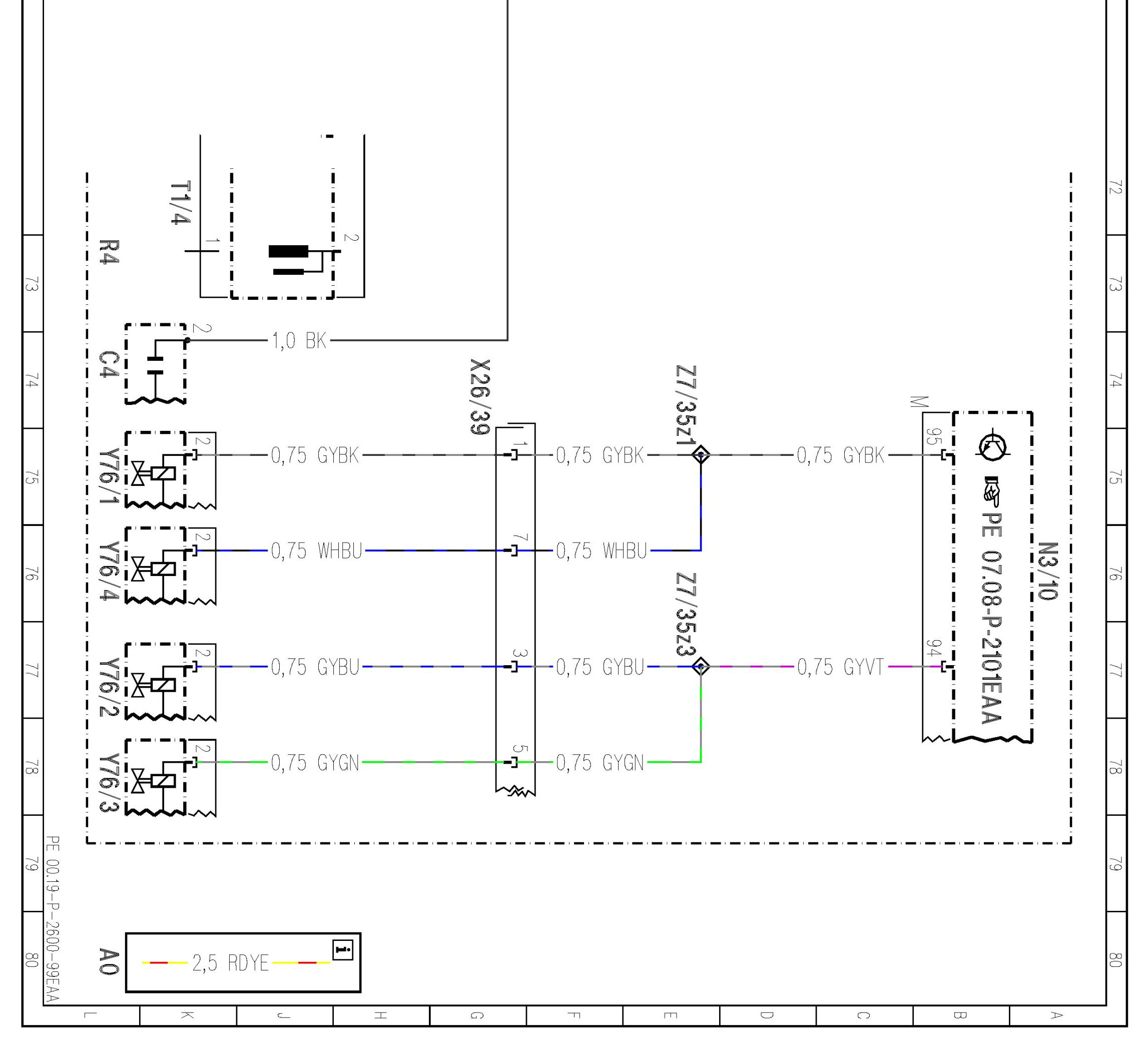

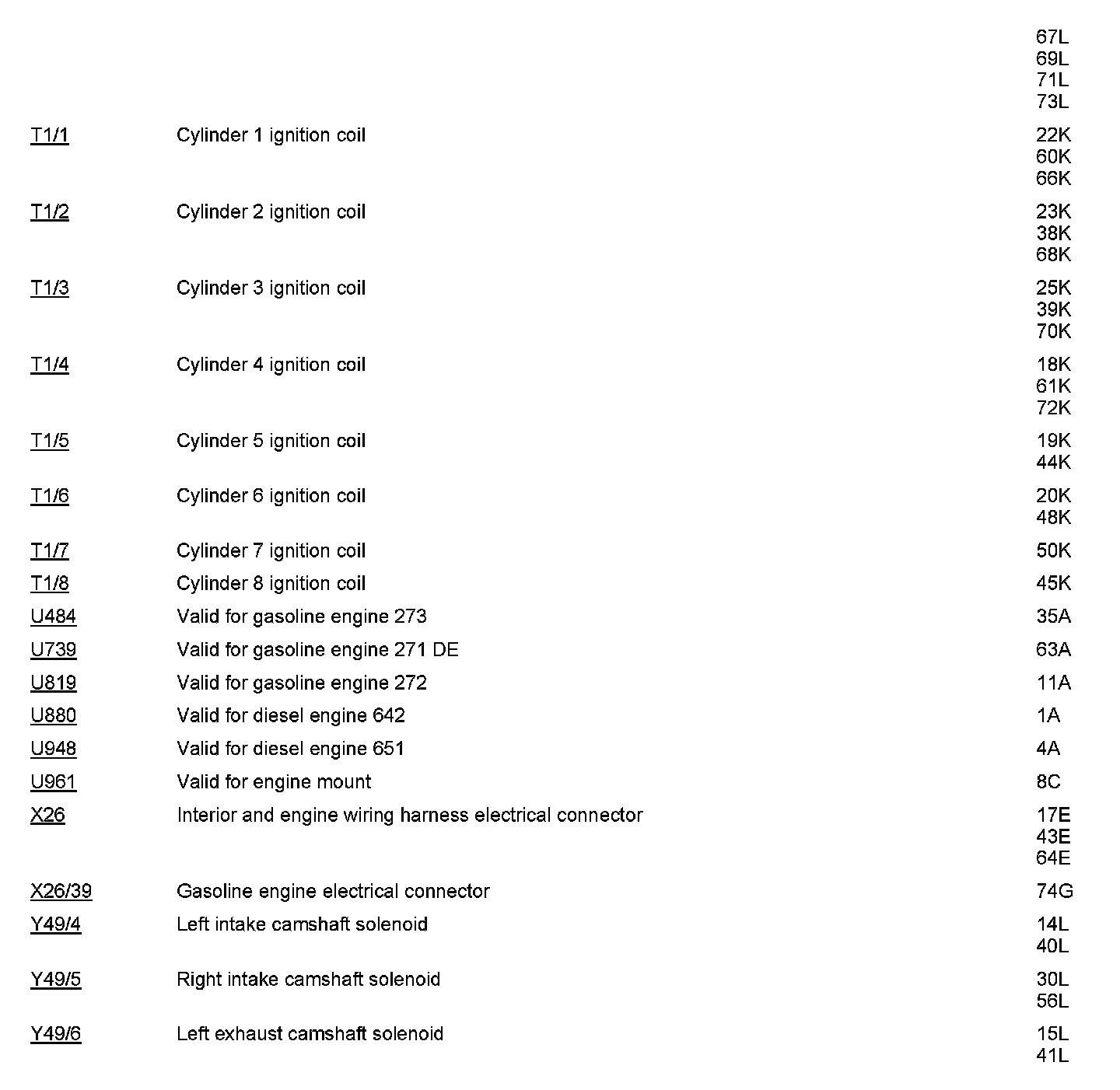

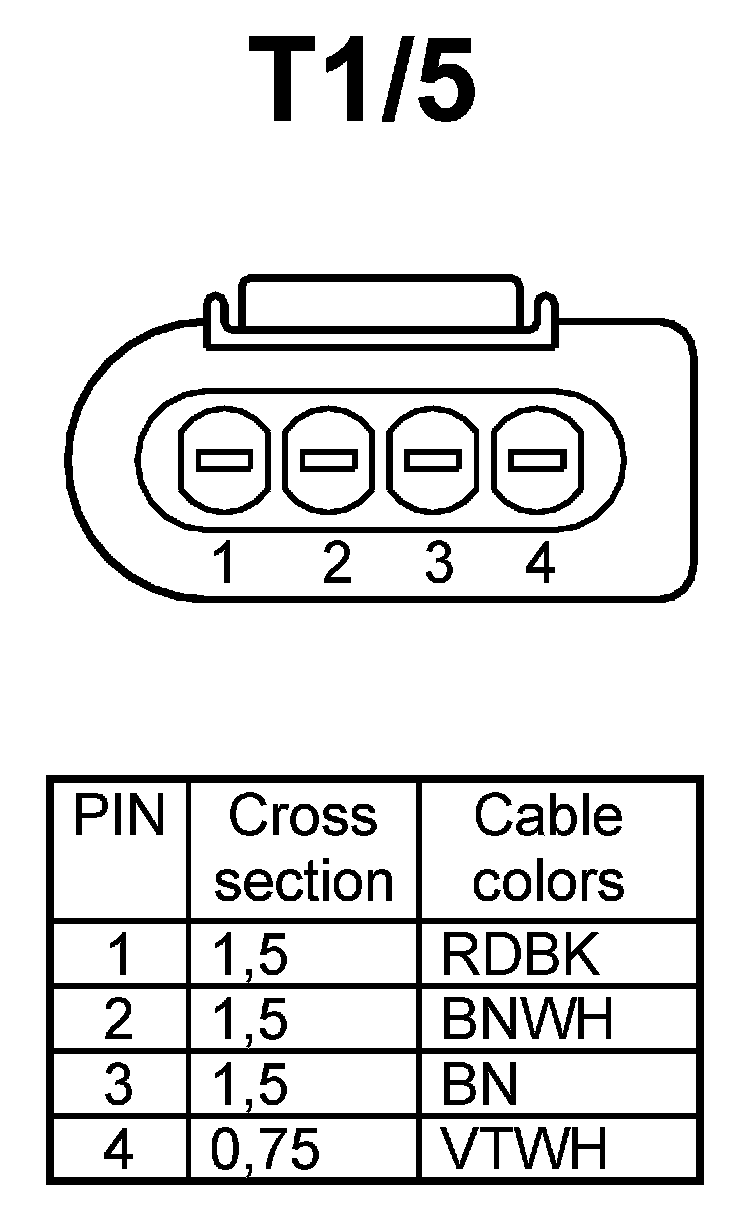

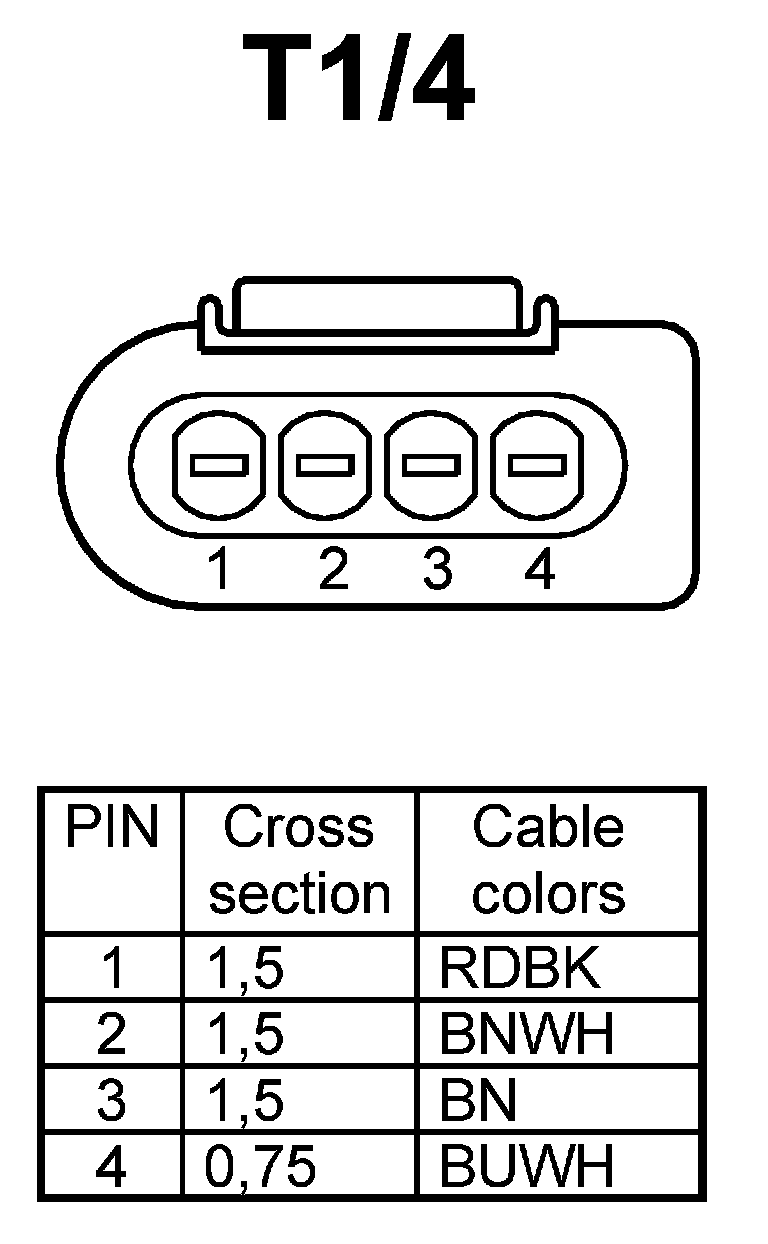

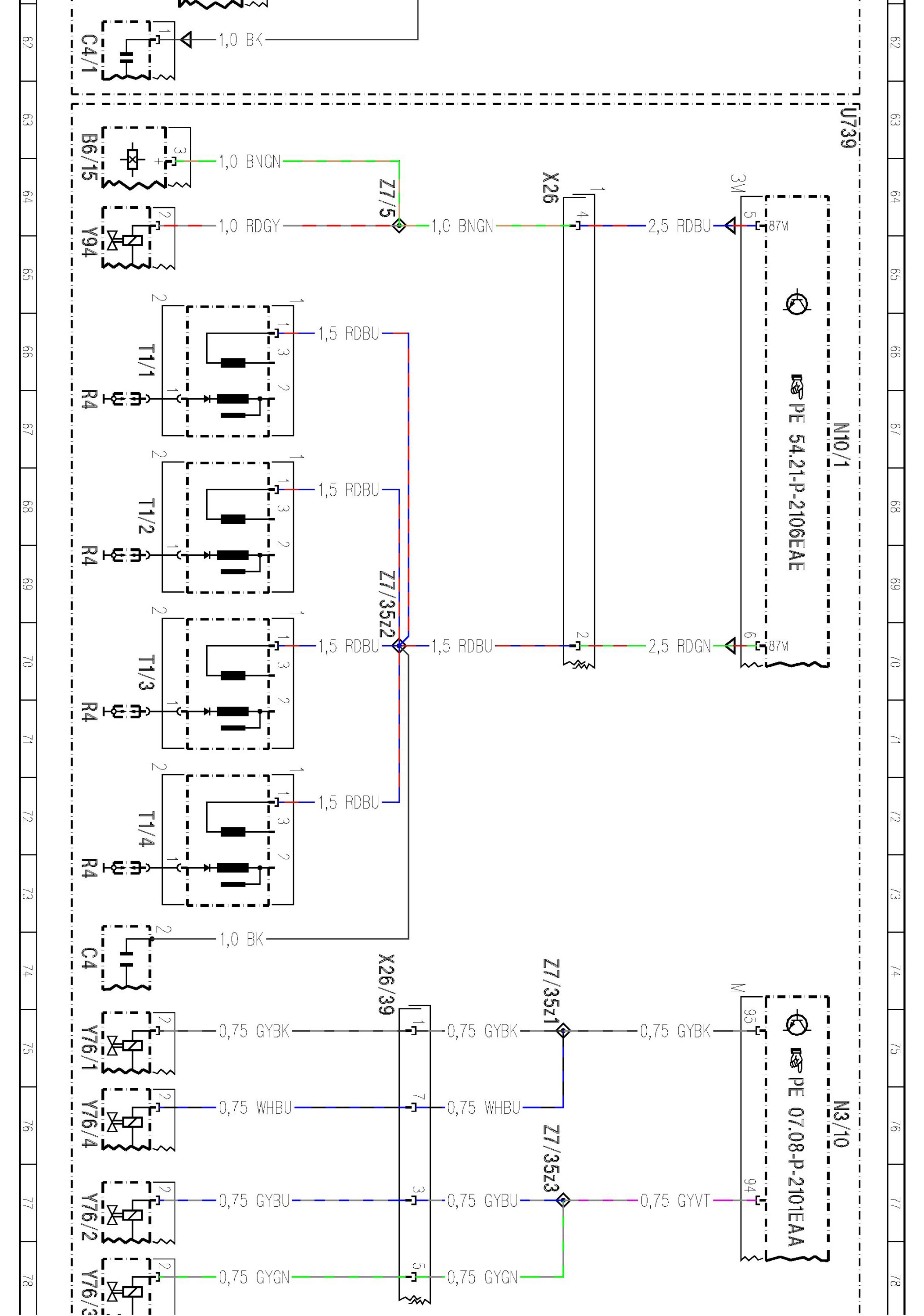

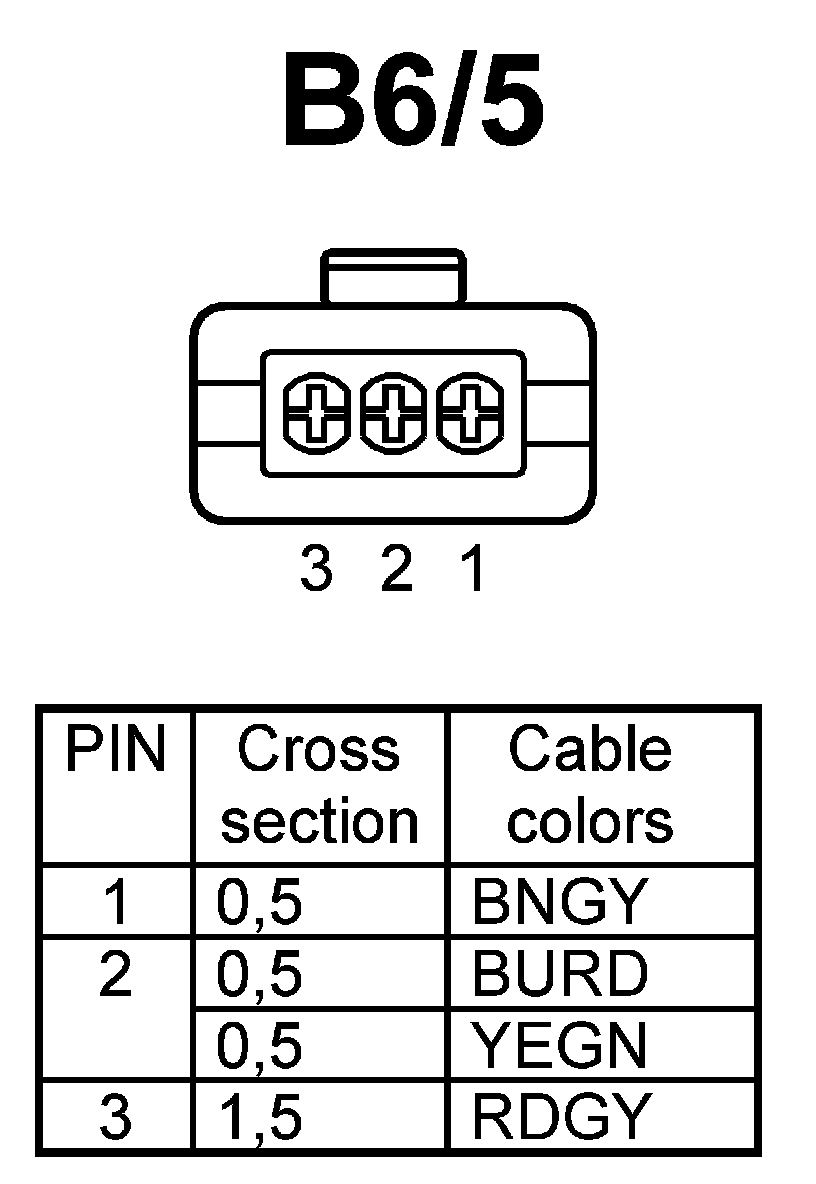

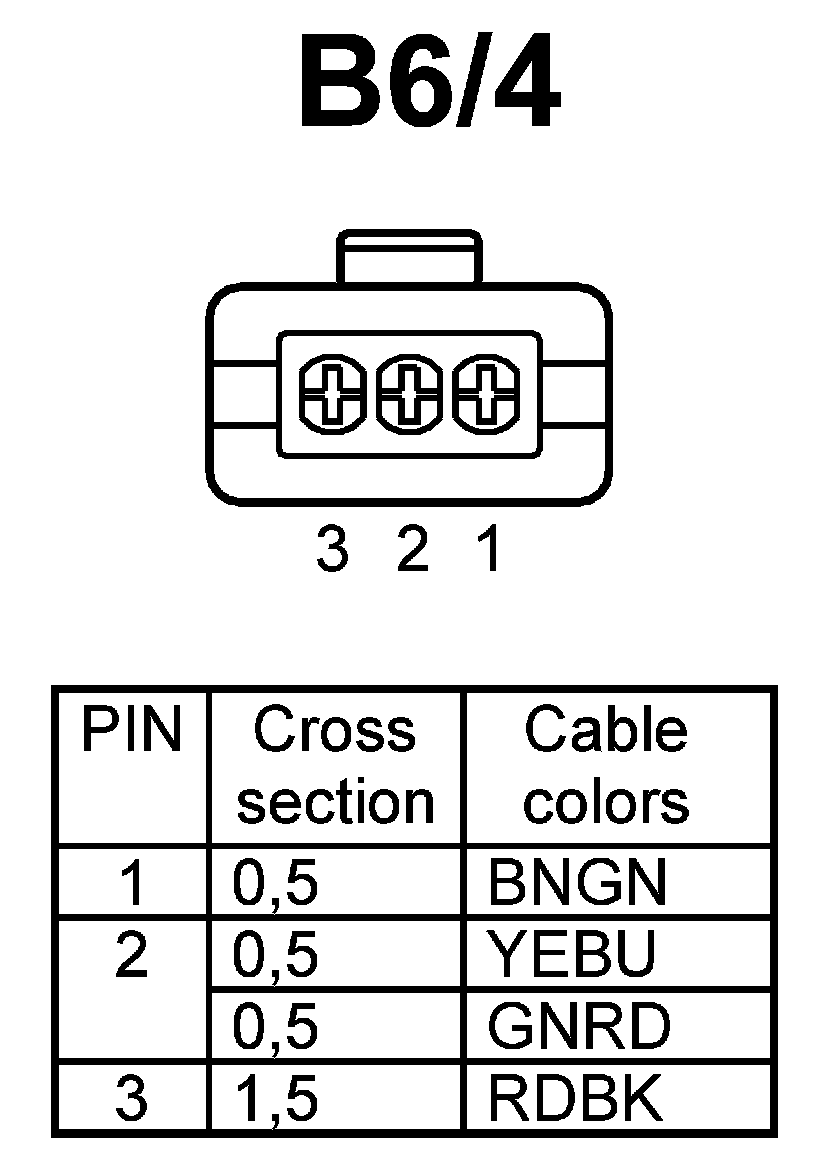

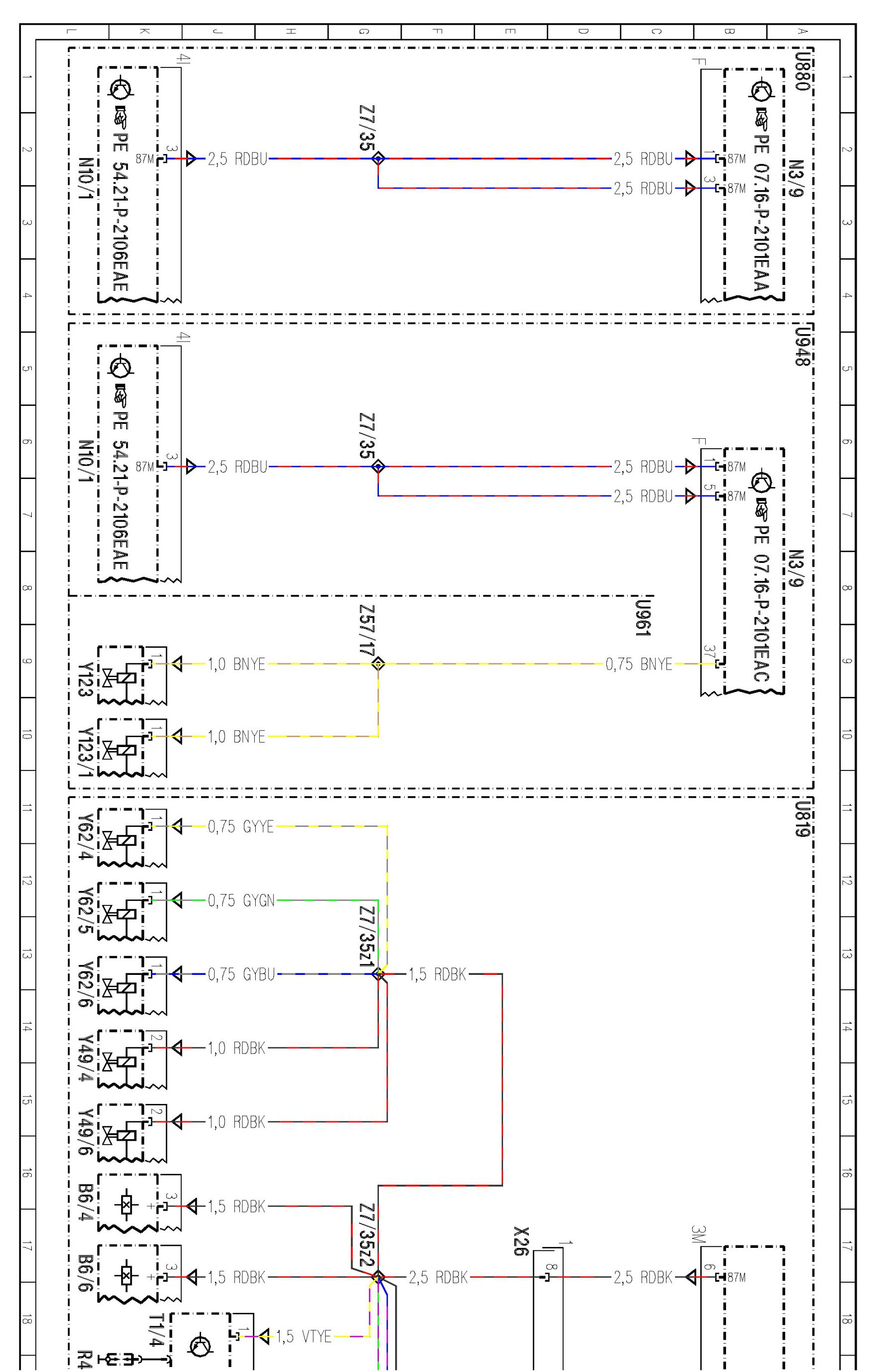

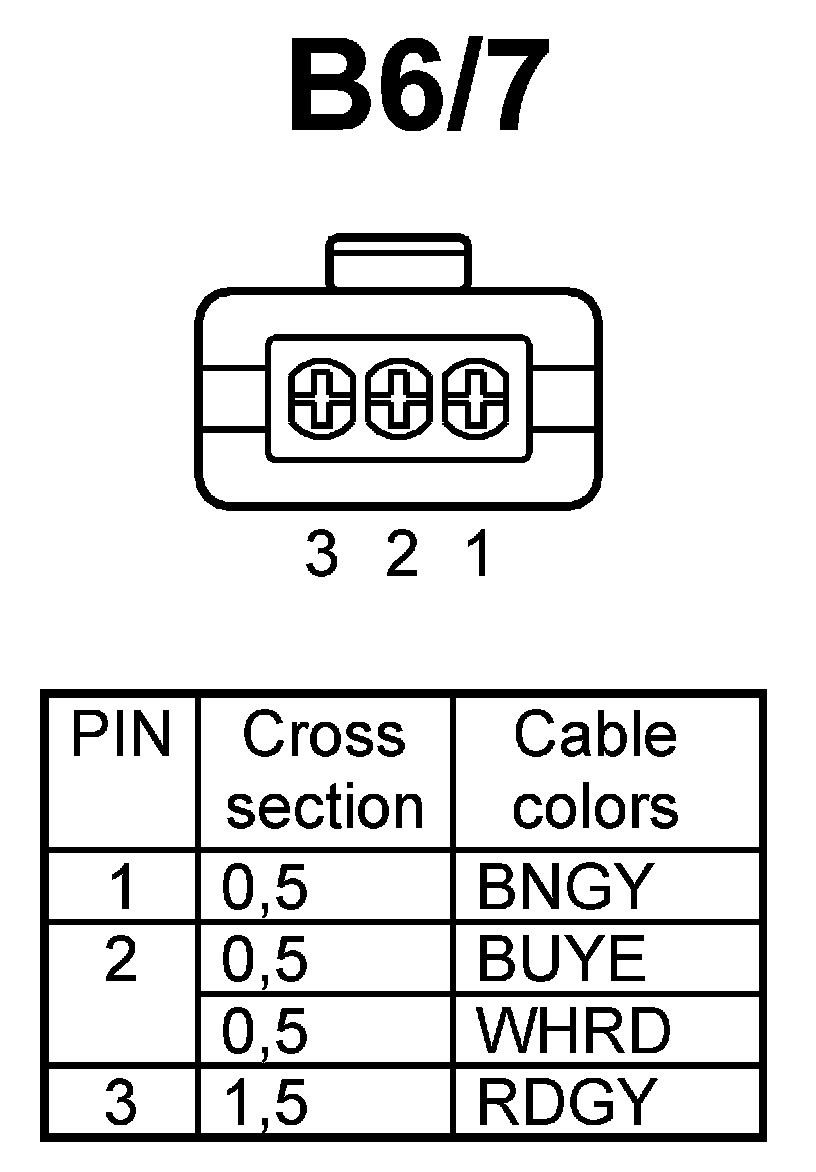

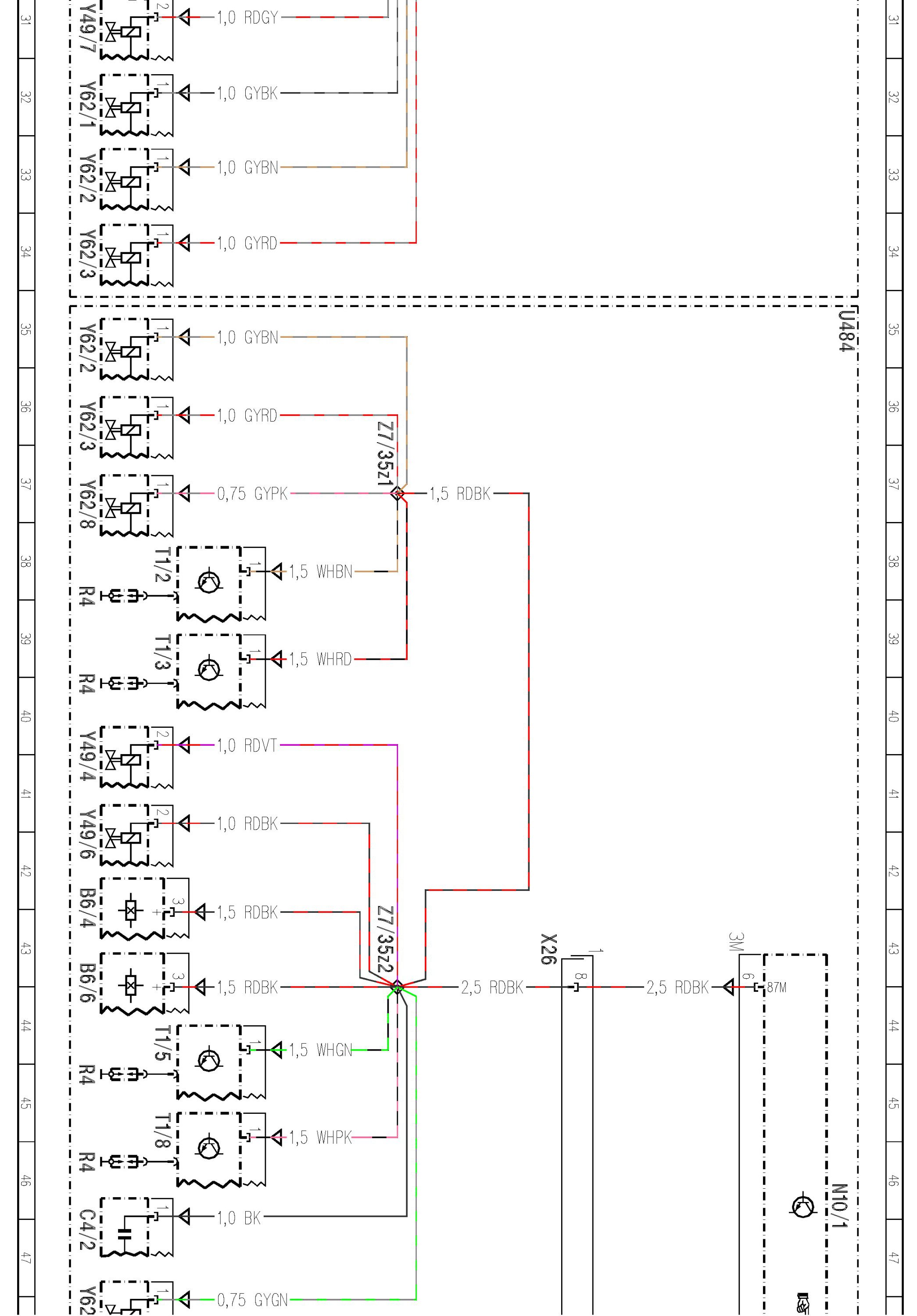

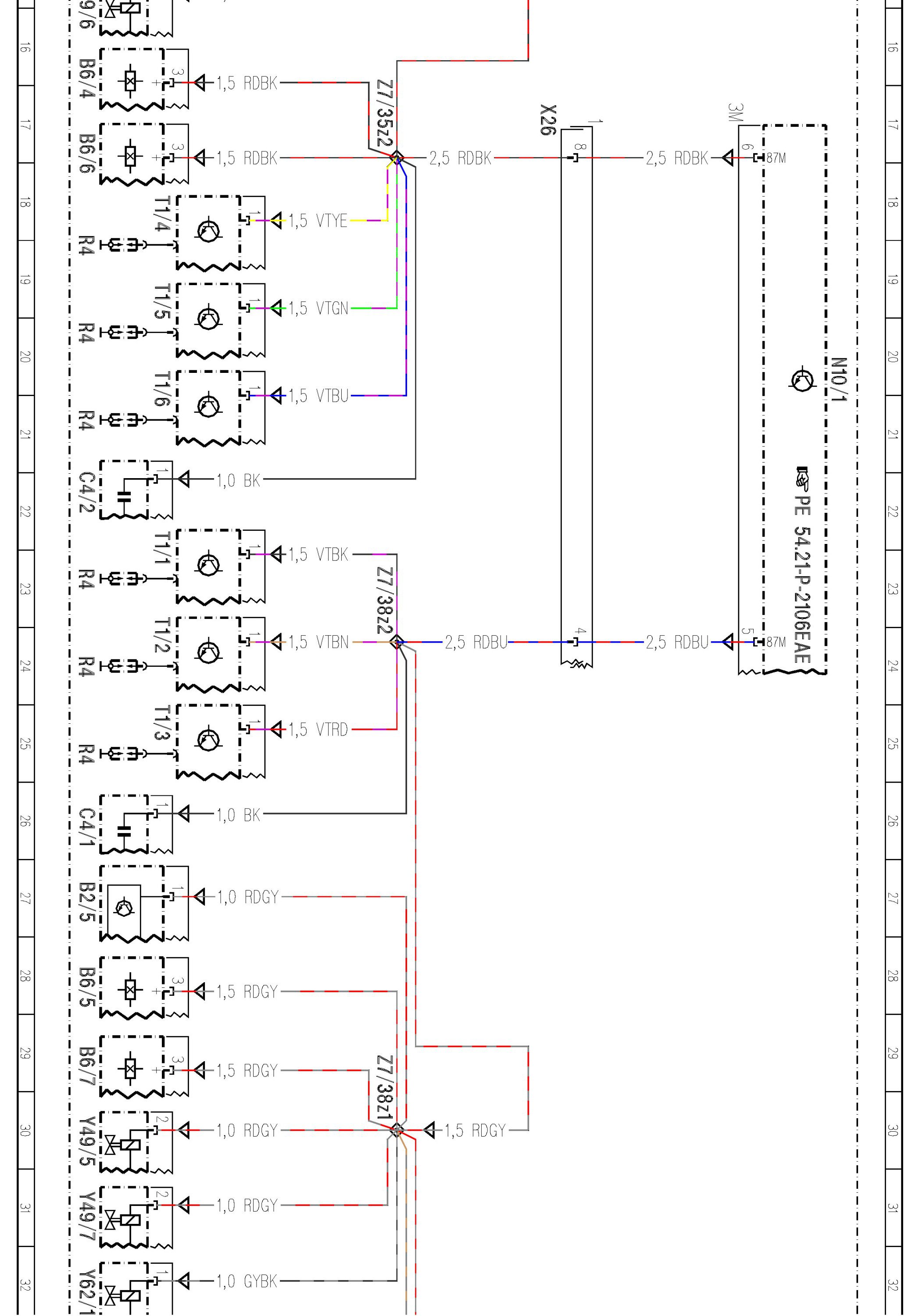

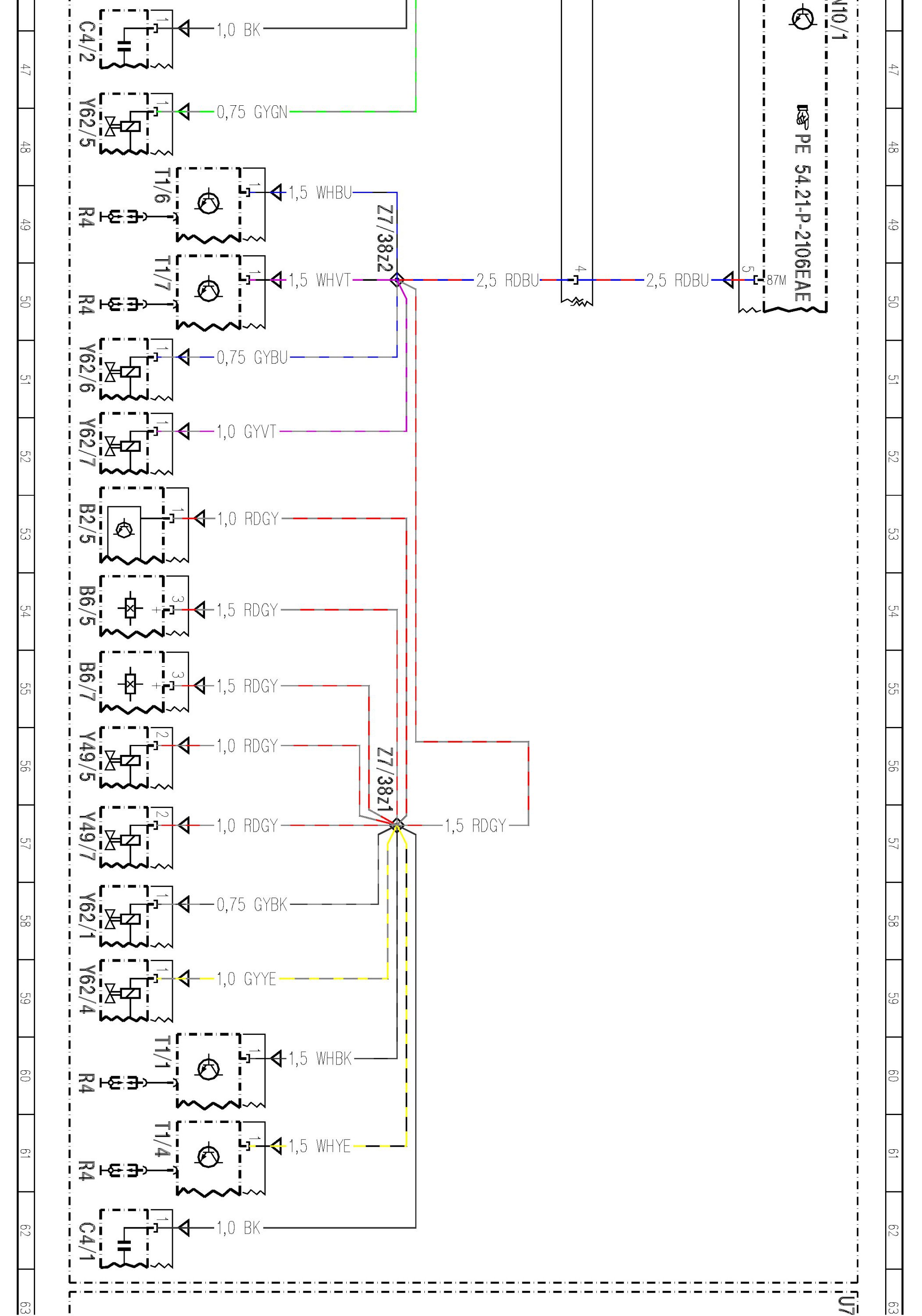

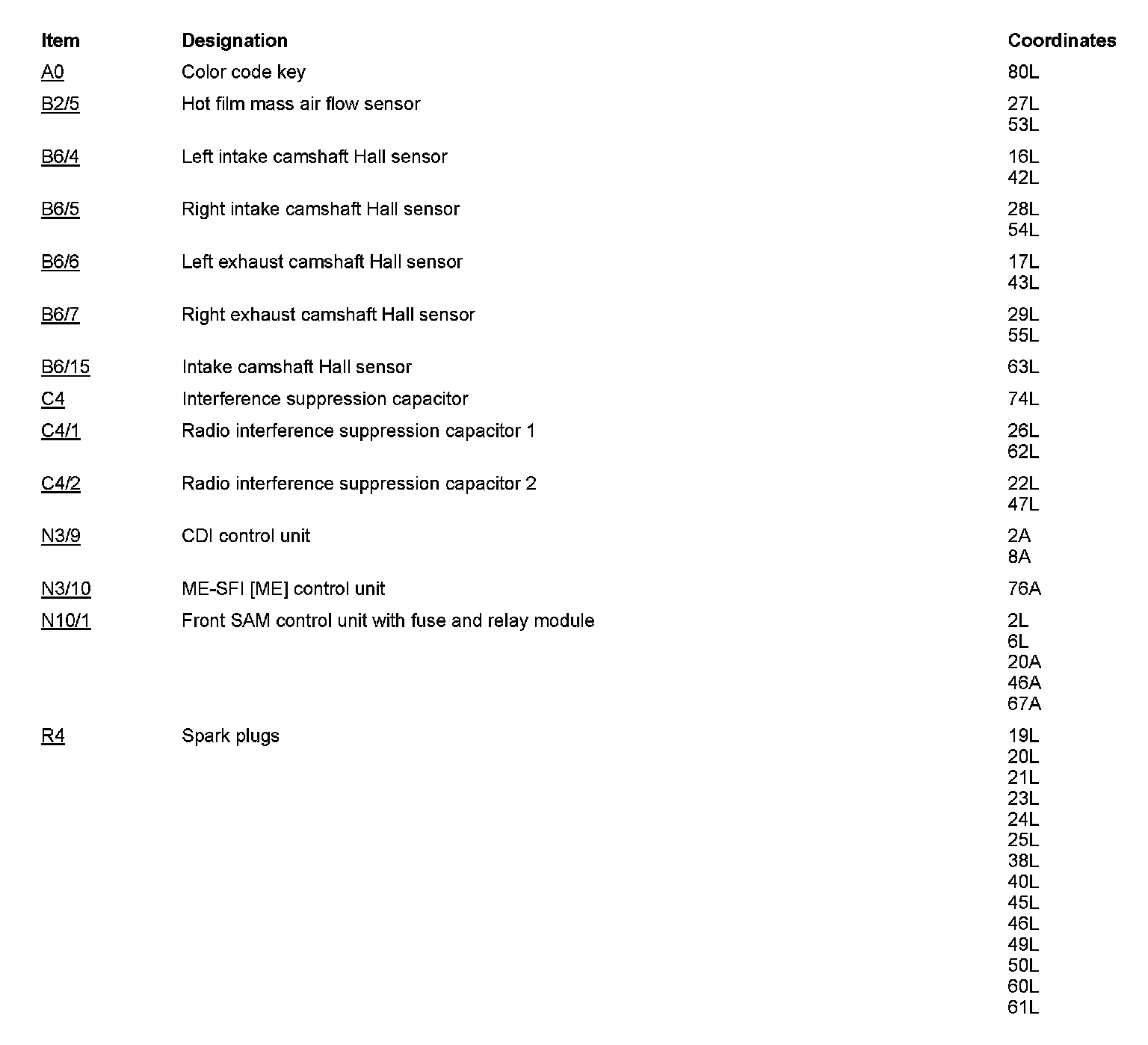

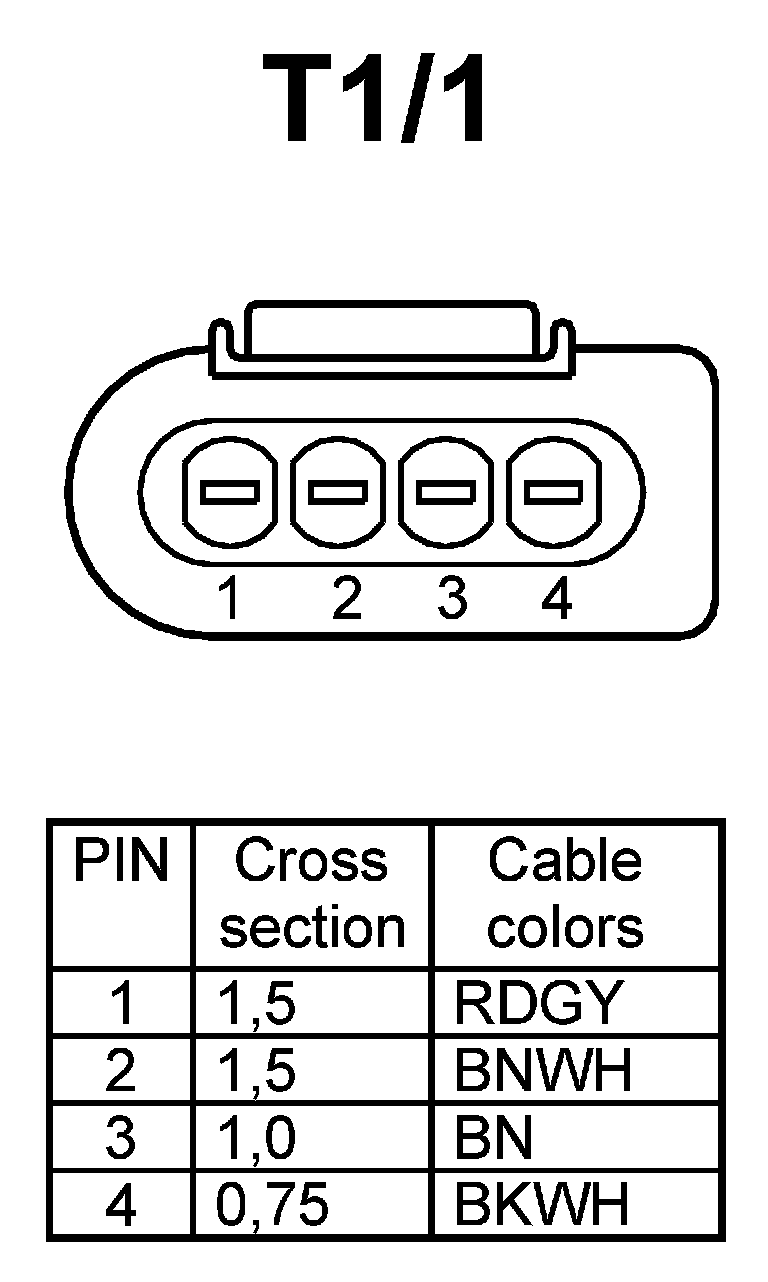

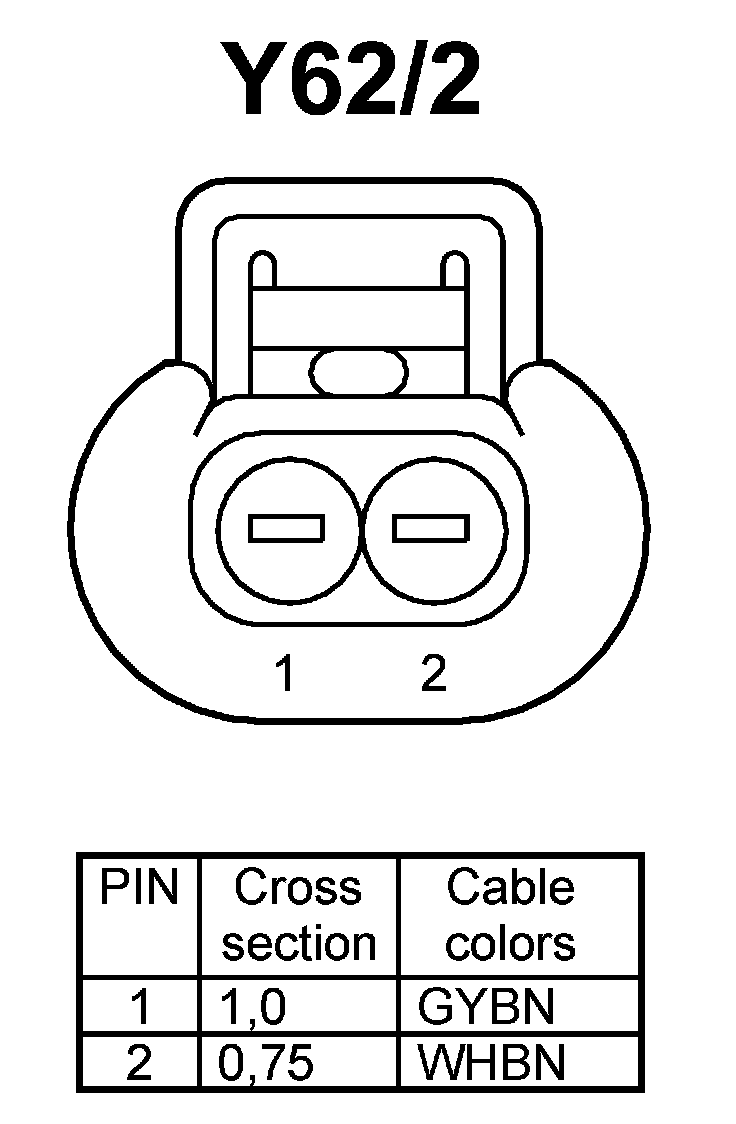

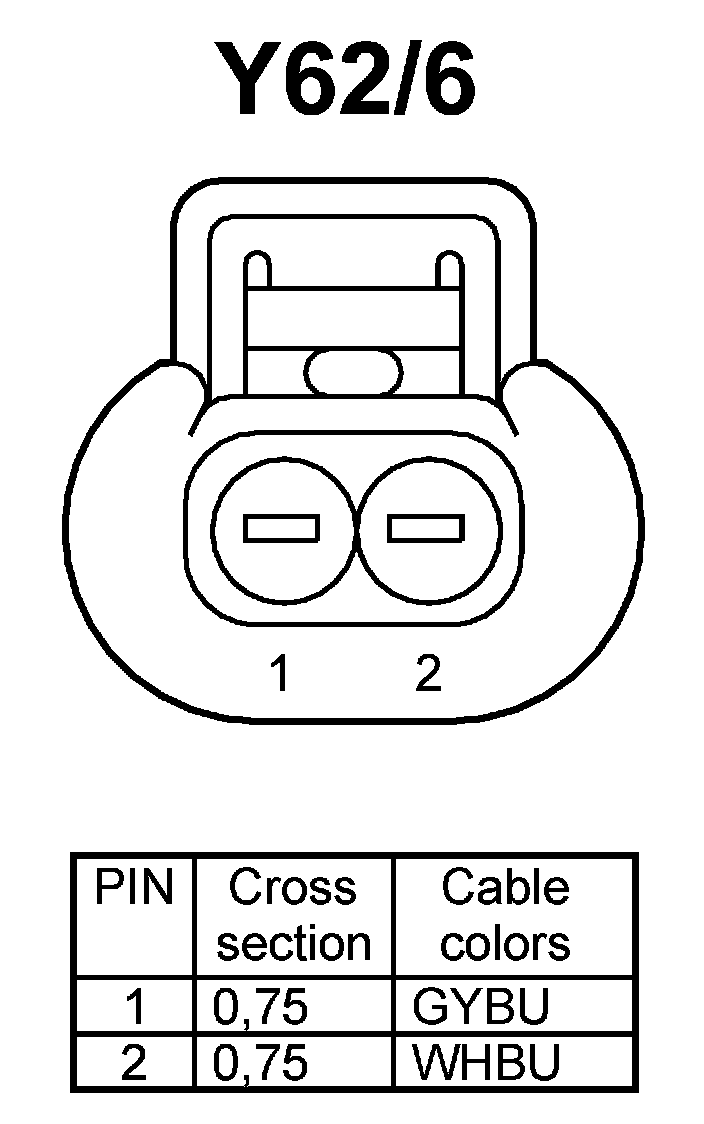

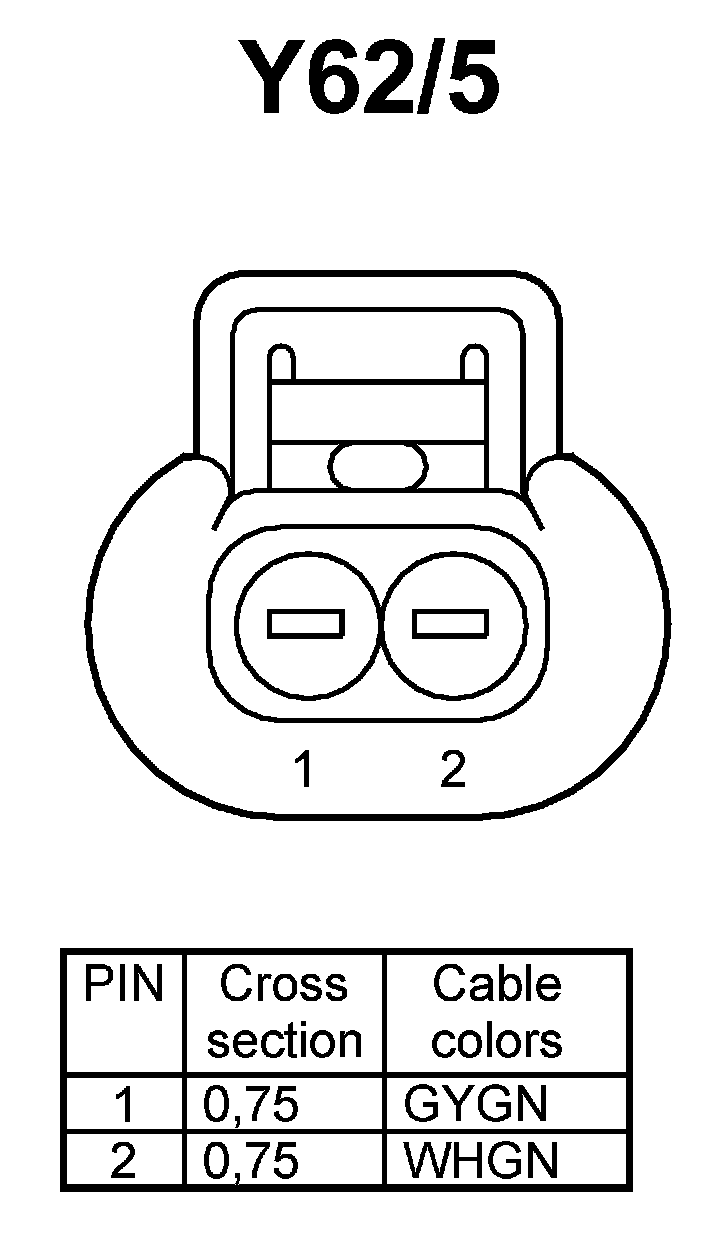

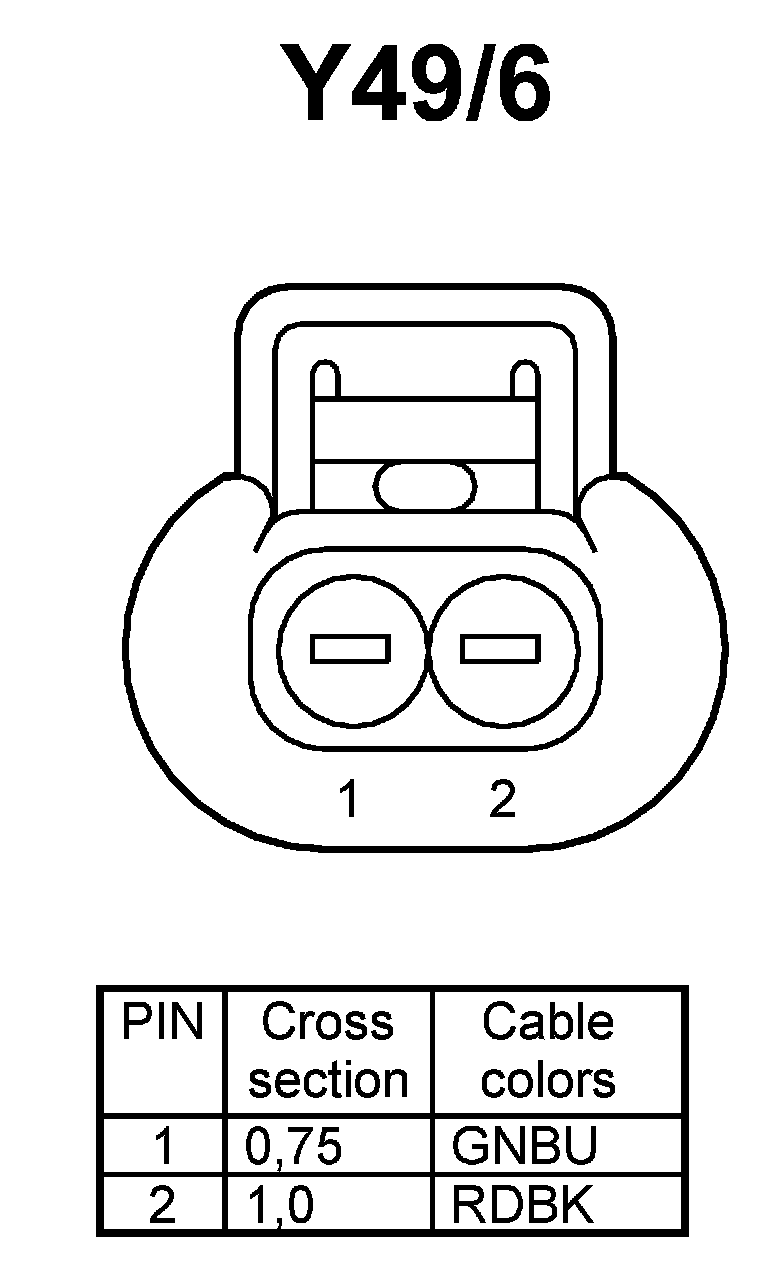

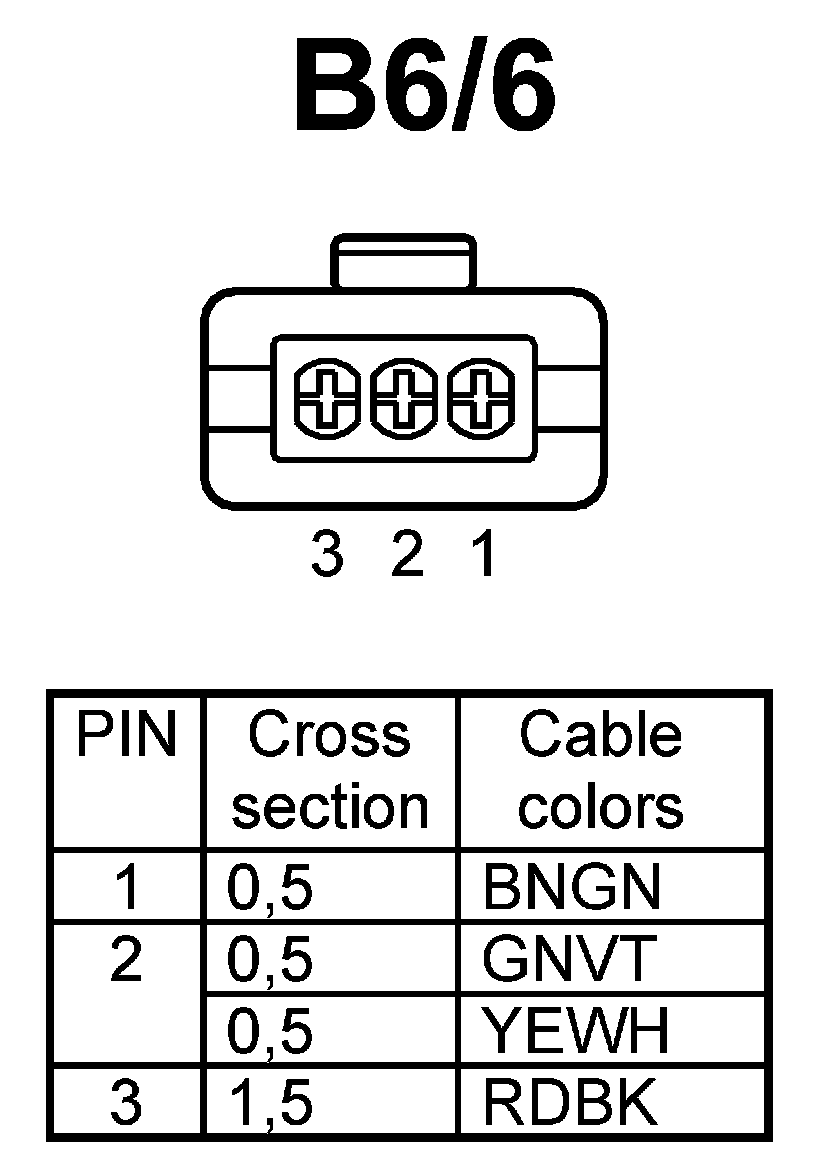

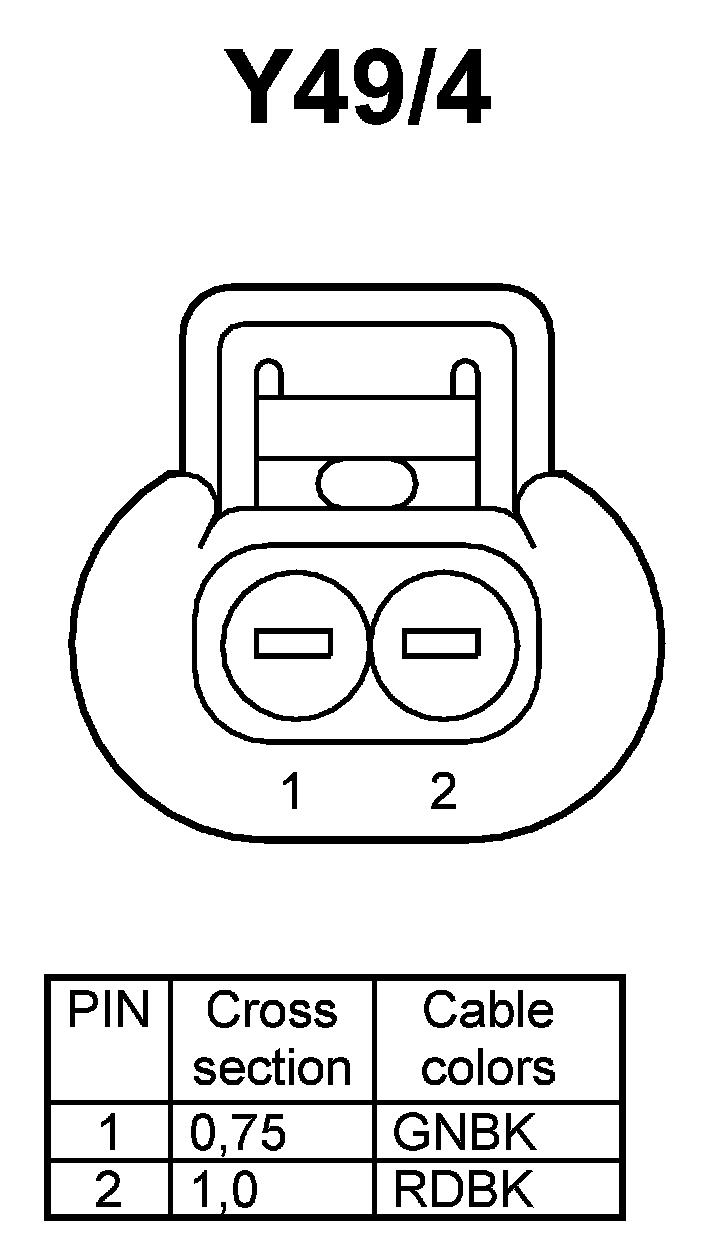

- Z7/35, Z7/35z1, Z7/35z2, Z7/35z3, Z7/38z1, Z7/38z2, Sheet 1






























































































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
