Amplifier, Sound System

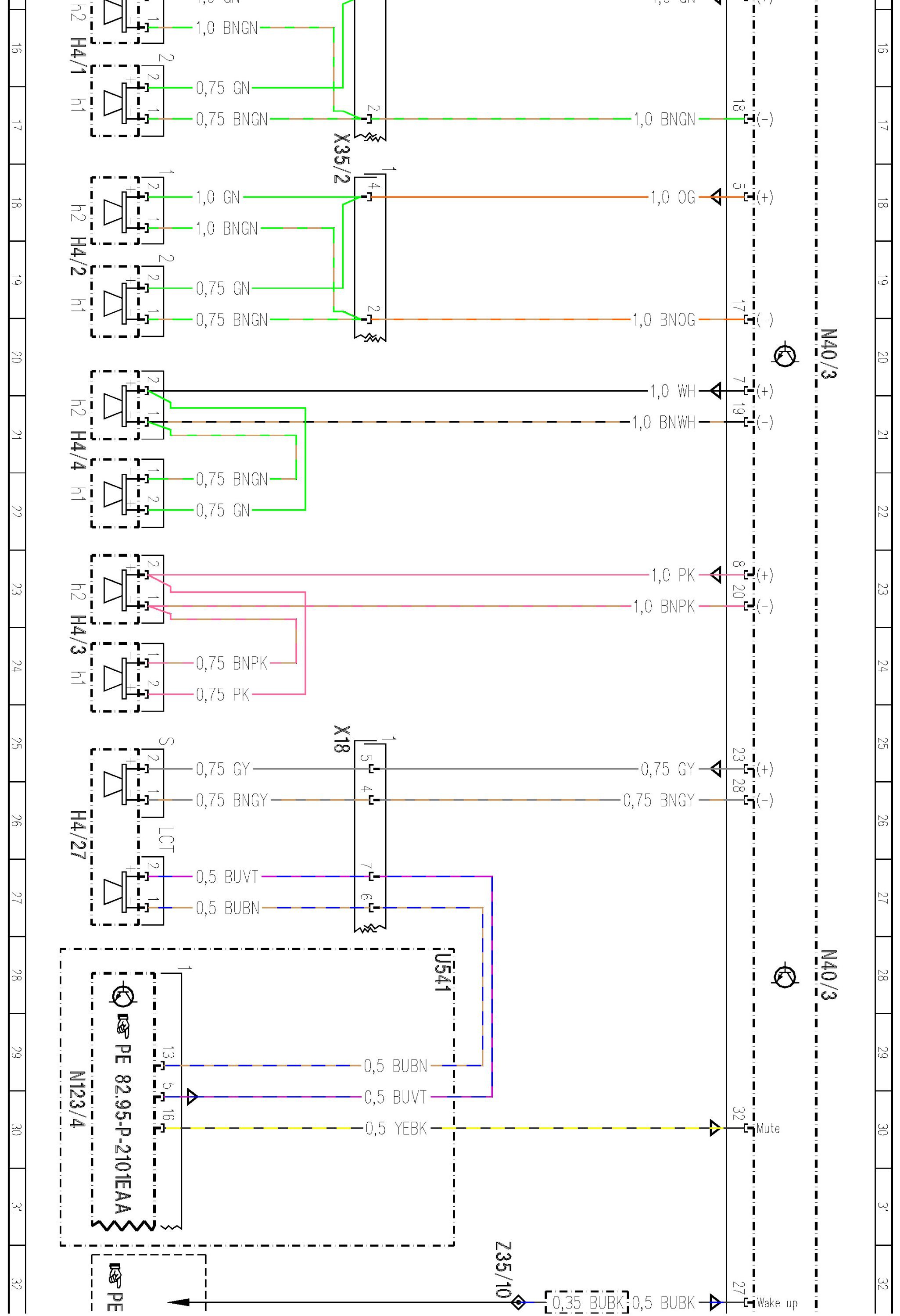

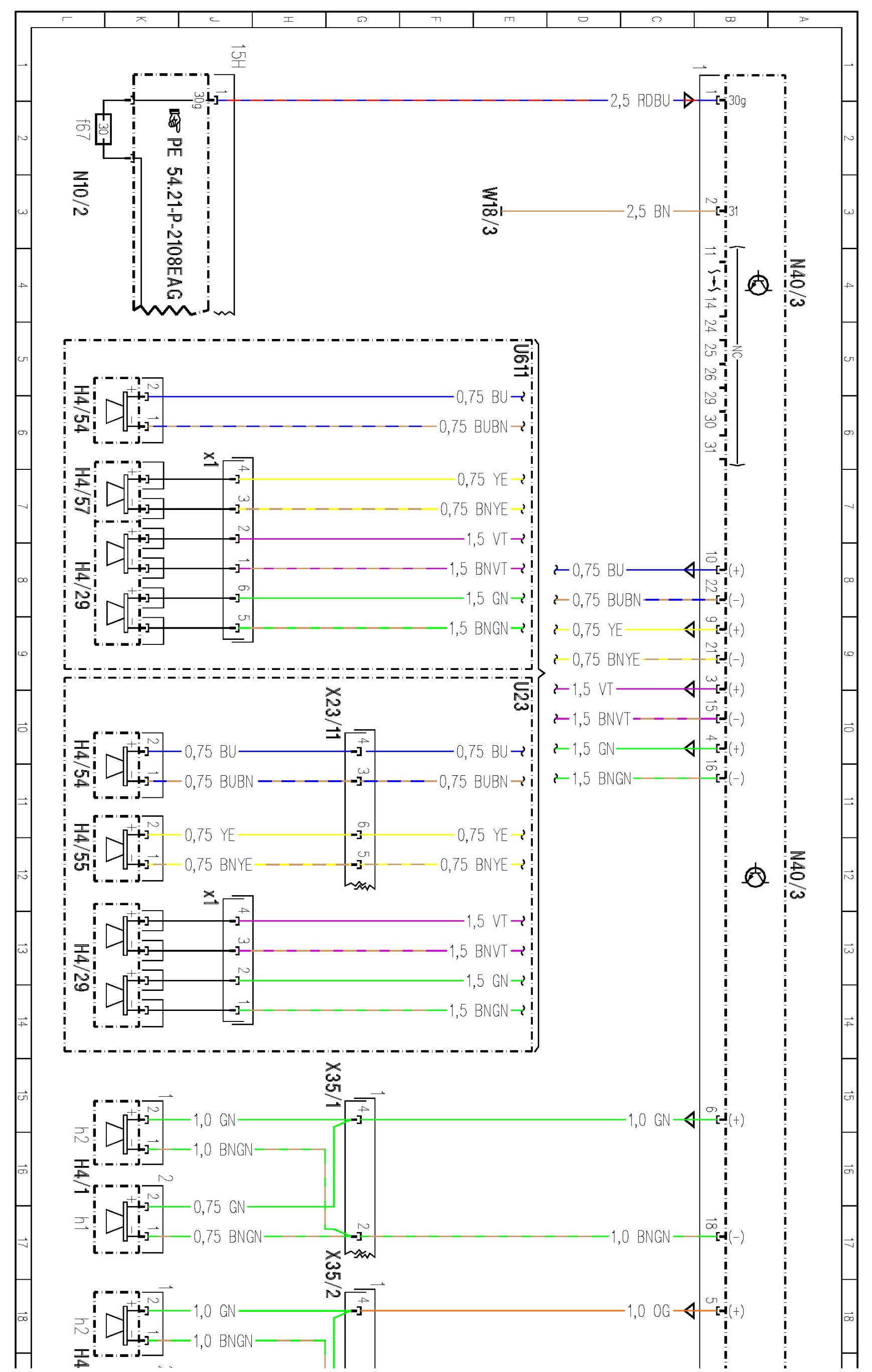

PE82.62-P-2101EAA Sound Amplifier Control Unit Wiring Diagram

MODEL 207
- with CODE (810) Sound system
- control unit N40/3














































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
