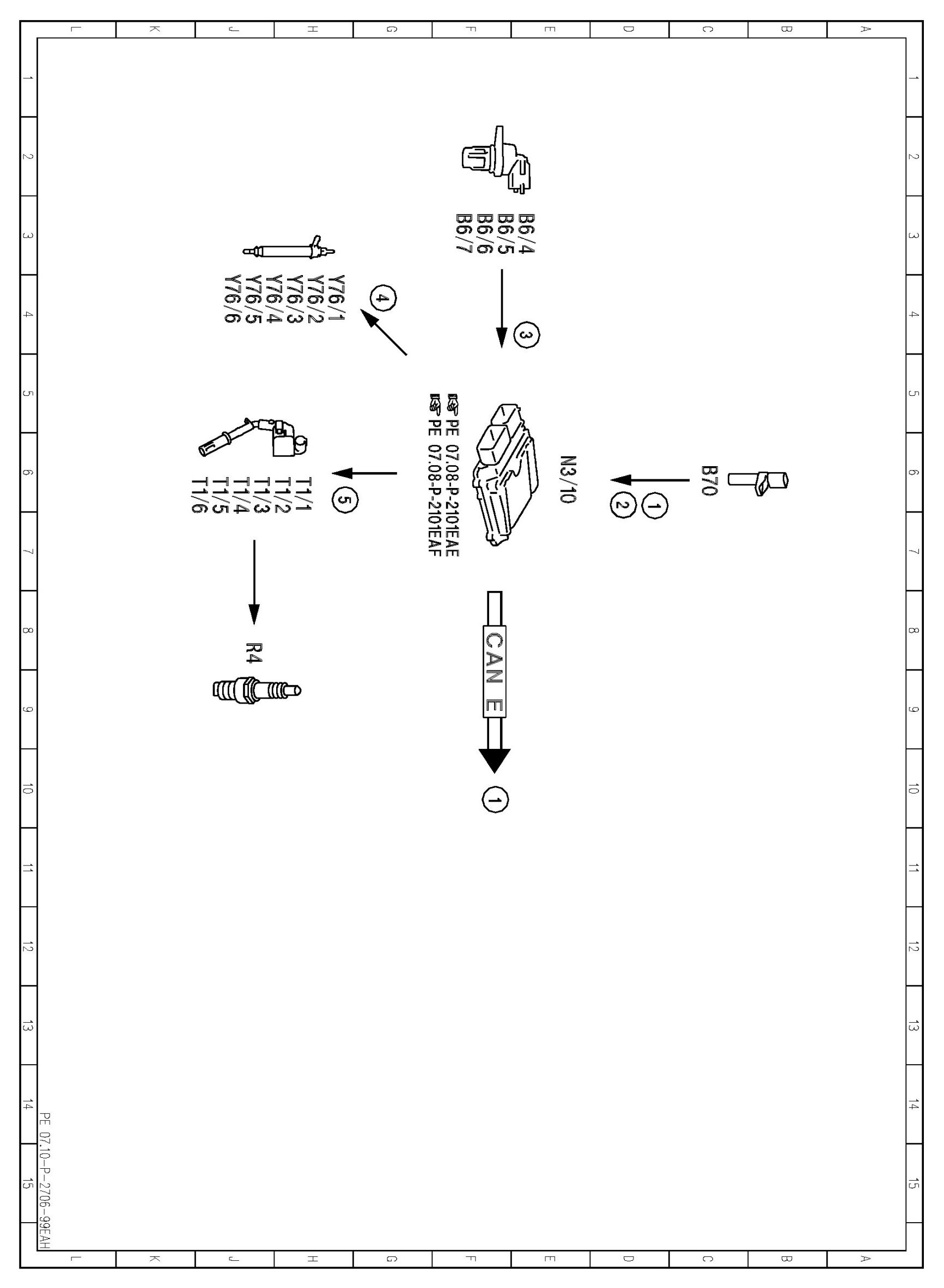

PE07.10-P-2706EAH Electrical Function Schematic, Synchronization Of The Injection And Firing Order

PE07.10-P-2706EAH Electrical Function Schematic, Synchronization Of The Injection And Firing Order

ENGINES 276 in MODEL 207

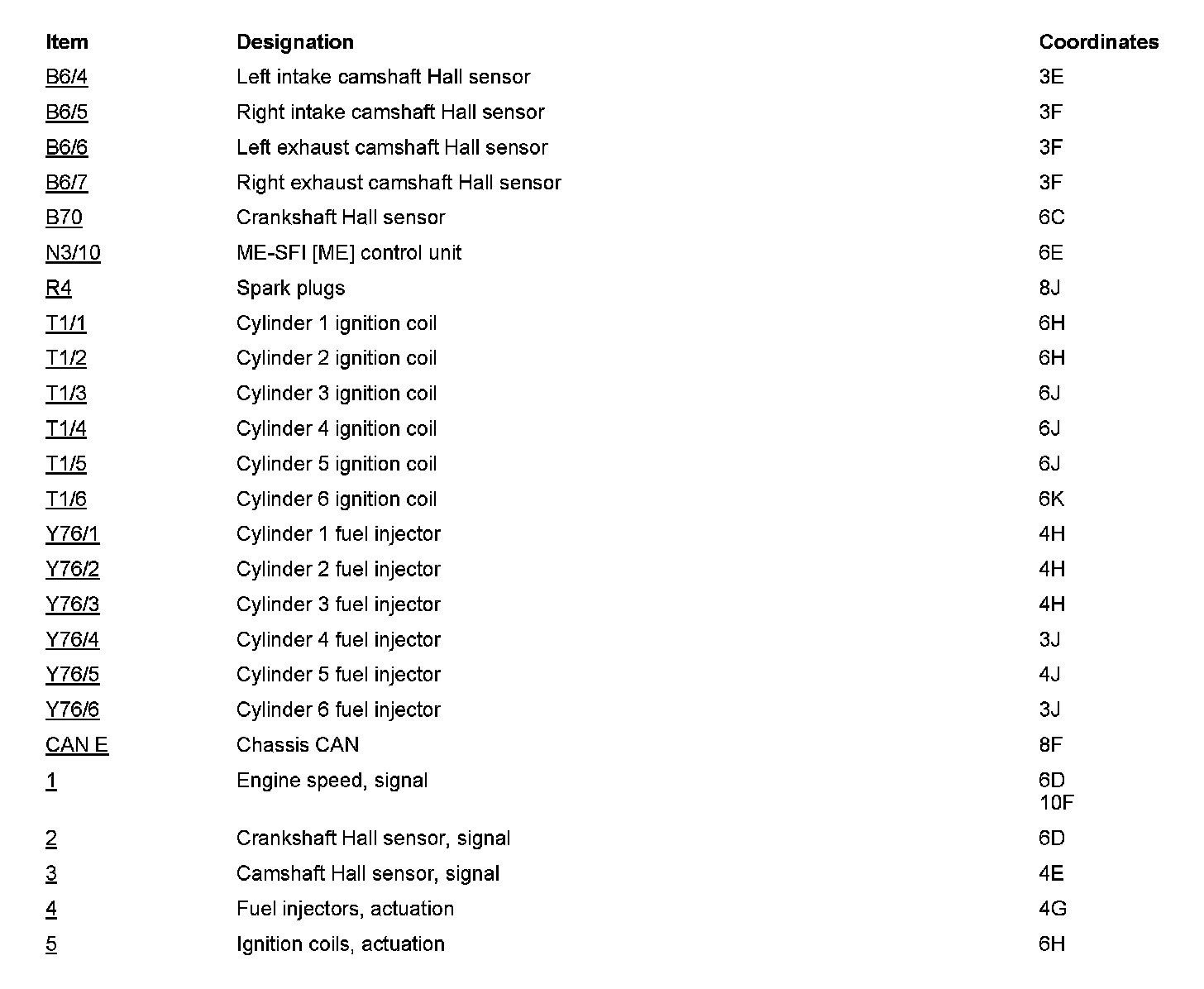

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
