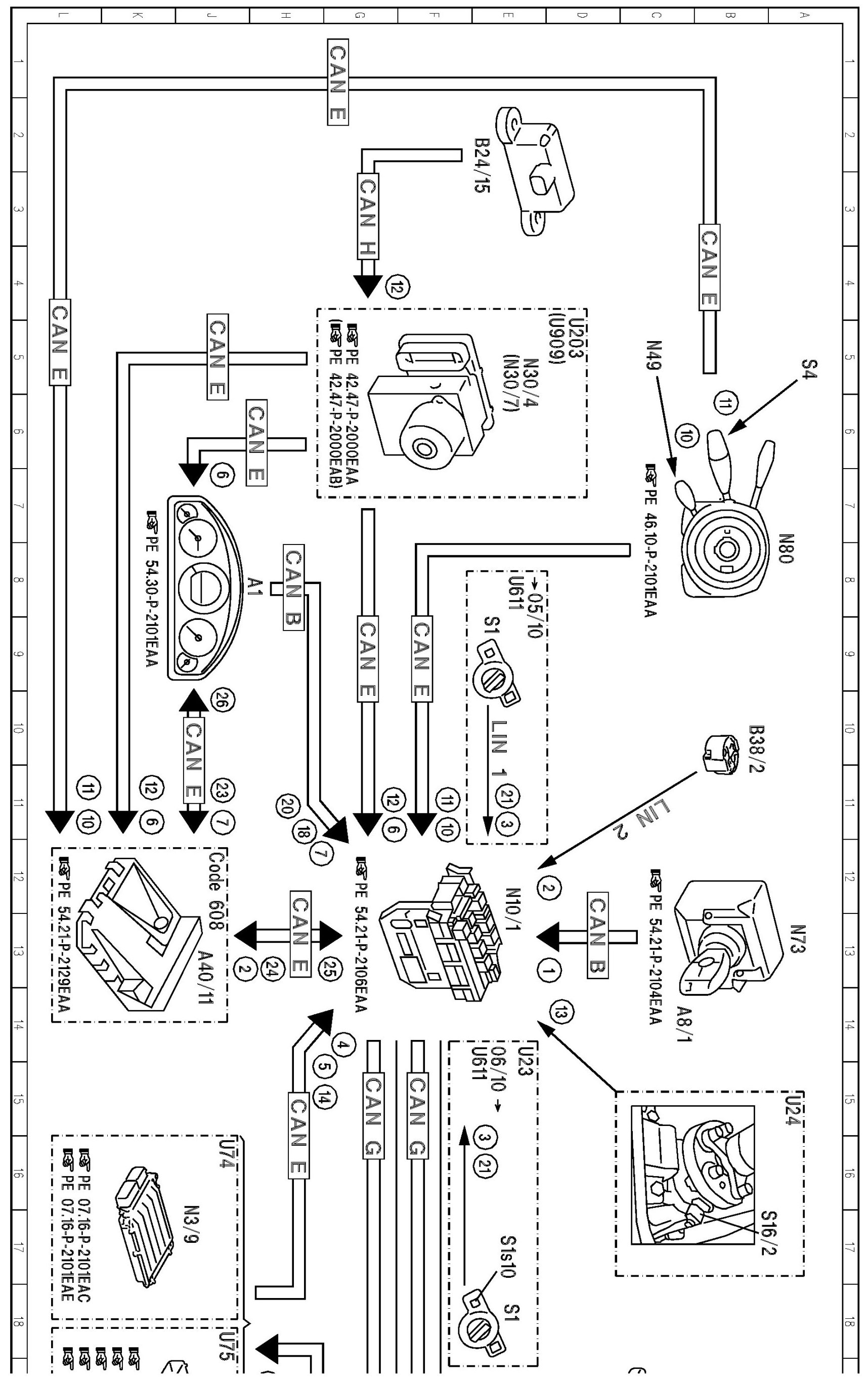

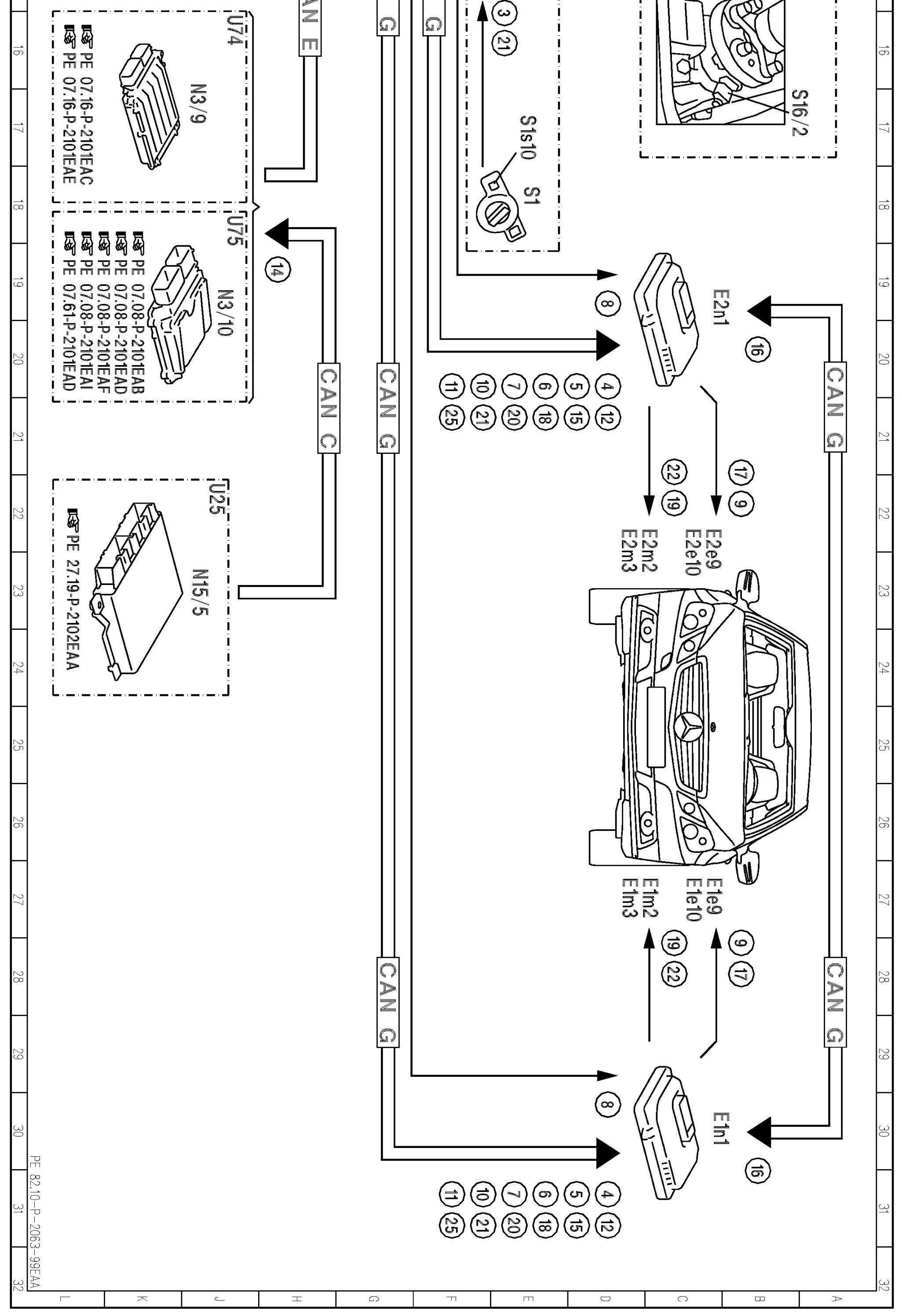

PE82.10-P-2063EAA Electrical Function Schematic, Additional Functions, Driving Lights Actuation

PE82.10-P-2063EAA Electrical Function Schematic, Additional Functions, Driving Lights Actuation

MODEL 207.3 /4
- with CODE (608)
- Adaptive Highbeam Assist
- with CODE (615)
- Bi-xenon






































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
