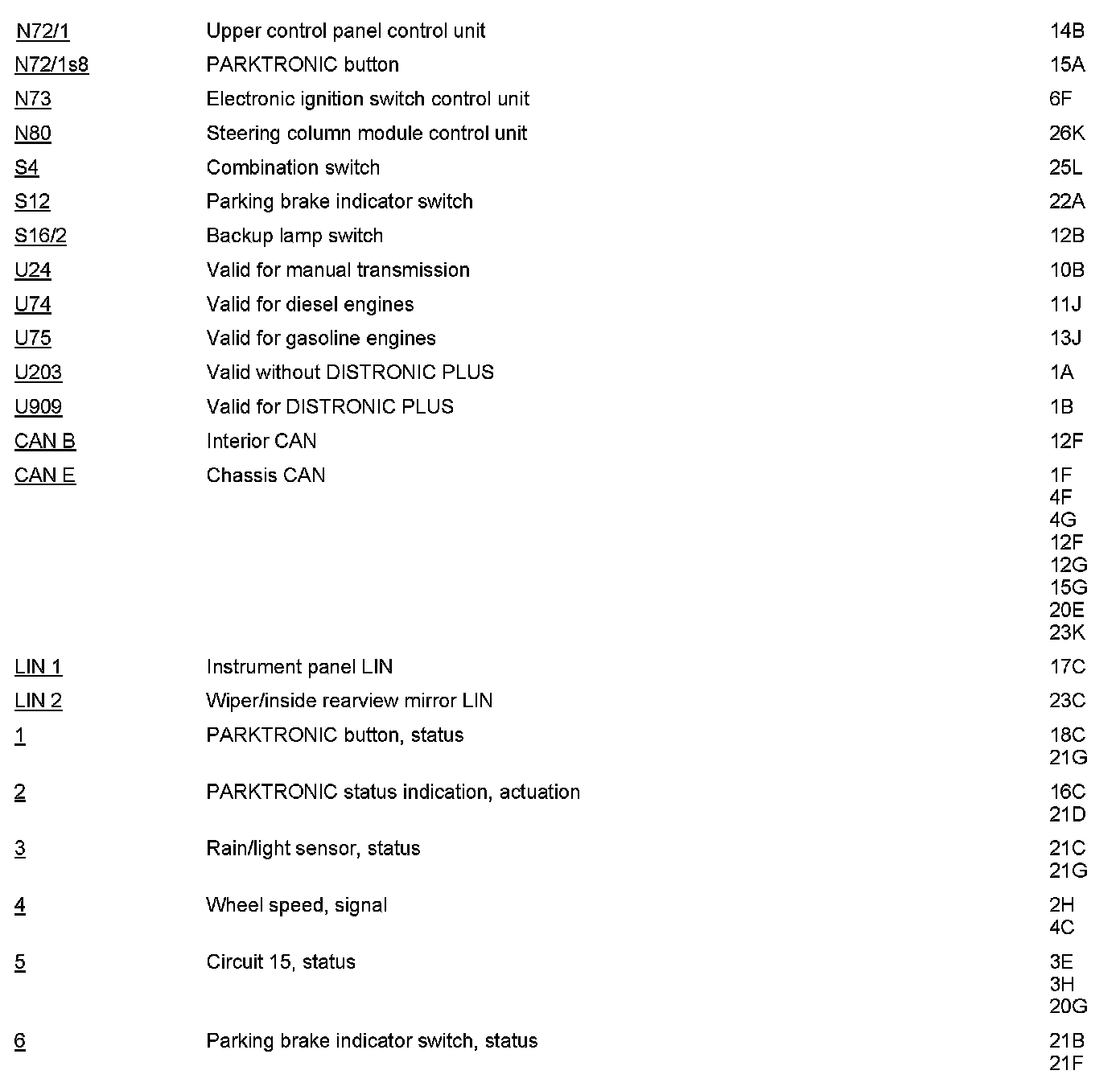

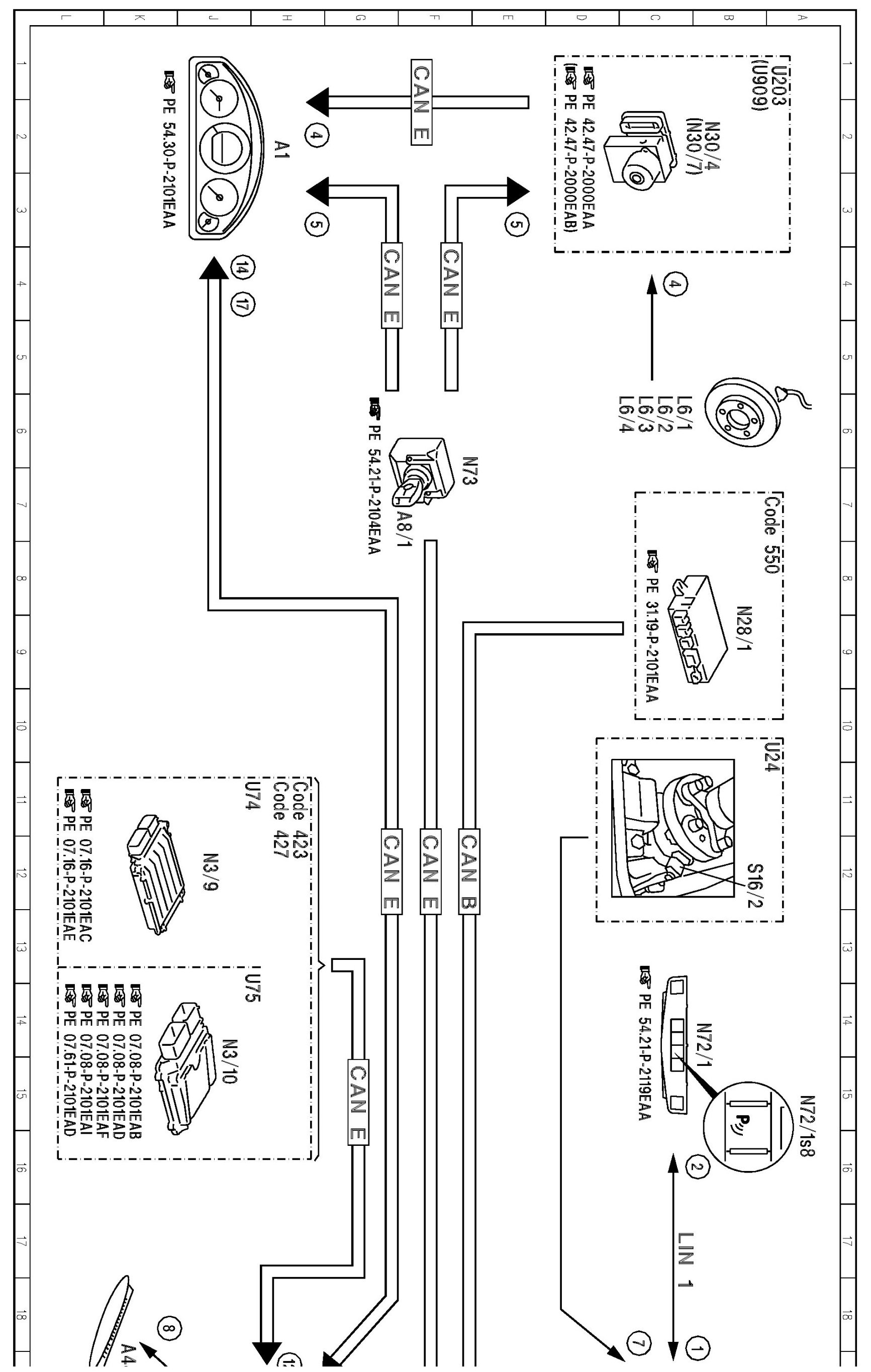

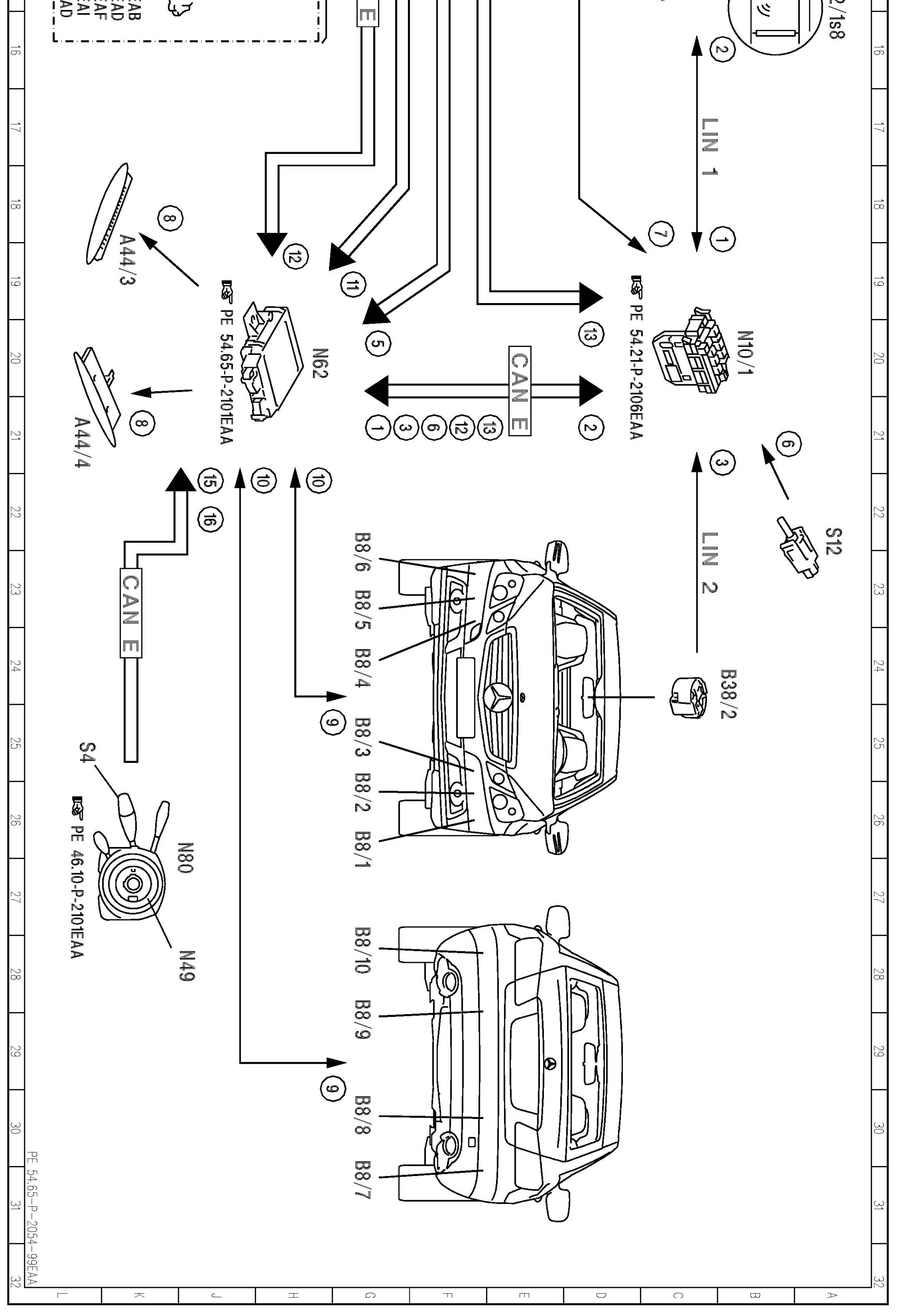

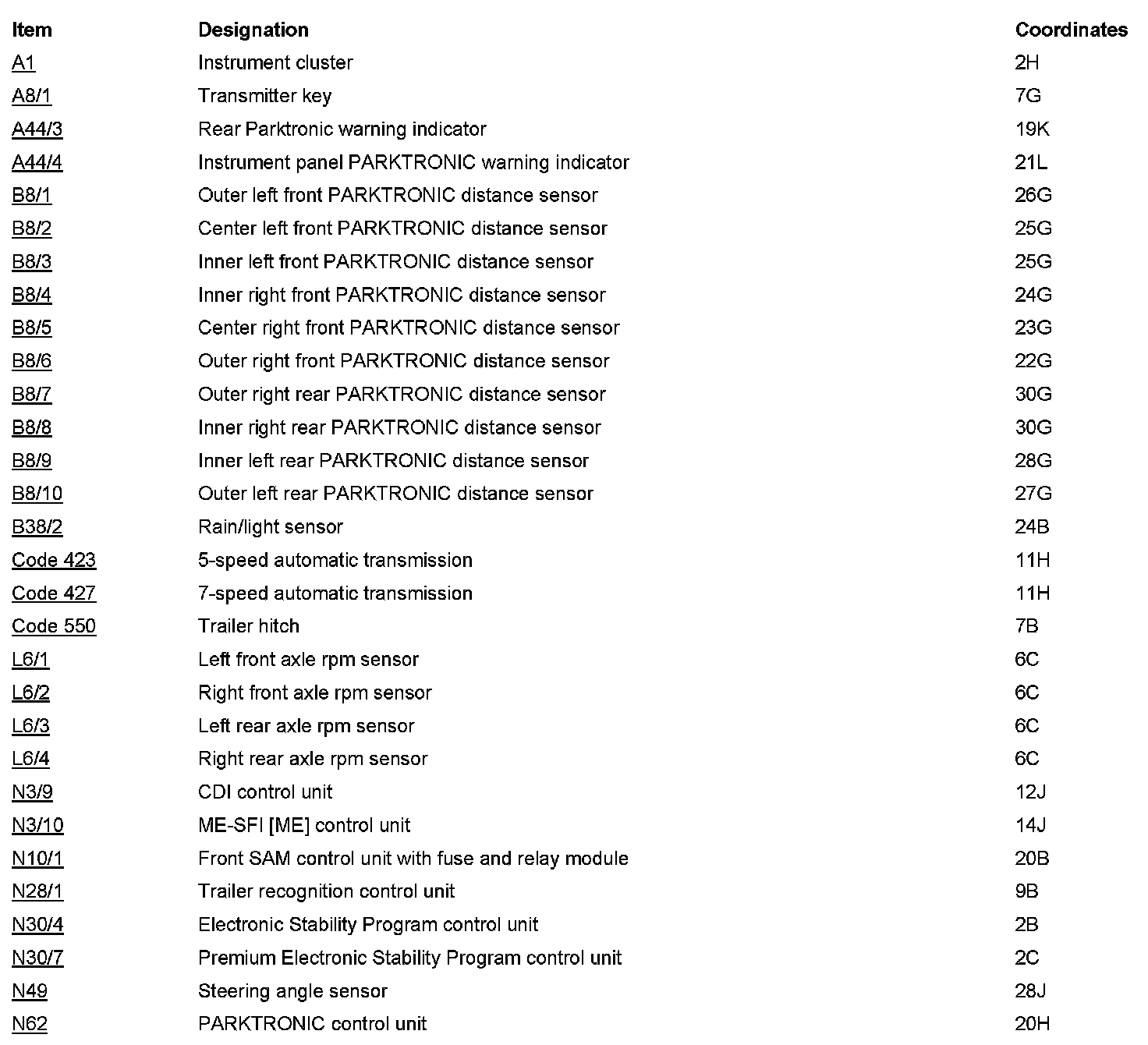

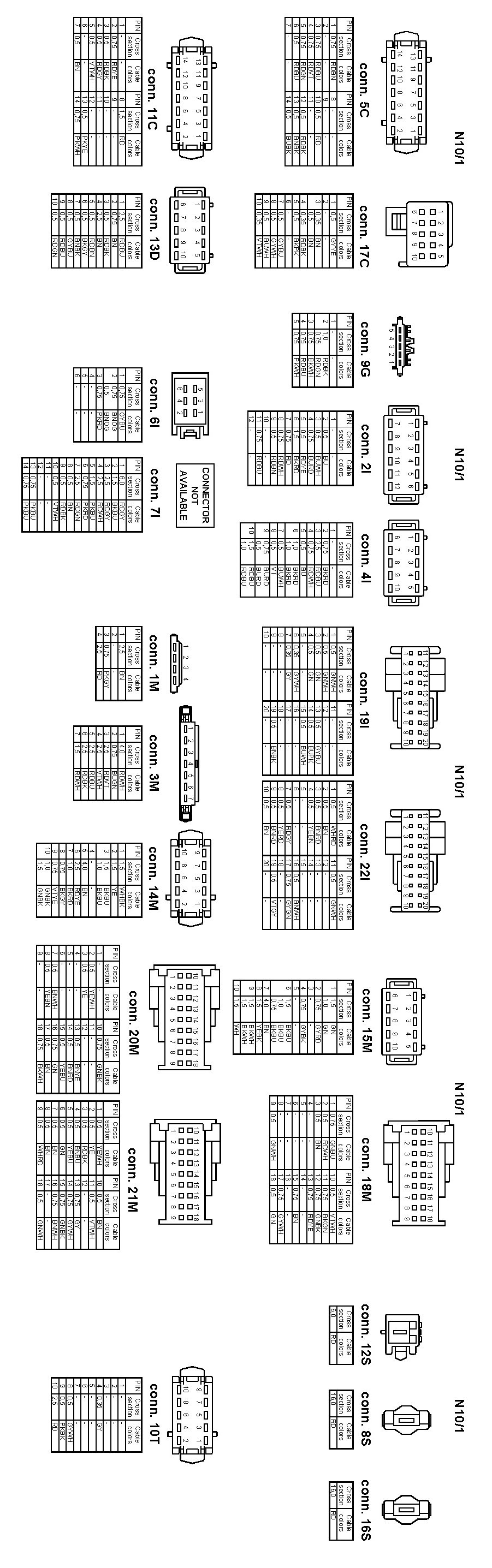

PE54.65-P-2054EAA Electrical Function Schematic Of Parking System

PE54.65-P-2054EAA Electrical Function Schematic Of Parking System

MODEL 207.3 /4
- with CODE (230) Advanced Parking Guidance
- except CODE (498) Japan version


















































































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
