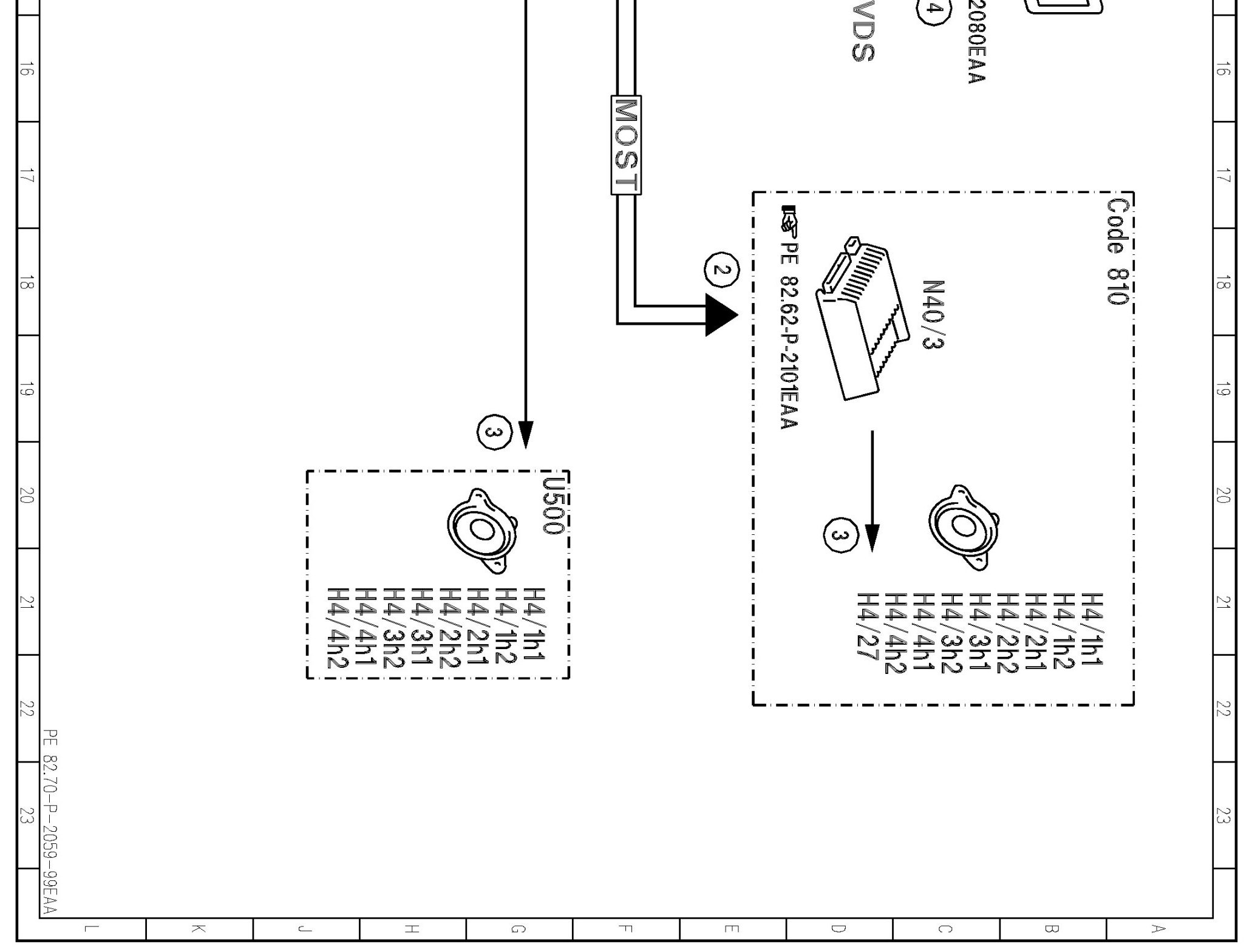

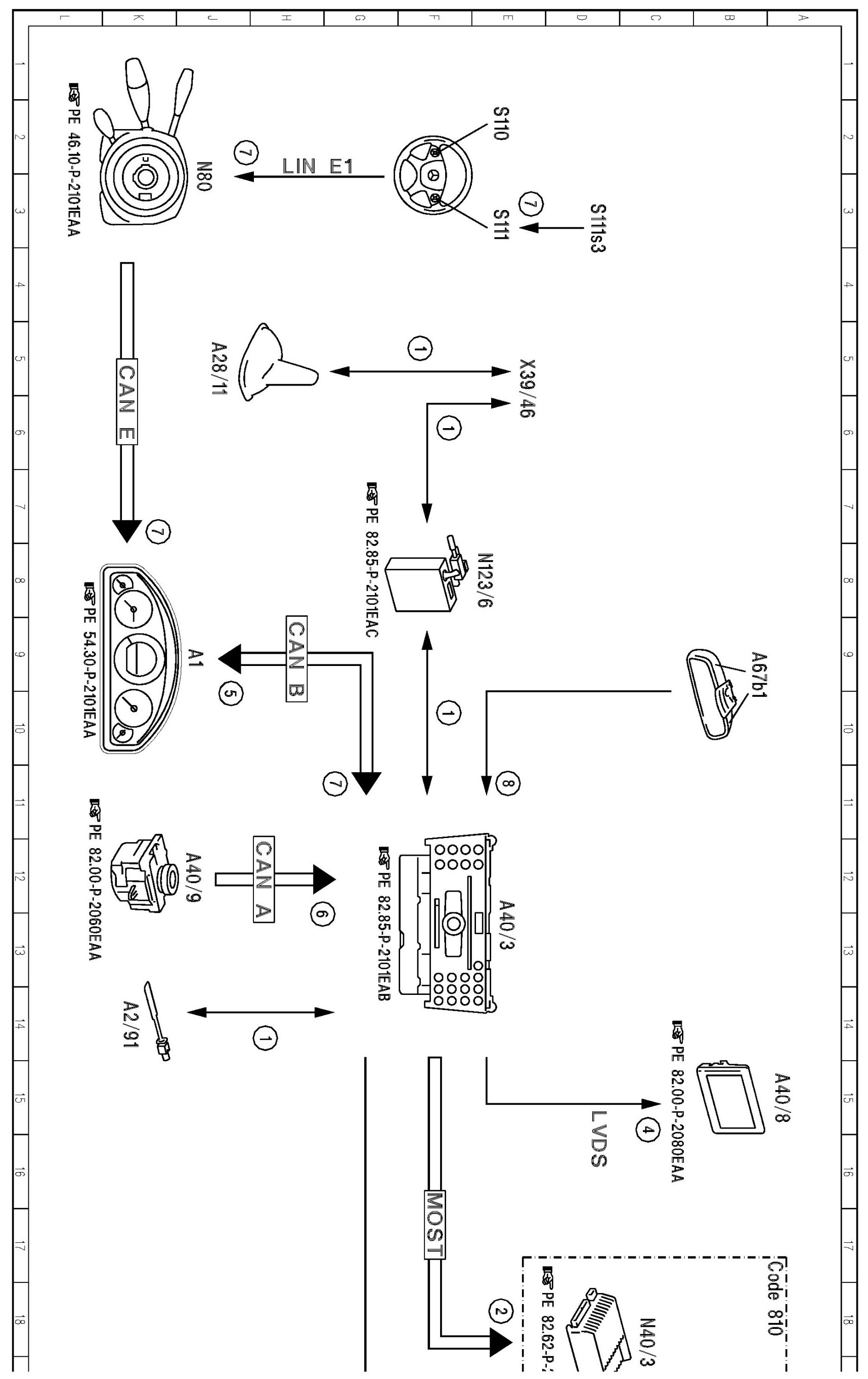

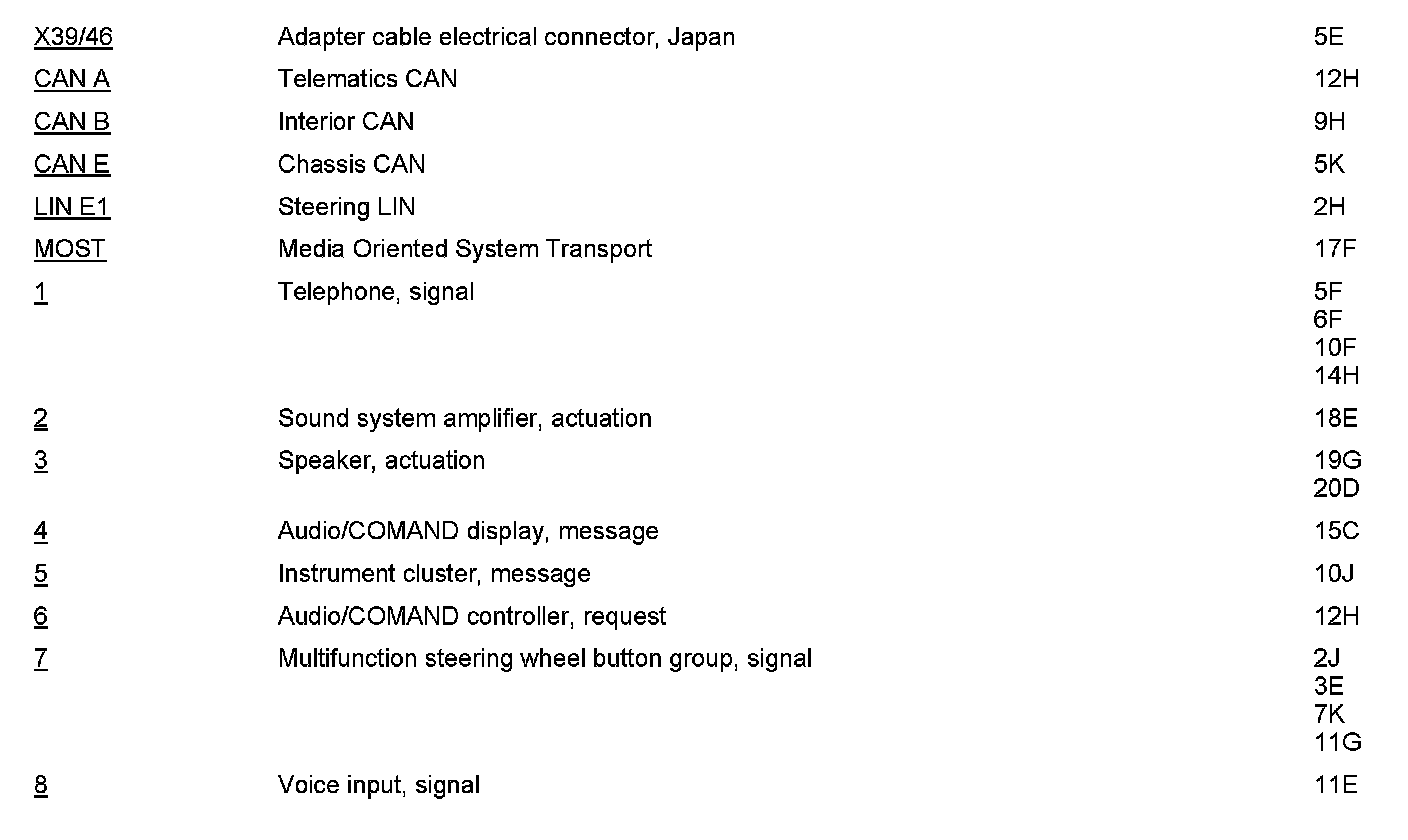

PE82.70-P-2059EAA Electrical Function Diagram For Mobile Phone Accepting Call, Rejecting Call And

PE82.70-P-2059EAA Electrical Function Diagram For Mobile Phone Accepting Call, Rejecting Call And

MODEL 207.3 /4
- with CODE (527) COMAND APS with single DVD drive (with navigation)

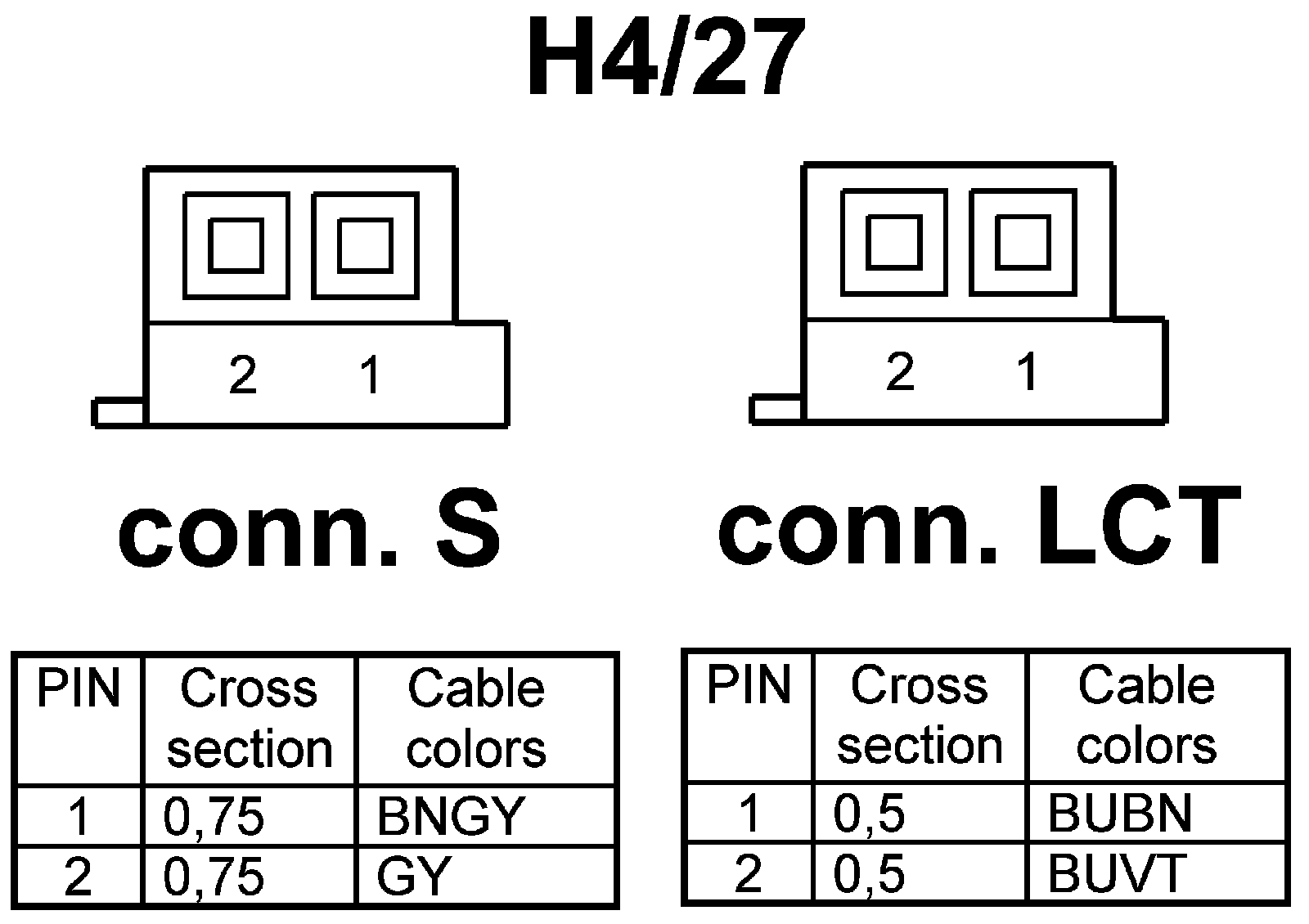

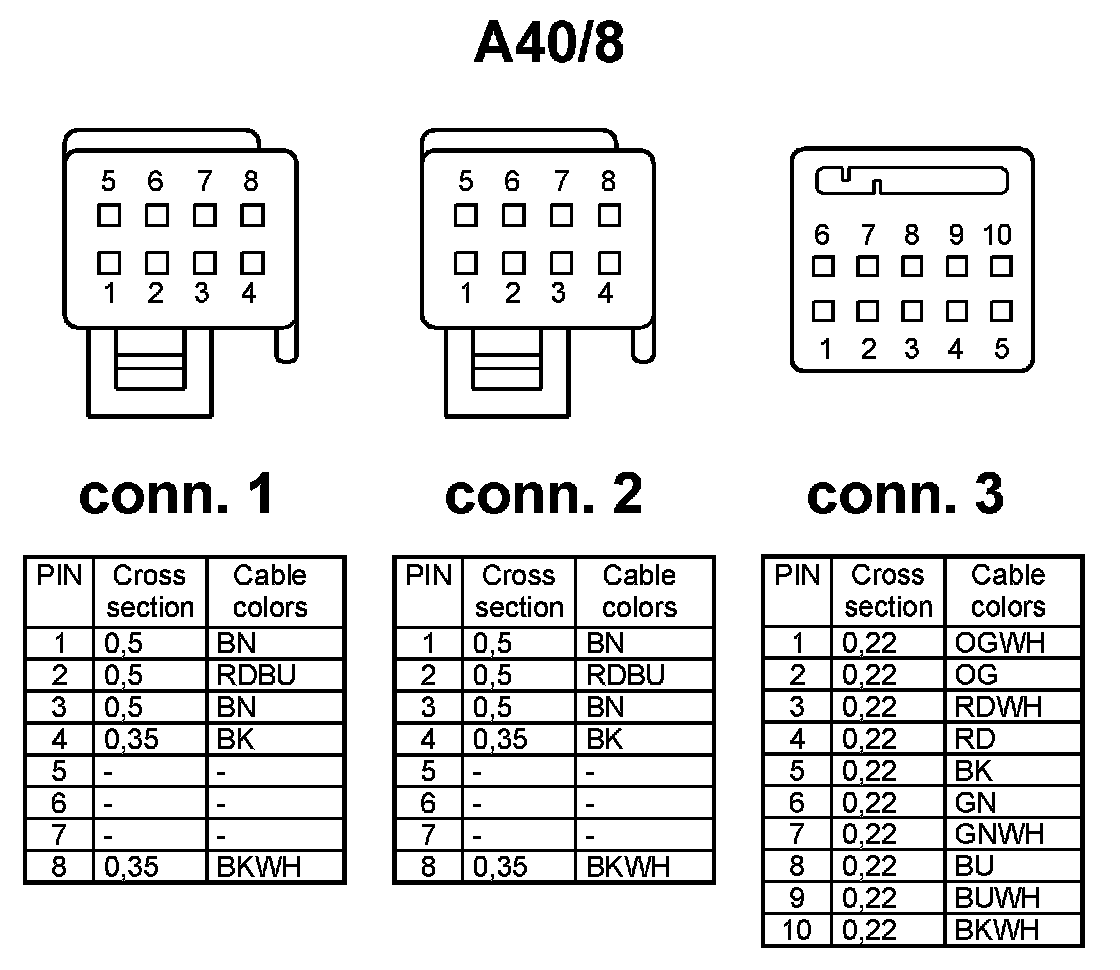

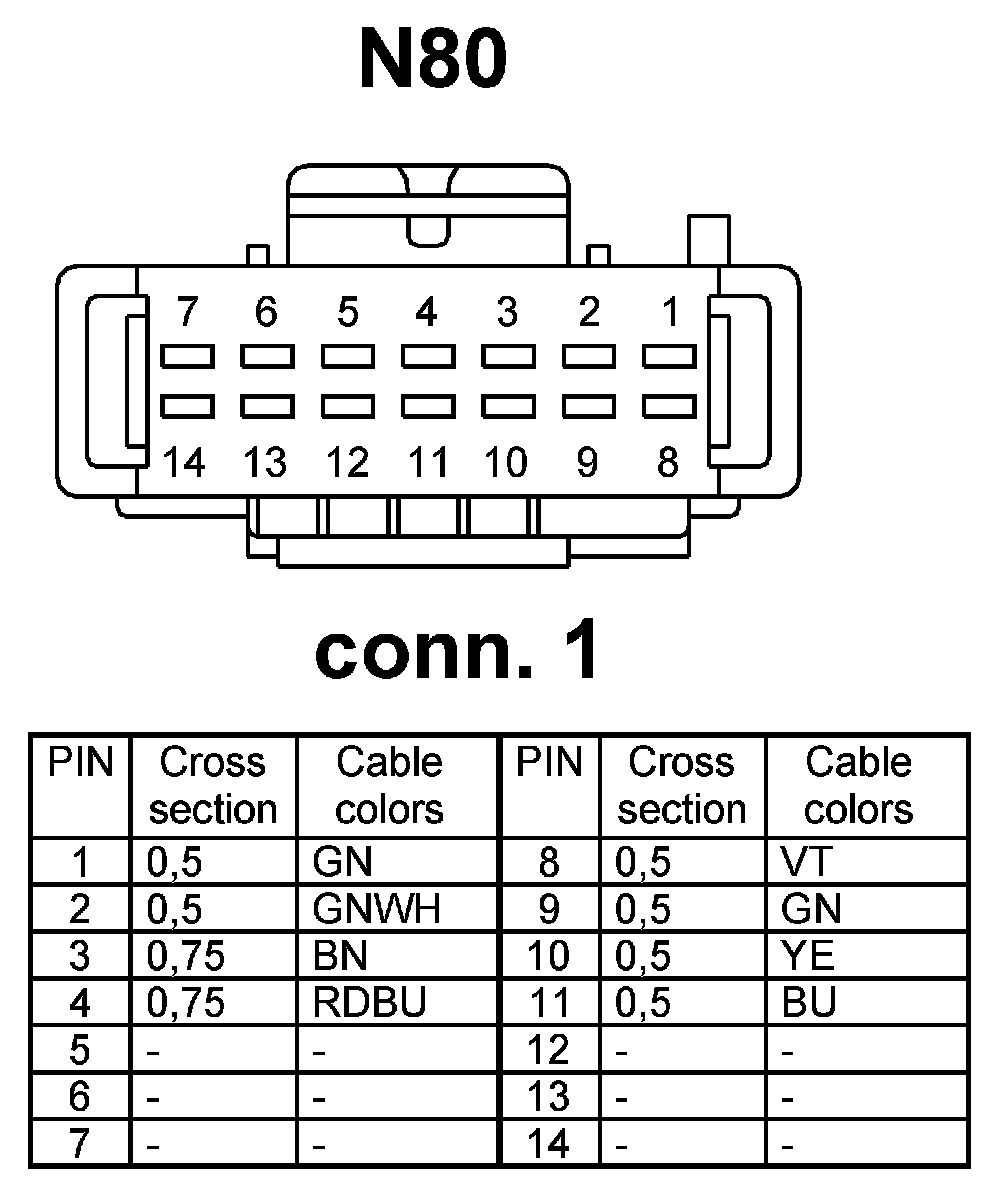

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
