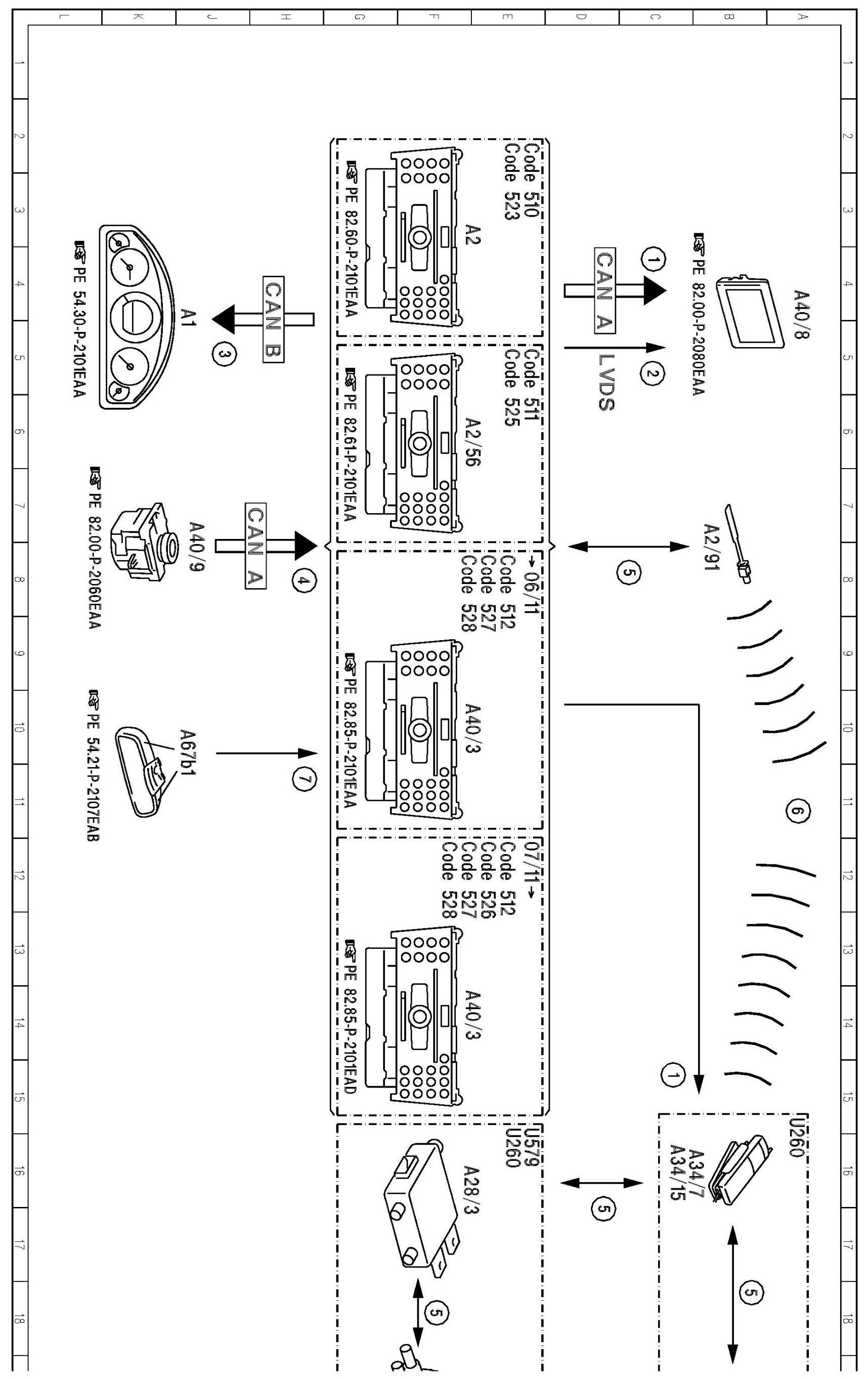

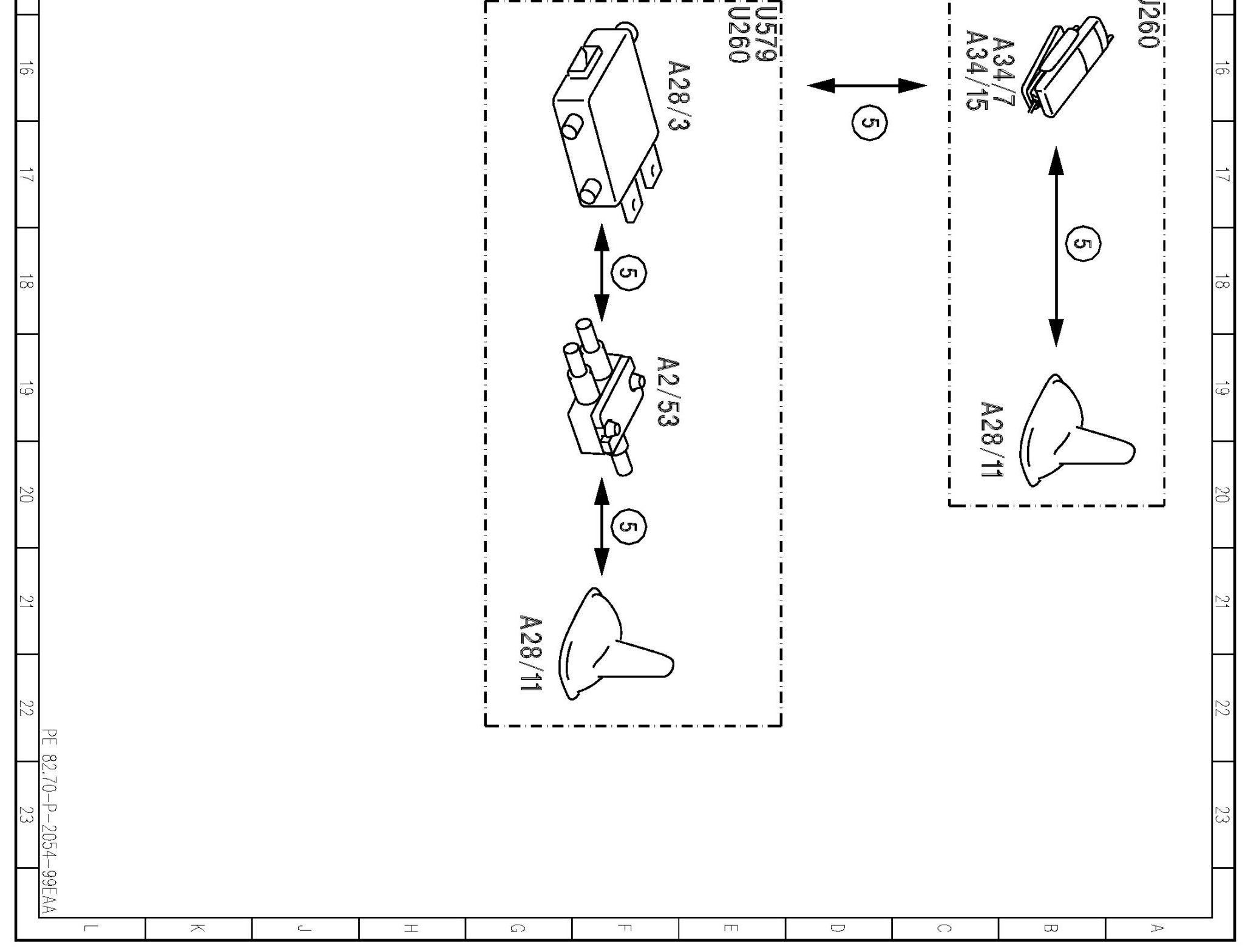

PE82.70-P-2054EAA Electrical Function Schematic For Mobile Phone, Switch On And Switch Off Characteristics

PE82.70-P-2054EAA Electrical Function Schematic For Mobile Phone, Switch On And Switch Off Characteristics

MODEL 207.3 /4
- except CODE (498) Japan version

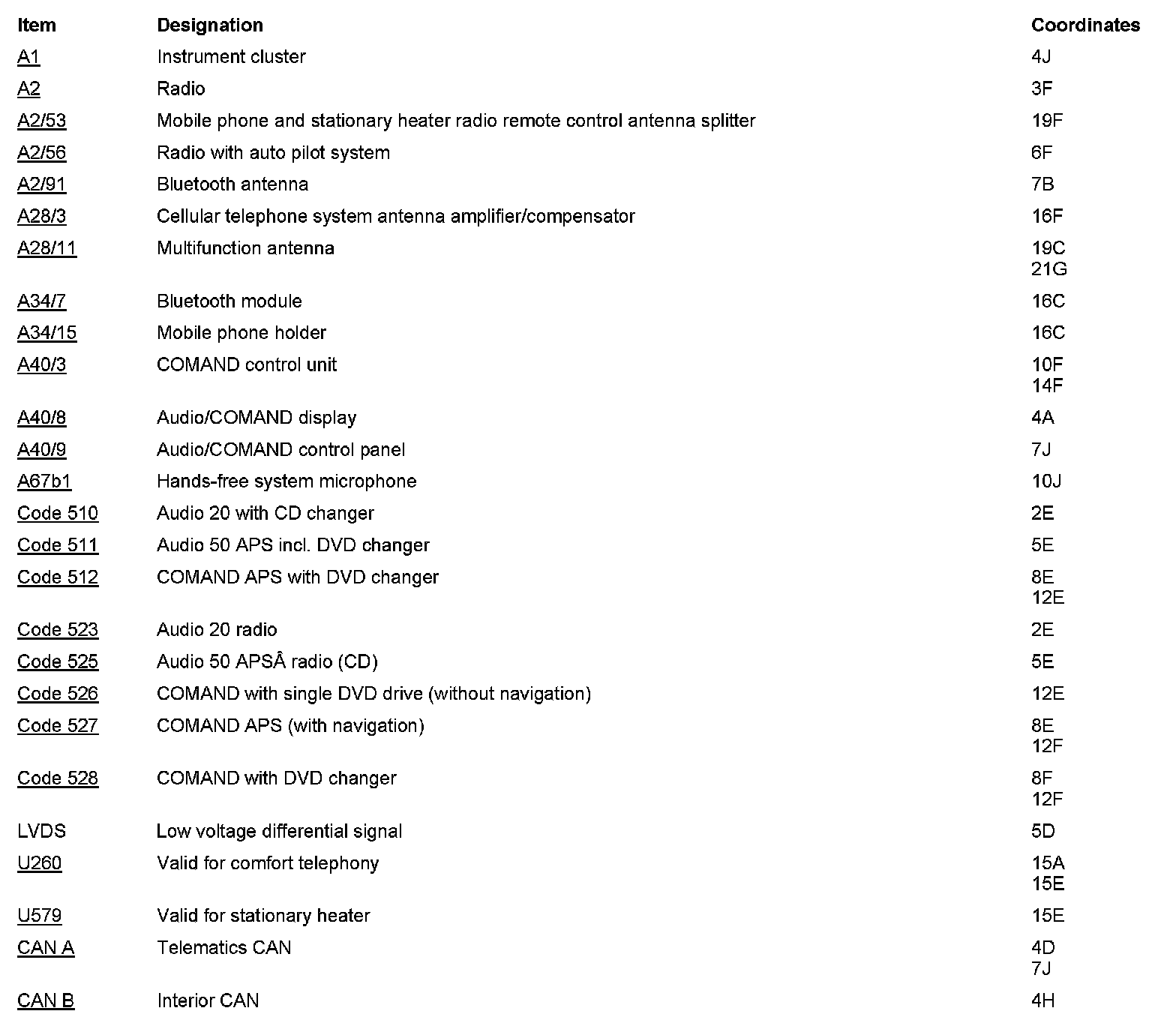

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
