E 350 Cabriolet (207.459) V6-3.5L (276.957)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
Connectors

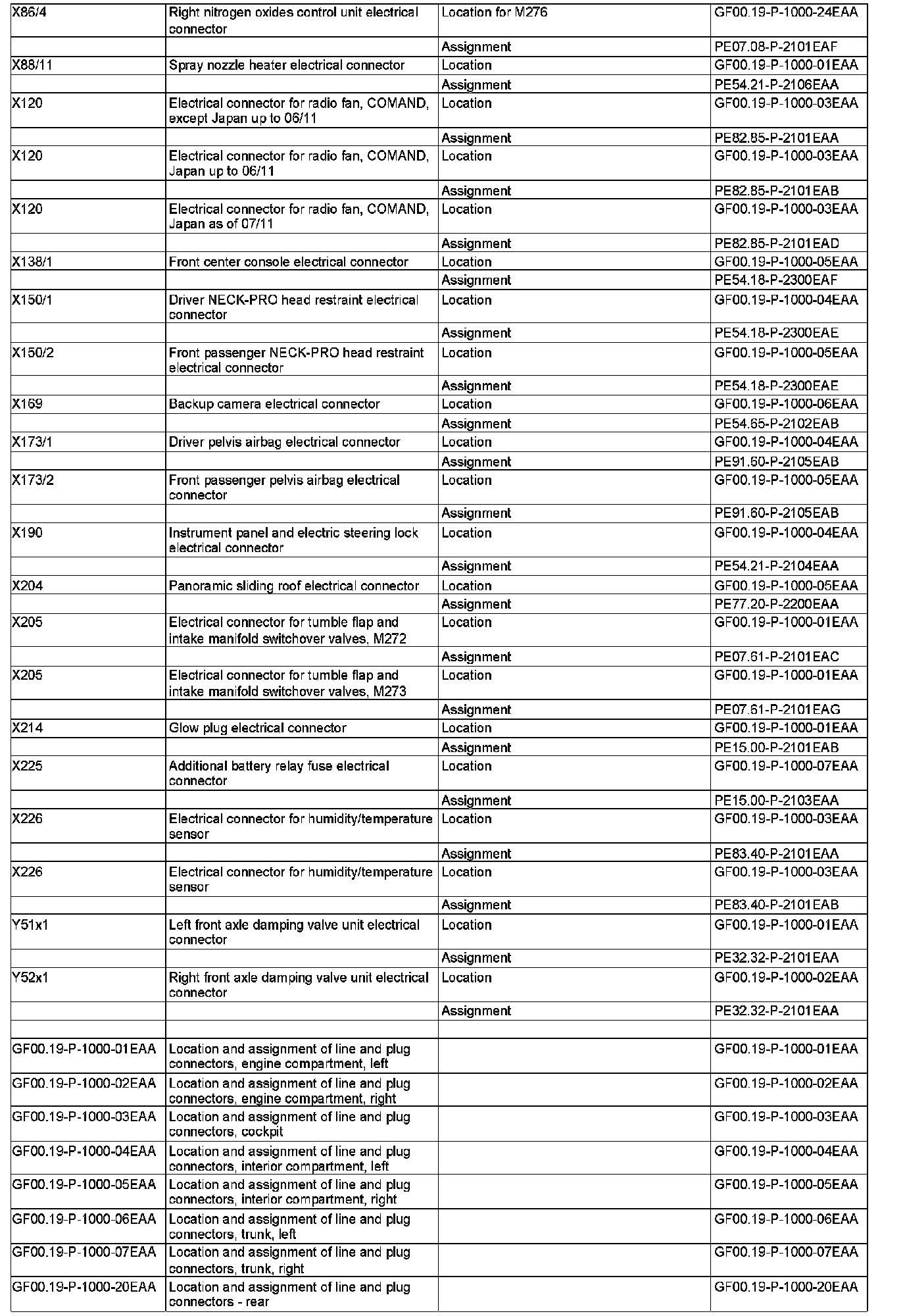

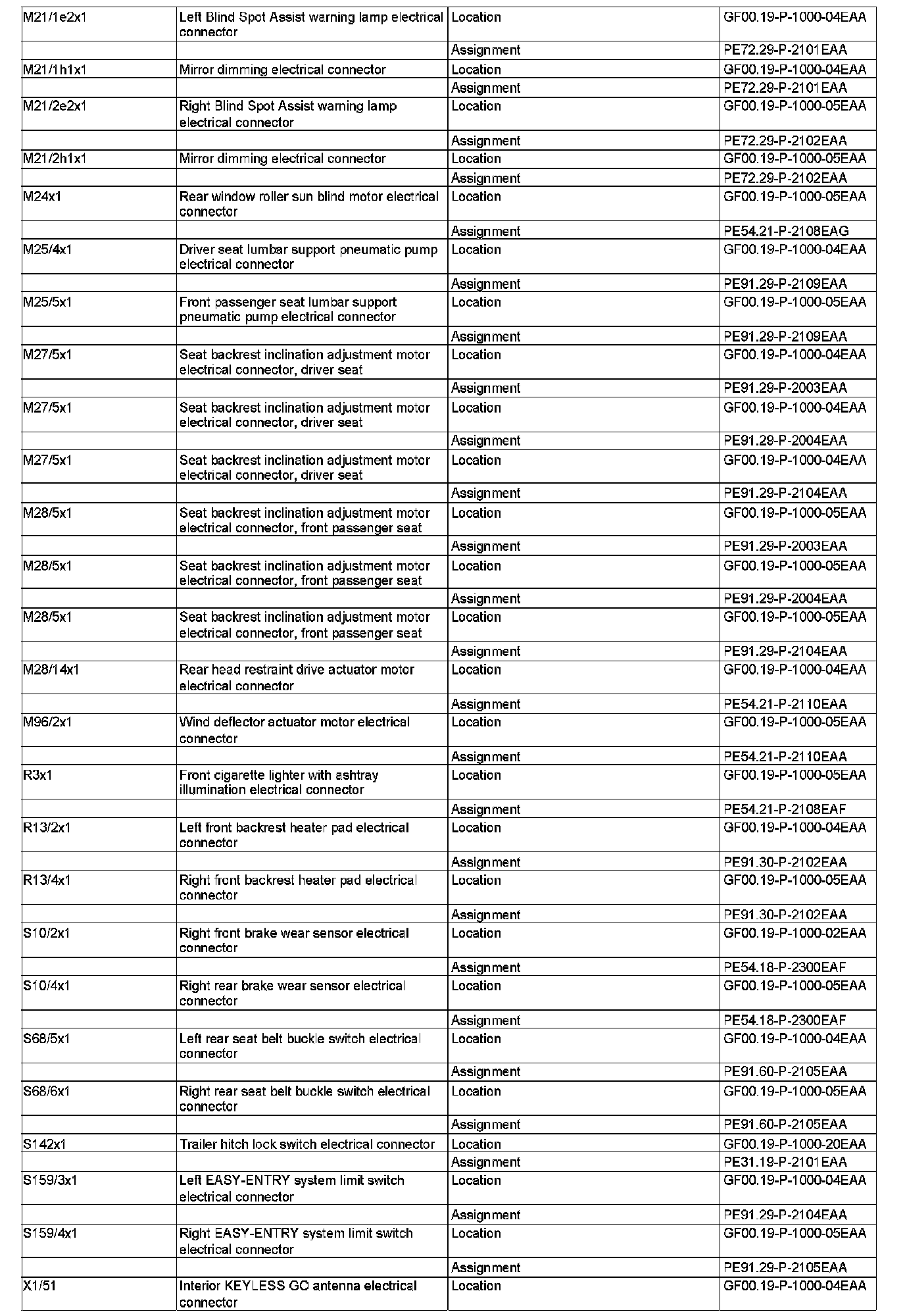

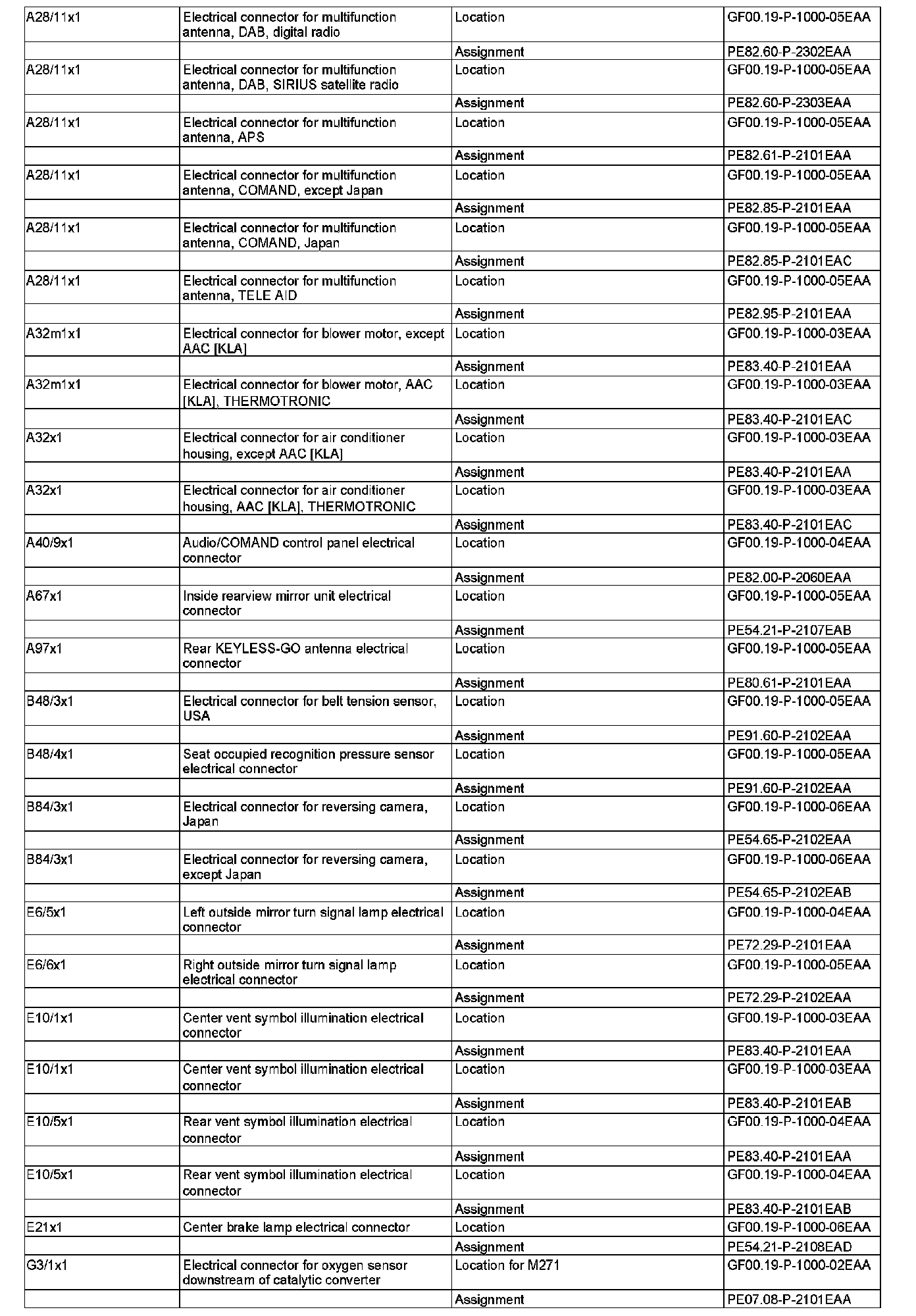

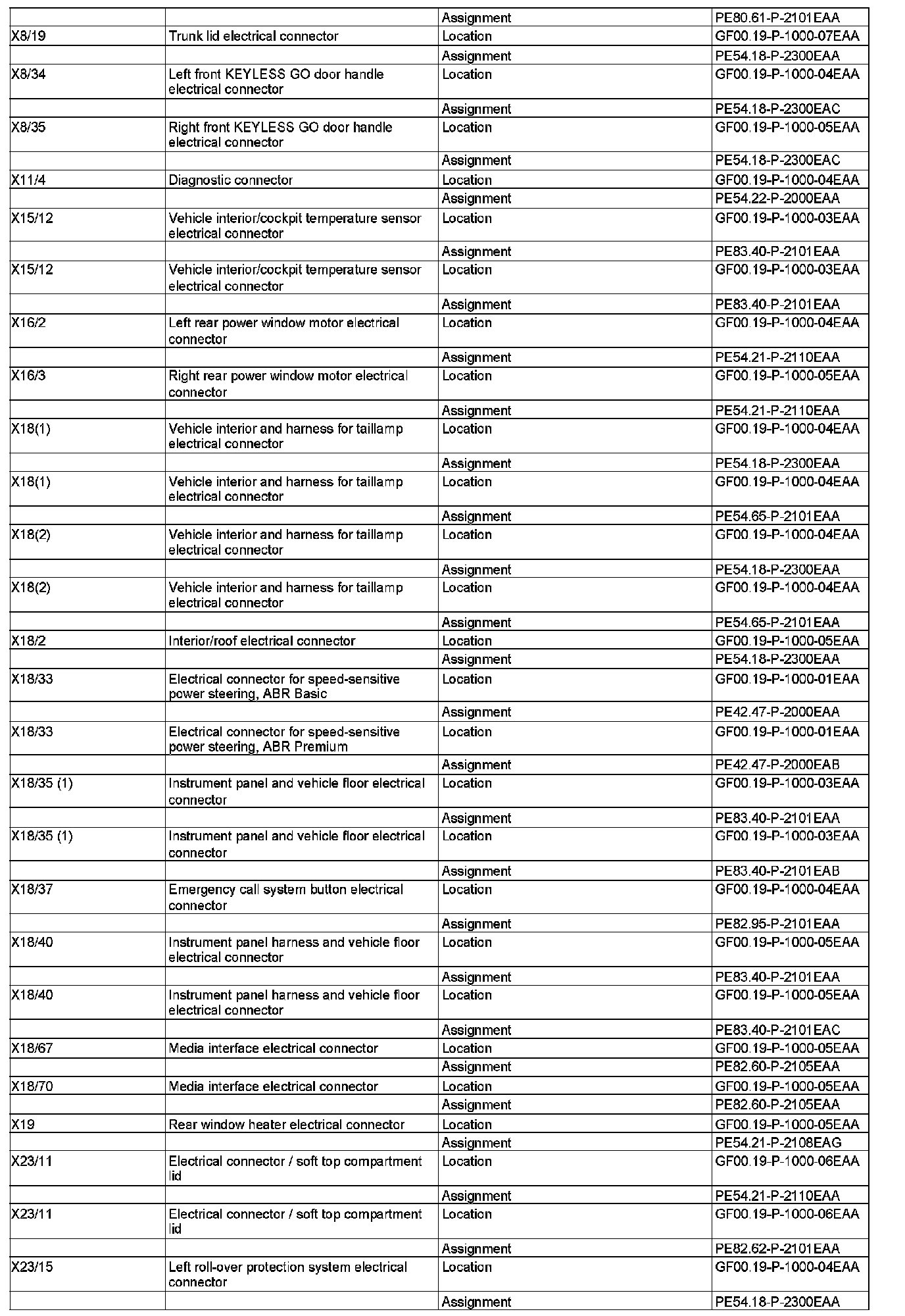

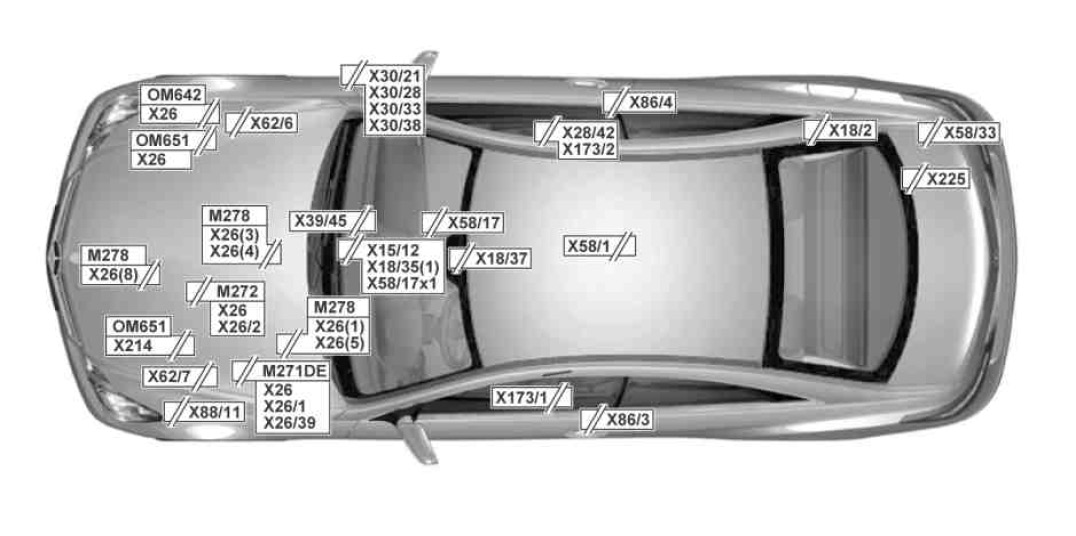

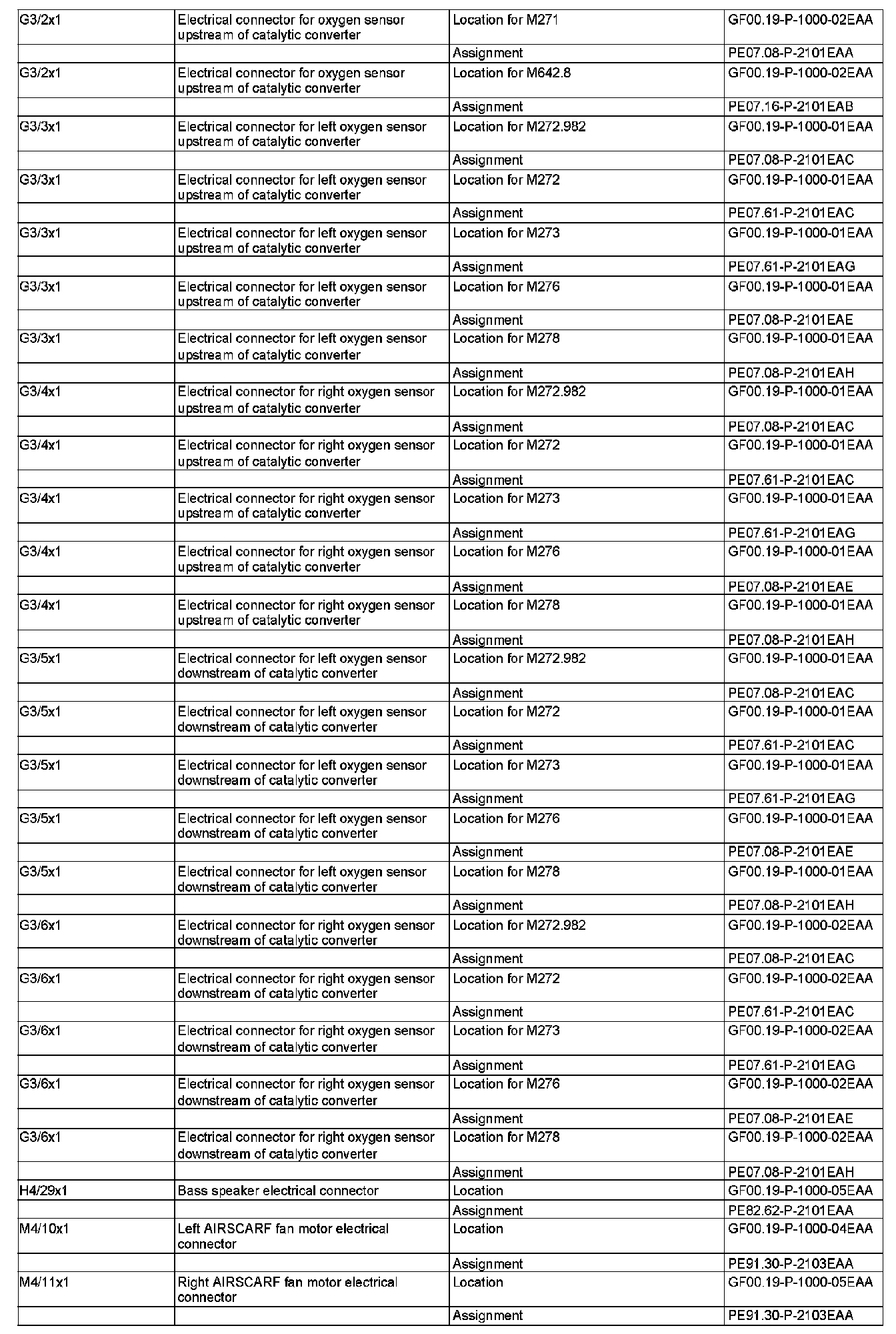

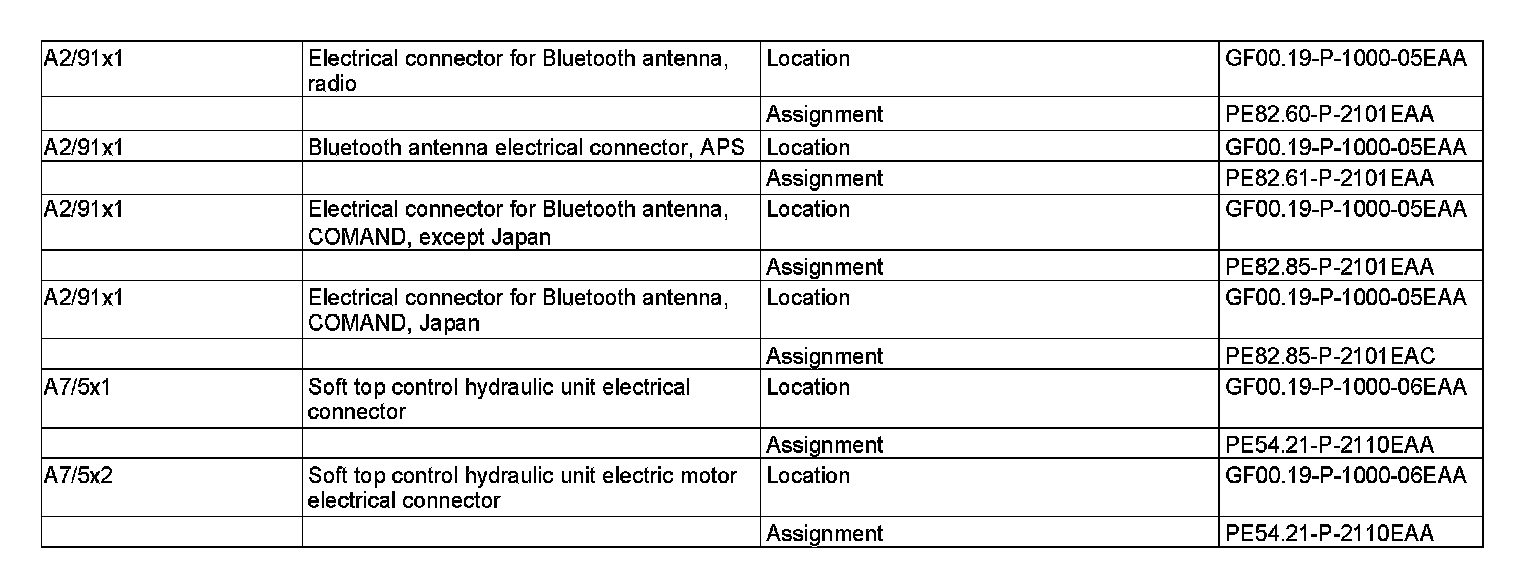

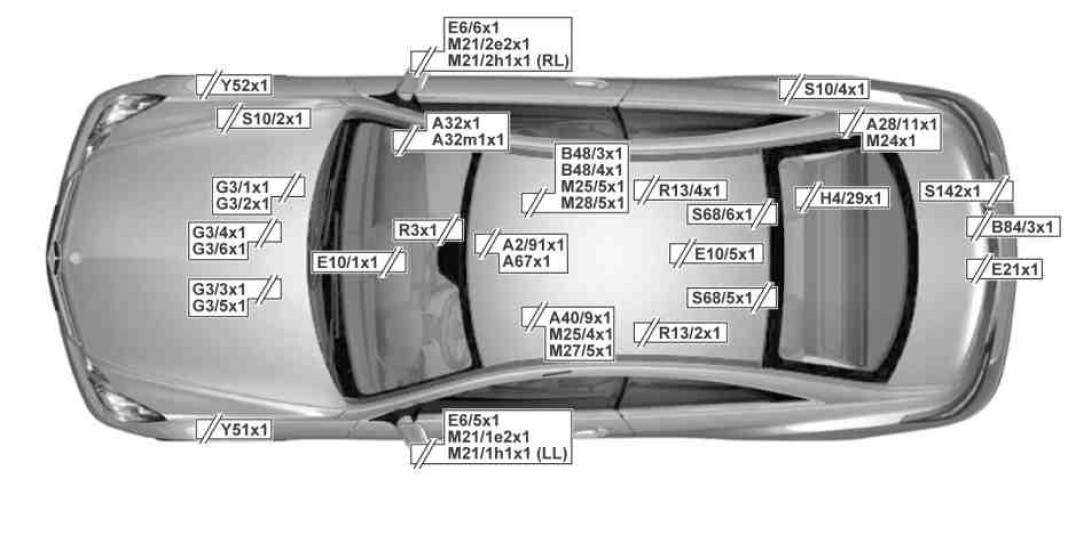

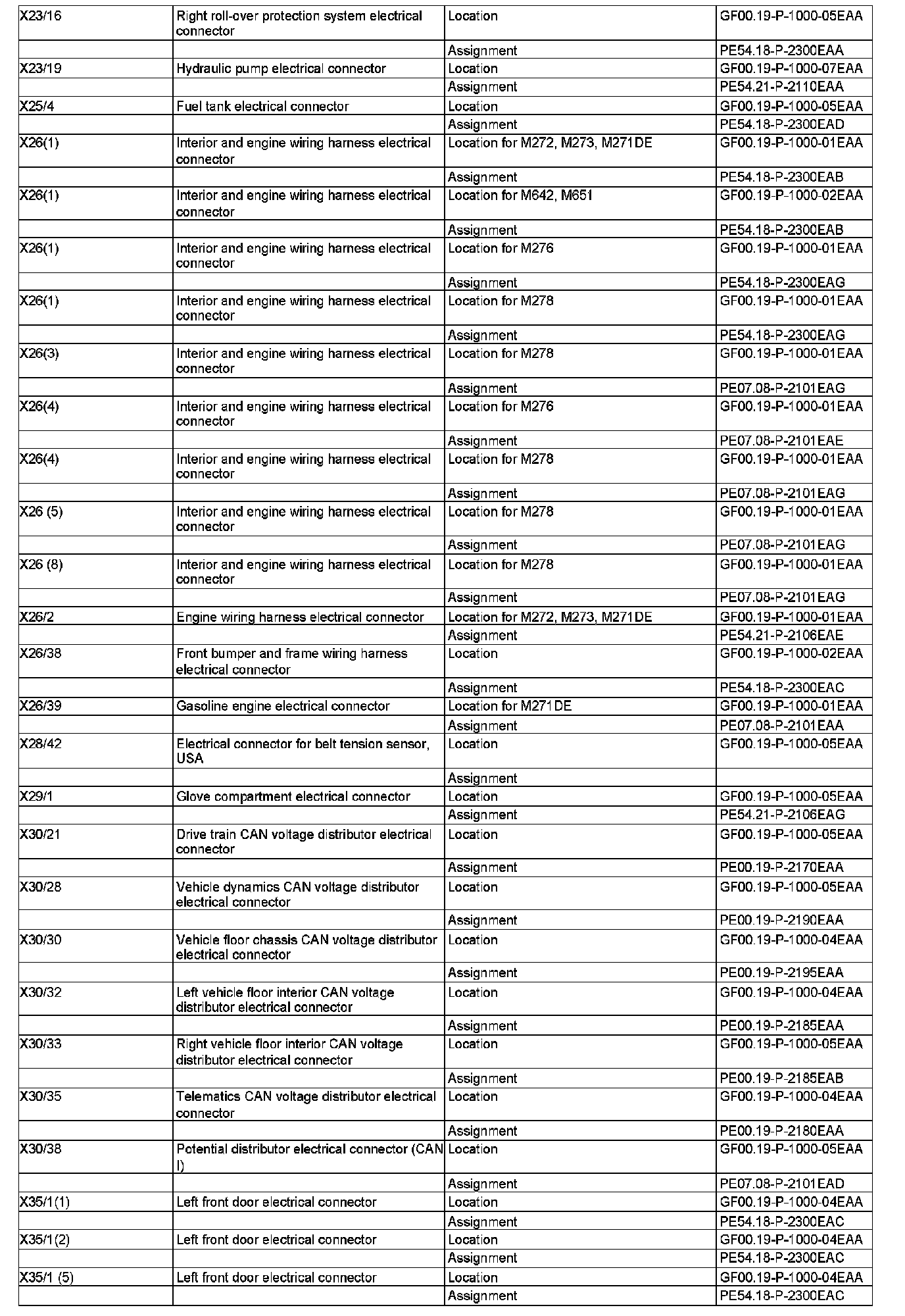

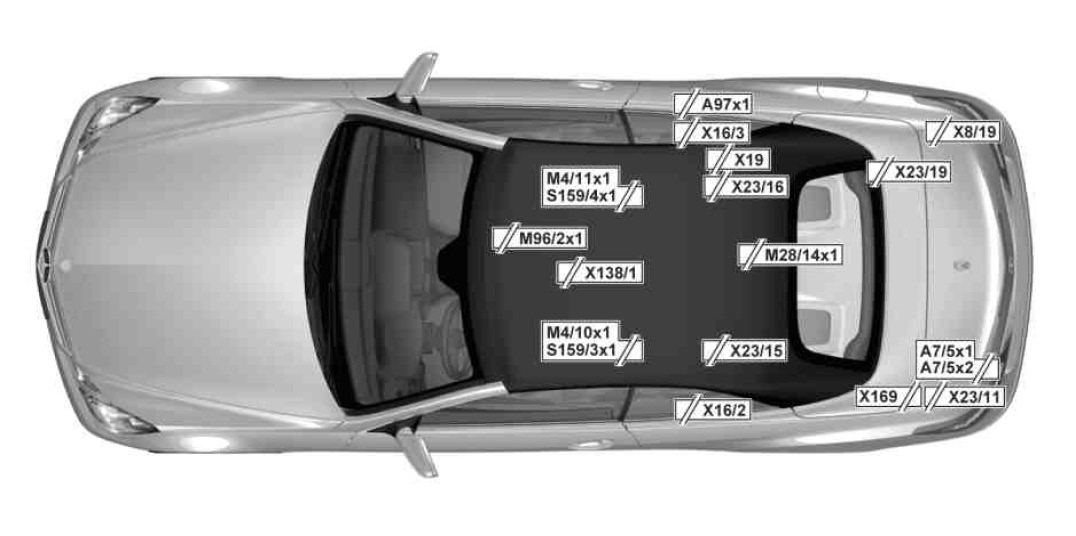

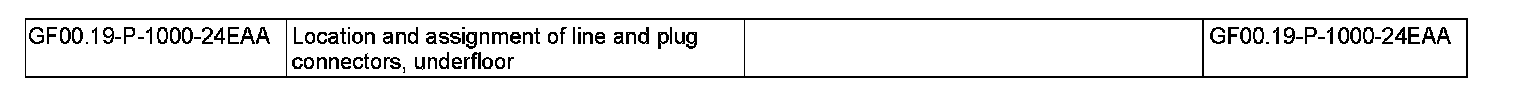

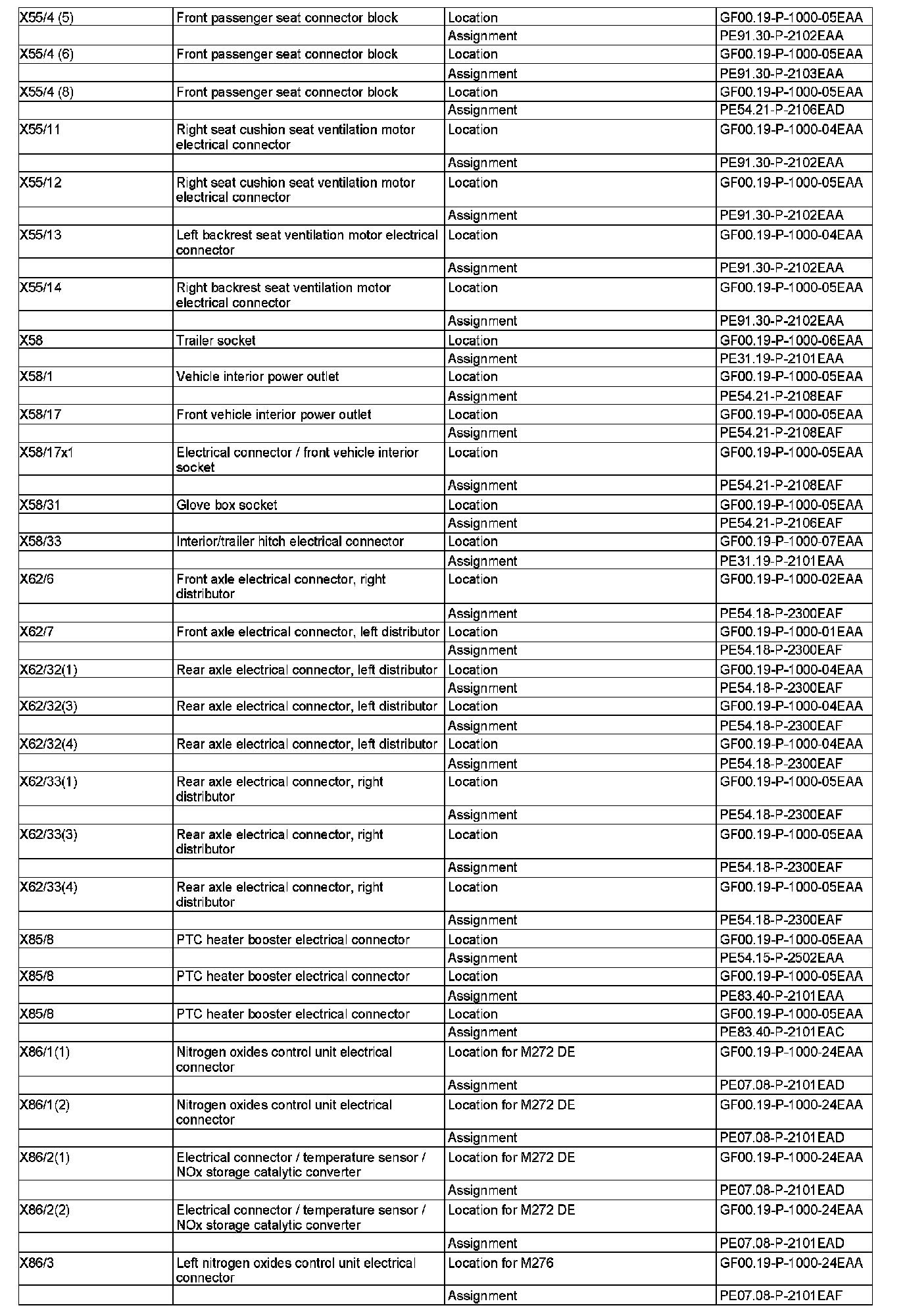

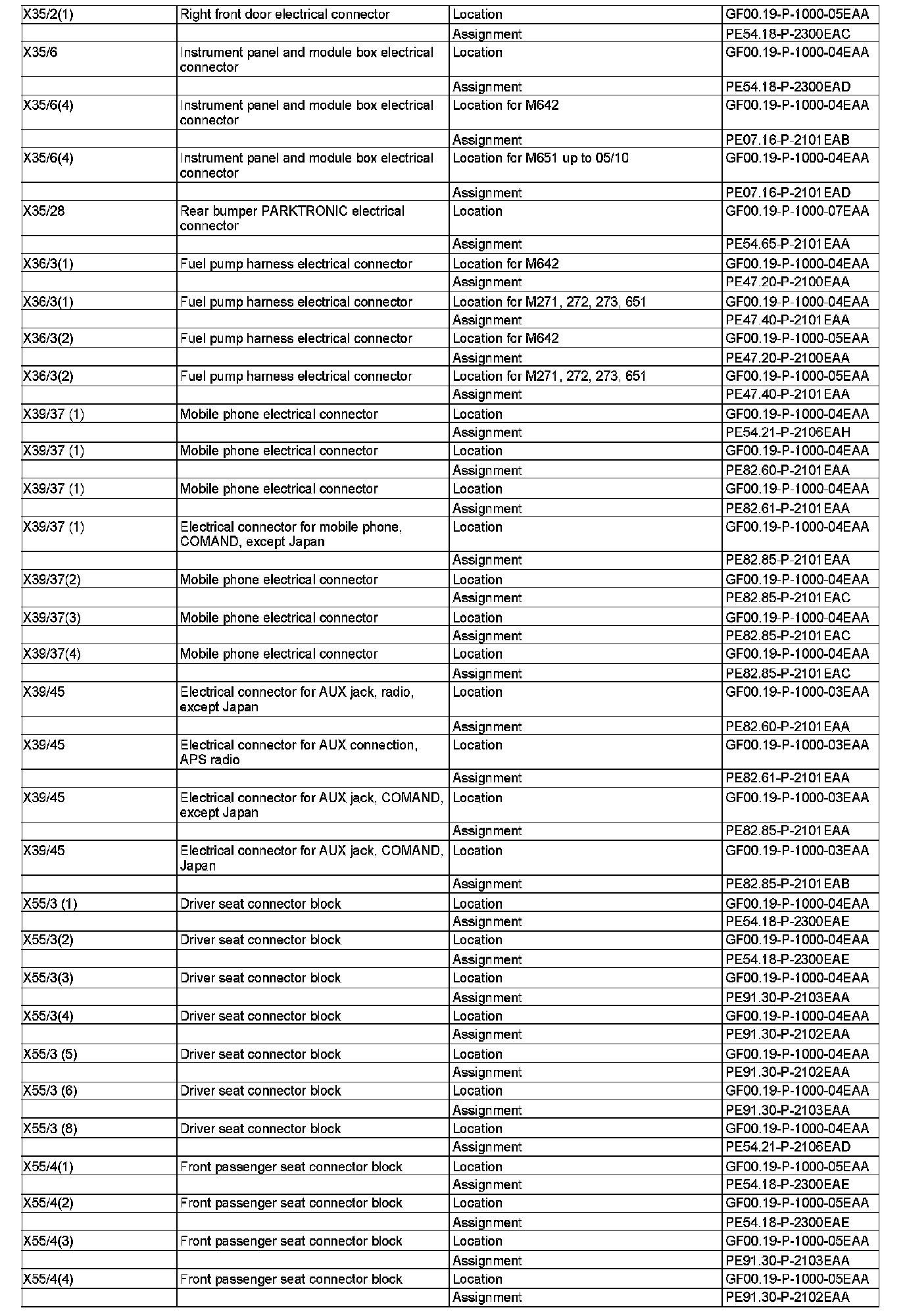

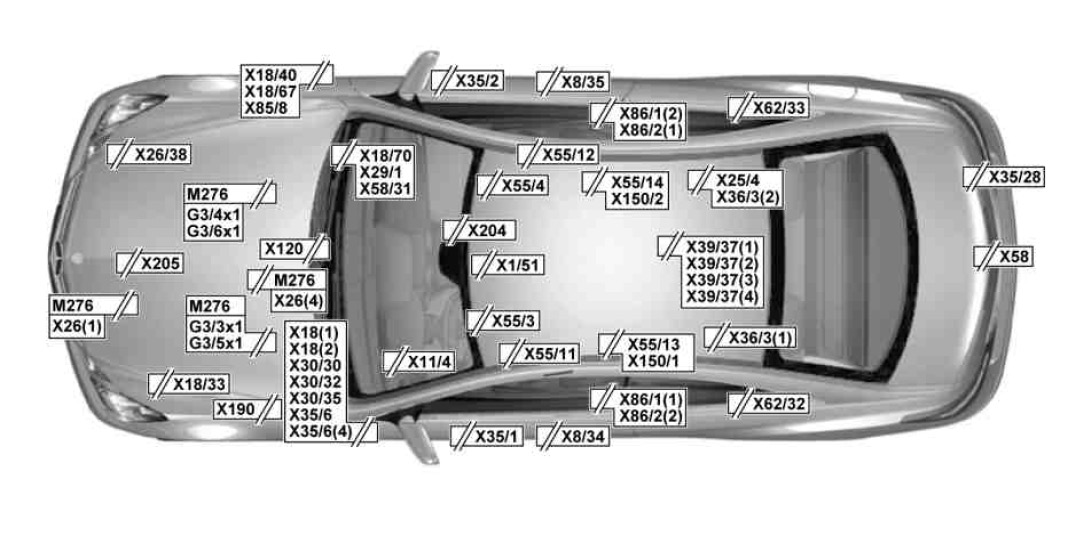

GF00.19-P-1000EAA Location and Assignment of Line and Plug Connectors
MODEL 207
