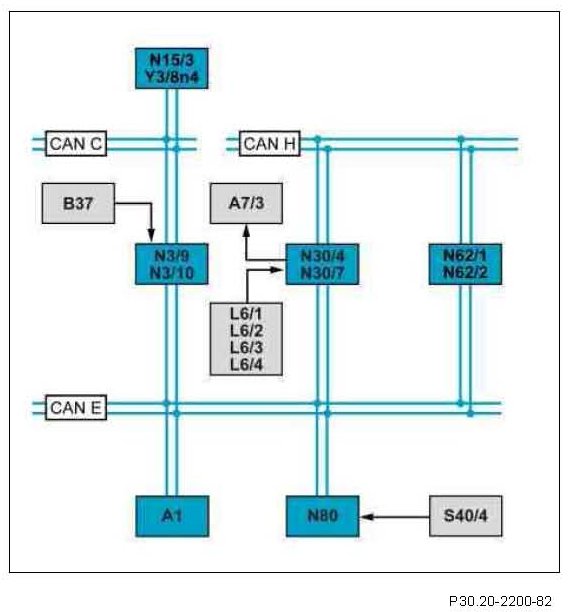

GF30.30-P-0001-08CA Cruise Control (CC) Block Diagram

GF30.30-P-0001-08CA Cruise Control (CC) Block Diagram





A1 Instrument cluster
A7/3 Traction system hydraulic unit
B37 Accelerator pedal sensor
L6/1 Left front axle speed sensor
L6/2 Right front axle speed sensor
L6/3 Left rear axle speed sensor
L6/4 Right rear axle speed sensor
N3/9 CDI control unit (with diesel engine)
N3/10 ME-SFI [ME] control unit (with gasoline engine)
N15/3 Electronic transmission control control unit (transmission 722.6)
N30/4 Electronic Stability Program control unit (without code (233) DISTRONIC PLUS)
N30/7 Premium Electronic Stability Program control unit (vehicles with code (233) DISTRONIC PLUS)
N62/1 Radar sensors control unit (up to 31.5.11 for code (233) DISTRONIC PLUS)
N62/2 Video and radar sensor system control unit (as of 1.6.11 (for code (233) DISTRONIC PLUS)
N80 Steering column module control unit
S40/4 Cruise control lever
Y3/8n4 Fully integrated transmission-control control unit (with transmission 722.9)
CAN C Drive train CAN
CAN E Chassis CAN
CAN H Vehicle dynamics CAN
