AZ88.30-P-0020-02EC Retrofit Rear Diffuser on Bumper

AZ88.30-P-0020-02EC Retrofit Rear Diffuser On Bumper
- except CODE (772) AMG styling package - front spoiler, side skirts, and rear apron
- except CODE (950) AMG sport package

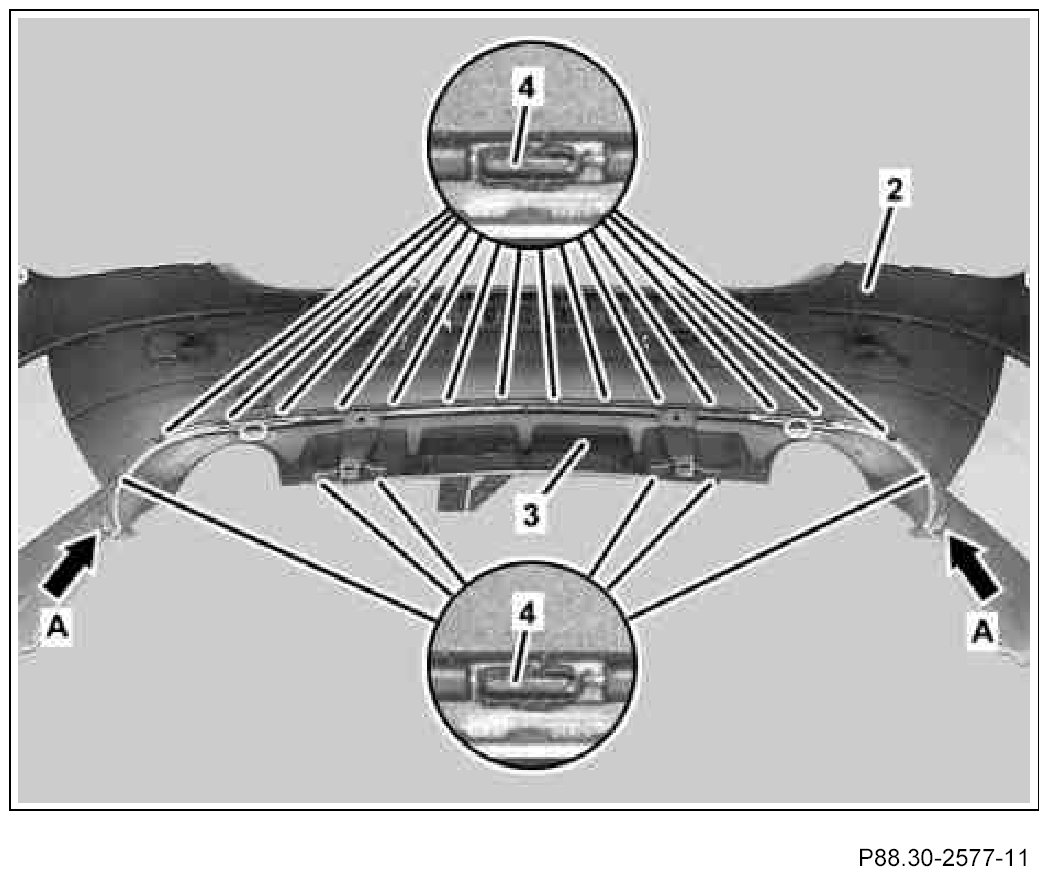

1. Carefully cut plastic welds (4) on bumper (2) with flat scraper.

2. Remove covering (3).

Observe guides (arrows A).

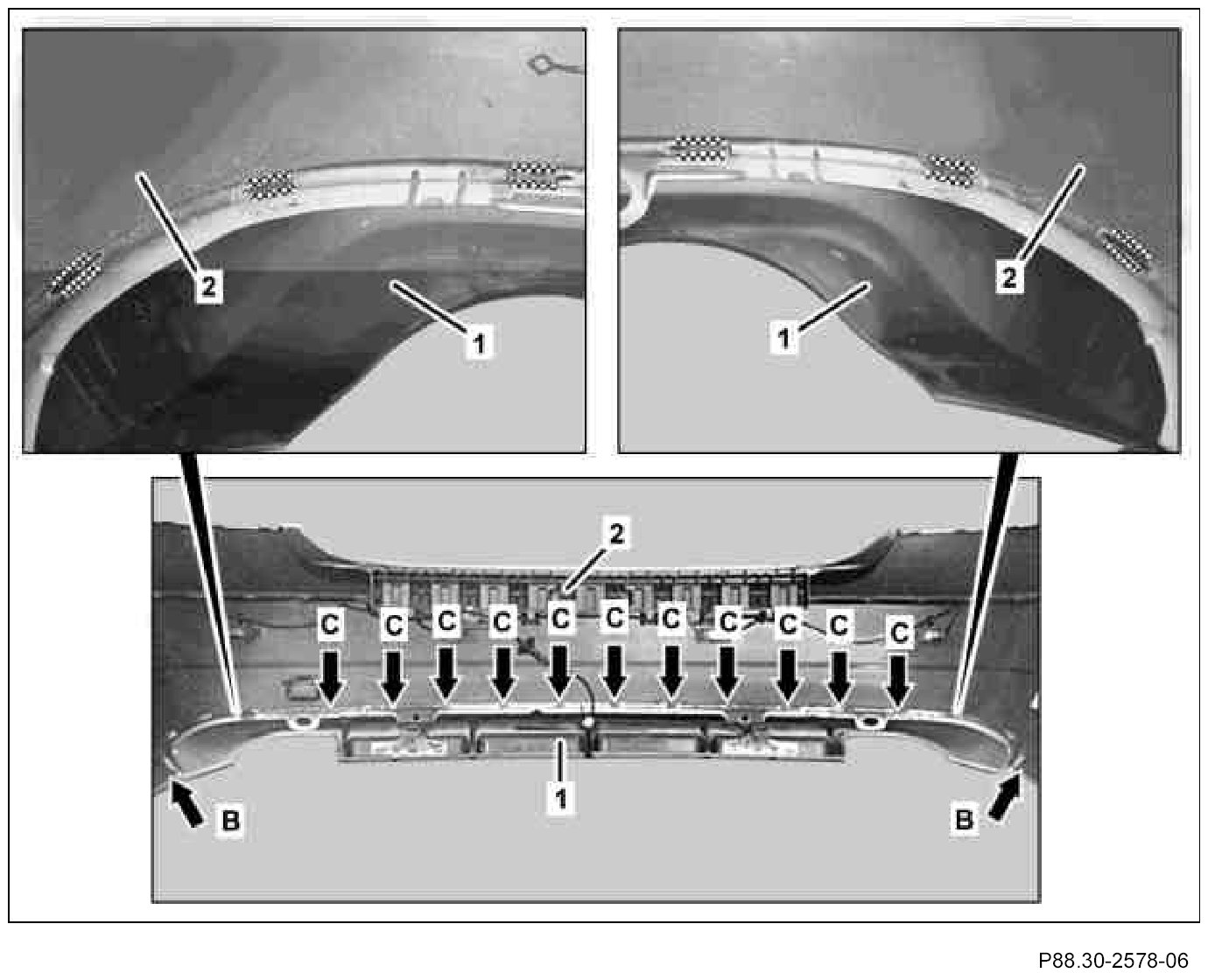

3. Install rear diffuser (1) on bumper (2).

Ensure that catch hooks (arrows C) and guides (arrows B) are seated correctly. The gap between the rear diffuser (1) and the bumper (2) must be uniform.

4. Heat rear diffuser (1) in cross-hatched areas with hot air blower and bend.

Hot air blower

Heat bracket to approx. 300 °C.

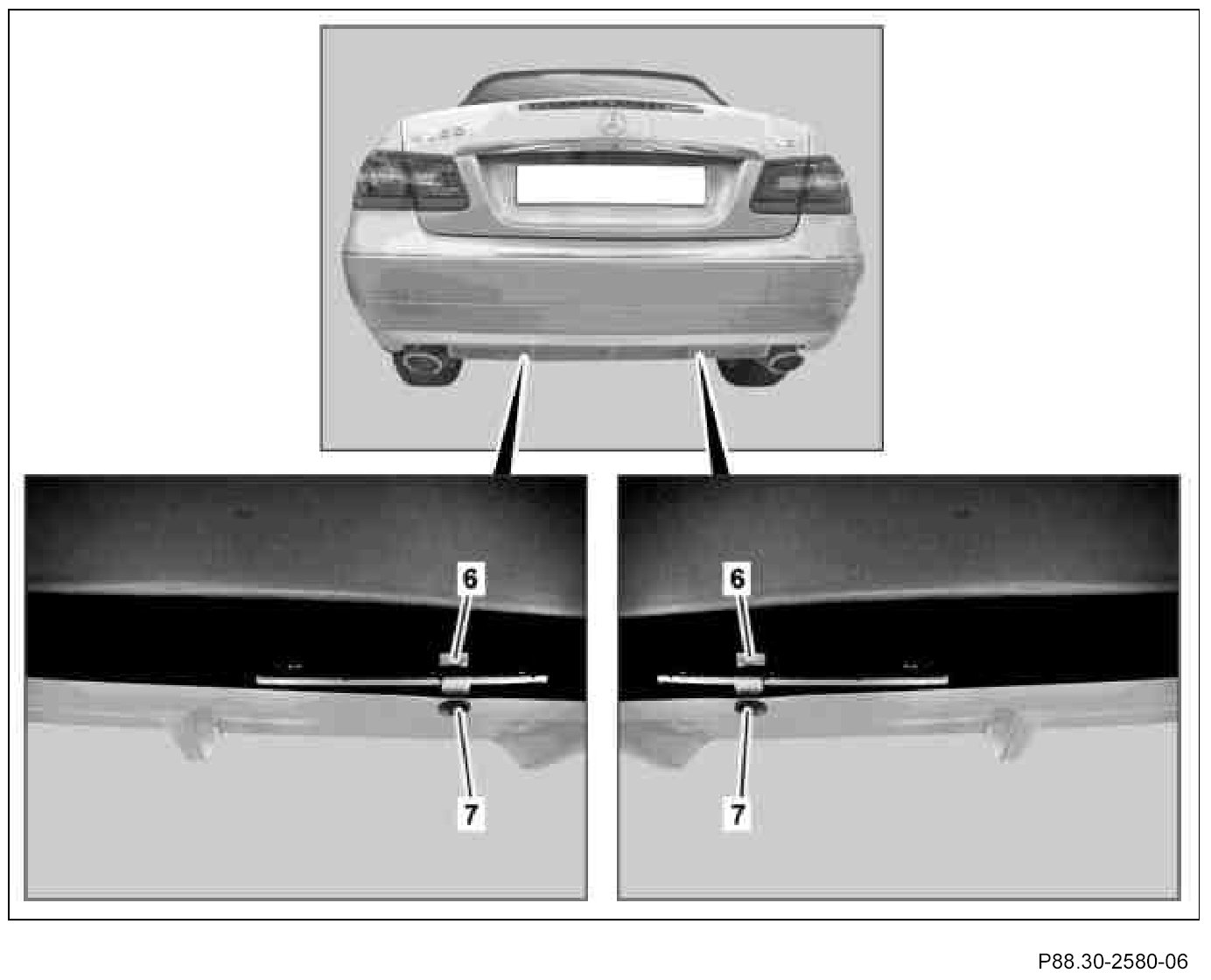

5. Push sheet metal nut to retaining clip (6).
6. Push retaining clips (6) to bracket on bumper and align in relation to holes.
7. Tighten rear diffuser (1) with bolts (7) included in installation kit.
