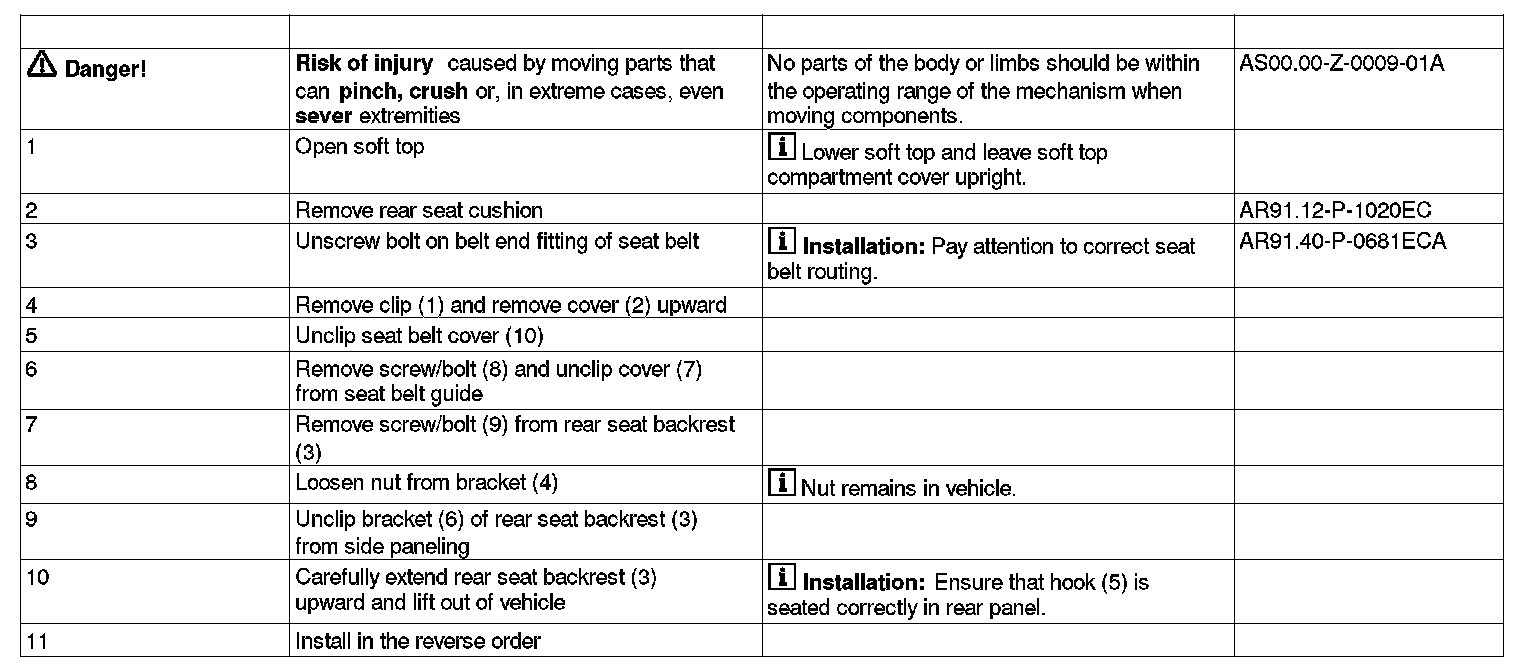

AR91.12-P-1620EA Remove/Install Rear Seat Backrest

AR91.12-P-1620EA Remove/install Rear Seat Backrest

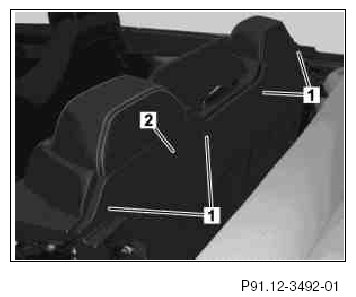

1 Clip
2 Panel

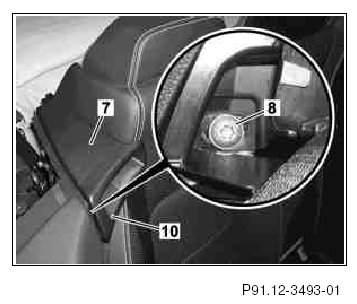

7 Cover
8 Screw

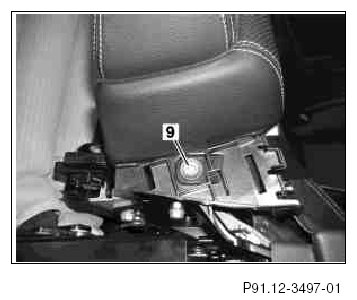

9 Screw
10 Seat belt cover

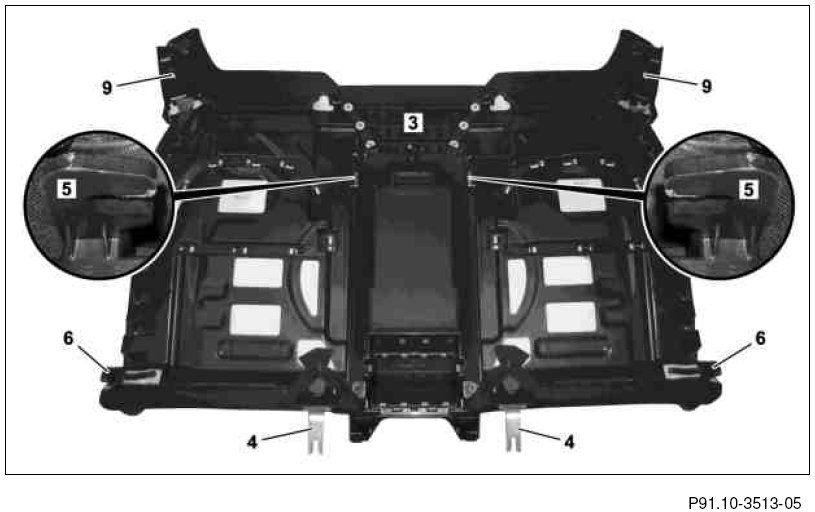

3 Rear seat backrest
4 Bow
5 Hook
6 Bracket
9 Screw
