AR91.29-P-1200EA Remove/Install Head Restraint Drive

AR91.29-P-1200EA Remove/install Head Restraint Drive

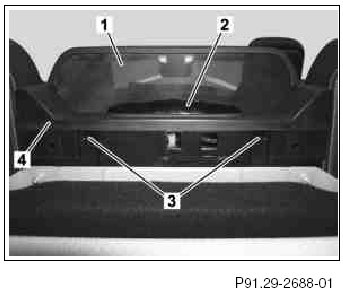

Rear seats







1 Draft stop
2 PARKTRONIC warning indicator
3 Catch lug
4 Cover

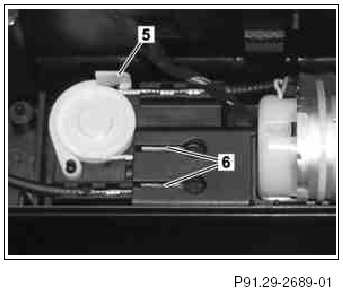

5 Locking clamp
6 Cable







7 Rubber mount
M28/14 Retractable rear head restraints motor
