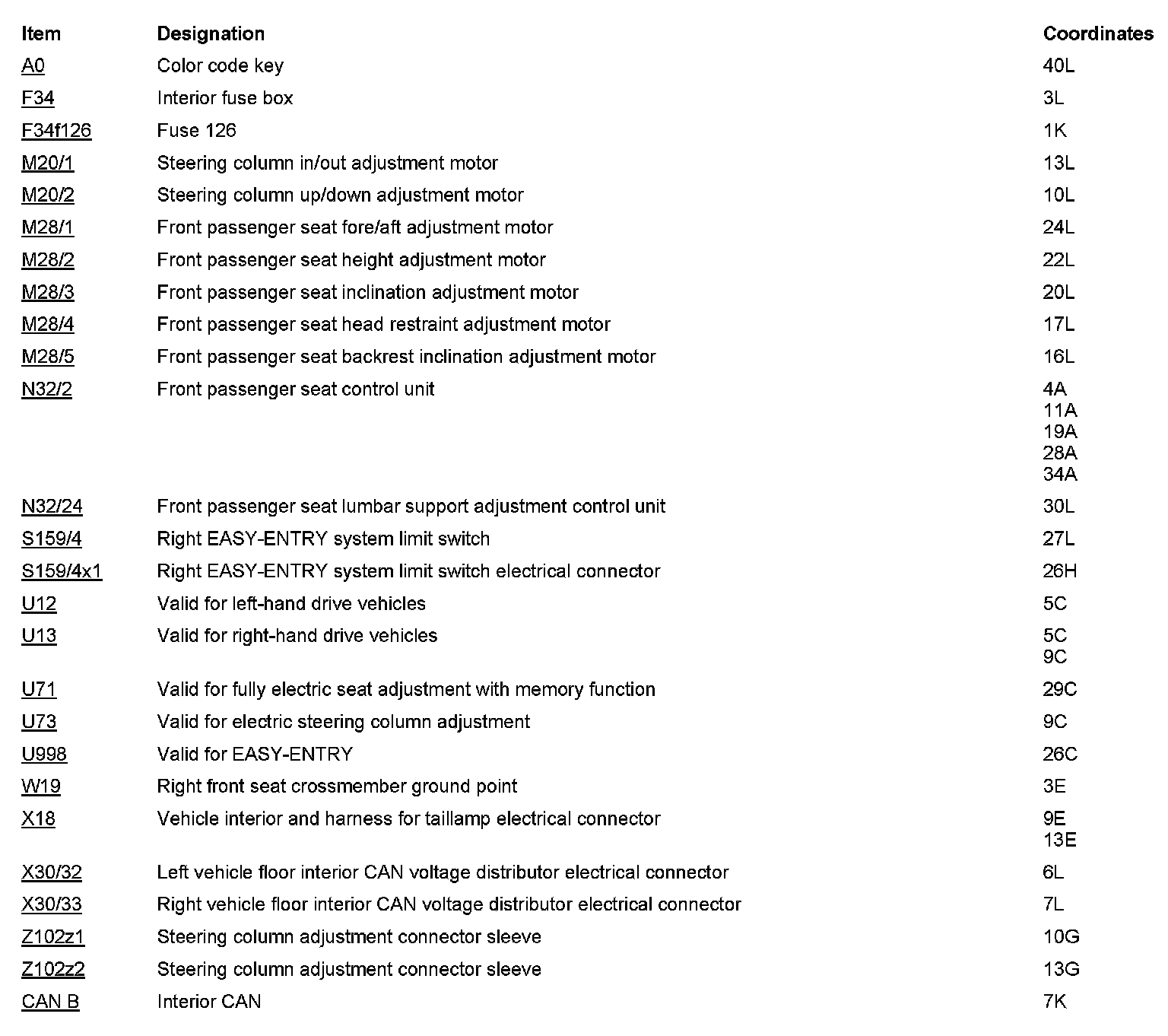

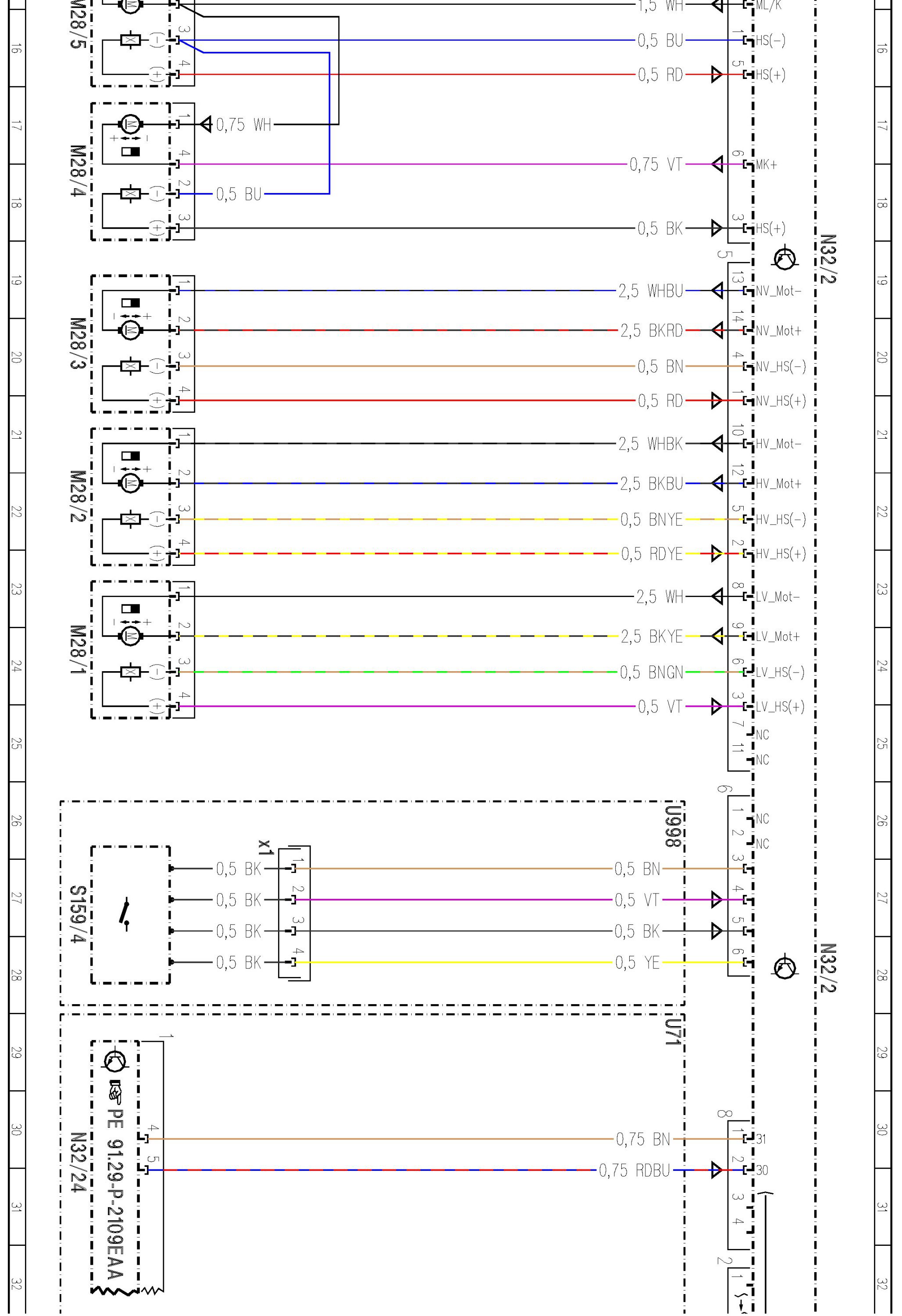

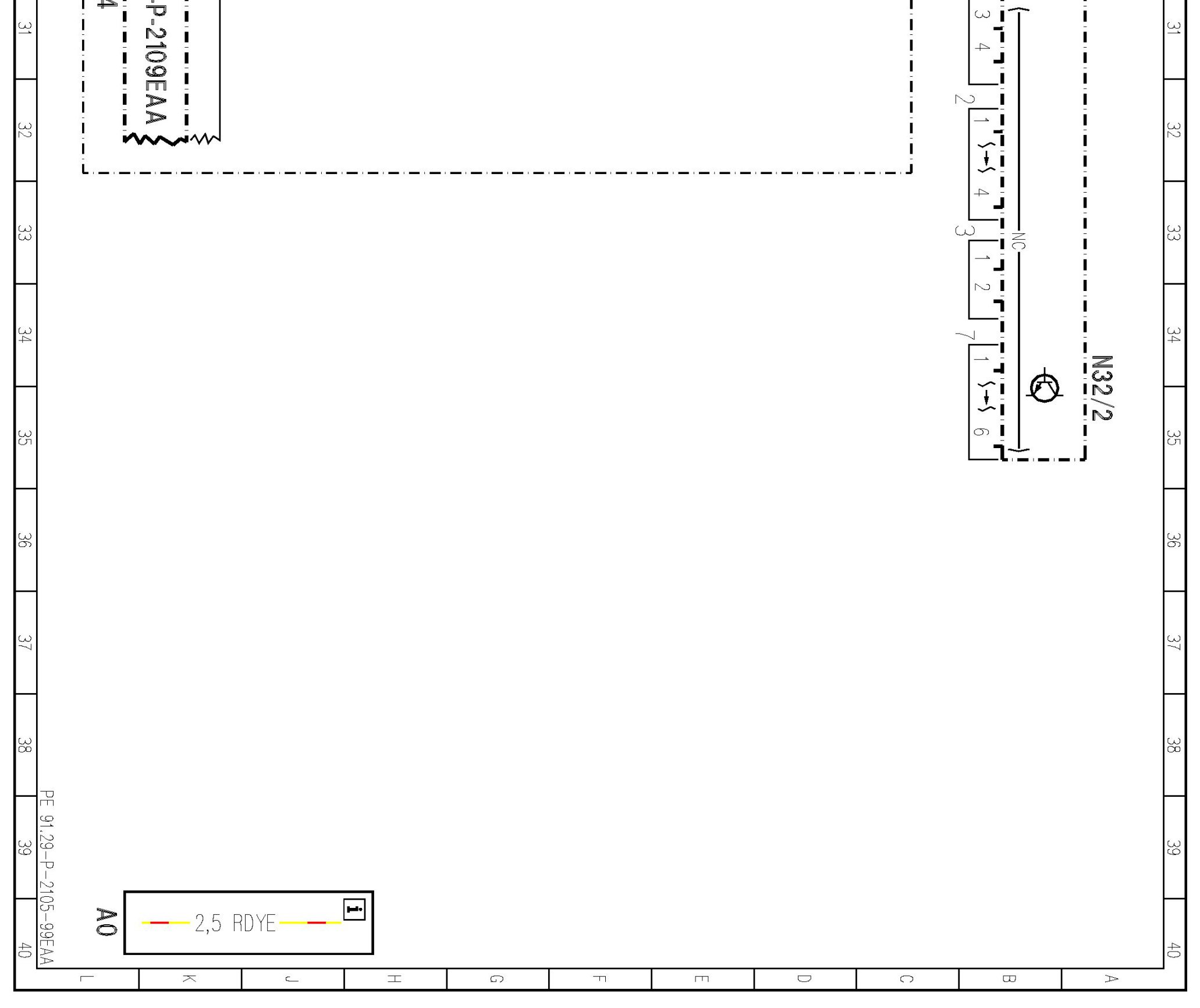

PE91.29-P-2105EAA Front Passenger-Side Seat Control Unit



PE91.29-P-2105EAA Front Passenger-Side Seat Control Unit

Model 207
- with CODE (242) Electrically adjustable passenger seat with memory

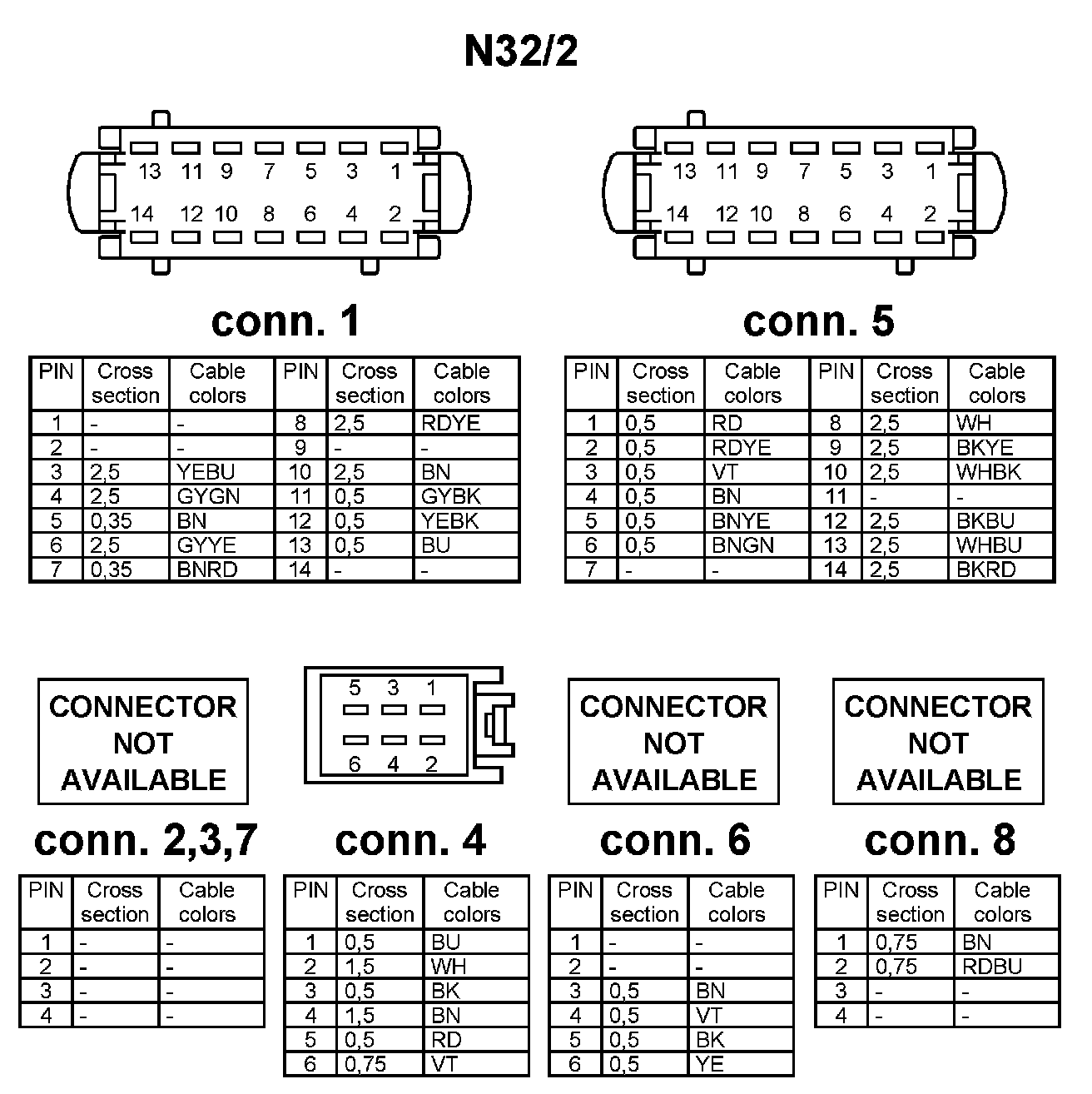

- control unit N32/2






































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
